Description

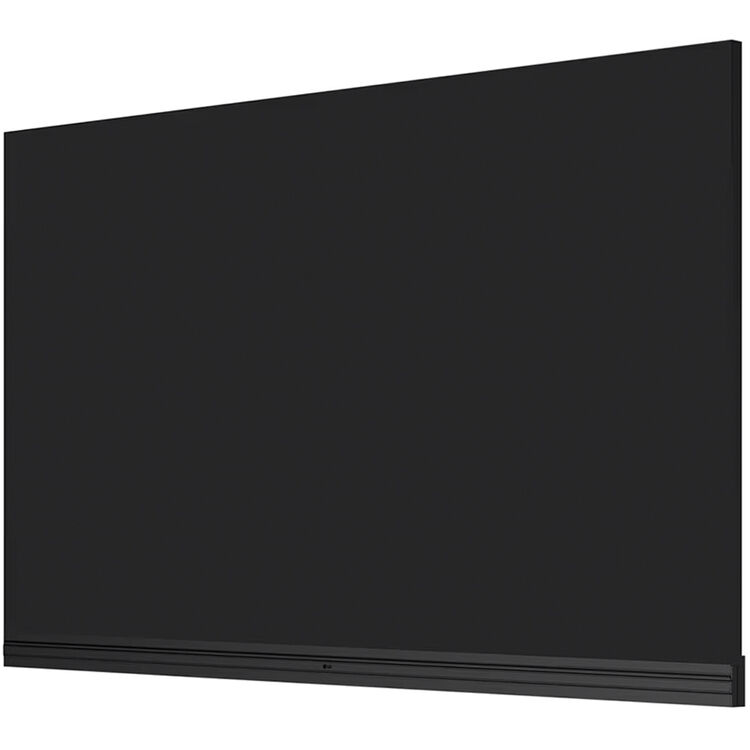

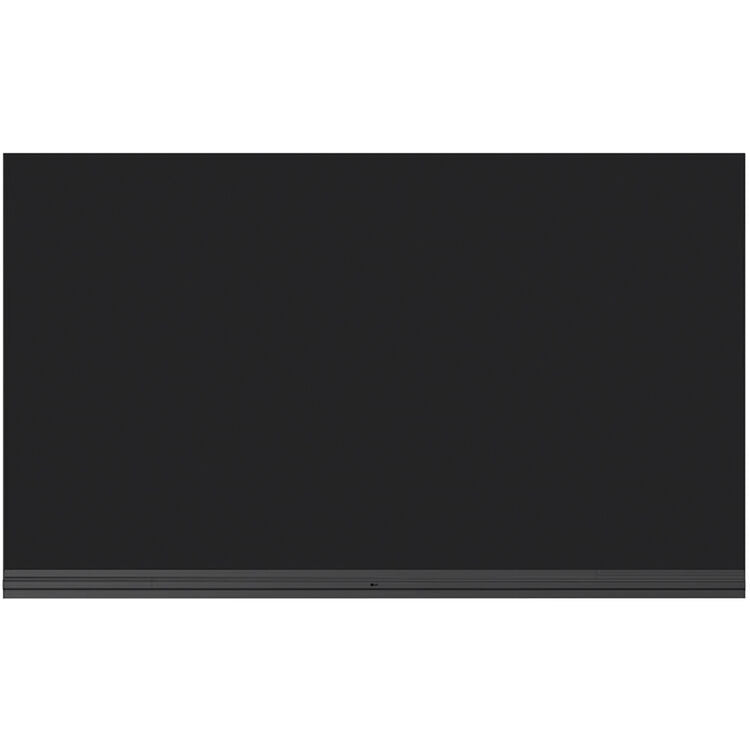

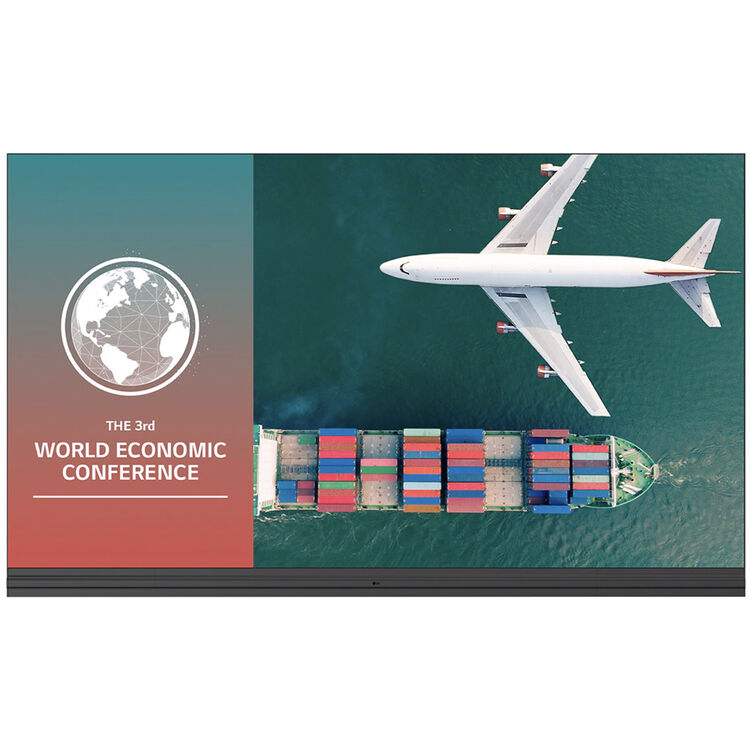

The LG LABA-F136GV is a 136-inch 2K Full HD (1920 x 1080) All-in-One DVLED boxed set display. It is built from five pre-assembled columns of five SMD panels with a 1.58 mm pixel pitch, and it measures 3,000 x 1,687 x 81 mm. It delivers 500 nits of brightness with a maximum power consumption of 1,600 W and a recommended minimum viewing distance of 8 to 11 feet. A built-in speaker and a built-in DVLED controller with embedded webOS 4.1 simplify installation, and it ships in a single wheeled box. Hardware includes 7% spare modules, spare boards and parts, and a 4K LG controller. Features include Miracast and WiDi screen sharing, the LG webOS interface and 3.6 GB of flash storage. A basic wall mount kit and trim kits are included. Services include a 3-year limited warranty (up to 2 more years with ExtendedCare), 3 years of TotalCare Health Checks, 3 years of ConnectedCare and 1 day of on-site field support. It can be serviced from the front or rear and is TAA compliant.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LABA-F136GV |
| Product Type | All-in-One DVLED boxed set display |
| Screen Size | 136" |
| Resolution | 1920 x 1080 (2K FHD) |
| LED Package | SMD |
| Pixel Pitch | 1.58 mm |

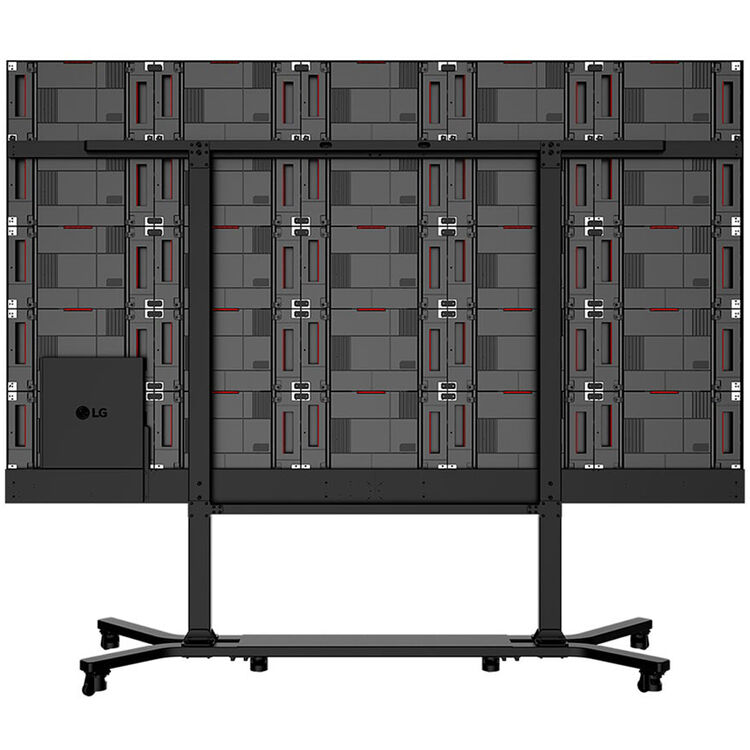

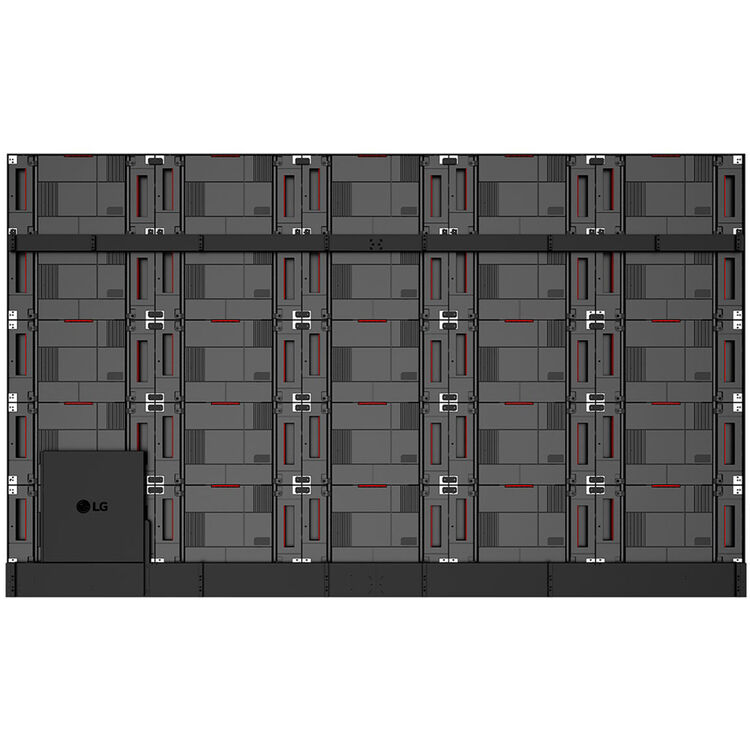

| Panel Array | 5 columns of 5 panels (pre-assembled) |
| Max Brightness | 500 nits |
| Max Power Consumption | 1,600 W |
| Min. Viewing Distance | 8 to 11 feet |
| Dimensions (W x H x D) | 3,000 x 1,687 x 81 mm (118.1 x 66.4 x 3.2 in) |
| Service Access | Front or rear |
| webOS / Controller | webOS 4.1, embedded |

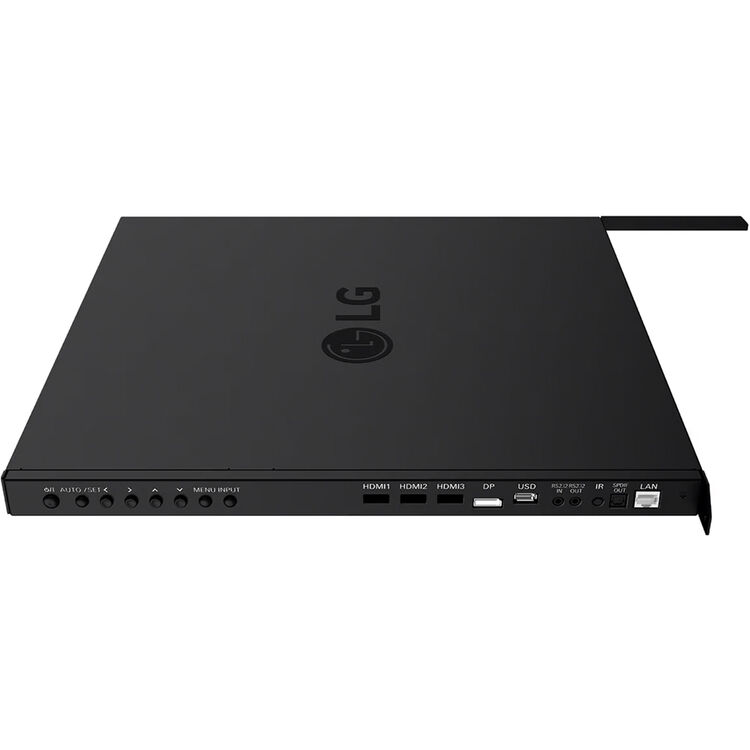

| Built-in Features | Speaker, DVLED controller |
| Included Hardware | 7% spare modules, spare boards and parts, 4K LG controller, basic wall mount kit, trim kits |
| Smart Features | Screen sharing (Miracast / WiDi), LG webOS interface, 3.6 GB flash storage |
| Packaging | Single custom wheeled box |
| Warranty | 3-year limited; up to 2 additional years with ExtendedCare |
| TotalCare Health Checks | 3 years |
| ConnectedCare Subscription | 3 years |
| On-Site Field Support | 1 day |
| TAA Compliance | Yes |
