Description

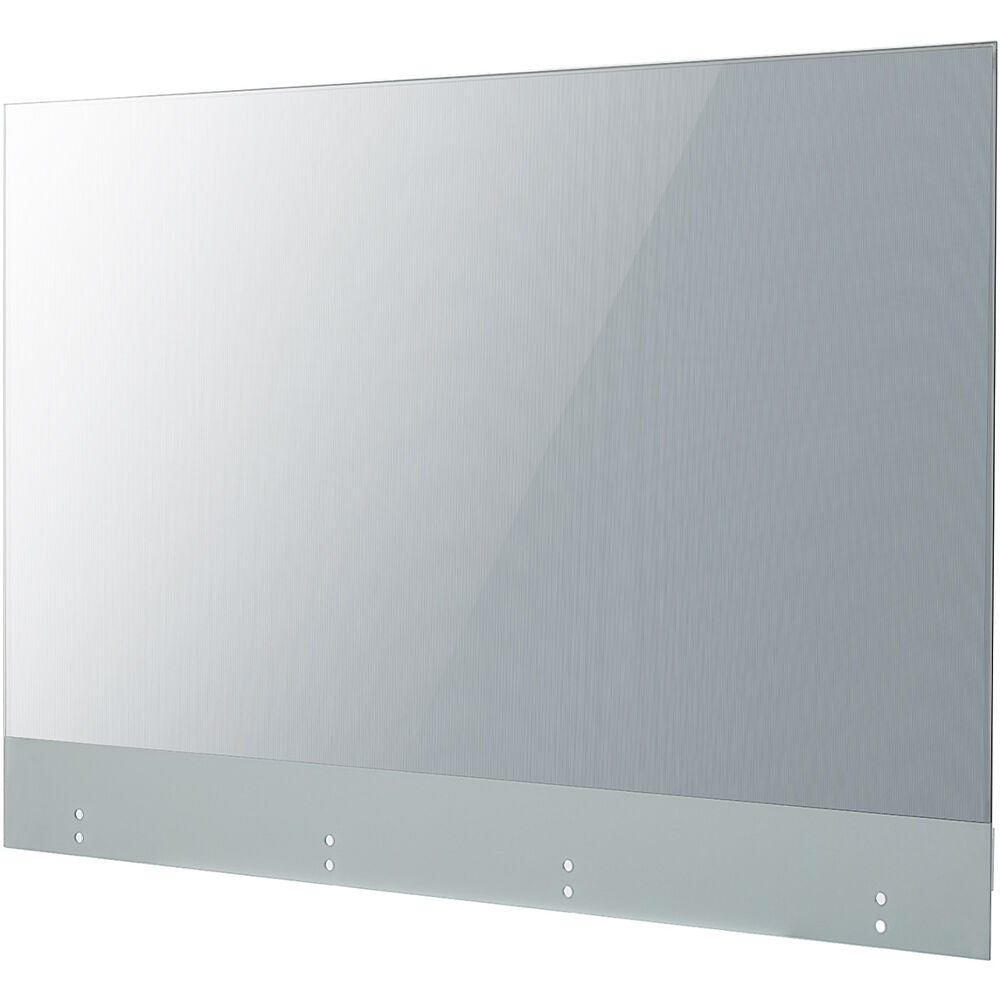

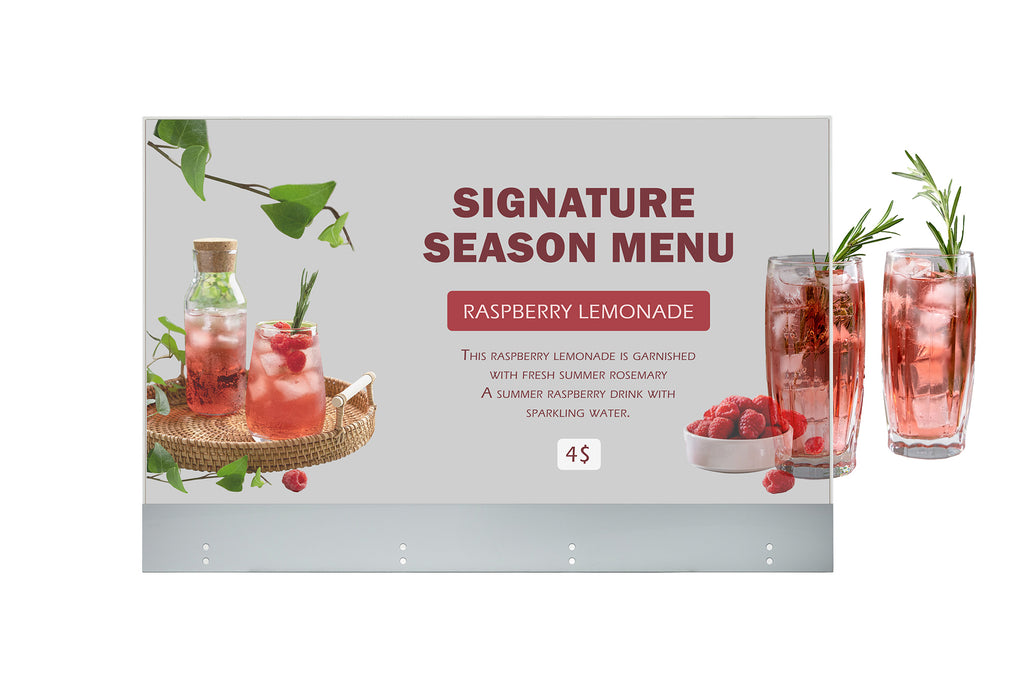

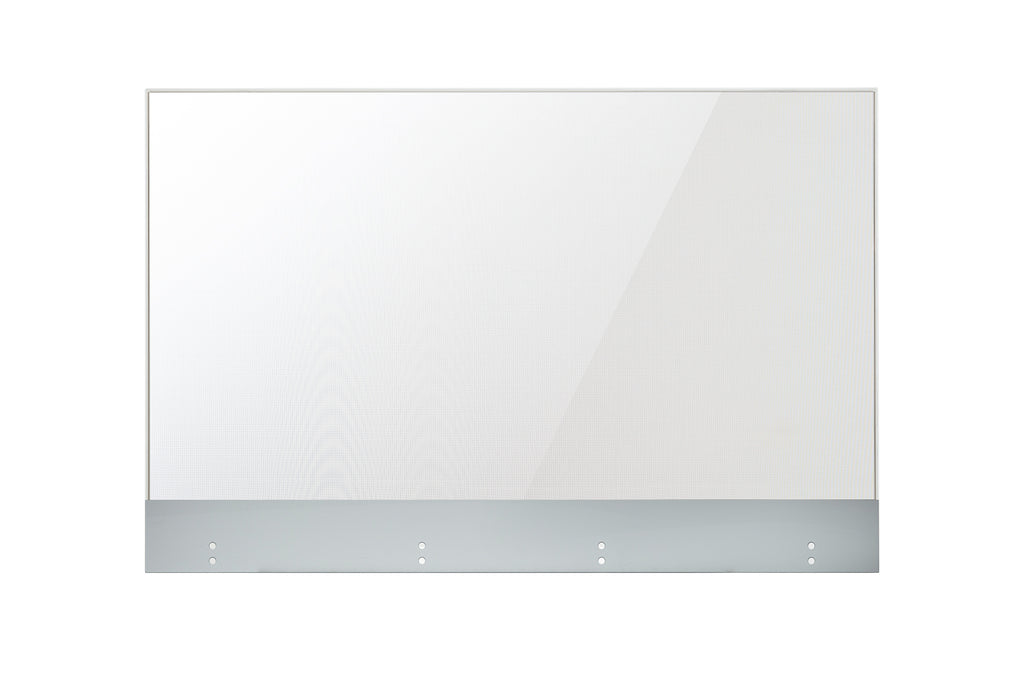

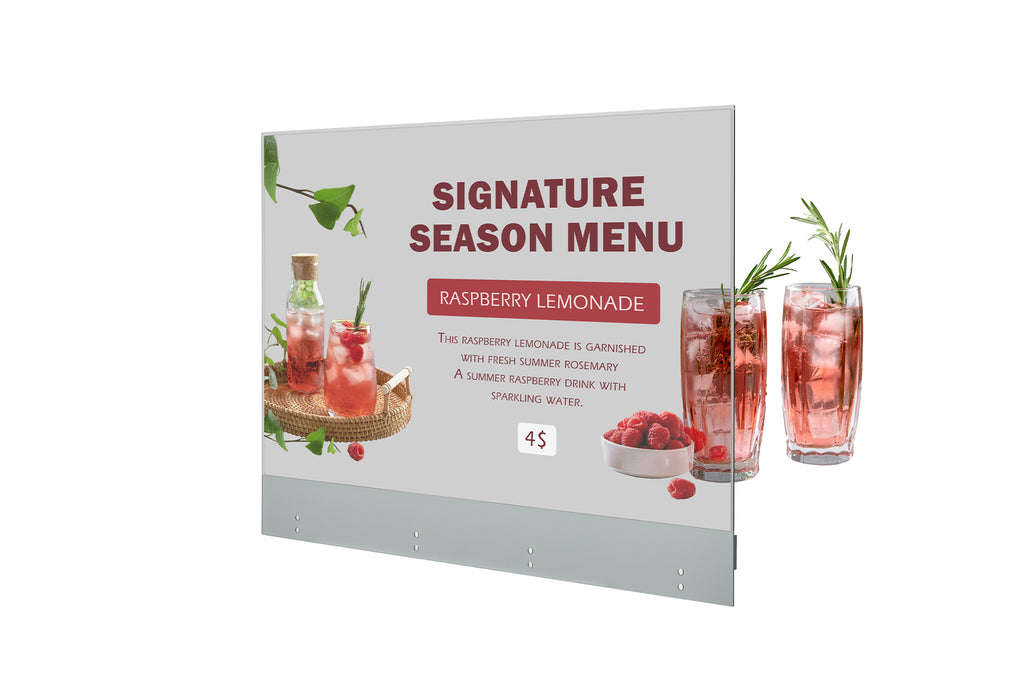

The LG 55EW5Q-C Transparent OLED signage display delivers a premium visual experience with 43% transparency, allowing digital content to overlay physical objects behind the screen. Its 55-inch Full HD OLED panel produces rich color depth, wide viewing angles, and a 200,000:1 contrast ratio, making it ideal for luxury retail, museums, showrooms, hospitality spaces, and high-end commercial environments.
Designed for elegant and flexible installations, this transparent OLED display includes protective tempered glass, portrait and landscape orientation support, and a separate signage box for clean integration. With webOS 7.5, USB playback, network control, daisy chain support, and SuperSign compatibility, the 55EW5Q-C is built for professional content management and reliable commercial signage performance.
| Specification | Details |
|---|---|
| Brand | LG |
| Product Type | Transparent OLED Digital Signage Display |
| Display Size | 55 Inches |
| Panel Technology | OLED |
| Native Resolution | 1920 x 1080 Full HD |
| Aspect Ratio | 16:9 |
| Refresh Rate | 120 Hz |
| Brightness | 200 nits at APL 100% and 600 nits at APL 25%, without glass |
| Contrast Ratio | 200,000:1 |
| Transparency | 43% set transparency |
| Color Gamut | DCI 90% and BT709 110% |
| Color Depth | 10-bit, 1.07 billion colors |
| Viewing Angle | 178° horizontal and 178° vertical |
| Response Time | 0.1 ms G to G and 8 ms MPRT |
| Surface Treatment | 3% haze set with hard coating rated 5H |
| Typical Lifetime | Up to 30,000 hours |
| Operation Hours | Designed for 18 hours per day, 7 days per week with moving content only |
| Orientation | Supports portrait and landscape installation |
| Protective Glass | 3.0 mm tempered, chemically strengthened glass with anti-reflective film and shatter-proof design |
| Inputs | HDMI, DisplayPort, RS-232C, RJ45 LAN, external IR receiver, and USB 2.0 Type-A ports |
| Outputs | DisplayPort, audio, RS-232C, RJ45 LAN, IR sharing, and DisplayPort daisy chain |
| Bezel Color | Transparent |
| Bezel Width | 7.9 mm top, 7.9 mm right, 7.9 mm left, and 121.8 mm bottom |
| Head Weight | 25.6 lb / 11.6 kg |
| Signage Box Weight | 5.7 lb / 2.6 kg |
| Head Dimensions | 48.3 x 31.9 x 0.6 in. / 1,225.5 x 810.1 x 14.6 mm |

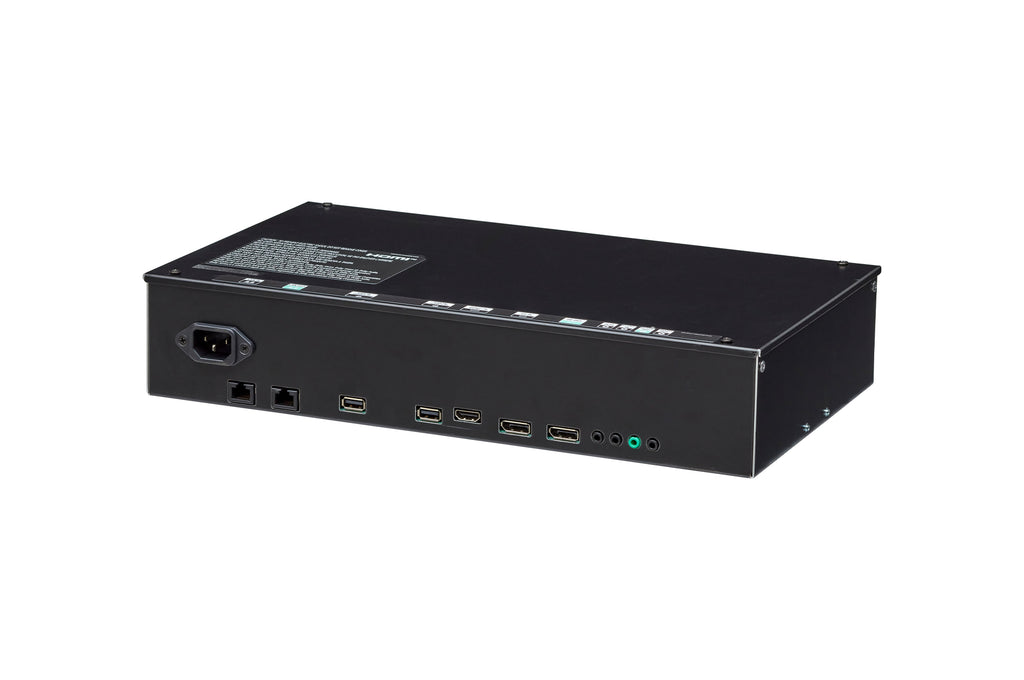

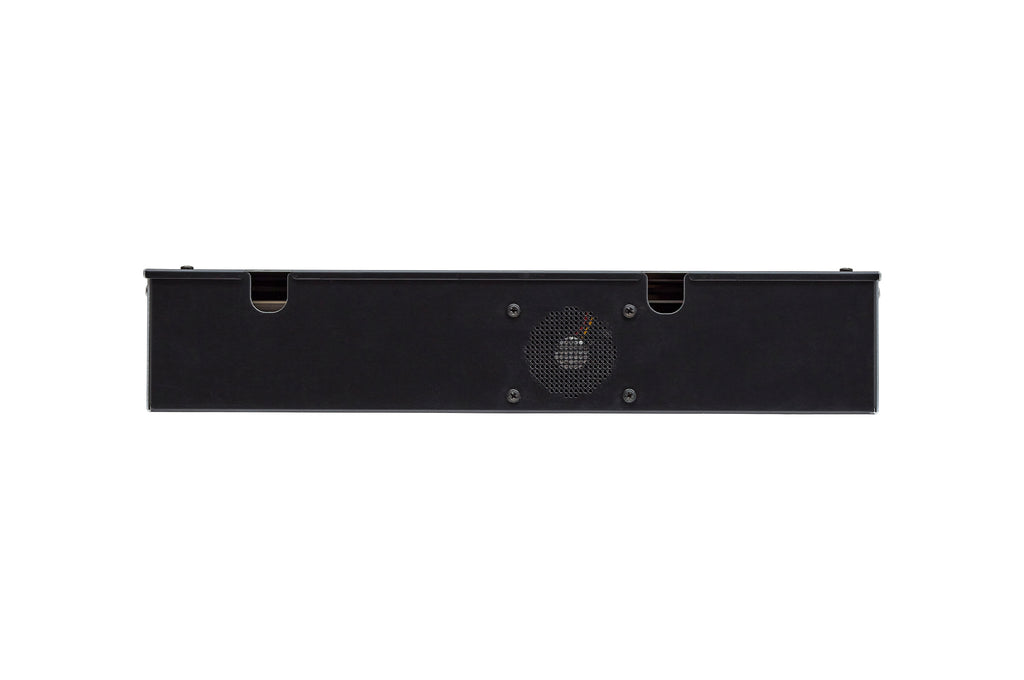

| Signage Box Dimensions | 15 x 8.6 x 2.9 in. / 381.6 x 217.6 x 73.6 mm |
| Internal Memory | 16 GB eMMC |
| Smart Platform | webOS 7.5 |
| Content Features | Local content scheduling, USB Plug & Play, fail over, gapless playback, tile mode setting, screen rotation, external input rotation, and setting data cloning |
| Control Features | RS-232C sync, local network sync, SNMP, auto set ID, status mailing, control manager, Wake on LAN, HDMI-CEC, and SI server setting |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| Power Supply | 100 to 240 Vac, 50/60 Hz |
| Power Type | Built-in power |
| Power Consumption | 70 W typical and 230 W maximum |
| Heat Dissipation | 239 BTU/hr typical and 785 BTU/hr maximum |
| Standby Power | 0.5 W DPM and 0.5 W power off |
| Software Compatibility | SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, and LG ConnectedCare |
| Included Accessories | Remote controller, power cord, quick setup guide, IR receiver, regulation book, phone to RS-232C gender, connection cables, DP cable, LAN cable, RS-232C cable, LC cable, screws, cover shield assembly, cable rubber, rubber dampers, cable holders, and signage box wing brackets |
| Warranty | 3-year limited warranty |
