Description

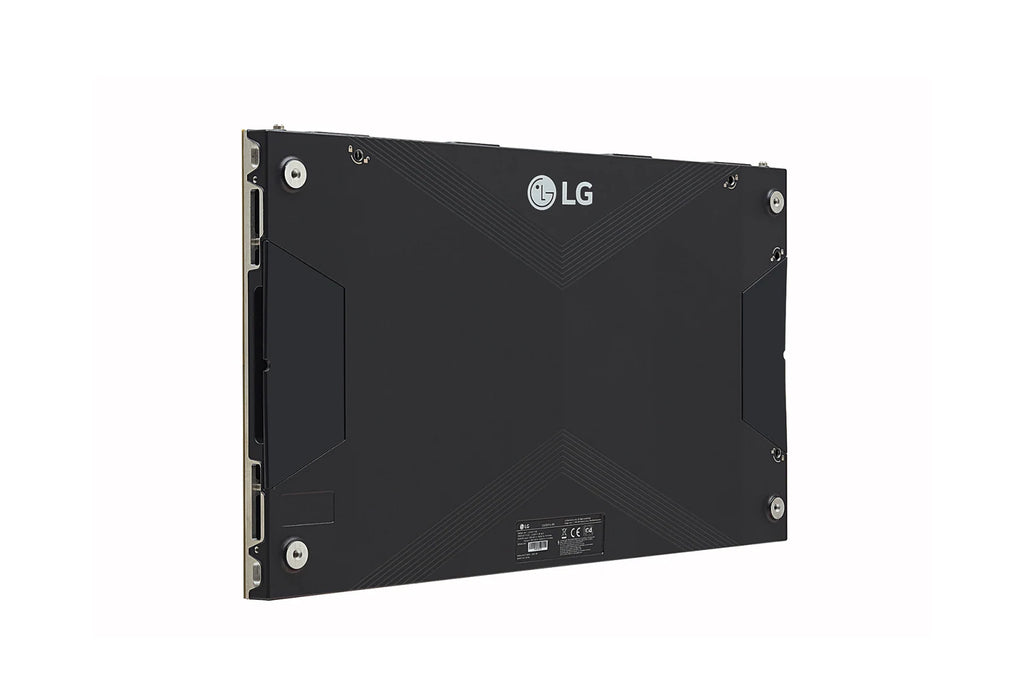

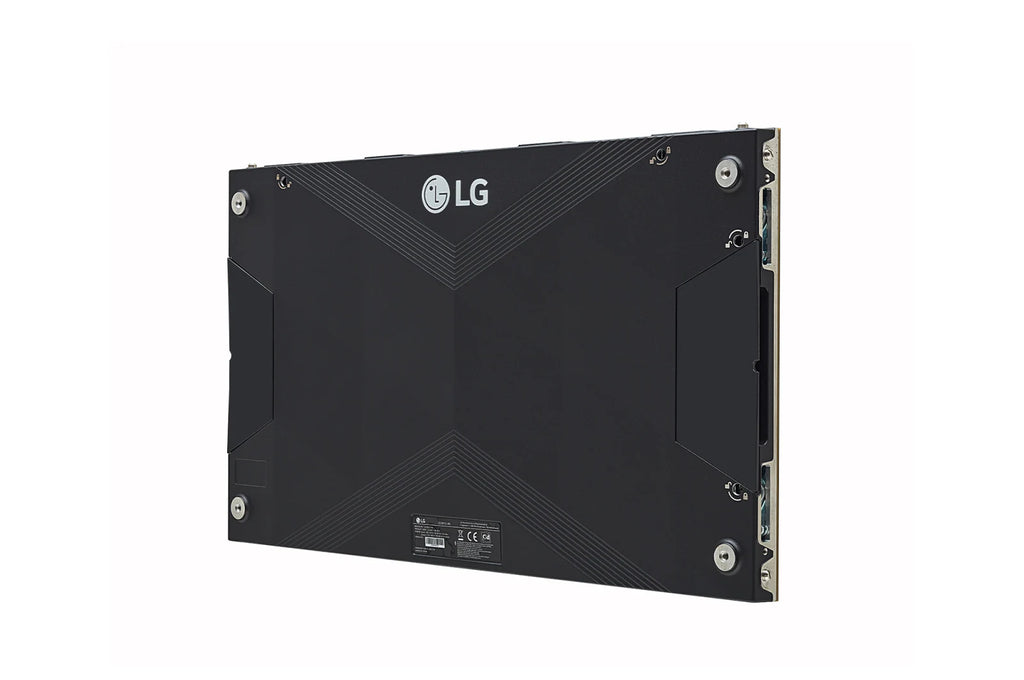

The LG LSCB018-CN is a mini indoor LED cabinet from the LSCB Ultra Slim Series, with a 1.88 mm pixel pitch and single SMD pixels. The ultra-slim 300 x 337.5 x 34 mm die-cast aluminum cabinet holds two 300 x 168.75 mm modules (1 x 2) for a resolution of 160 x 180 and weighs just 2.69 kg. It delivers 1,200 nits of brightness, a 5,000:1 contrast ratio, a 160Β° x 160Β° viewing angle, 14-bit processing with HDR10 and HDR10 Pro, and a 3,840 Hz refresh rate. It is EMC Class B certified with a fire-resistant design, supports a 90Β° corner cut, and offers front service access. With the LG CVCA controller, it works with SuperSign CMS, LED Assistant and ConnectedCare.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LSCB018-CN |
| Series | LSCB Ultra Slim Series (Indoor) |
| Cabinet Type | Mini |
| Pitch Name | P1.88 |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.88 mm |
| Module Resolution (W x H) | 160 x 90 |
| Module Dimensions (W x H) | 300 x 168.75 mm (11.8 x 6.6 in) |
| Weight per Module | 0.32 kg (0.7 lbs) |
| Modules per Cabinet (W x H) | 1 x 2 |
| Cabinet Resolution (W x H) | 160 x 180 |
| Cabinet Dimensions (W x H x D) | 300 x 337.5 x 34 mm (11.8 x 13.3 x 1.3 in) |
| Cabinet Surface Area | 0.1 mΒ² (1.08 ftΒ²) |
| Weight per Cabinet | 2.69 kg (5.9 lbs) |
| Weight per Unit Area | 26.57 kg/mΒ² (5.44 lb/ftΒ²) |
| Physical Pixel Density | 284,444 pixels/mΒ² |
| Cabinet Flatness | Β±0.1 mm |
| Cabinet Material | Die-cast aluminum |
| Service Access | Front |
| Max Brightness (After Calibration) | 1,200 nits |
| Color Temperature | 3,200 to 9,300 K |
| Viewing Angle (H x V) | 160Β° x 160Β° |
| Brightness Uniformity | 0.97 |
| Color Uniformity | Β±0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 14-bit (HDR10, HDR10 Pro) |
| Max Power Consumption per Cabinet | 75 W |
| Avg. Power Consumption per Cabinet | 25 W |
| Max Power Consumption per mΒ² | 740 W/mΒ² |
| Max Heat Dissipation per Cabinet | 256 BTU/h |
| Avg. Heat Dissipation per Cabinet | 85 BTU/h |
| Max Heat Dissipation per mΒ² | 2,528 BTU/h/mΒ² |
| Power Supply | 100 to 240 VAC |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| Lifetime (Half Brightness) | 100,000 hours |
| Operating Temperature | -10Β°C to 45Β°C (14Β°F to 113Β°F) |
| Operating Humidity | 0% to 80% RH |
| IP Rating (Front / Rear) | IP30 / IP30 |
| Certifications | CE, FCC, ETL, EMC Class B |
| Fire Protection | BS476 Part 7 Class 1, EN13501-1 |
| Environmental | RoHS, REACH |
| Controller | CVCA |
| 90Β° Corner Cut | Yes |
| Warranty | 3-year limited |
