Description

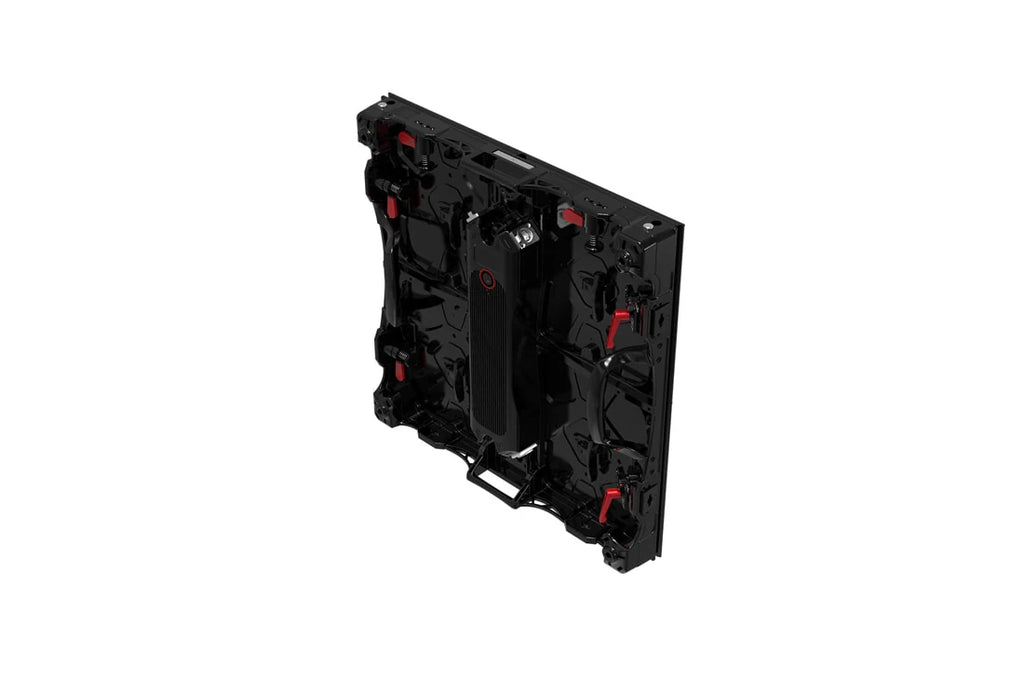

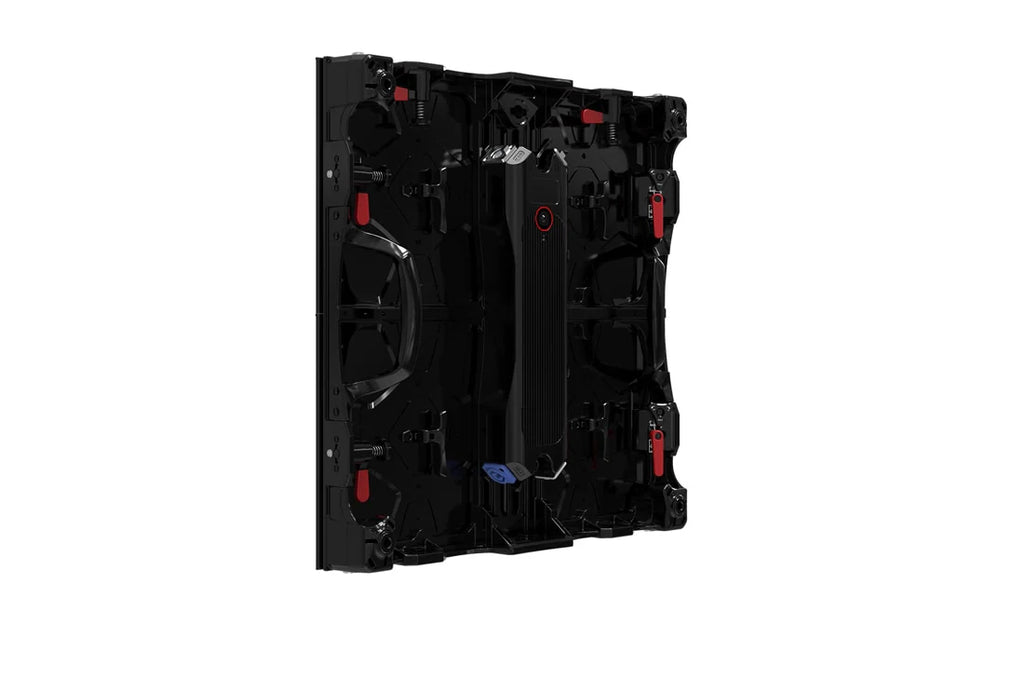

The LG LBAE026-GM is a studio-series direct view LED cabinet for virtual production, with a 2.60 mm pixel pitch and 3-in-1 SMD pixels. Each 500 x 500 x 75.5 mm die-cast magnesium alloy cabinet holds four 250 x 250 mm modules (2 x 2) for a resolution of 192 x 192 and weighs just 6 kg. It delivers 1,500 nits of brightness, a 5,000:1 contrast ratio, a 160Β° x 160Β° viewing angle, 16-bit processing and a 7,680 Hz refresh rate. Magnetic assembly, positioning pins, fast locks and handles allow quick, accurate panel alignment. Modules can be removed with a dedicated tool from either the front or the rear, chosen at order. An angle adapter system enables a curve effect of up to 10Β° concave or 5Β° convex, and optional beams support stacking and hanging installations. Broadcast-quality features include HDR, CamSync, Phase Shift, color gamut and gamma adjustment, custom 3D-LUT, HDR manual adjustment, and waveform and vector scope analysis. It works with the LG CBAE-026M webOS 4.1 controller, which provides SDI and Genlock in/out, along with SuperSign CMS, LED Assistant and ConnectedCare.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LBAE026-GM |
| Series | LBAE Studio Series (Virtual Production) |
| Pixel Configuration | 3-in-1 SMD |
| Pixel Pitch | 2.60 mm |
| Module Resolution (W x H) | 96 x 96 |
| Module Dimensions (W x H) | 250 x 250 mm (9.8 x 9.8 in) |
| Weight per Module | 0.59 kg (1.3 lbs) |
| Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 192 x 192 |
| Cabinet Dimensions (W x H x D) | 500 x 500 x 75.5 mm (19.7 x 19.7 x 3.0 in) |
| Cabinet Surface Area | 0.25 mΒ² (2.7 ftΒ²) |
| Weight per Cabinet | 6 kg (13.2 lbs) |
| Weight per Square Meter | 24 kg/mΒ² (4.9 lbs/ftΒ²) |
| Physical Pixel Density | 147,456 pixels/mΒ² |
| Cabinet Flatness | Β±0.15 mm |
| Cabinet Material | Die-cast magnesium alloy |
| Service Access | Front or rear (select one) |
| Max Brightness (After Calibration) | 1,500 nits |
| Color Temperature | 2,000 to 10,000 K (default 6,500 K) |
| Viewing Angle (H x V) | 160Β° x 160Β° |
| Brightness Uniformity | 97% |
| Color Uniformity | Β±0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 16-bit |
| Max Power Consumption per Cabinet | 180 W |
| Avg. Power Consumption per Cabinet | 60 W |
| Max Power Consumption per mΒ² | 720 W/mΒ² |
| Power Supply | 100 to 240 VAC |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 7,680 Hz |
| Lifetime (Half Brightness) | Up to 100,000 hours |
| Operating Temperature | 0Β°C to 40Β°C (32Β°F to 104Β°F) |
| Operating Humidity | 0% to 80% RH |
| IP Rating | IP30 |
| Curve Effect | Up to +10Β° concave / -5Β° convex |
| Installation | Stacking and hanging (optional single, double, triple beams) |
| Controller | CBAE-026M (webOS 4.1) |
| Controller Loading Capacity | 3,840 x 2,160 @ 60 Hz (8.29 million pixels) |
| Controller Input / Output | HDMI 2.0 (HDCP 2.2), SDI (4 x 3G-SDI), Genlock in / Ethernet (20 x 1G to LED), Genlock out |
| Controller Video Processing | Brightness and chroma adjustment, improved grayscale at low brightness, scaling, HDR10 / HDR10 Pro / PQ / HLG, low latency (2 frames) |
| Controller Dimensions / Weight | 446 x 63 x 301 mm / 5 kg |
