Description

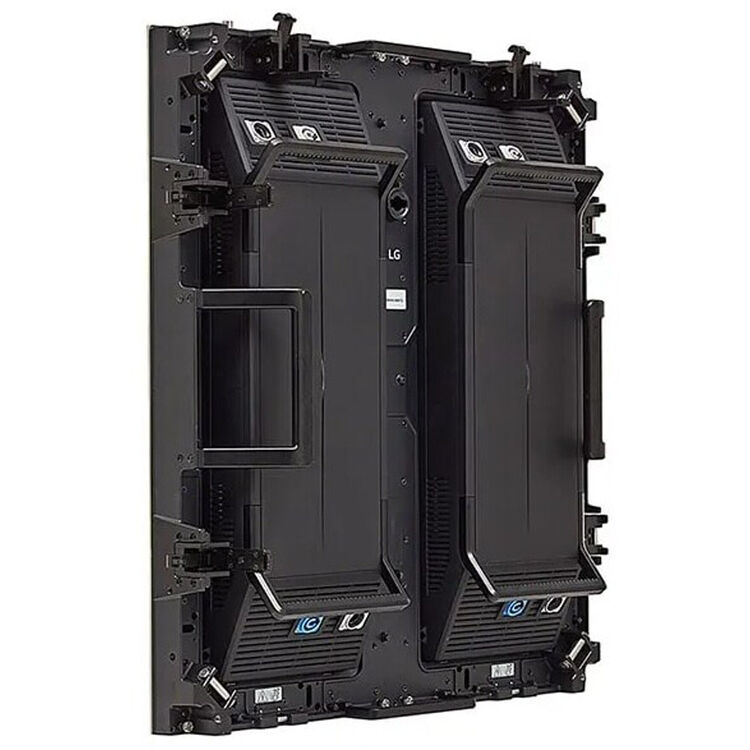

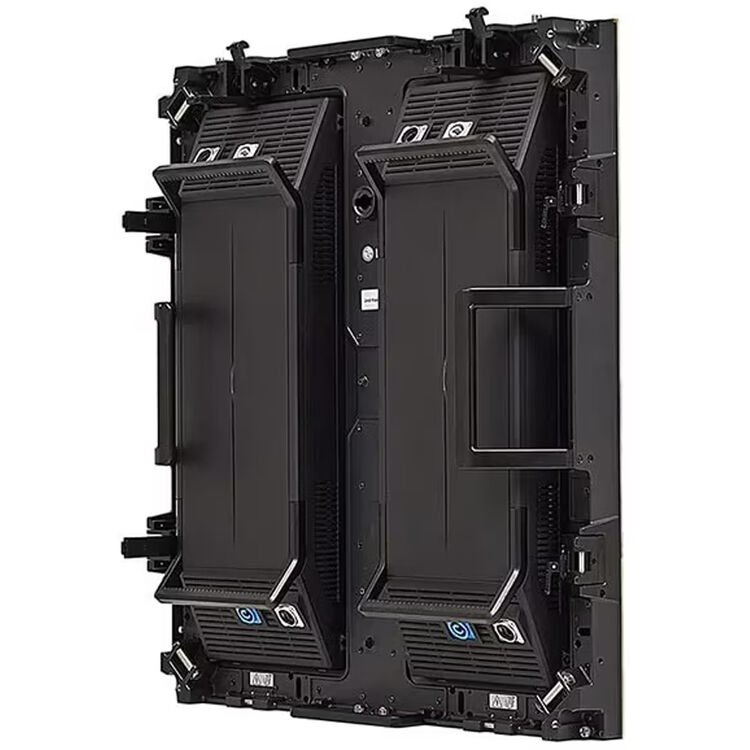

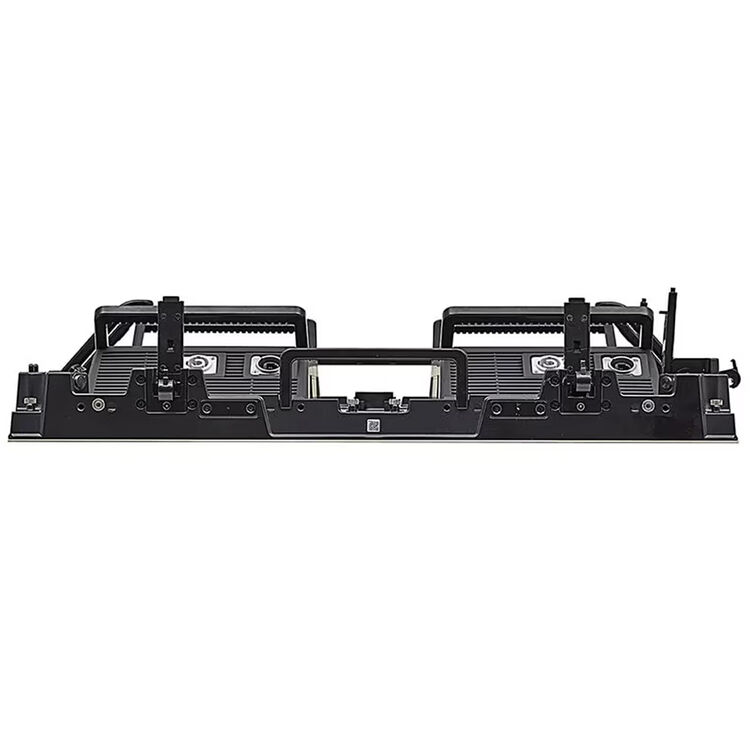

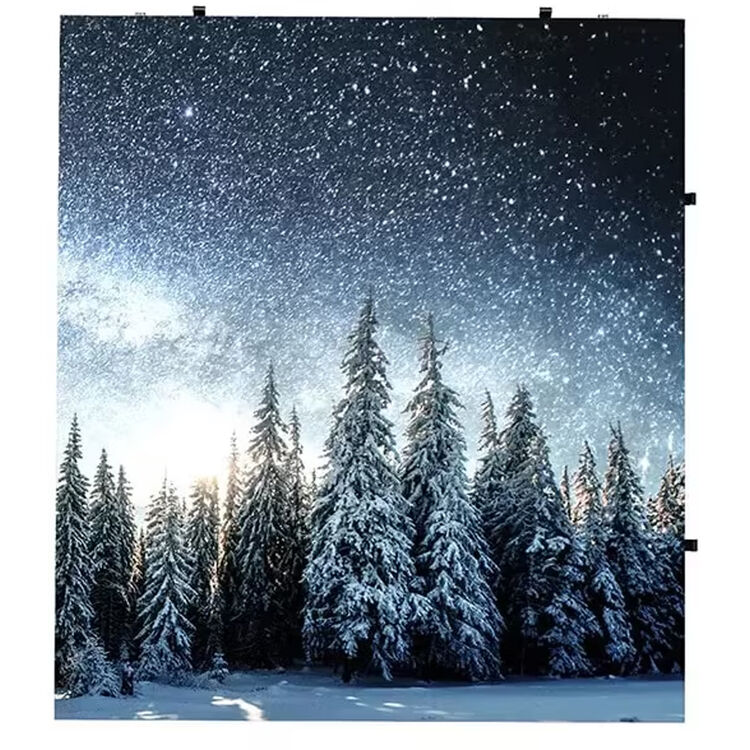

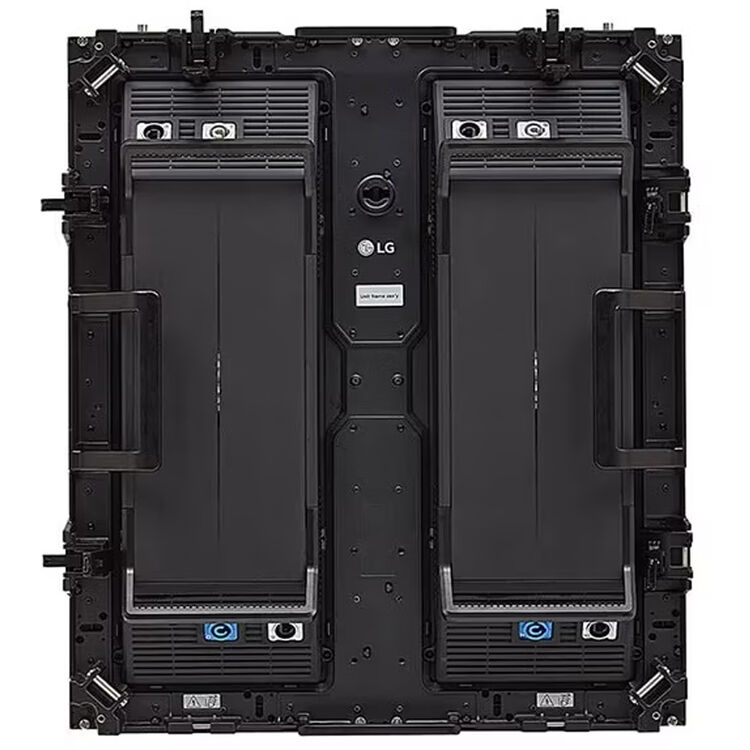

The LG LBAG015-G3 is a direct view LED cabinet from the LBAG Series for virtual production, with a 1.56 mm pixel pitch and standard COB construction. Each flat 600 x 675 mm cabinet has a resolution of 384 x 432 and weighs 16 kg. It delivers 1,500 nits of brightness, a 100,000:1 dynamic contrast ratio, a 7,680 Hz refresh rate, a 160° x 160° viewing angle and HDR support. It works with the Megapixel HELIOS LED processing platform for a powerful UI and UX. Installation and maintenance are straightforward, a curve effect is available, and stacking and hanging systems are supported. It runs on 100 to 240 V power and operates from 0°C to 40°C.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LBAG015-G3 |
| Series | LBAG Series (Virtual Production) |
| Display Technology | Direct view LED |
| LED Package | Standard COB |
| Pixel Pitch | 1.56 mm |
| Resolution | 384 x 432 |
| Screen Type | Flat (curve effect available) |
| Brightness | 1,500 nits |
| Dynamic Contrast Ratio | 100,000:1 |
| Refresh Rate | 7,680 Hz |
| Viewing Angle | 160° / 160° |
| HDR | Yes |
| Cabinet Dimensions (W x H) | 600 x 675 mm |
| Weight | 16 kg |
| Processing Platform | Megapixel HELIOS LED Processing Platform |
| Installation | Stacking and hanging systems available |
| Power Supply | 100 to 240 V |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% RH |
| UPC | 195174089149 |
