Description

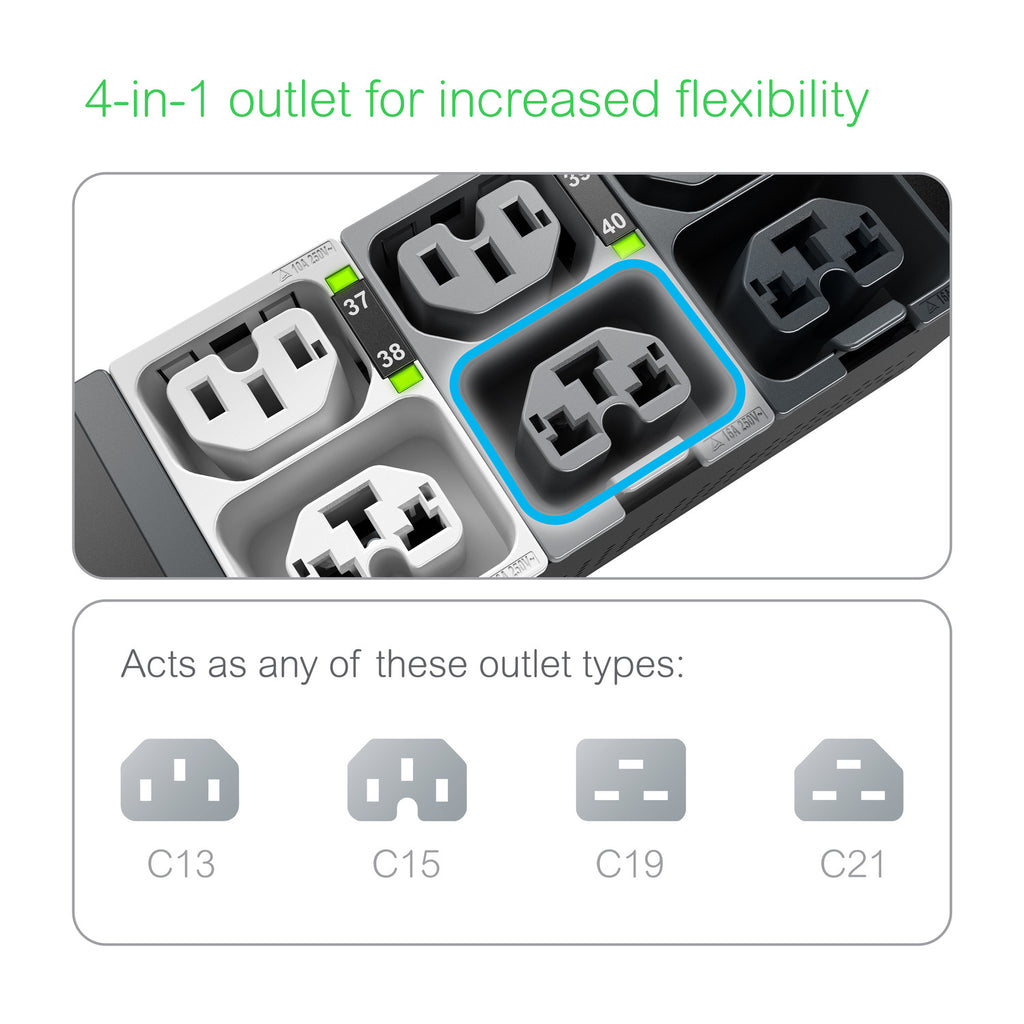

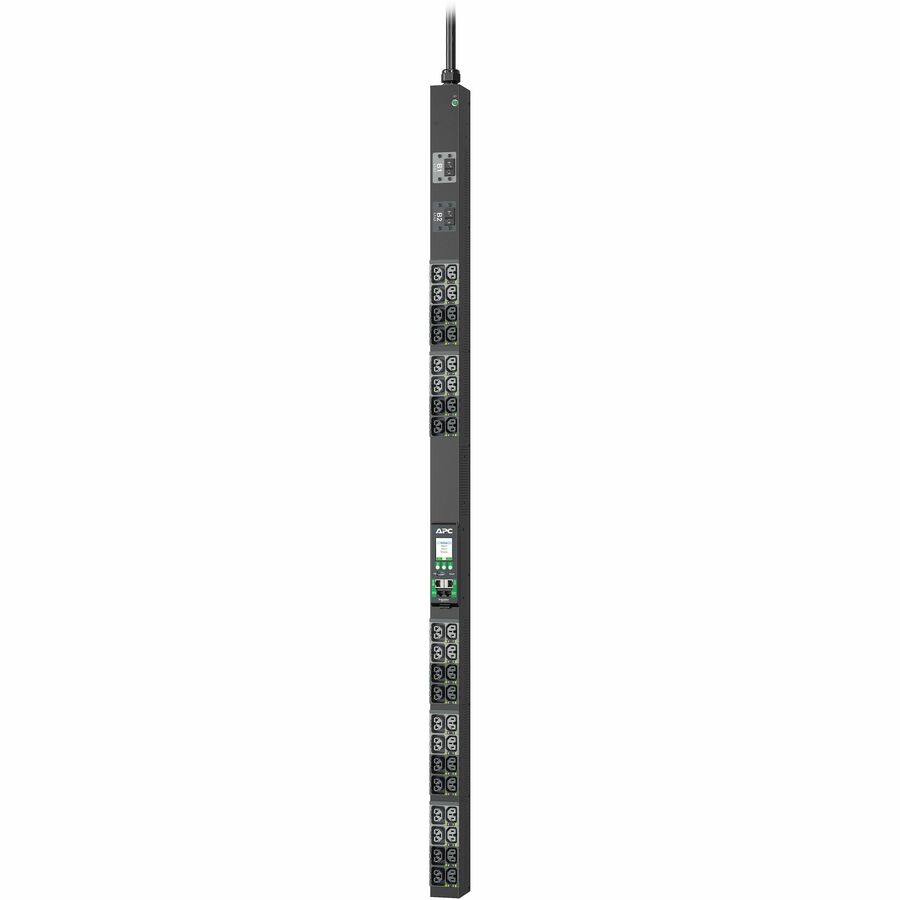

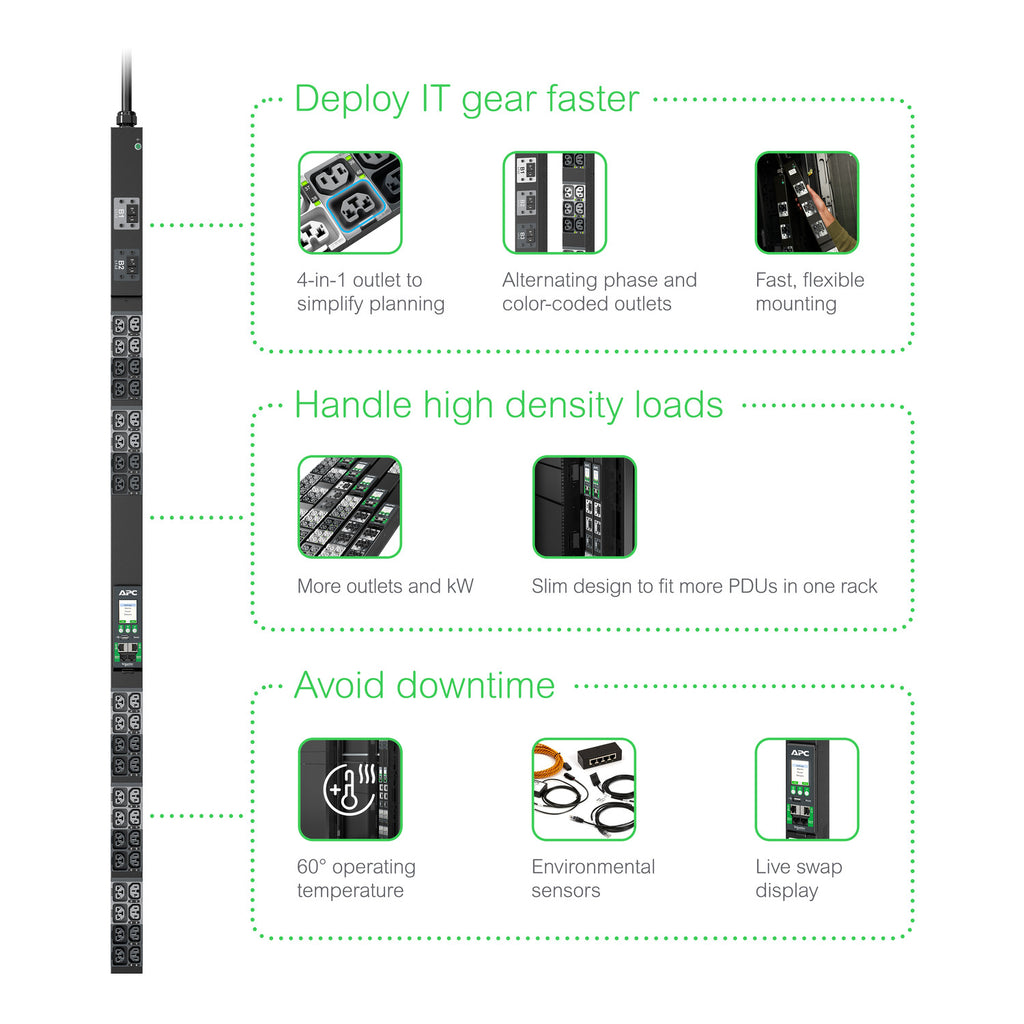

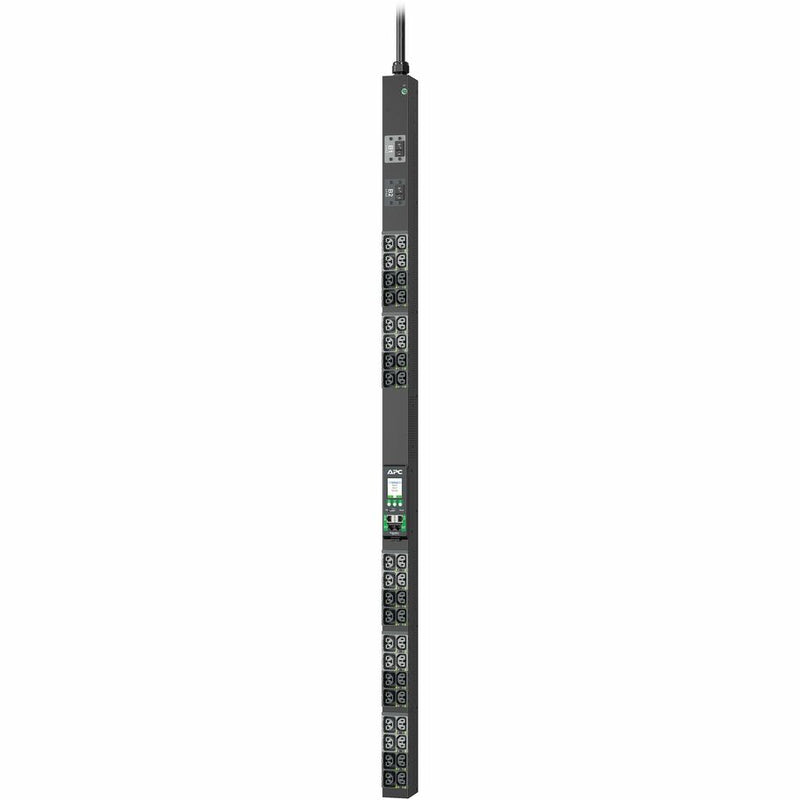

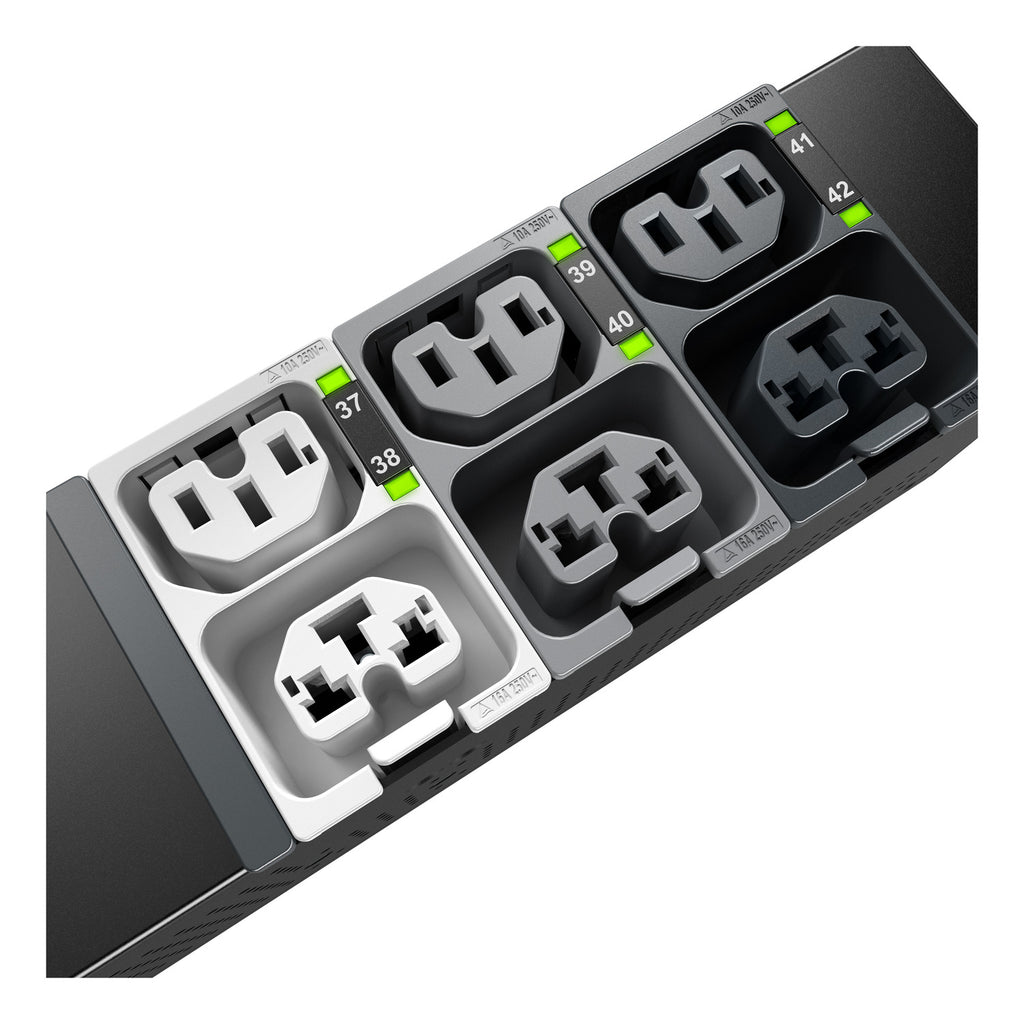

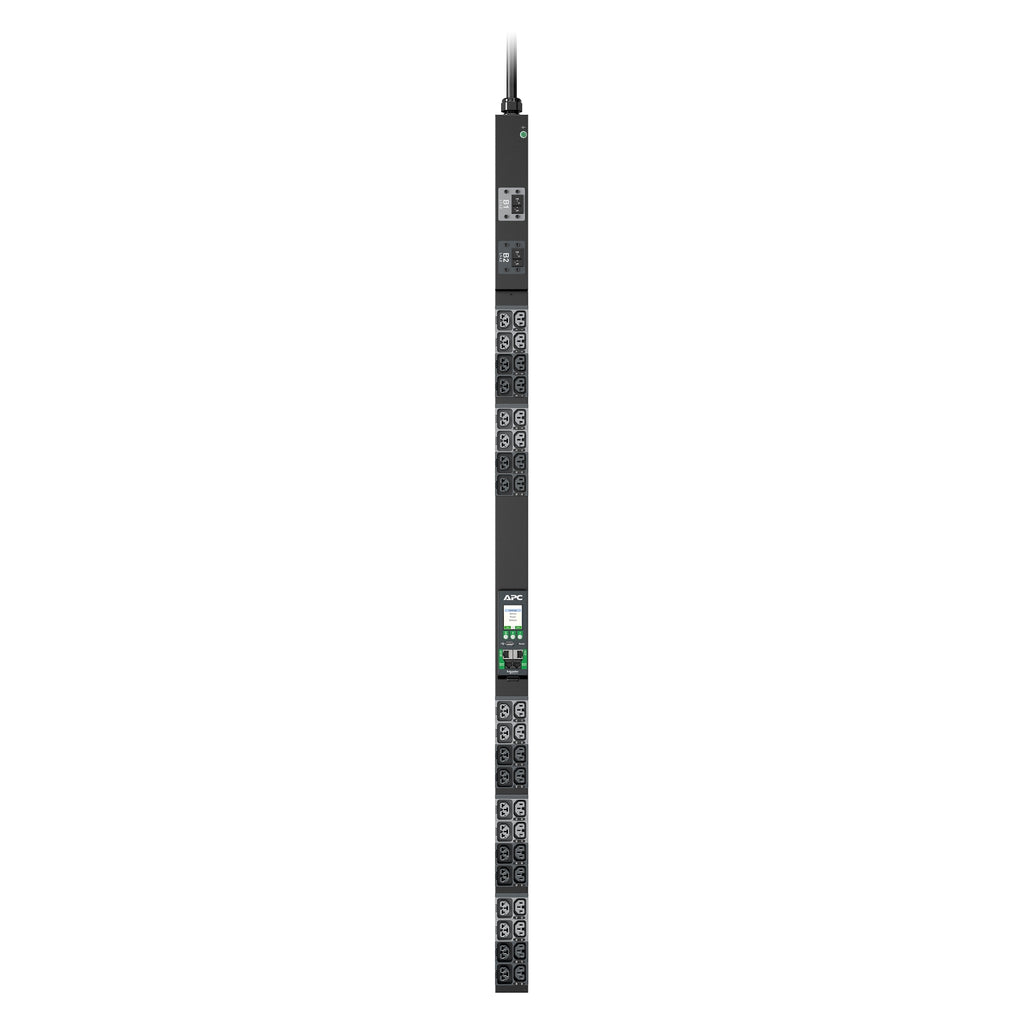

The APC NetShelter Rack PDU Advanced (APDU10151SM) delivers intelligent, reliable power distribution with 40 high-density switched outlets and full metering capabilities. With outlet-level switching and 1% billing-grade metering accuracy, this 0U vertical PDU supports advanced network management, environmental monitoring, and high availability in modern IT deployments. The 4-in-1 outlet design (C13/C15/C19/C21) offers exceptional flexibility, while the Gigabit Ethernet port with cascading ensures uninterrupted communication—even during power loss.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU10151SM |
| PDU Type | Switched Metered Outlet |

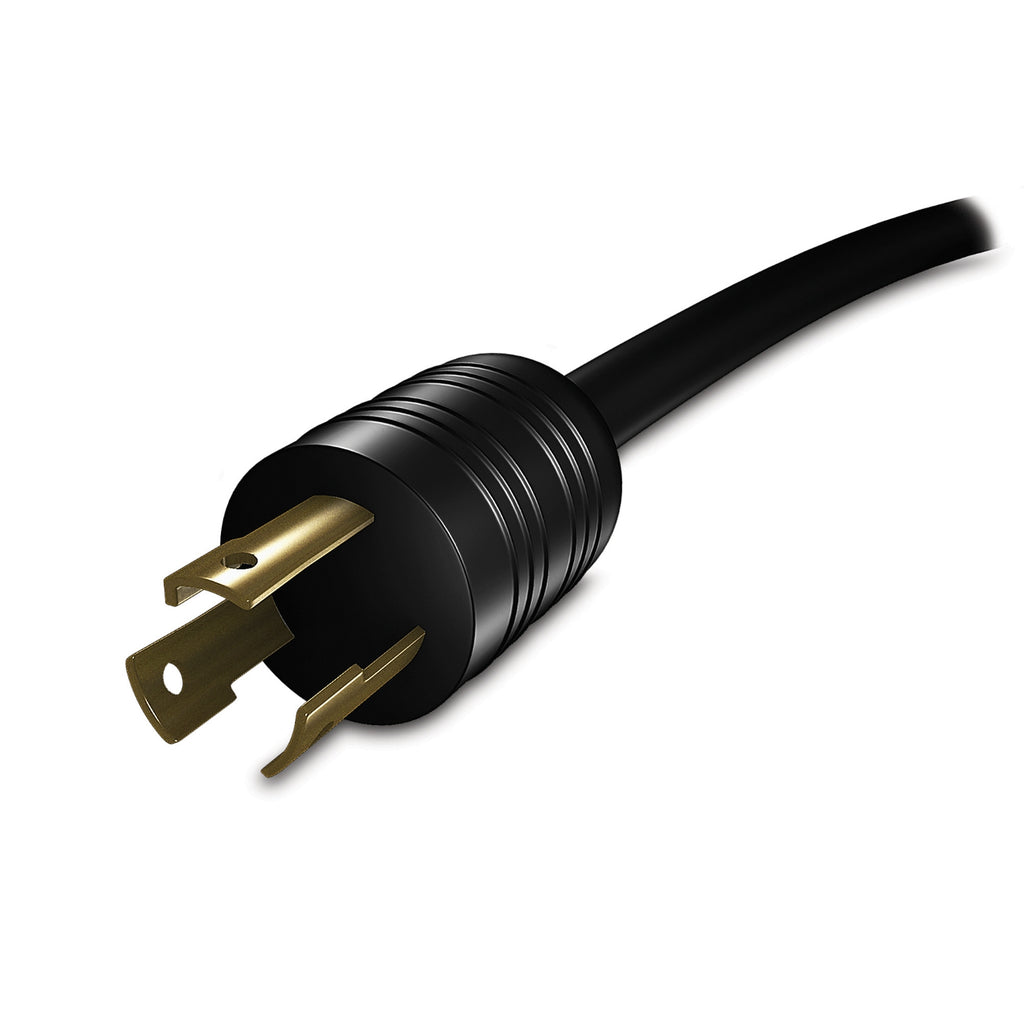

| Input Plug Type | NEMA L6-30P |
| Input Phase & Voltage | 1PH, 208V |
| Rated Load Capacity | 5.0kW (4992 VA) |
| Input Frequency | 50/60 Hz |
| Input Current | 30A max / 24A rated |
| Outlet Quantity & Type | (20) C13/C15/C19/C21, (20) C13/C15 |

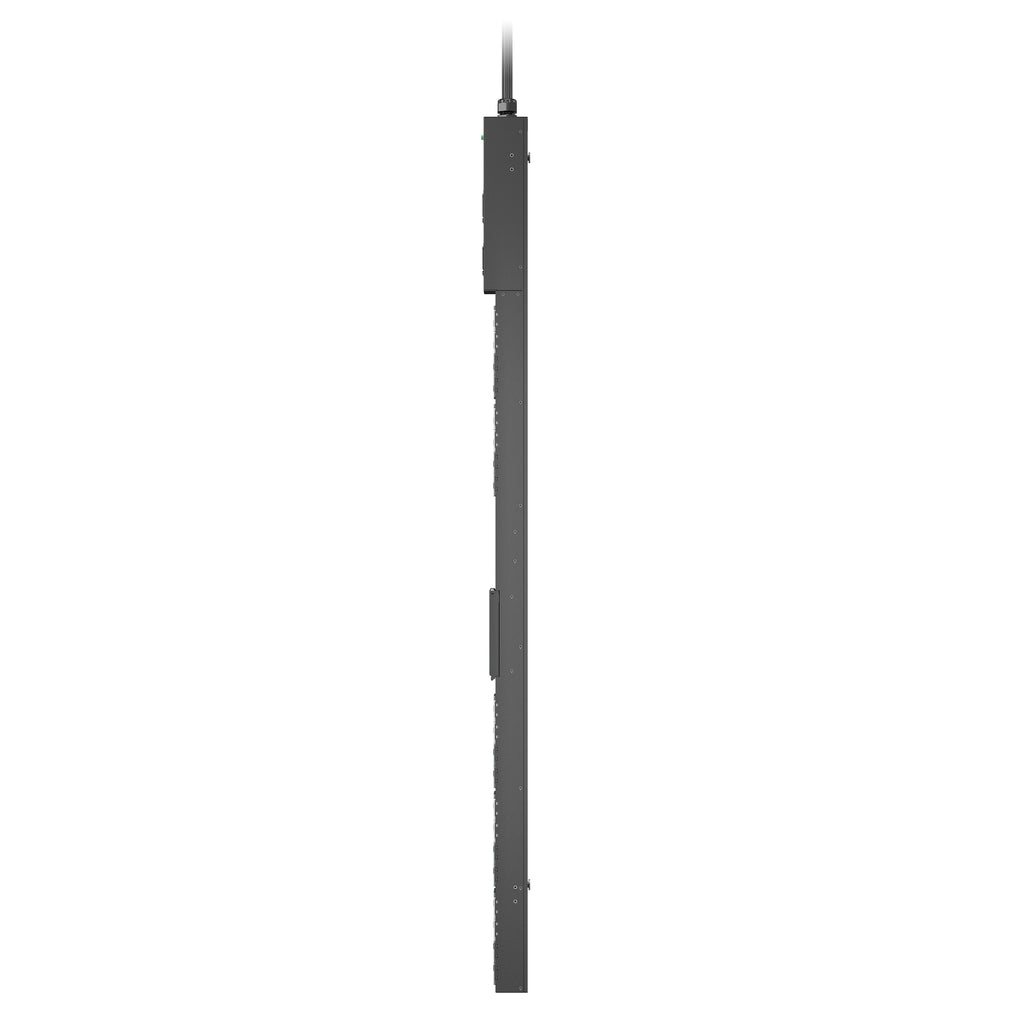

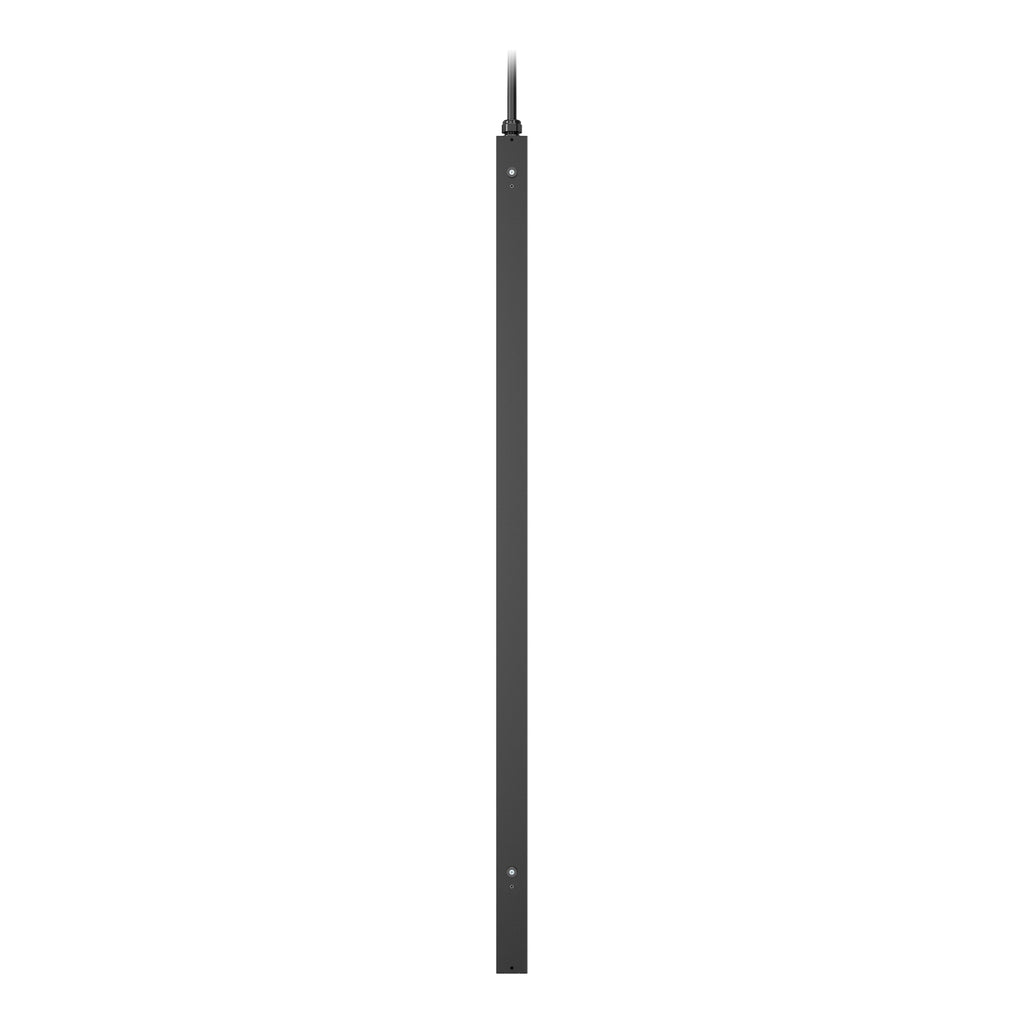

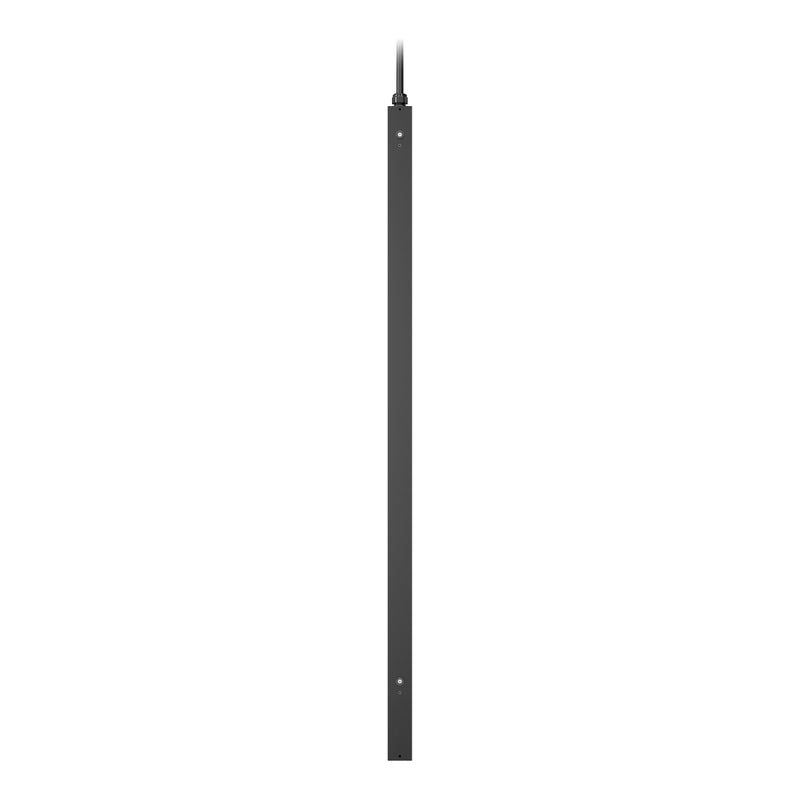

| Mounting Type | Vertical (0U), side mount |
| Cord Length | 9.8 ft (3.0 m) |
| Dimensions (H x W x D) | 58.66 x 2.20 x 2.95 in (149 x 5.6 x 7.5 cm) |
| Weight | 17.2 lb (7.8 kg) |
| Operating Temp. Range | -5 to 60°C (23 to 140°F) |
| IP Rating | IP44 |
| Certifications | TAA, BAA, UL 62368-1, CSA C22.2 No 62368-1 |

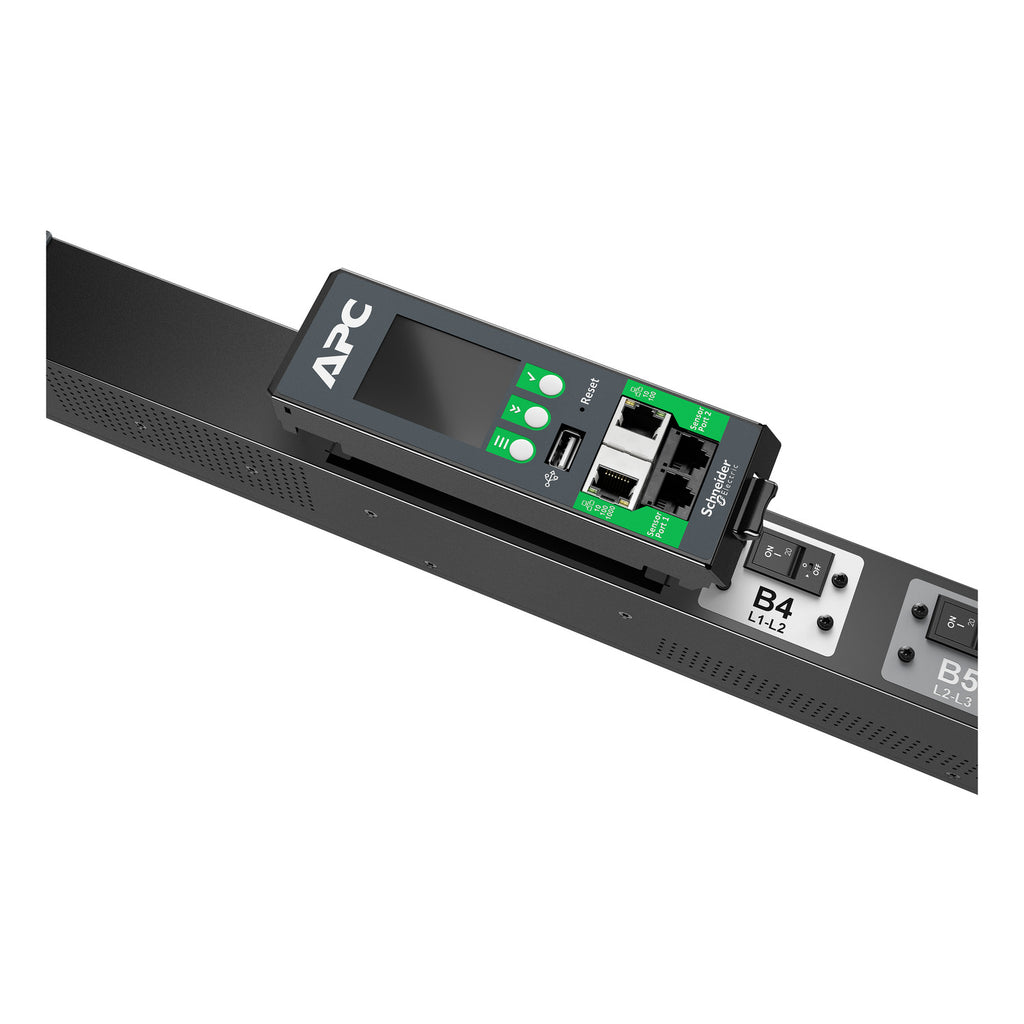

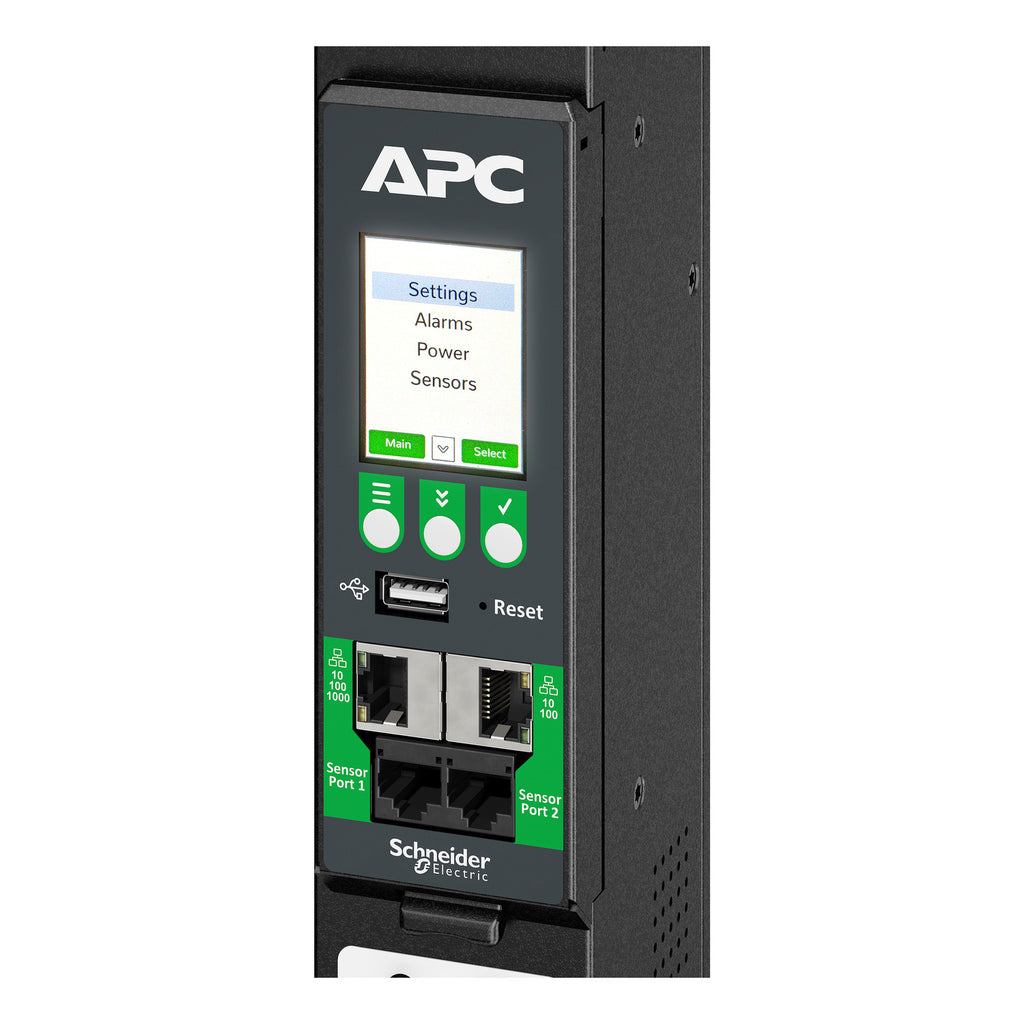

| Network Interfaces | 1x Gigabit Ethernet, 1x 10/100 Ethernet |
| Environmental Ports | 2x sensor ports (sensors sold separately) |
| Warranty | 3-Year Repair or Replace |
| GTIN | 731304439783 |
| Country of Origin | USA |
