Description

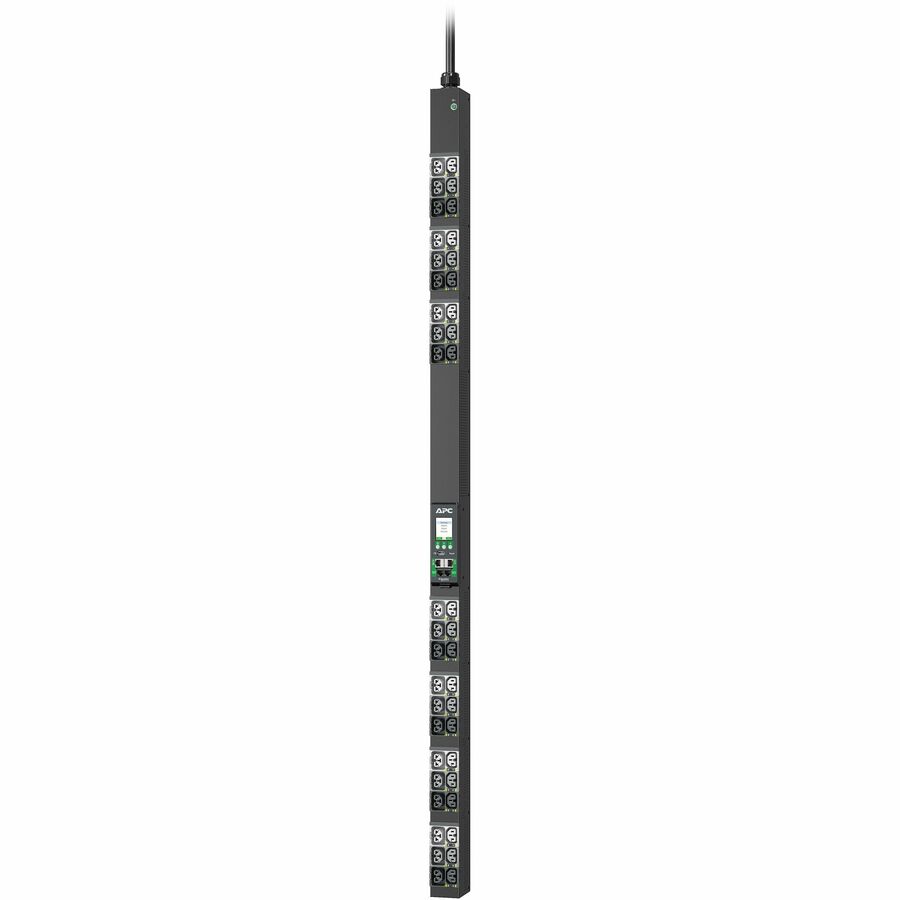

The APC NetShelter Rack PDU Advanced (APDU10250SW) is engineered for high-density server and networking environments. This 0U vertical, switched 3-phase PDU delivers up to 11.5kW of power at 415V and features 42 outlets including 21x multi-standard (C13/C15/C19/C21) and 21x C13/C15 combinations for maximum deployment flexibility. Equipped with remote switching capabilities, interactive LCD, Gigabit Ethernet, live-swappable NMC, and 1% metering accuracy, it ensures optimal performance, energy monitoring, and uptime. Designed to support demanding conditions up to 60°C, this global-rated PDU simplifies standardization across international deployments.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU10250SW |
| Product Type | Switched Rack PDU |
| Form Factor | 0U Vertical |
| Input Type | 3-Phase, IEC 60309 20A (3P+N+PE) |
| Input Voltage | 400V / 415V 3PH |
| Input Frequency | 50/60 Hz |
| Max Load Capacity | 11.5kW / 11500VA |
| Output Voltage | 240V |
| Outlet Types & Qty | (21) C13/C15/C19/C21, (21) C13/C15 |
| Cord Length | 1.8m (5.9 ft) |
| Network Connectivity | Gigabit Ethernet + 10/100 Mbps |
| Display | Interactive LCD |
| Power Monitoring | Volts, Amps, kW, kWh (1% accuracy) |
| Switched Outlets | Yes (Remote On/Off) |
| Sensor Ports | 2 Environmental Sensor Ports |
| Mounting | Rack-Mounted (Side), No Preference |
| Height x Width x Depth | 1490 x 56 x 75 mm (58.66 x 2.20 x 2.95 in) |
| Net Weight | 7.2 kg (15.9 lb) |
| Certifications | UL, CE, UKCA, FCC, TAA, BAA |
| Operating Temp | -5 to 60°C (23 to 140°F) |
| Warranty | 3 Years (Repair or Replace) |
| GTIN | 731304439691 |
| Country of Origin | China (CN) |
