Description

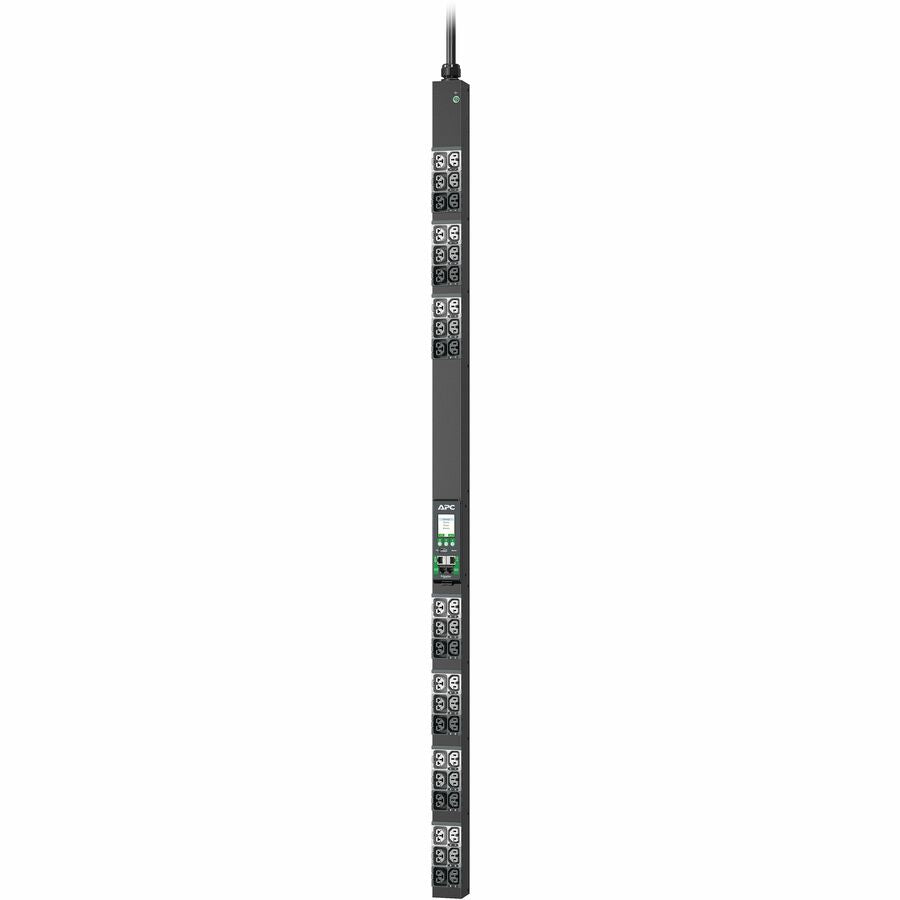

The APC NetShelter Rack PDU Advanced APDU10250ME delivers reliable 3-phase power distribution with advanced metering capabilities for server rooms and data centers. It offers 42 high-density combination outlets—(21) C13/C15 and (21) C13/C15/C19/C21—allowing flexible deployments across a range of IT equipment.
With PDU-level active power metering (volts, amps, kW, kWh) accessible via an interactive LCD and remotely through a full-featured Gigabit-enabled Network Management Card (Live Swap capable), this PDU supports precise capacity planning, load balancing, and energy usage tracking. The alternating phase design and color-coded breakers simplify cable management and reduce installation time.
Engineered for demanding environments, it is rated for full-load operation up to 60°C. The unit supports cascading via dual Ethernet ports and includes two sensor ports for environmental monitoring. UL and CE compliance ensures global deployment capability.
| Attribute | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU10250ME |
| Type | Metered Rack PDU |
| Input Plug Type | IEC 60309 20 A 3P+N+PE |
| Input Voltage | 400V / 415V 3-Phase |
| Output Voltage | 240V |
| Line Rated Current | 16A |
| Input Current Limit | 20A |
| Power Capacity | 11kW (400V) / 11.5kW (415V) |
| Outlet Configuration | 21 x C13/C15, 21 x C13/C15/C19/C21 |
| Total Outlets | 42 |
| Metering | Volts, Amps, kW, kWh |
| Display | Interactive LCD |
| Network Connectivity | Gigabit Ethernet + 10/100BASE-T |
| Network Redundancy | Dual Ethernet ports (cascading or backup) |
| Environmental Monitoring | 2 sensor ports (sensors sold separately) |
| Form Factor | 0U Vertical Rackmount |
| Dimensions (HxWxD) | 58.66 x 2.20 x 2.17 in (149 x 5.6 x 5.5 cm) |
| Weight | 12.6 lb (5.7 kg) |
| Operating Temp | -5 to 60 °C (23 to 140 °F) |
| Compliance | UL, CE, CSA, FCC Part 15, UKCA, TAA, BAA |
| Ingress Protection | IP44 |
| Warranty | 3 Years Repair or Replace |
| GTIN | 731304439684 |
| Country of Origin | United States |
