Description

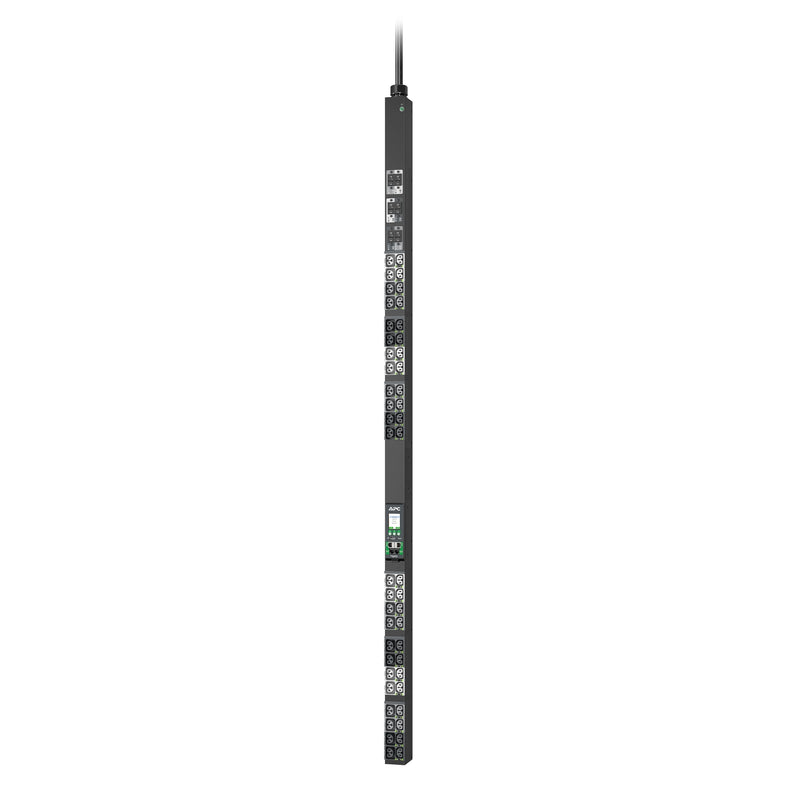

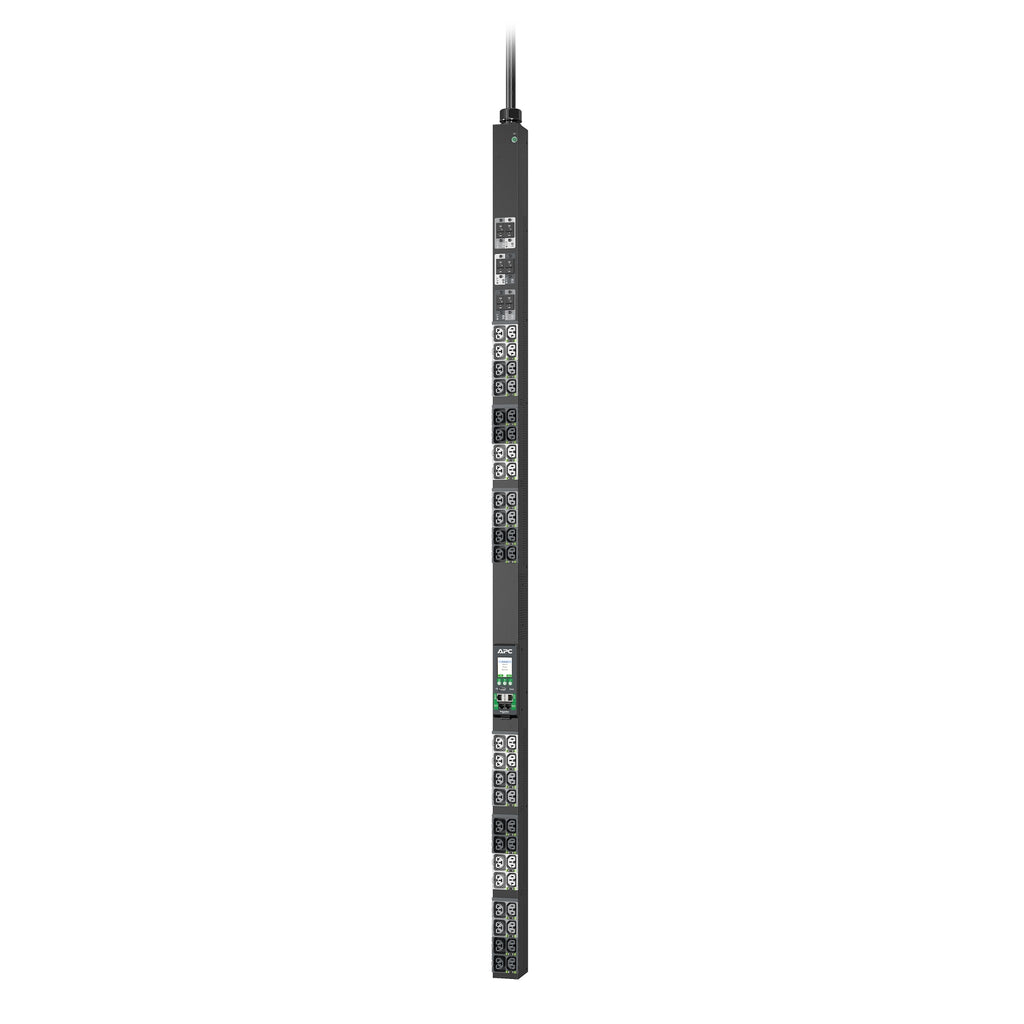

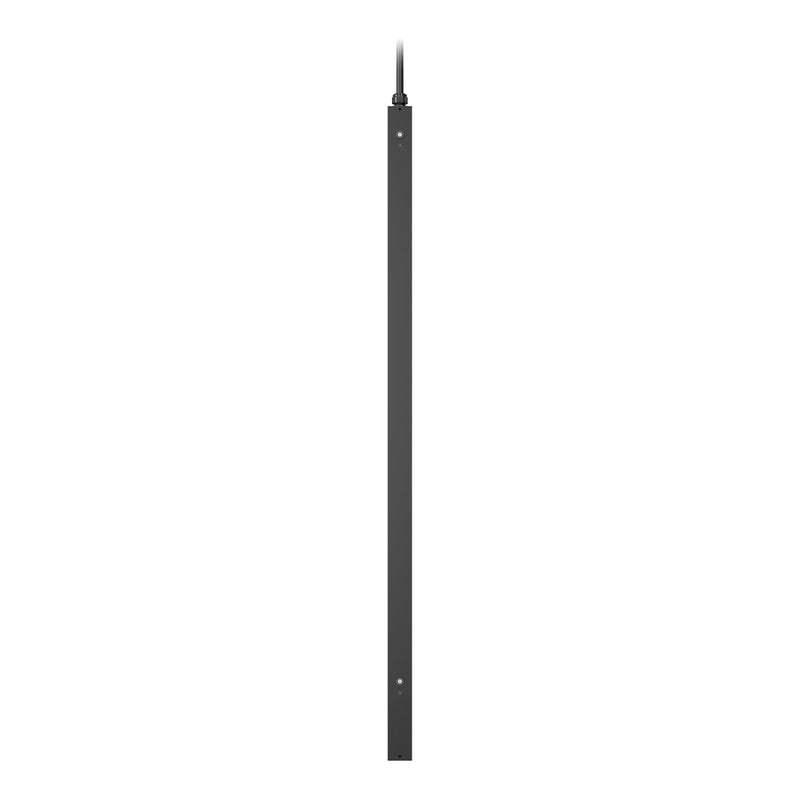

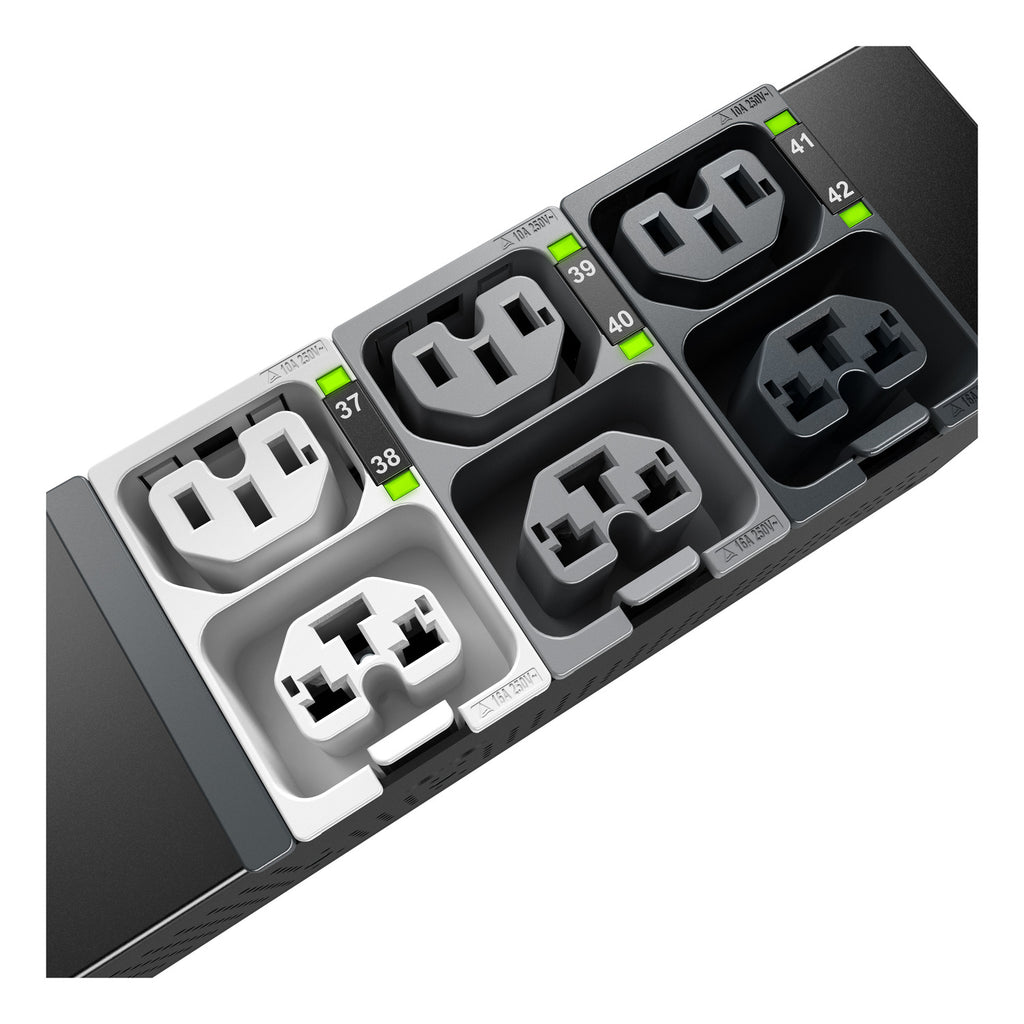

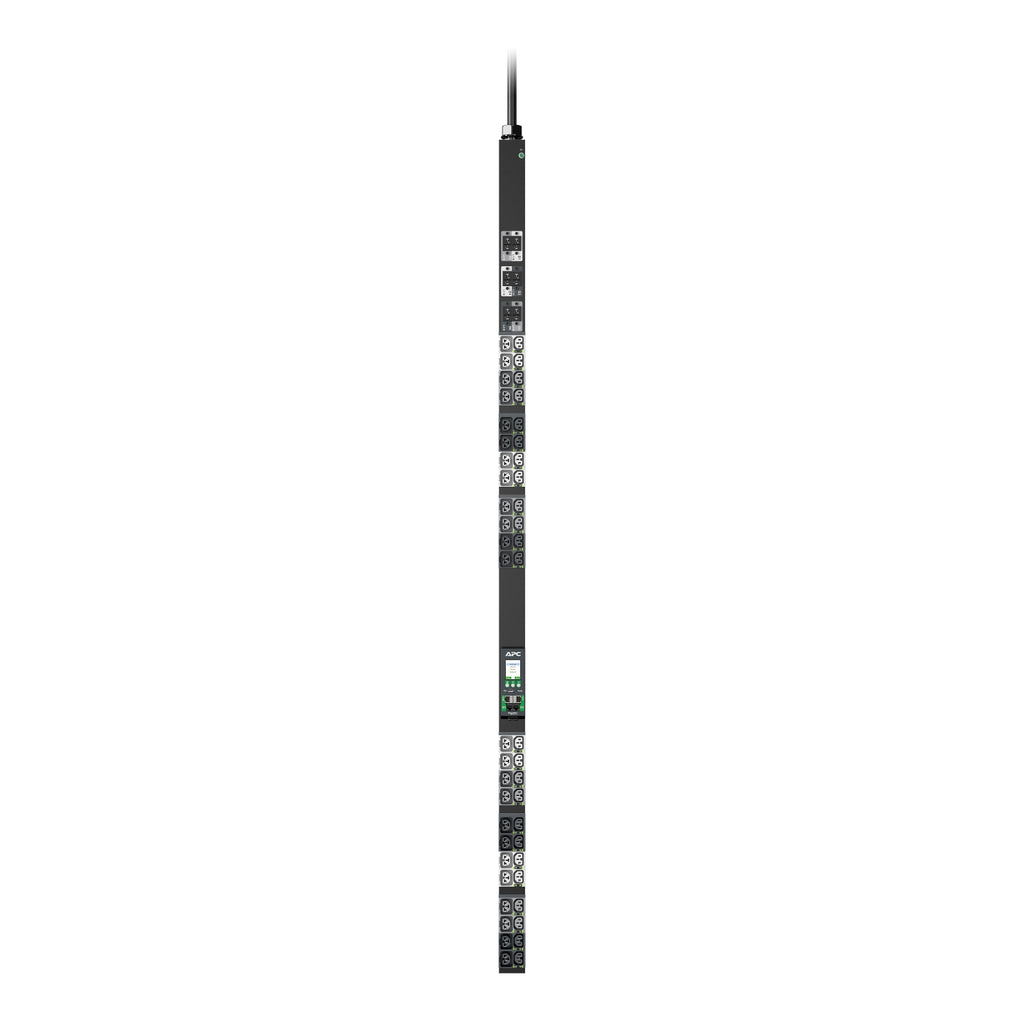

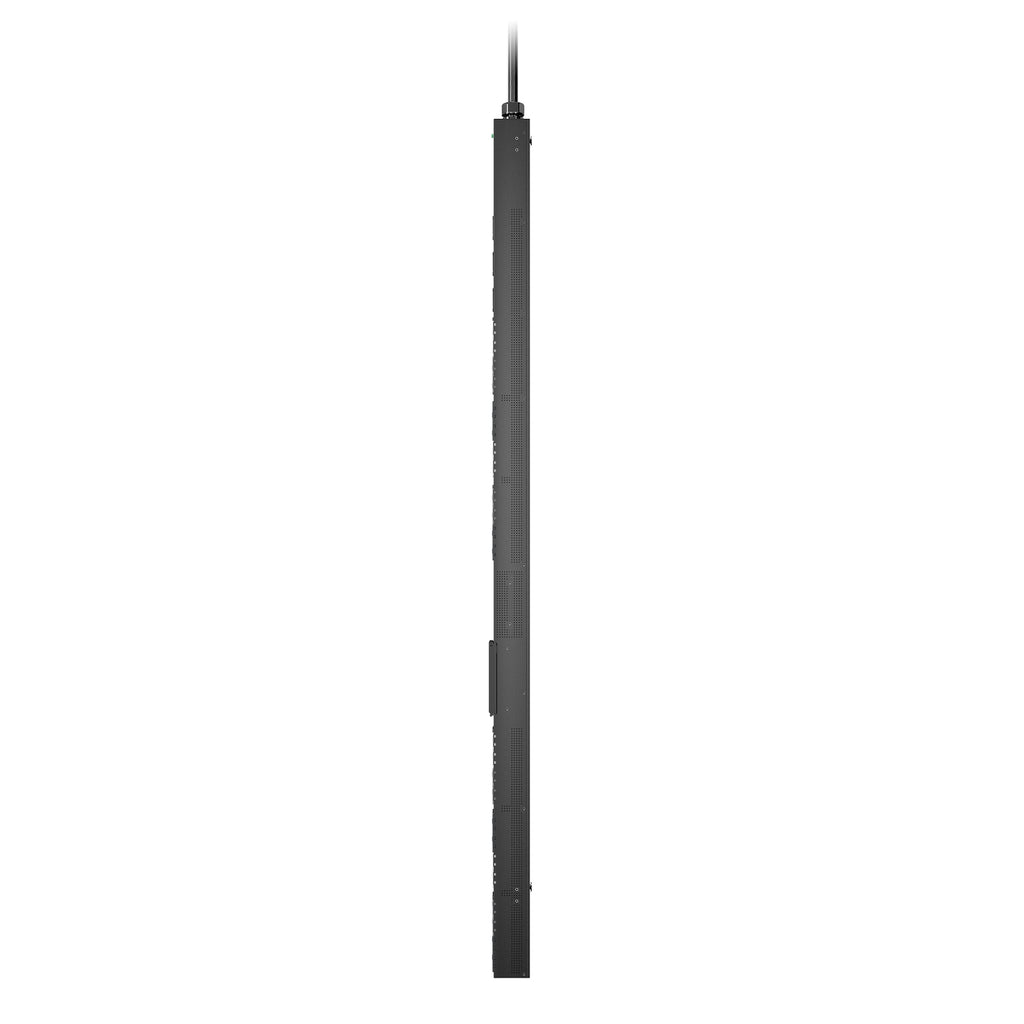

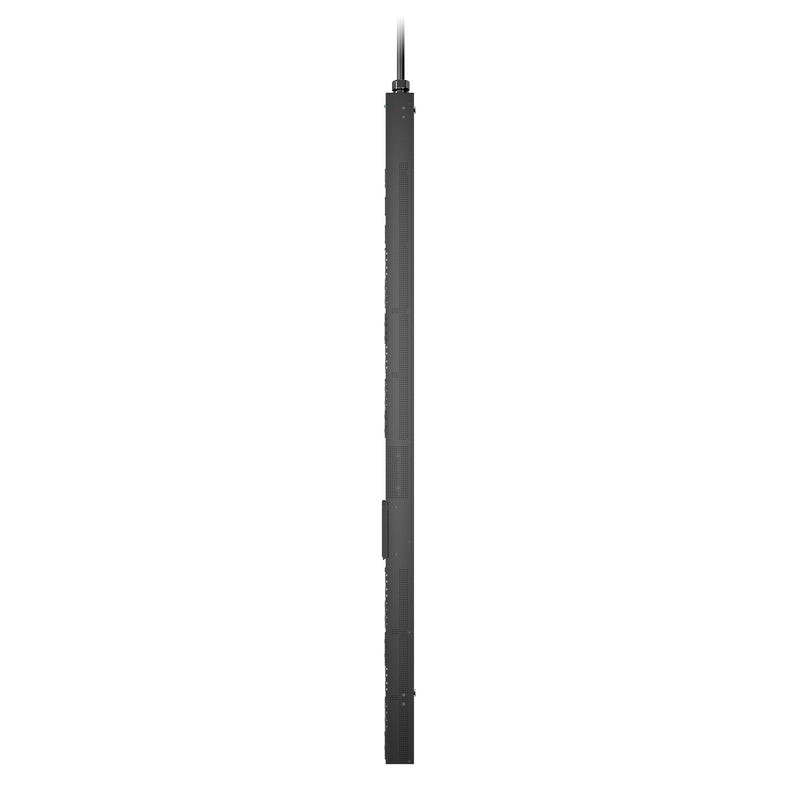

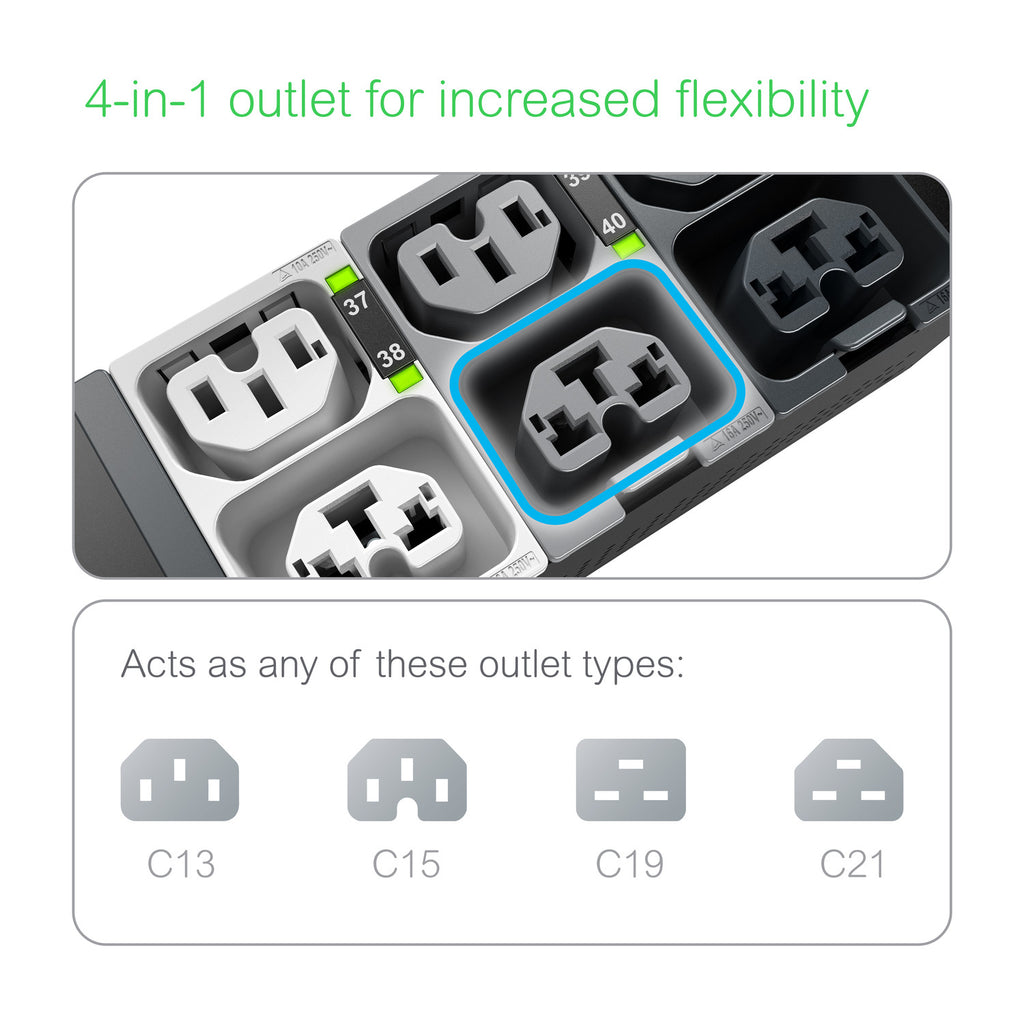

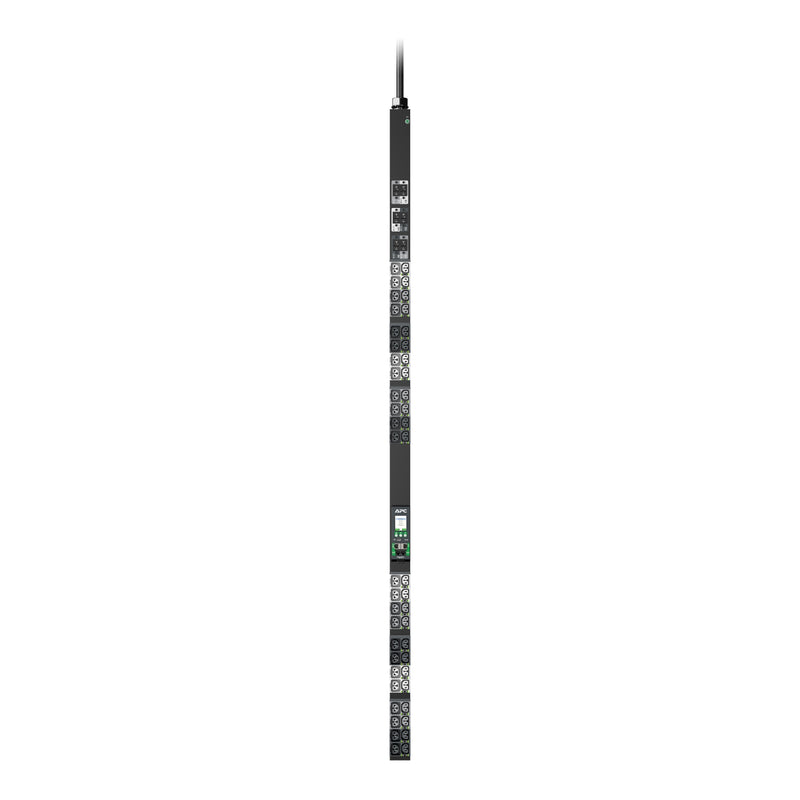

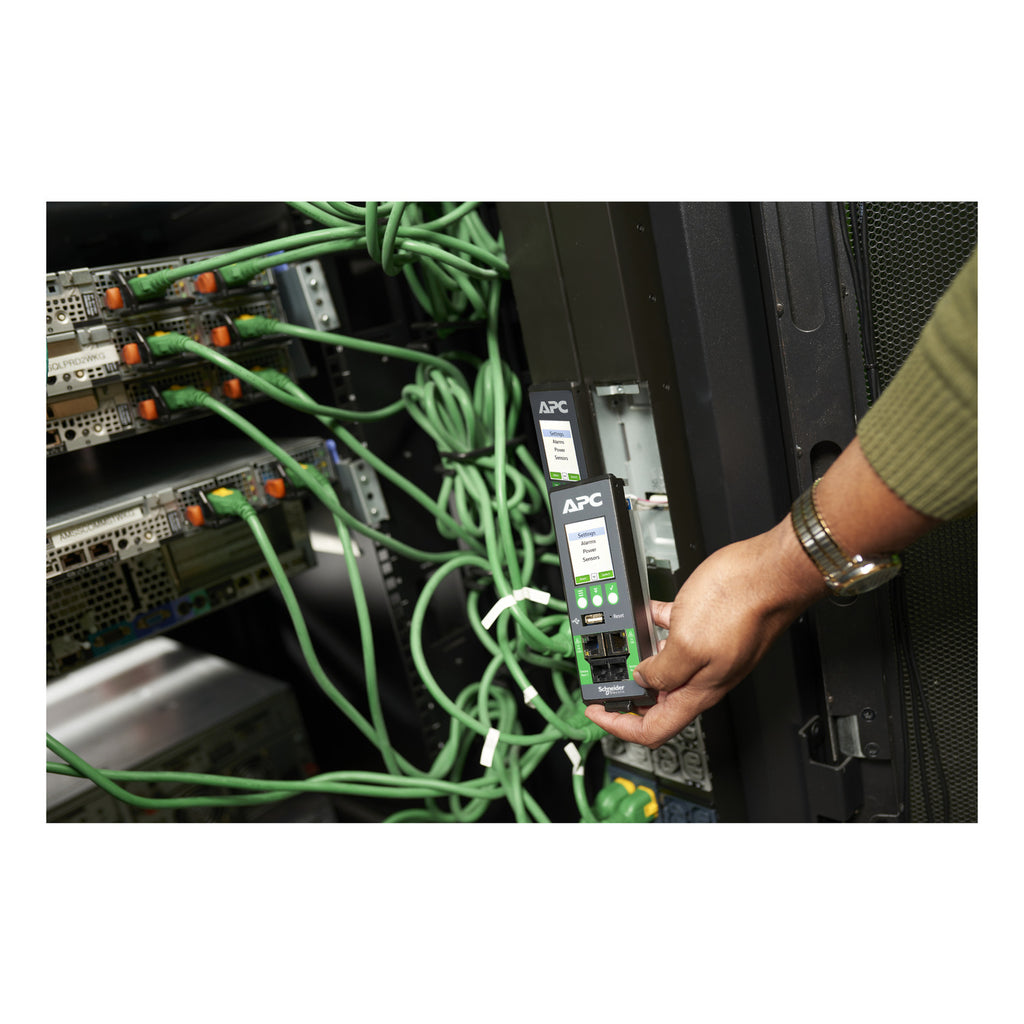

The APC NetShelter Rack PDU Advanced (APDU10351SW) is a 3-phase switched PDU that delivers intelligent power distribution, control, and visibility to your critical IT equipment. It features remote on/off outlet control, high-accuracy metering, full-featured network management, and alternating phase outlets for simplified cable management. With 48 flexible 4-in-1 combination outlets (C13/C15/C19/C21), this unit ensures maximum deployment versatility. The integrated LCD display and environmental sensor support make it ideal for modern high-density data centers.
| Attribute | Details |
|---|---|

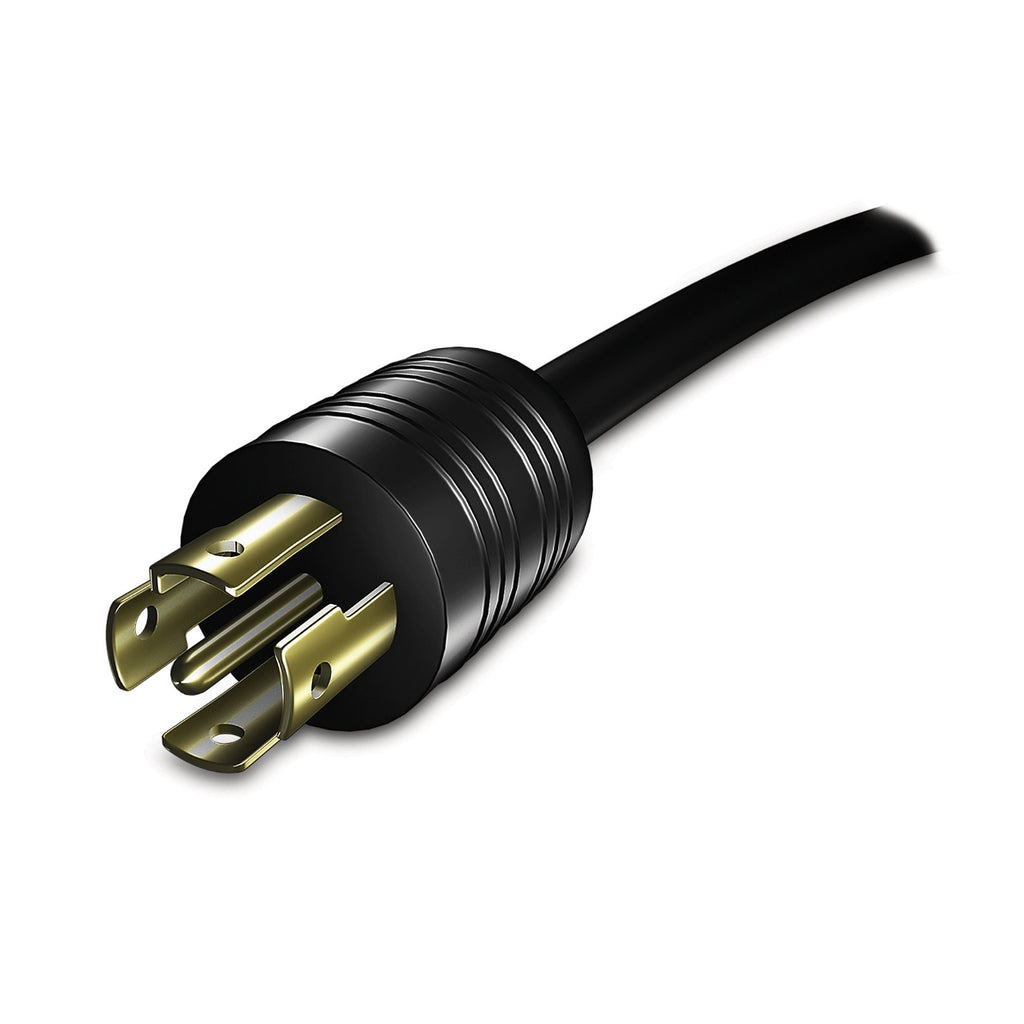

| Input Plug Type | NEMA L21-30P |
| Phase | 3-Phase |
| Input Voltage | 208V |
| Input Frequency | 50/60 Hz |
| Load Capacity | 8.6 kW (8600 VA) |
| Line Rated Current | 24A |
| Input Current Limit | 30A |
| Outlet Configuration | (24) C13/C15/C19/C21, (24) C13/C15 |
| Total Outlets | 48 |
| Cord Length | 5.9 ft (1.8 m) |

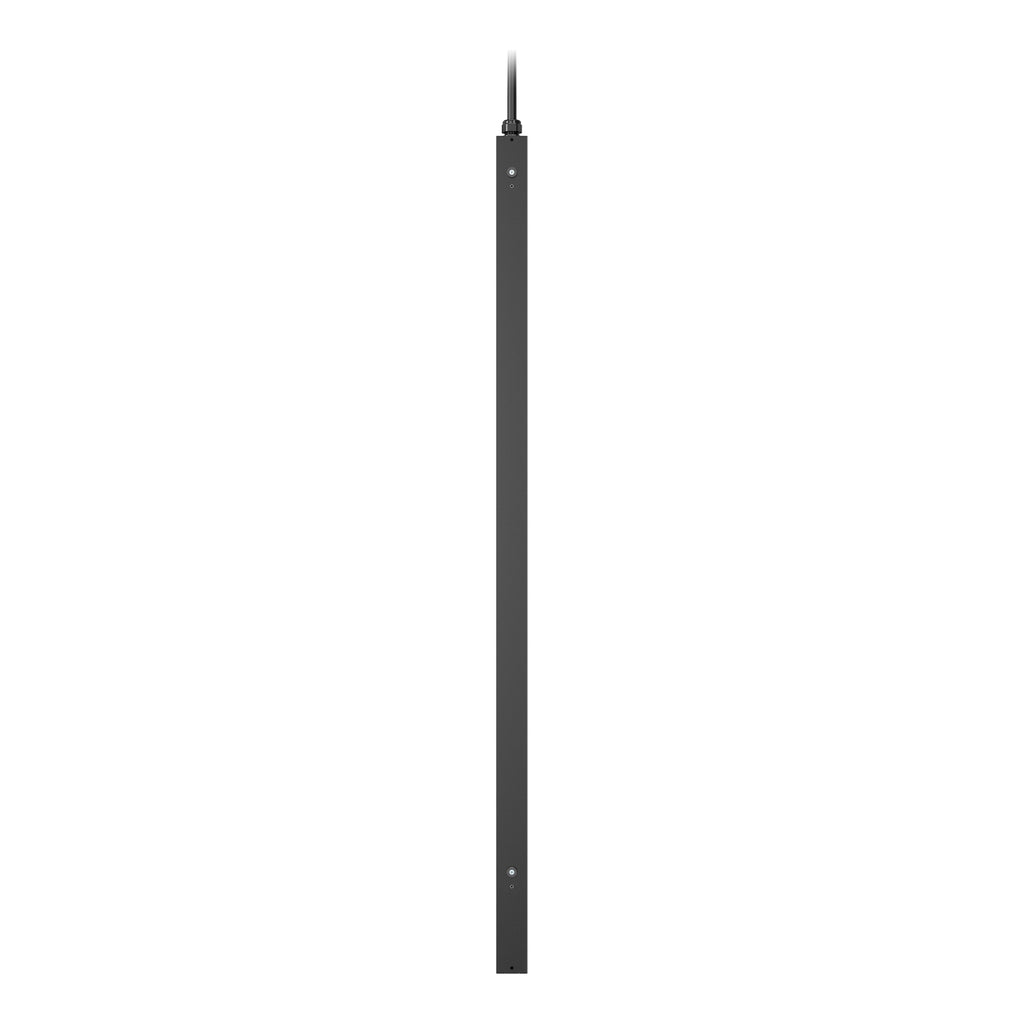

| Mounting | Vertical, Rack-Mounted (0U) |
| Mounting Location | Side |
| Dimensions (HxWxD) | 70.08 x 2.20 x 2.95 in (178 x 5.6 x 7.5 cm) |
| Net Weight | 20.7 lb (9.4 kg) |

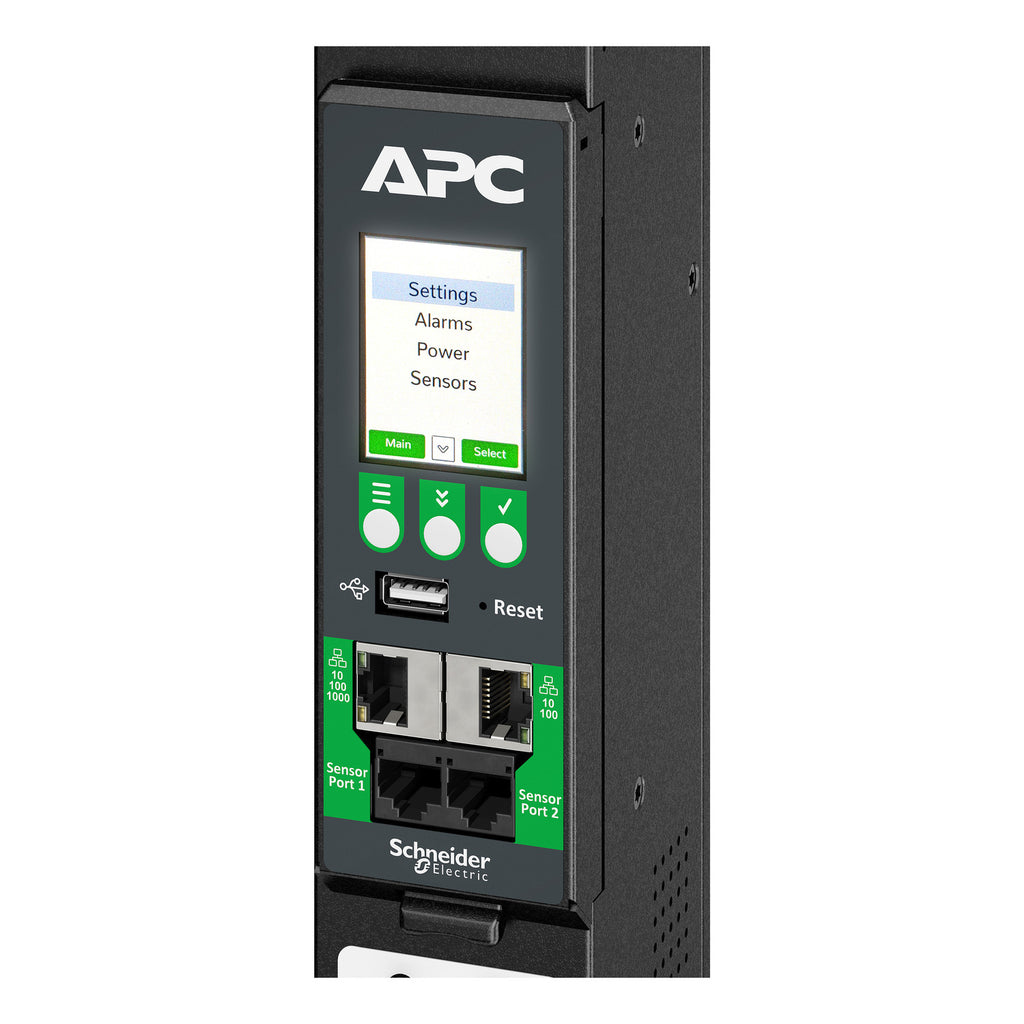

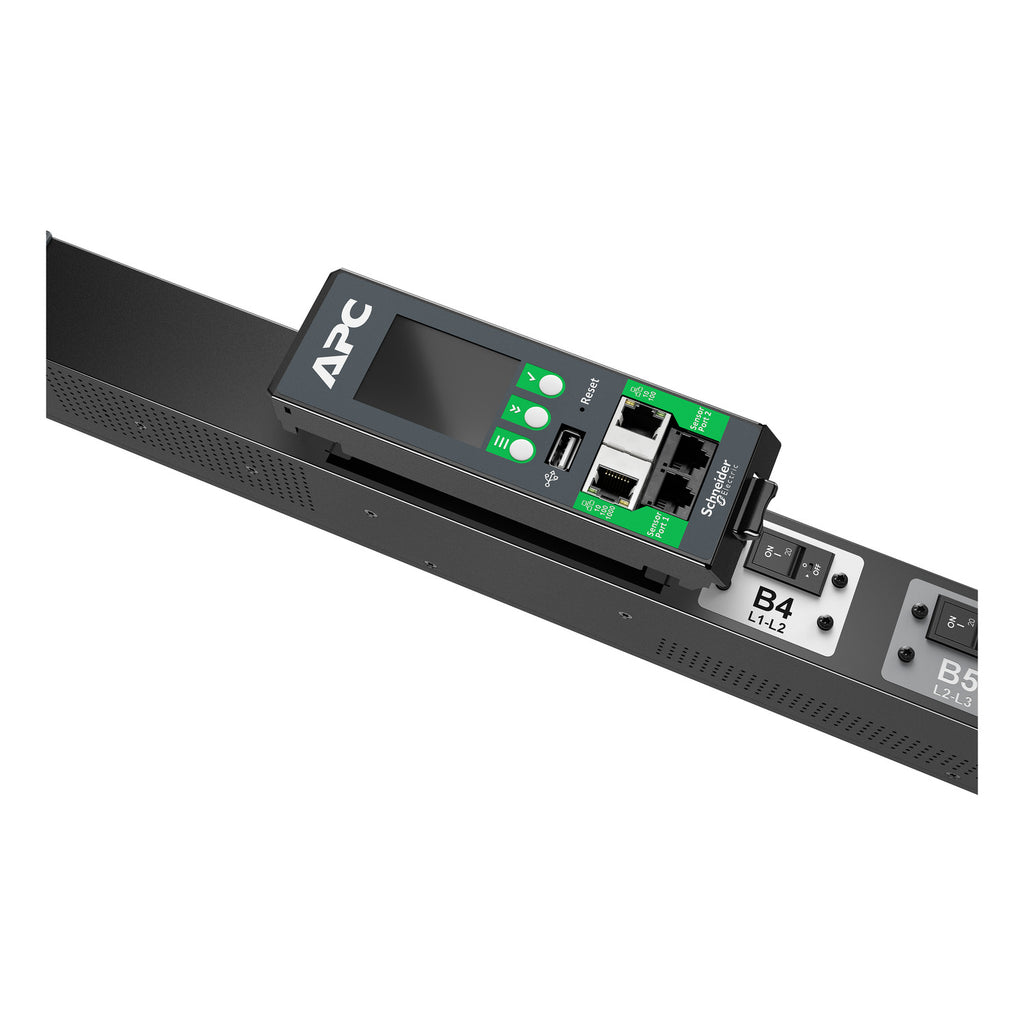

| Display | Interactive LCD Display |
| Network Ports | 1x Gigabit Ethernet, 1x 10/100 Ethernet |
| Metering | Active power (volts, amps, kW, kWh), 1% accuracy |
| Environmental Sensors | 2 ports (optional sensors sold separately) |
| Operating Temp | -5 to 60°C (23 to 140°F) |
| Storage Temp | -25 to 65°C (-13 to 149°F) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15, TAA, BAA |
| IP Rating | IP44 |
| Warranty | 3 Years (Repair or Replace) |
| GTIN | 731304439806 |
| Country of Origin | USA |
