Description

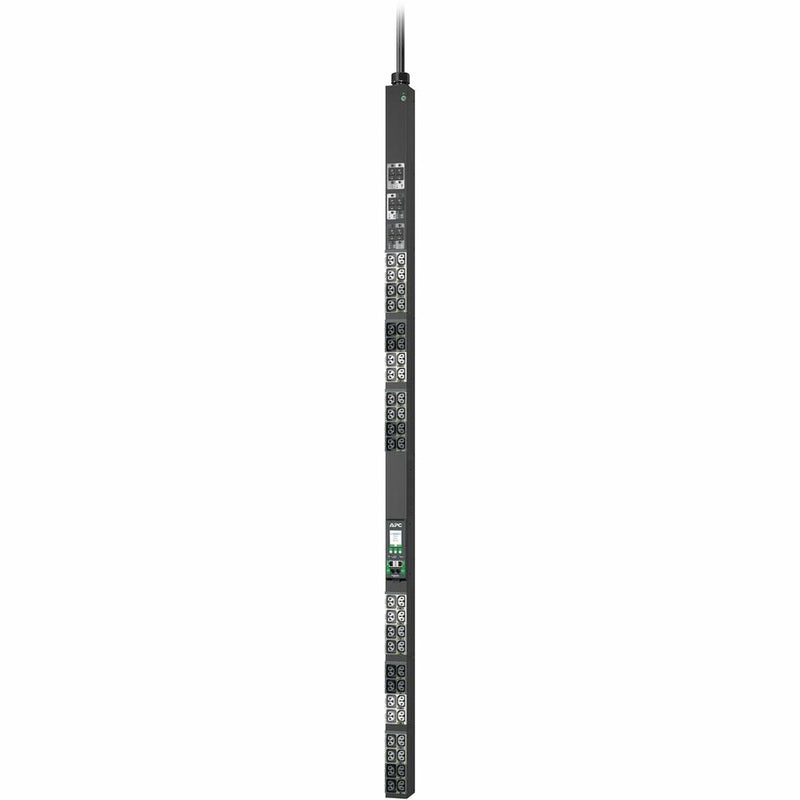

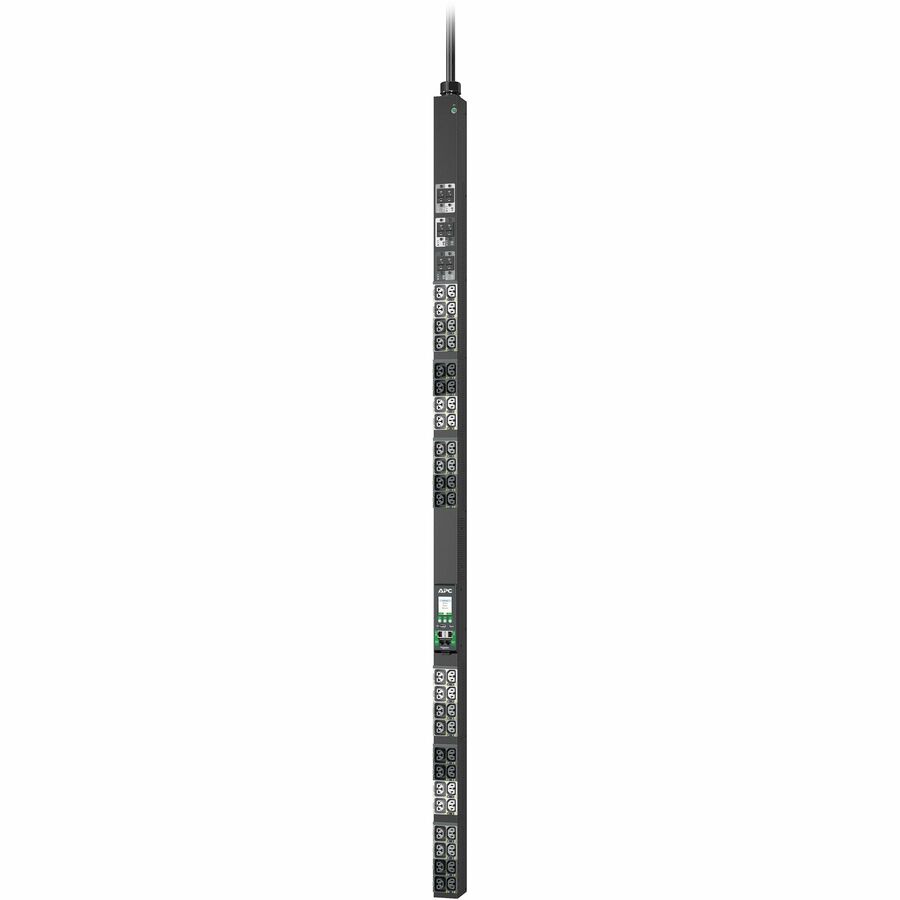

The APC NetShelter Rack PDU Advanced APDU10350SM delivers high-density, flexible power distribution with 48 switched, metered outlets in a compact 0U vertical form. Designed for demanding data centers, it supports 3-phase input (400V/415V) and offers industry-leading metering accuracy (1%) at both outlet and PDU levels. With full network management, color-coded outlets, alternating phase design, gigabit Ethernet, environmental monitoring, and hot-swappable NMC, this PDU enables intelligent power management, improved load balancing, and reliable uptime—even in high-heat, high-density deployments.
| Attribute | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU10350SM |
| Form Factor | 0U, Vertical |
| Input Voltage | 400V (32A), 415V (30A), 3-Phase |

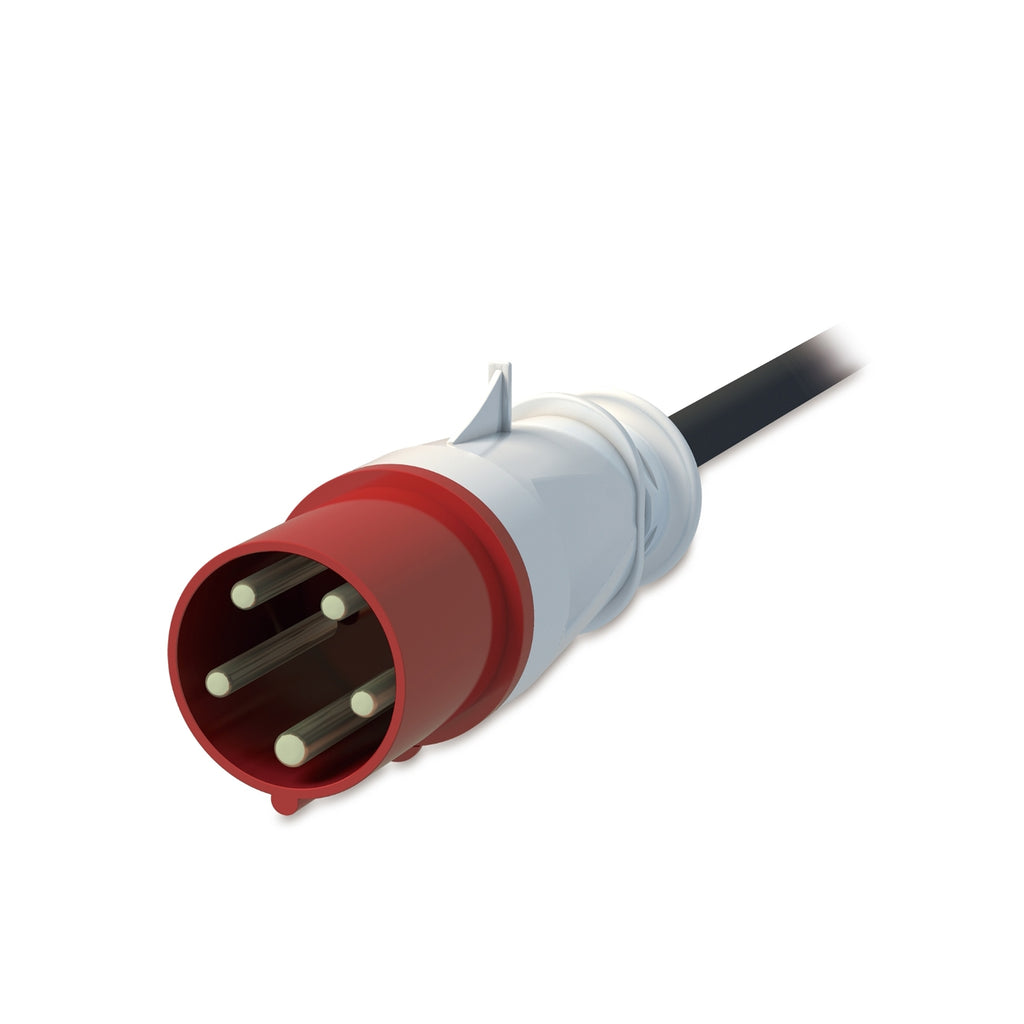

| Input Plug Type | IEC 60309 30A 3P+N+PE (530P6) |
| Output Voltage | 240V |
| Outlet Configuration | (24) C13/C15/C19/C21, (24) C13/C15 |
| Power Capacity | 22.1kW @400V, 17.3kW @415V |
| Power Monitoring | Outlet & PDU-level metering (volts, amps, kW, kWh) |
| Switching Capability | Yes – Switched outlets for remote control |
| LCD Display | Yes – Interactive |
| Network Management | Gigabit Ethernet, 2 ports, Live Swap NMC, cascading support |
| Sensor Ports | 2 (for optional environmental sensors) |
| Operating Temperature | -5 to 60 °C (23 to 140 °F) |
| Compliance & Certification | UL, CE, FCC, UKCA, CSA, EN 62368-1, IP44, TAA, BAA |
| Cord Length | 5.9 ft (1.8 m) |
| Dimensions (HxWxD) | 70.08 x 2.20 x 2.95 in (178 x 5.6 x 7.5 cm) |
| Net Weight | 21.2 lb (9.6 kg) |
| Warranty | 3 years repair or replace |
