Description
The Vertiv Geist VA4N3102 Rack Transfer Switch (RTS) delivers seamless redundant power to single-corded devices, ensuring uninterrupted operation even during power source failures. Equipped with two NEMA L6-30P inputs and 12 combination C13/C19 outlets, it automatically switches to a backup source in under 8 milliseconds—no manual intervention or phase synchronization required.
Ideal for mission-critical environments, this monitored ATS PDU provides real-time power data, supports daisy-chaining up to 50 devices under a single IP, and features environmental monitoring with optional sensors. Its robust 10-foot cord, horizontal rack-mount design, and LED display make it perfect for data centers seeking maximum uptime, flexibility, and compliance.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | VA4N3102 |
| Product Series | rPDU |
| Product Type | Auto Transfer Switch, Monitored PDU |
| Plug Type | NEMA L6-30P x 2 |

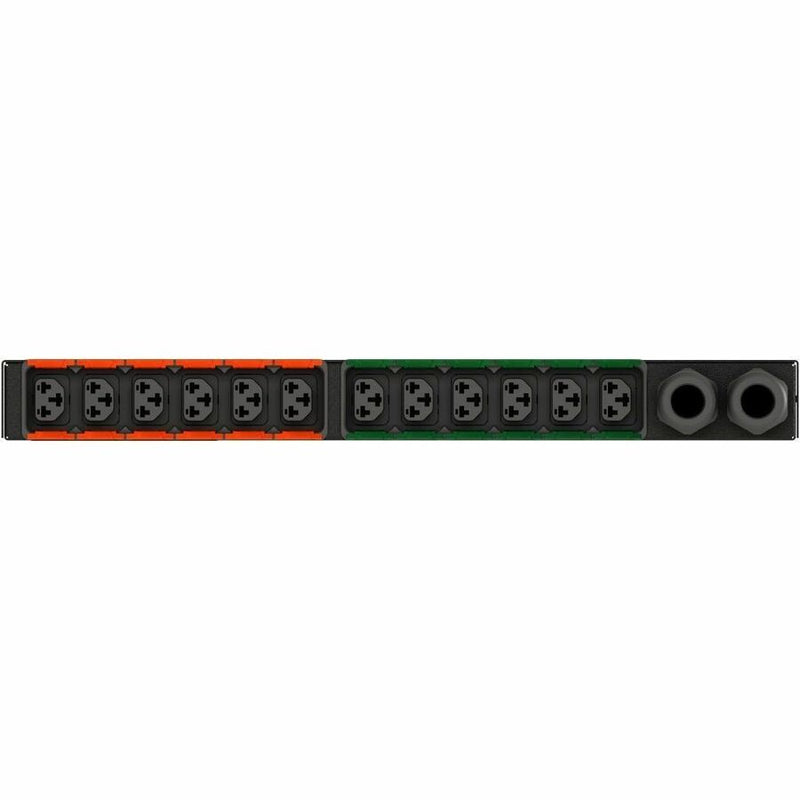

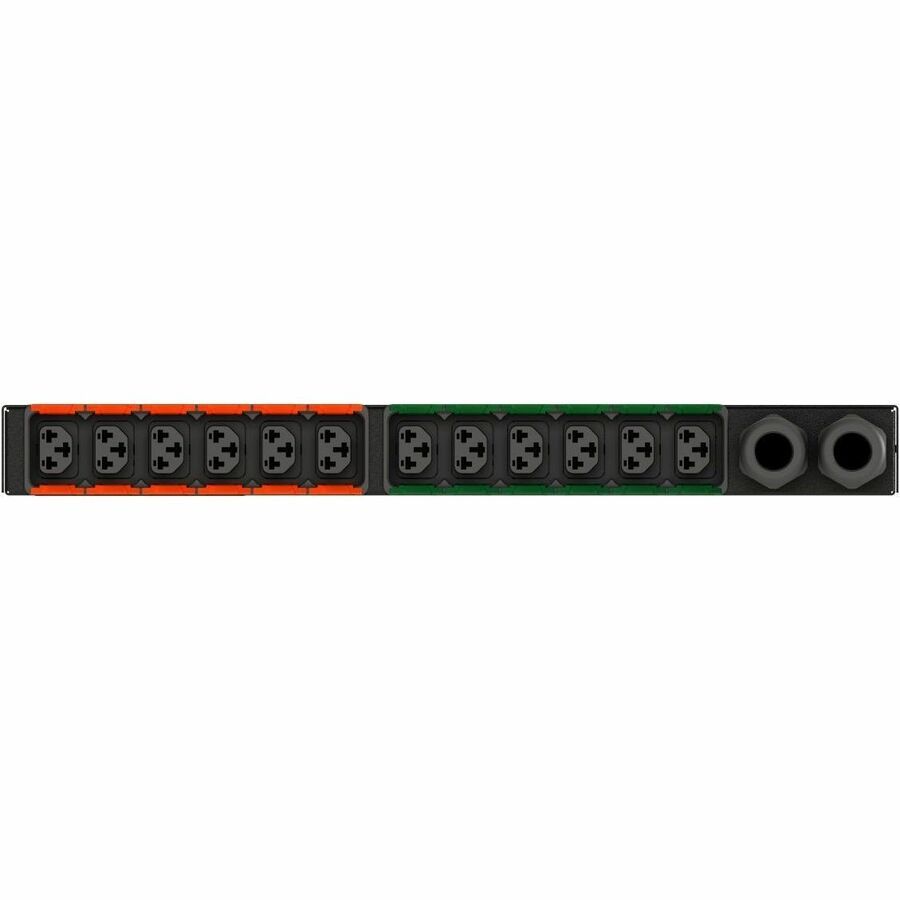

| Receptacles | 12 x Combination C13/C19 |
| Load Capacity | 4900 Watts |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 208V AC |
| Input Current | 30 Amps |
| Frequency | 60 Hz |
| Protection | Overcurrent Protection, Double Pole |
| Monitoring | DHCP, SNMP, SSH, HTTPS, RADIUS, Syslog, Modbus TCP, etc. |
| Display | LED Display |
| Network Interface | Yes (RJ-45) |
| Cord Length | 10 ft |
| Mounting | Horizontal, Rack-mountable |
| Product Color | Black Powder Coat |
| Dimensions (H x W x D) | 1.7" x 17" x 18" |
| Max Operating Temp. | 140°F (60°C) |
| Certifications | UL, c-UL 62368-1, FCC Class A |
| Compliance | RoHS, TAA Compliant |
| Country of Origin | United States |
| Warranty | 5-Year Limited Warranty (if registered within 120 days, else 3 years) |
| Shipping Weight | 24 lbs |
