Description

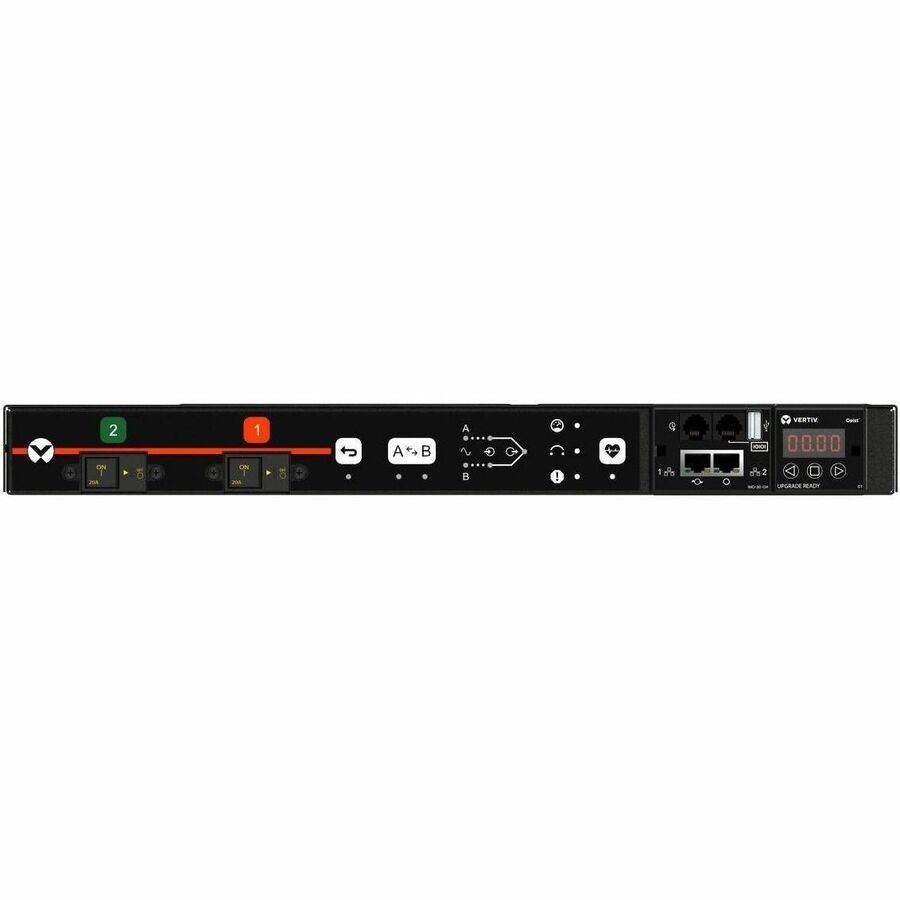

The Vertiv Geist VA6N3100 is a monitored Auto Transfer Switch (ATS) rack PDU that provides reliable power redundancy for single-corded devices. Featuring 6 combination C13/C19 outlets and dual NEMA L6-30P inputs, it automatically detects power loss and transfers the load between power sources in under 8 milliseconds. Ideal for critical infrastructure, this PDU supports environmental monitoring, remote management, and daisy chaining of up to 50 devices with a single IP.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model | ANR3E1R6-06CF18-3TL6TL6A011-D |
| SKU | VA6N3100 |
| Product Type | Rack Transfer Switch (RTS) PDU |
| PDU Type | Auto Transfer Switch, Monitored |
| Input Plug Type | 2 x NEMA L6-30P |
| Input Voltage | 230V AC (200–240V AC range) |
| Input Frequency | 60 Hz |
| Input Current | 30A |
| Output Voltage | 208V AC |

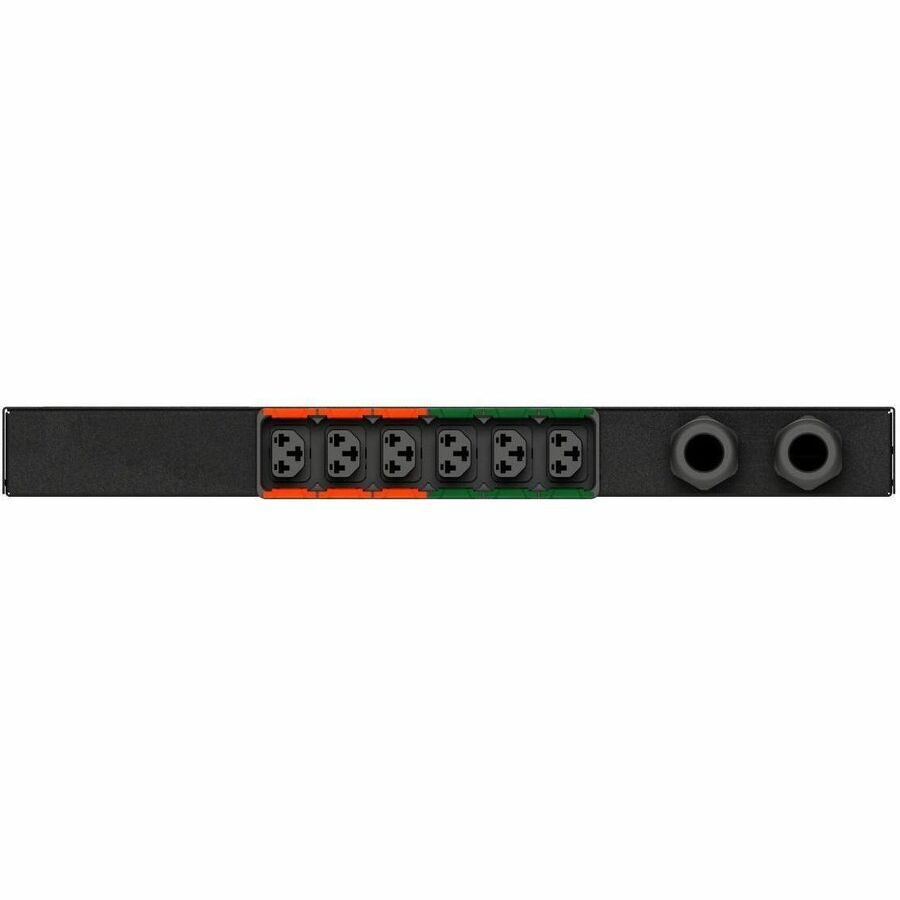

| Receptacle Type | 6 x Combination C13/C19 |
| Power Rating | 4900W |
| Cord Length | 10 ft |
| Mounting | Horizontal, Rack-Mountable |
| Dimensions (H x W x D) | 1.7" x 17" x 18" |
| Network Interface | RJ-45 |
| Management Protocols | SNMP, HTTPS, RADIUS, Modbus TCP, JSON API, etc. |
| Overcurrent Protection | Double Pole |
| Display | LCD Touchscreen |
| Environmental Monitoring | Optional sensors supported |
| Max Operating Temp | 140°F (60°C) |
| Certifications | UL, c-UL, FCC Part 15 Class A, RoHS |
| Warranty | 5 Years (with registration), 3 Years standard |
| Shipping Weight | 12 lbs |
| Product Condition | New and Factory Fresh |
