Description

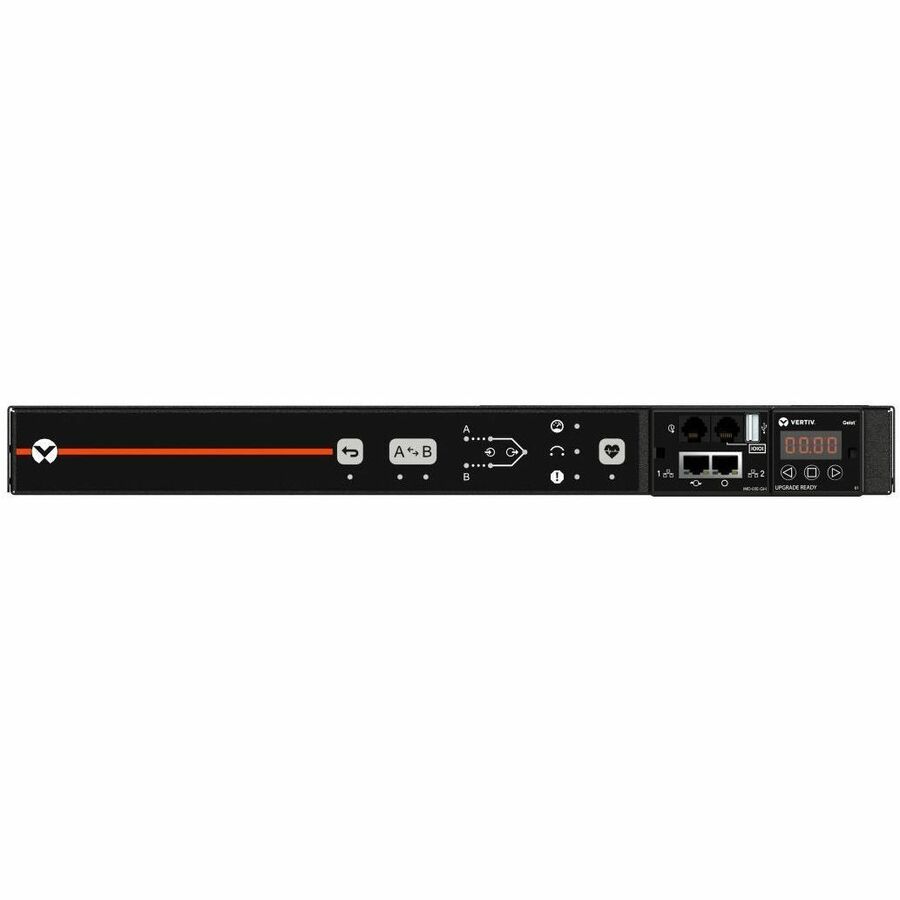

Ensure continuous uptime with the Vertiv Geist AU03E1R0-11PS63-3PS6PS6B411-D Rack Transfer Switch (RTS) PDU. This intelligent Auto Transfer Switch (ATS) provides redundant power to single-corded devices by automatically switching to an alternate power source in under 8 milliseconds during outages—no human intervention or phase synchronization required.
Engineered for high availability, the unit features real-time local and remote monitoring, optional environmental sensors, and advanced networking protocols (including SNMP, RADIUS, Modbus TCP, and more). Ideal for high-density data centers, the PDU supports daisy chaining of up to 50 devices with self-configuring IP addresses.
With 1 IEC 2P+E outlet, 10 ft power cord, and horizontal rack-mount design, this 7300W-capable unit ensures robust and intelligent power distribution.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Part Number | VA4U9101 |
| Model | AU03E1R0-11PS63-3PS6PS6B411-D |
| Product Type | Auto Transfer Switch (ATS) PDU, Monitored |
| Outlet(s) | 1 x IEC 2P+E |
| Plug Type | 2 x 1P+N+E (IP44) |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 230V AC (Range: 208–240V AC) |
| Power Capacity | 7300 Watts |
| Input Current | 32 Amps |
| Input Frequency | 60 Hz |
| Mounting Type | Horizontal, Rack-mountable |
| Cord Length | 10 ft |
| Dimensions (H x W x D) | 1.7" x 17" x 18" |
| Color | Black Powder Coat |
| Monitoring Features | LCD, Touch Screen, SNMP, Web, Syslog, etc. |
| Network Interface | RJ-45 (Supports DHCP, IPv4, IPv6, etc.) |
| Daisy Chain Support | Up to 50 devices |
| Environmental Compliance | RoHS, CE, UKCA, RCM, UL, FCC |
| Max Operating Temp | 140°F (60°C) |
| Warranty | 5 years (with registration), 3 years default |
| Shipping Weight | 12 lbs |
