Description

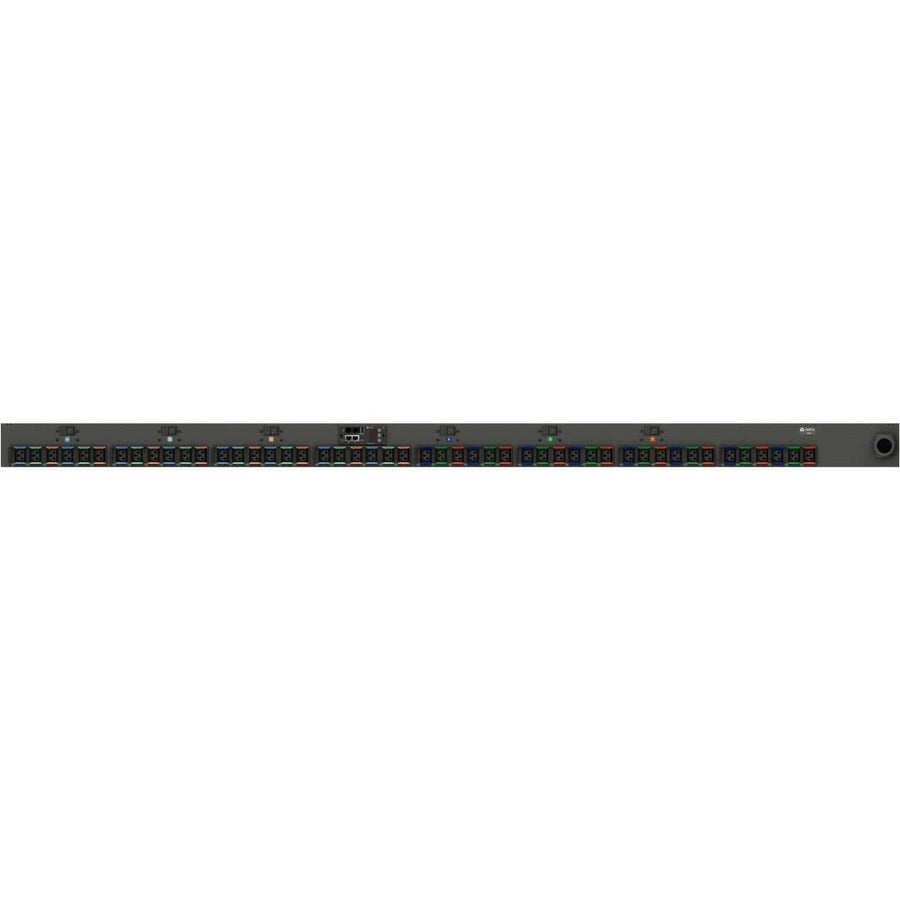

The Vertiv Geist VP7N6004 is a high-density switched rack PDU (rPDU) designed for modern data center power management. Featuring 48 combination C13/C19 outlets and a 3-phase IEC 60309 3P+E plug, this unit delivers 17.2kW of power at 230V. Its advanced outlet-level monitoring provides granular visibility of power consumption, accessible locally or via remote network interfaces. Ideal for high-performance environments, it offers environmental sensor support, redundant network communications through RSTP, and the ability to daisy-chain up to 50 devices on a single IP address. TAA compliant and built with a durable black powder coat finish, the VP7N6004 supports zero-U vertical mounting, saving valuable rack space.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | VP7N6004 |
| Series / Model | rPDU / MNU3EHW1-48CF18-6PS15D0A10-S-A |
| Product Type | Switched Outlet Monitored PDU |
| Phase | Three Phase |
| Input Voltage | 230V AC (Range: 200V - 240V AC) |
| Output Voltage | 208V AC |
| Input Plug Type | IEC 60309 3P+E |
| Input Current | 60A |
| Receptacle Type | 48 x Combination C13/C19 |
| Power Capacity | 17.2 kW |
| Rack Units | 0U |
| Mounting | Vertical |
| Color | Black Powder Coat |
| Network Interface | RJ-45 |
| Network Protocols | DHCP, HTTP/S, SNMP (v1/v2c/v3), Syslog, SSH, etc. |
| Environmental Monitoring | Supported with optional sensors |
| Daisy-Chaining | Up to 50 units via single IP |
| Compliance | TAA Compliant, Environmentally Friendly |
| Dimensions (WxDxL) | 3.7" x 2.6" x 75" |
| Weight (Shipping) | 26 lbs |
| Warranty | 5 Years (if registered within 120 days) |
| Country of Origin | United States |
