Description

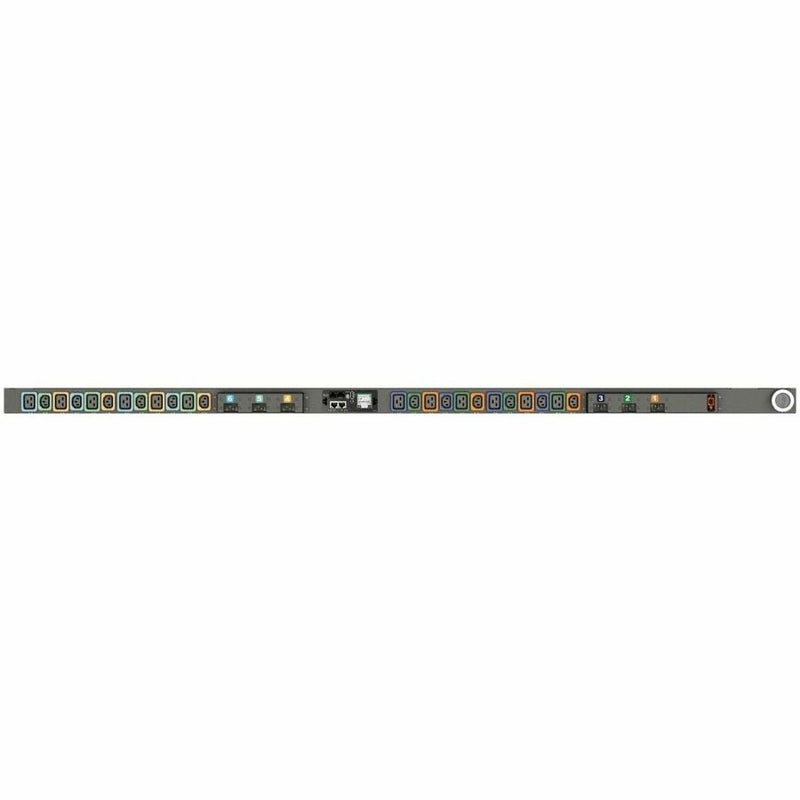

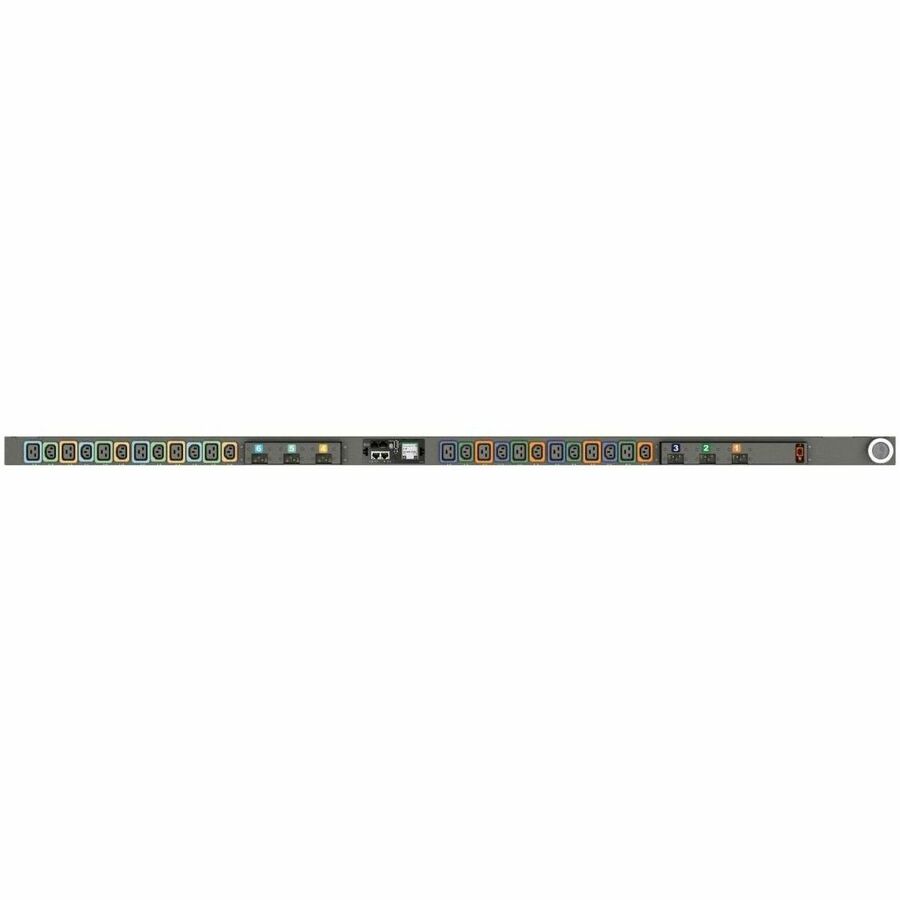

The Vertiv VP6N50A0 PowerIT rPDU delivers high-performance power distribution with advanced outlet-level monitoring and robust environmental sensing. With 24 locking IEC outlets (12 C13 & 12 C19), 50A 208V Delta input, and 14.4kW capacity, it supports high-density IT environments with precision. Features include hot-swappable monitoring, daisy-chain support for up to 50 devices on a single IP, and a local touchscreen display. Ideal for data centers prioritizing uptime, energy efficiency, and remote visibility.
| Specification | Details |
|---|---|
| Model Number | VP6N50A0 |
| Input Power | 50A, 208V Delta, 3 Phase |
| Load Capacity | 14.4kW |
| Frequency | 50/60Hz |
| Form Factor | Vertical, 70in / 1778mm (Zero U) |
| Receptacles | 12 × Locking IEC C13, 12 × Locking IEC C19 |
| Plug Type | 3P+E CA Twistlock |
| Monitoring | Outlet-level, Circuit, Breaker, Phase, Line |
| Power Metering Accuracy | ANSI C12.1 / IEC 62053-21, Class 1% |
| Environmental Monitoring | Yes, via optional sensors |
| Network | Dual Ethernet 10/100/1000Mbps, Daisy Chain (up to 50) |
| Protocols Supported | SNMP, HTTP(S), SSH, Modbus TCP, Syslog, etc. |
| Display | Auto-orienting LCD touchscreen |
| Mounting Hardware | Included (7938 vertical bracket) |
| Material & Finish | Heavy Steel, Black Powder Coat |
| Compliance | UL 62368-1, FCC Part 15 Class A, RoHS, TAA |
| Warranty | 5-Year (with registration within 120 days) |
