Description

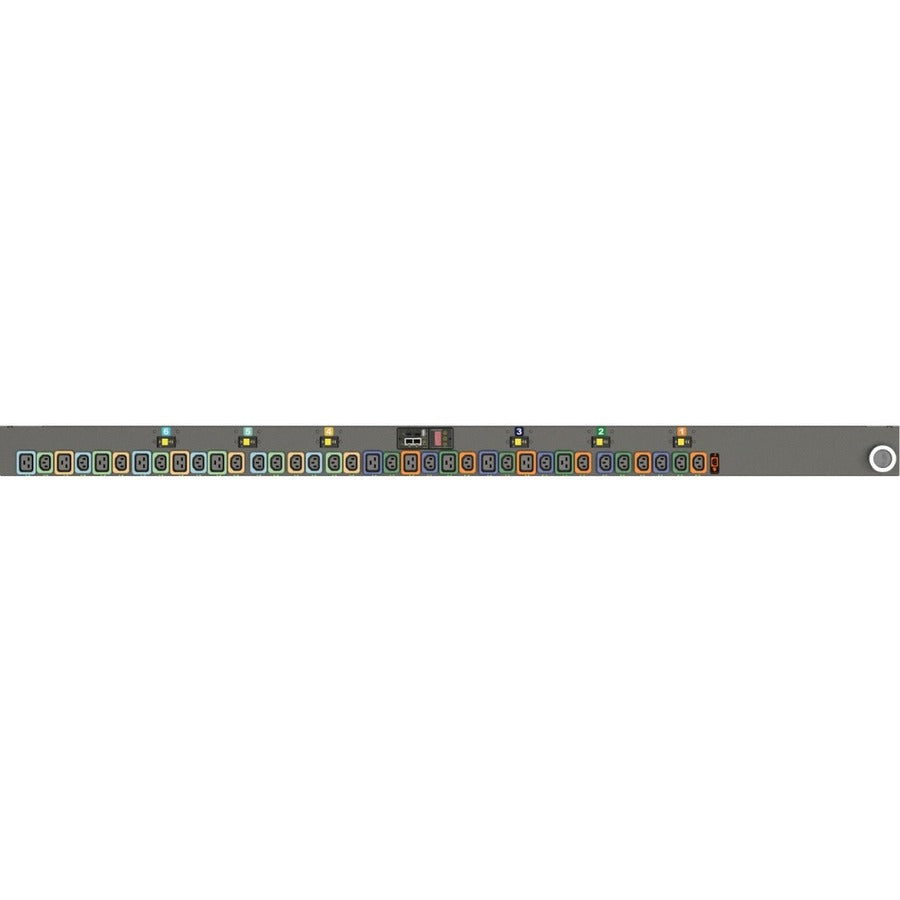

The Vertiv Geist NR30051L is a monitored rack power distribution unit (PDU) engineered for high-density data centers. With 36 U-lock outlets (24x C13, 12x C19), it offers secure connections and real-time monitoring of outlet-level power metrics. Integrated Visible Light Communication (VLC) enables quick data access via the Geist Mobile App. Its hot-swappable Interchangeable Monitoring Device (IMD) ensures seamless upgrades, while the vertical 0U design maximizes rack space. Designed for 3-phase, 230V AC input and 60A current, this PDU includes overcurrent protection and supports advanced network protocols such as SNMP, SSH, and HTTPS.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NR30051L |
| Model Number | MNR3EHB1-36PNB8-6PS15B0A10-S-A |
| PDU Type | Monitored |
| Phase | Three Phase |
| Input Voltage | 230 V AC (Range: 200 - 240 V AC) |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating | 17.20 kW |
| Receptacles | 24 x Lock IEC 60320 C13, 12 x Lock IEC 60320 C19 |
| Plug Type | 1 x 3P+E (IP44) |
| Network Port | RJ-45 |
| Management Protocols | DHCP, HTTP/HTTPS, SNMP (v1/v2c/v3), SSH, Syslog, IPv4/IPv6, NTP, LDAP, RSTP, SMTP |
| Mount Type | Rack-mountable (Vertical) |
| Rack Height | 0U |
| Dimensions (W x D x L) | 3.7" x 2.6" x 66.3" |
| Weight | 24 lbs |
| Warranty | 5-Year Limited |
| Product Condition | New and Factory Fresh |
| Included Accessories | Vertical Mounting Bracket Kit |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
