Description

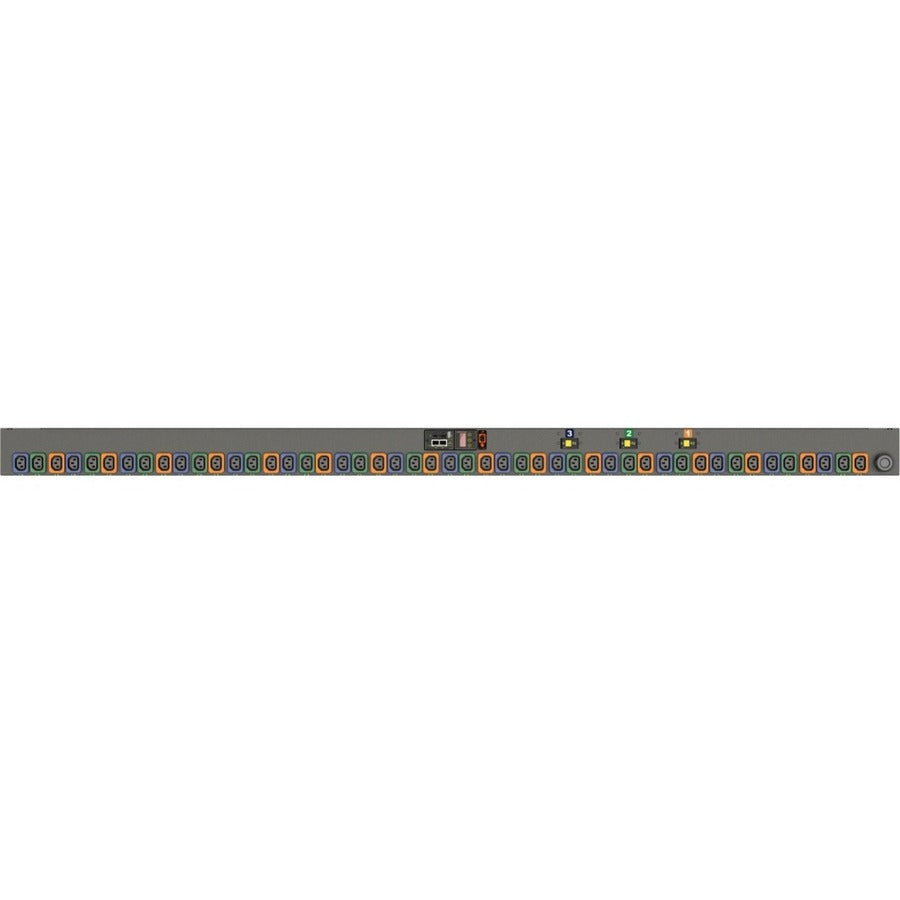

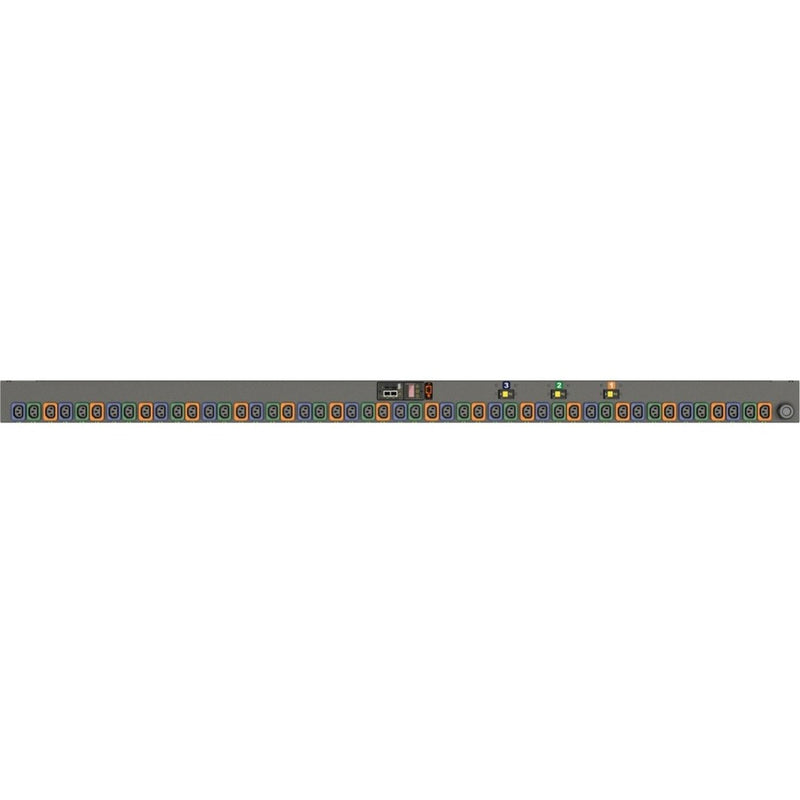

The Vertiv Geist NS30019L is a 48-outlet switched PDU offering intelligent power distribution and advanced IP-based monitoring. Designed for vertical 0U rack mounting, it features a NEMA L21-30P plug and U-Lock IEC C13 outlets, supporting 120V and 230V inputs with 208V output. With built-in Visible Light Communication (VLC), real-time data can be accessed via the Geist Mobile App, while hot-swappable monitoring modules future-proof your infrastructure. Engineered with overcurrent protection and remote outlet switching, this unit ensures efficient power control across three-phase systems.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Model Number | MNS3EHW1-48L138-3TL21A0A10-S-A |
| Part Number | NS30019L |
| PDU Type | Switched |
| Input Plug Type | NEMA L21-30P |
| Input Voltage | 120V AC / 230V AC |
| Output Voltage | 208V AC |
| Current Rating | 30A |
| Power Rating | 8600W |
| Outlet Type | U-Lock IEC 60320 C13 |
| Number of Outlets | 48 |
| Phase | Three Phase |
| Remote Outlet Switching | Yes |
| Communication Ports | RJ-45 (Network) |
| Management Protocols | DHCP, HTTP/S, SNMP (v1/v2c/v3), Syslog, etc. |
| Mounting Orientation | Vertical |
| Mounting Type | Rack-mountable (0U) |
| Dimensions (WxDxL) | 3.7" x 2.6" x 70" |
| Weight | 22 lbs. |
| Warranty | 5-Year Limited |
| Environmentally Friendly | Yes |
| Included Accessories | Vertical Mounting Bracket Kit |
| Country of Origin | United States |
