Description

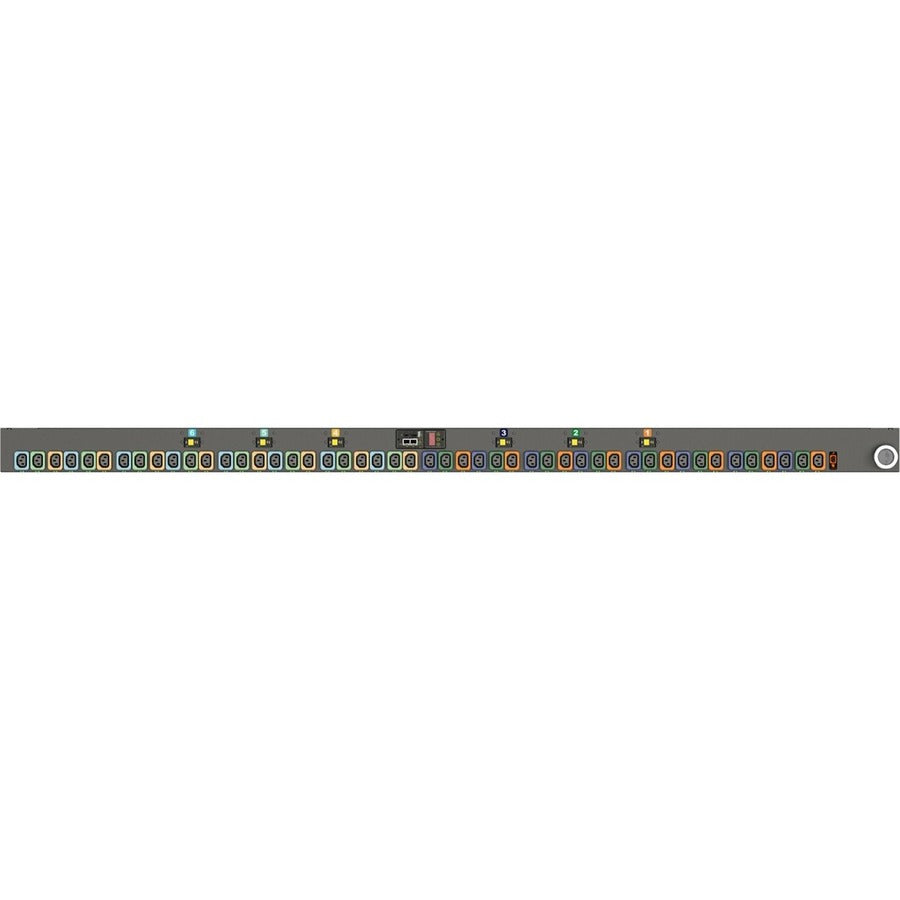

The Vertiv Geist NS30054L is a high-performance switched rack PDU designed for data centers and mission-critical environments. With 48 U-Lock IEC C13 outlets and IP-based remote monitoring, it delivers robust power distribution, real-time metrics, and outlet-level switching. Leveraging Visible Light Communication (VLC), users can easily access phase and circuit-level power data using the Geist Mobile App. Designed with hot-swappable upgradeable monitoring and IP67 plug protection, this 0U vertical PDU ensures scalability, security, and reliability.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Model | MNS3EHW1-48L138-6PS15D0A10-S-A |
| Part Number | NS30054L |
| PDU Type | Switched |
| Phase | Three Phase |
| Plug Type | 3P+E (IP67) |
| Plug Detail | 1 x 3P+E (IP67) |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Number of Outlets | 48 |
| Input Voltage Range | 200V – 240V AC |
| Output Voltage | 208V AC |
| Input Current | 60A |
| Power Rating | 17.20 kW |
| Network Interface | RJ-45 |
| Remote Switching | Yes |
| Management Protocols | SNMP, SSH, HTTP/HTTPS, Syslog, DHCP, NTP, etc. |
| Mounting Type | Rack-mountable (Vertical) |
| Rack Height | 0U |
| Dimensions (WxDxL) | 3.7" x 2.6" x 75" |
| Weight (Shipping) | 26 lbs. |
| Environmentally Friendly | Yes |
| Warranty | 5-Year Limited Warranty |
| Country of Origin | United States |
| In the Box | PDU + Vertical Mounting Bracket Kit |
