Description

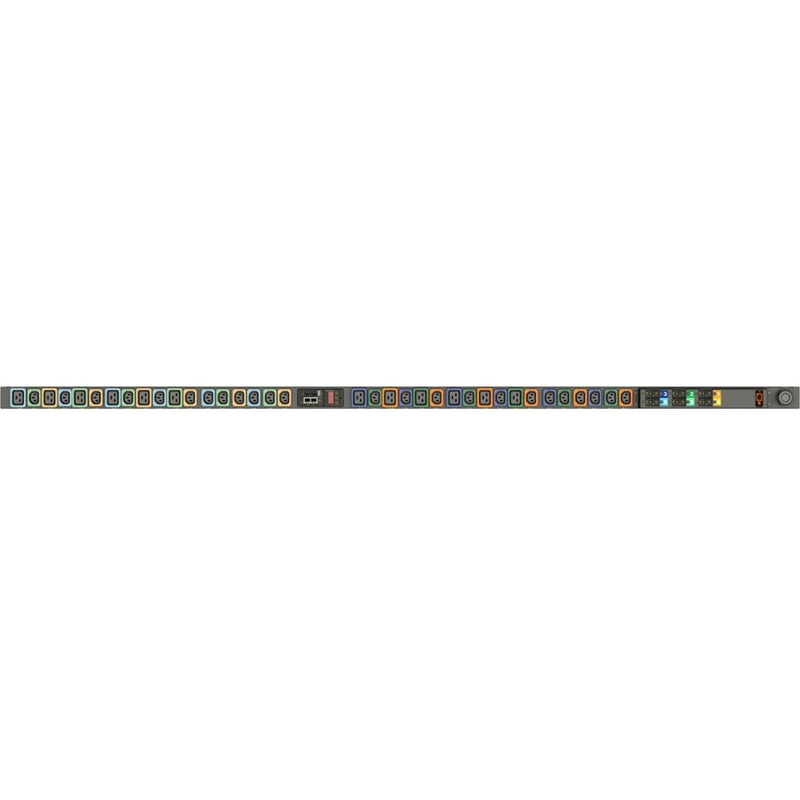

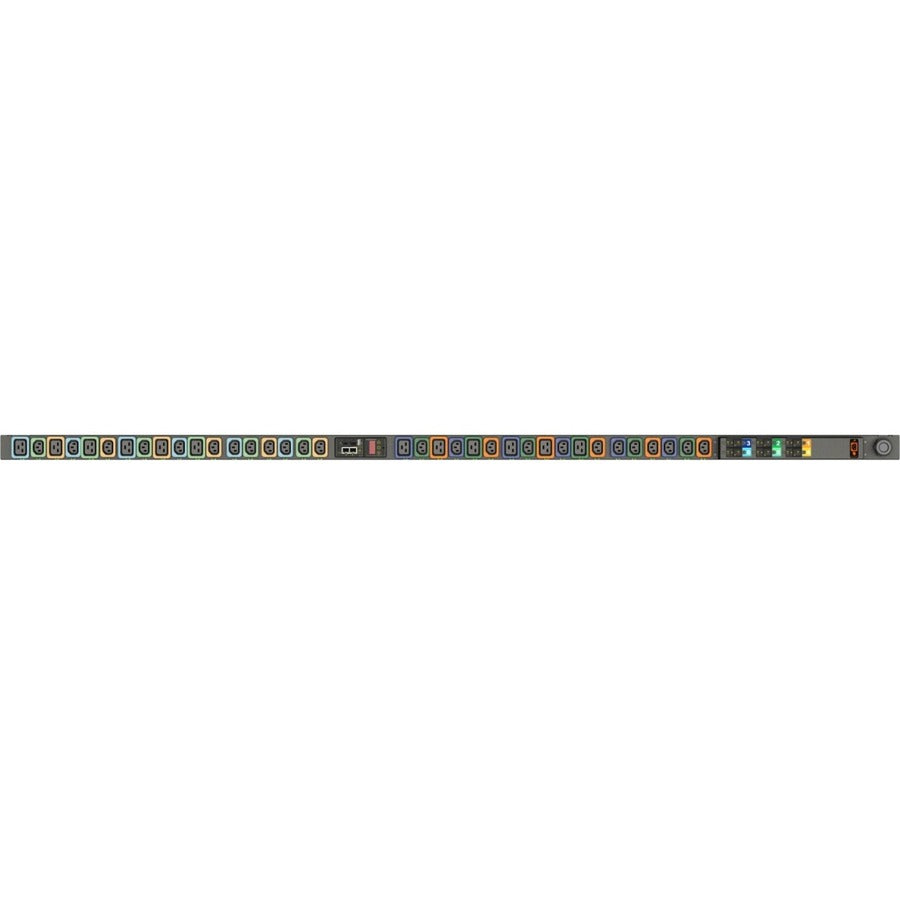

The Vertiv Geist NU30034L is a 36-outlet switched PDU designed for enterprise-level power management. Featuring 24 C13 and 12 C19 U-Lock IEC outlets, it delivers advanced power monitoring and control via an interchangeable monitoring device (IMD). This unit supports IP-based management protocols like SNMP, HTTP(S), SSH, and more. With a NEMA L22-30P plug, 30A input, and a robust 16.6 kW power capacity, it’s ideal for high-density data centers. The integrated Visible Light Communication (VLC) allows power data to be transmitted optically to the Geist Mobile App for real-time insights. Built for vertical (0U) rack mounting and factory fresh with a 5-year warranty.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | NU30034L |
| Model | MNU3EGW1-36PNB3-3TL56A0A10-S-A |
| Brand | Geist |
| PDU Type | Switched |
| Input Plug Type | NEMA L22-30P |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Power Capacity | 16.6 kW |
| Input Current | 30A |
| Outlets | 24 x IEC 60320 C13 (U-Lock), 12 x C19 (U-Lock) |
| Phase | 3-Phase |
| Network Connectivity | 1 x RJ-45 (Ethernet) |
| Remote Management | HTTP/HTTPS, SNMP (v1/v2c/v3), SSH, Syslog, etc. |
| Mounting | Vertical, 0U Rackmount |
| Dimensions (WxDxL) | 2" x 2.6" x 72" |
| Shipping Weight | 22 lbs |
| Warranty | 5-Year Limited Warranty |
| Environmentally Friendly | Yes |
| Included Accessories | Mounting Brackets |
| Country of Origin | United States |
