Description

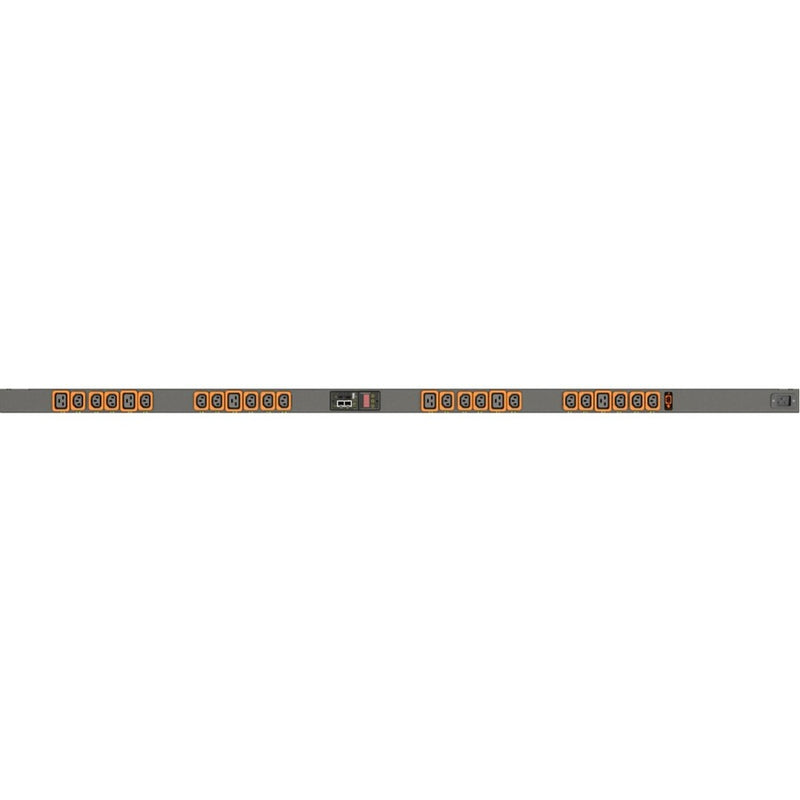

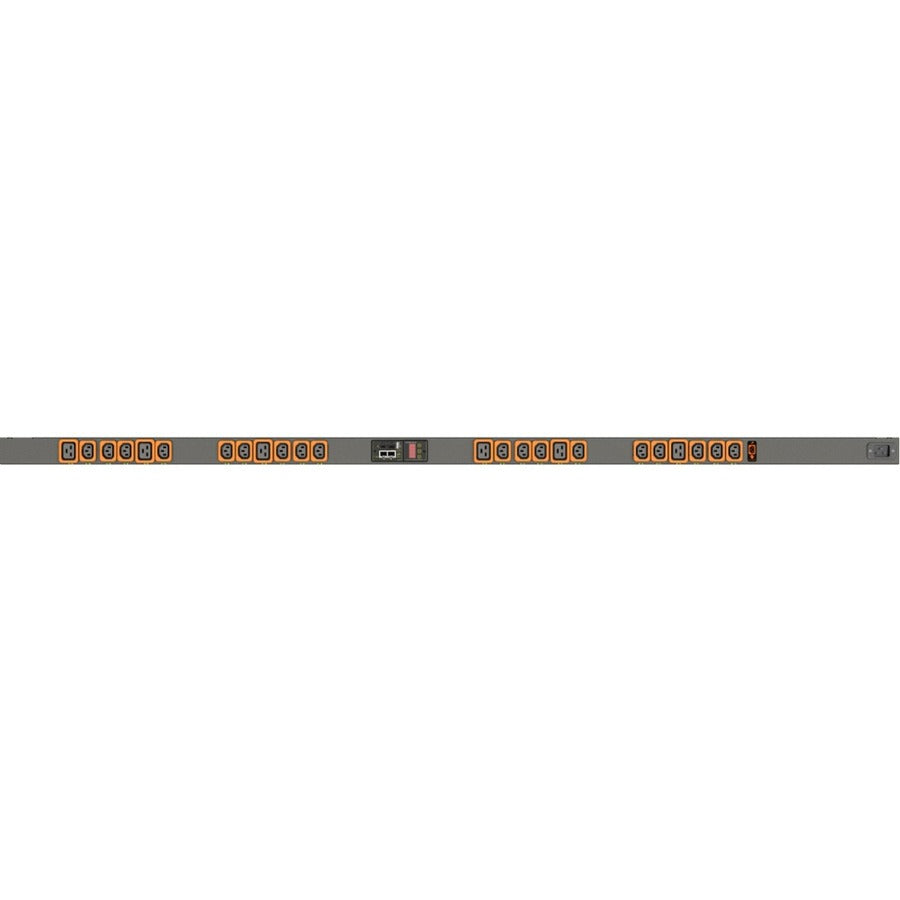

The Vertiv Geist UU30003L is a switched rack PDU designed for advanced power distribution and control in data centers and critical IT environments. Featuring 24 U-Lock outlets (18 x C13, 6 x C19), it provides real-time outlet-level monitoring and remote control via a robust set of IP-based management protocols, including SNMP, HTTP/S, SSH, and more.
With Visible Light Communication (VLC) and Geist Upgradeable hot-swap technology, the unit transmits power data to the Geist Mobile App for phase-level insights and future-proof modular upgrades. Rack-mounted vertically with 0U space usage, it supports wide voltage inputs (100–240V AC), delivering up to 3600W of power.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | UU30003L |
| Product Model | MUU3EGB0-24PH67-2C20A9A00-S |
| Product Type | Switched PDU |
| Mounting Type | Vertical, Rack-Mountable (0U) |
| Plug Type | IEC 60320 C20 (1x) |
| Receptacles | 18 x U-Lock IEC C13, 6 x U-Lock IEC C19 |
| Input Voltage | 100–240V AC |
| Output Voltage | 100–240V AC |
| Power Capacity | 3600 Watts |
| Input Current | 20 Amps |
| Network Interface | RJ-45 |
| Protocols Supported | SNMP (v1/v2c/v3), SSH, HTTPS, Syslog, more |
| Height | 66.3 inches |
| Width | 2 inches |
| Depth | 2.6 inches |
| Weight | 18 lbs |
| Environment Friendly | Yes |
| Warranty | 5-Year Limited Warranty |
| Package Includes | PDU Unit, Mounting Bracket Kit |
| Country of Origin | United States |
