Description
The Vertiv Geist NI30306L rPDU offers a robust and intelligent power distribution solution for critical IT infrastructure. This 42-outlet vertical rack PDU is designed for high availability environments, with upgradeable EC-level monitoring that delivers real-time input-level power usage via remote access. With environmental monitoring capabilities and support for daisy chaining up to 40 rPDUs, it ensures maximum uptime and efficient energy use.
Engineered with lockable IEC C13 and C19 receptacles, it supports 3-phase 230V/415V AC input, a 30A current rating, and delivers a total power capacity of 16.6kW. The hot-swappable monitoring unit, network management protocols (SNMP, SSH, HTTP/S, etc.), and mobile integration through the Vertiv VLC app make this rPDU a future-ready solution for scalable IT environments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Product Series | rPDU |
| Part Number | NI30306L |
| Model | MN03E5W1-42PZ63-3PS56B0A10-S-A |
| Product Type | Monitored PDU |
| Monitoring Level | Unit-Level EC Monitoring |
| Mount Type | Vertical, Rack-Mountable |
| Mounting Kit | Included (Vertical Bracket Kit) |
| Input Plug | 1 x 3P+N+E (IP44) |
| Input Voltage | 230V AC / 415V AC |
| Output Voltage | 230V AC |
| Power Capacity | 16.6 kW |
| Input Current | 30A |

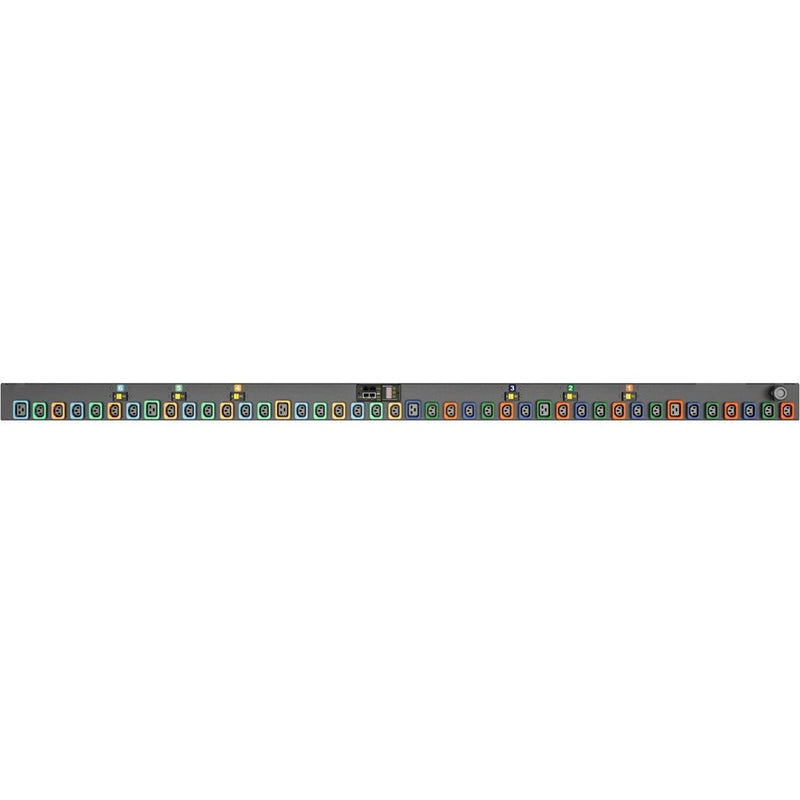

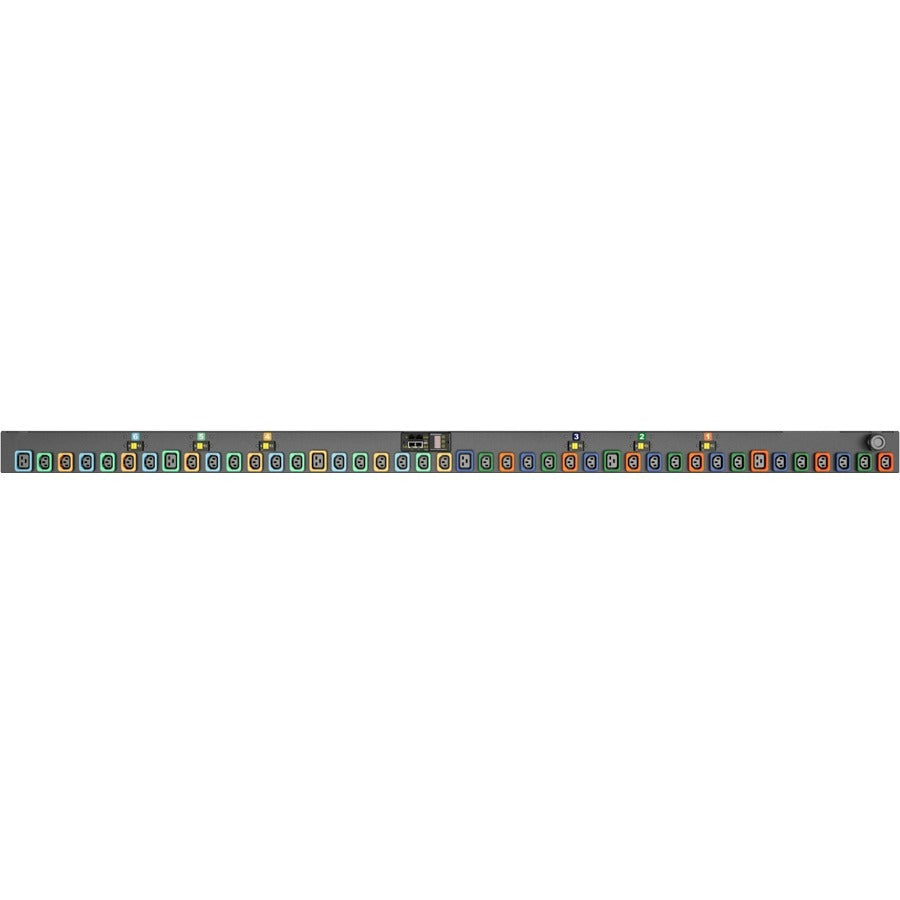

| Receptacles | 36 x Locking IEC C13, 6 x Locking IEC C19 |
| Network Port | RJ-45 (Yes) |
| Supported Protocols | DHCP, HTTP/S, IPv4/IPv6, SNMP, SSH, NTP, Syslog, etc. |
| Phase | Three Phase |
| Protection | Overcurrent (Single Pole) |
| Compliant Standards | TAA Compliant |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Product Condition | New and Factory Fresh |
| Limited Warranty | 5 Years |
| Shipping Weight | 19 lbs |
| Dimensions (W x D x L) | 3.5" x 2" x 75" |
