Description

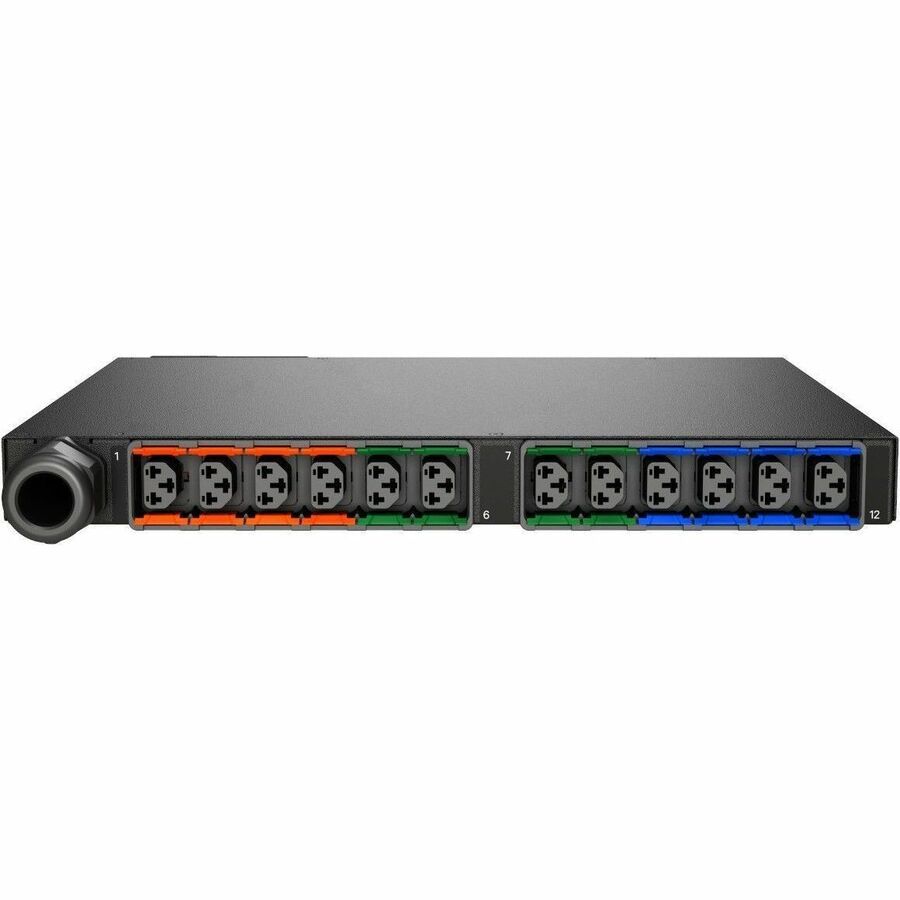

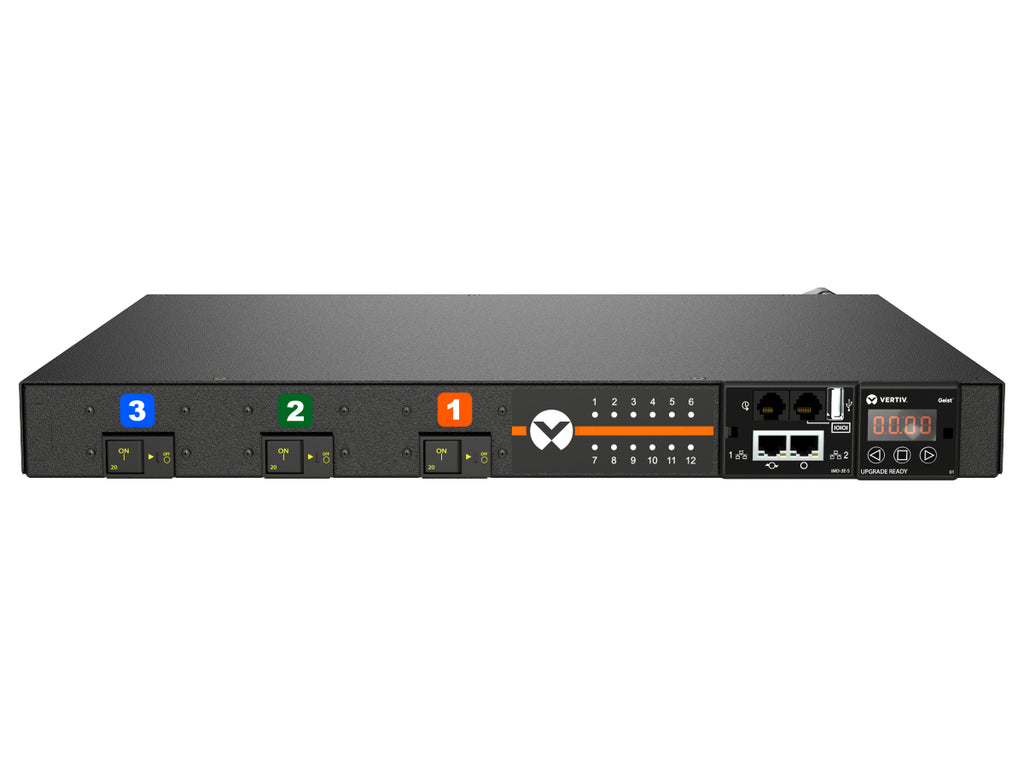

The Vertiv Geist rPDU MNS3E1R6-12CF18-3TL15A0H10-S provides intelligent, switched power distribution for critical IT equipment, enabling individual outlet control and advanced power monitoring via a secure web interface. Equipped with 12 x C13/C19 combination outlets and a NEMA L15-30P plug, this unit delivers reliable 230V AC three-phase power with overcurrent protection and environmental monitoring capabilities. Designed for rack-mountable installations, it supports fault-tolerant daisy chaining and up to 50 units on a single IP. A future-ready solution ideal for optimizing energy usage, uptime, and remote management.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Part Number | NS30208 |
| Product Series | rPDU |
| Model | MNS3E1R6-12CF18-3TL15A0H10-S |
| Product Type | Switched Unit Level Monitored EC rPDU |
| Outlet Quantity | 12 x Combination C13/C19 |
| Input Plug Type | NEMA L15-30P |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 208V AC |
| Input Current | 30A |
| Power Rating | 8600 Watts |
| Input Frequency | 60 Hz |
| Phase | Three Phase |
| Cord Length | 10 ft |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Color | Black Powder Coat |
| Form Factor | Horizontal |
| Dimensions (H x W x D) | 1.7" x 17" x 12" |
| Weight | 1 lb |
| Protection | Overcurrent, Double Pole |
| Display Features | LED Display |
| Network Interface | RJ-45 |
| Management Protocols | HTTP/S, SNMP (v1/v2c/v3), SSH, Syslog, RADIUS, etc. |
| Environmental Monitoring | Supported with optional sensors |
| Max Operating Temp. | 140°F (60°C) |
| Certifications | UL, c-UL 62368-1, FCC Part 15 Class A |
| Compliance | RoHS, TAA Compliant |
| Country of Origin | United States |
| Warranty | 5-Year Limited (3 years if not registered within 120 days) |
