Description

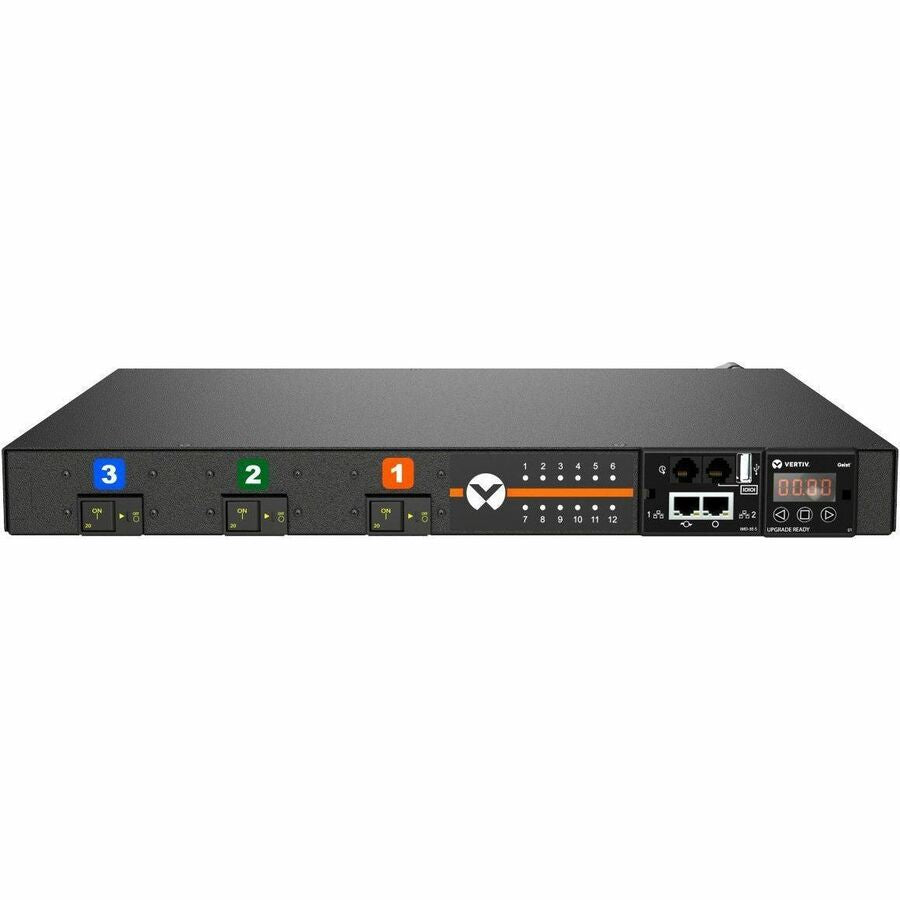

The Vertiv Geist NS30207 is a Switched Unit-Level Monitored rPDU designed to deliver intelligent, high-availability power distribution to your mission-critical IT equipment. This 3-phase PDU features 12 combination C13/C19 outlets and a NEMA L21-30P input, offering maximum flexibility with 120V/230V input support.
With integrated outlet-level switching, advanced environmental monitoring, and support for industry protocols like SNMP, Modbus TCP, and JSON API, this unit empowers remote power management, real-time energy tracking, and proactive system optimization.
The hot-swappable monitoring device enables easy upgrades to new technologies without replacing the entire unit. Designed for horizontal rack-mounting, it’s TAA compliant and ideal for data centers seeking scalable and fault-tolerant power solutions.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Model Number | MNS3E1R6-12CF18-3TL21A0H10-S |
| Part Number | NS30207 |
| Product Type | Switched Unit-Level Monitored rPDU |
| Phase | Three Phase |
| Input Plug Type | NEMA L21-30P |
| Input Voltage Range | 100–120V / 200–240V AC |
| Output Voltage | 208V AC |
| Max Input Current | 30 Amps |
| Power Rating | 8600 Watts |

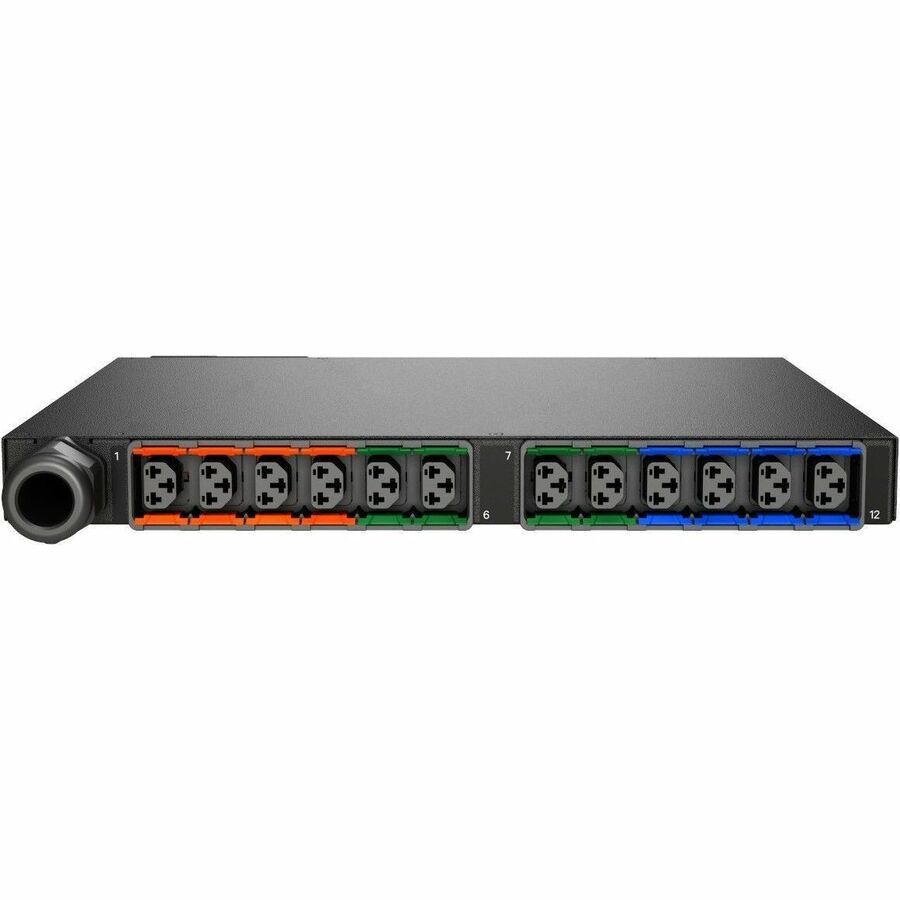

| Receptacle Type | 12 x Combination C13/C19 |
| Circuit Protection | Overcurrent Protection, Double Pole |
| Remote Switching | Yes |
| Communication Protocols | SNMP, HTTPS, SSH, Syslog, Modbus TCP, JSON API, RS232, etc. |
| Network Connection | RJ-45 Ethernet Port |
| Cord Length | 10 feet |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Dimensions (H x W x D) | 1.7" x 17" x 12" |
| Color | Black Powder Coat |
| Environmental Monitoring | Supported (with optional sensors) |
| Max Operating Temp | 140°F / 60°C |
| Certifications | UL, c-UL, FCC Part 15 Class A |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Country of Origin | United States |
| Warranty | 5 Years (3 years if not registered within 120 days) |
| Package Contents | PDU, Adjustable Mounting Brackets |
| Shipping Weight | 1 lb |
