Description

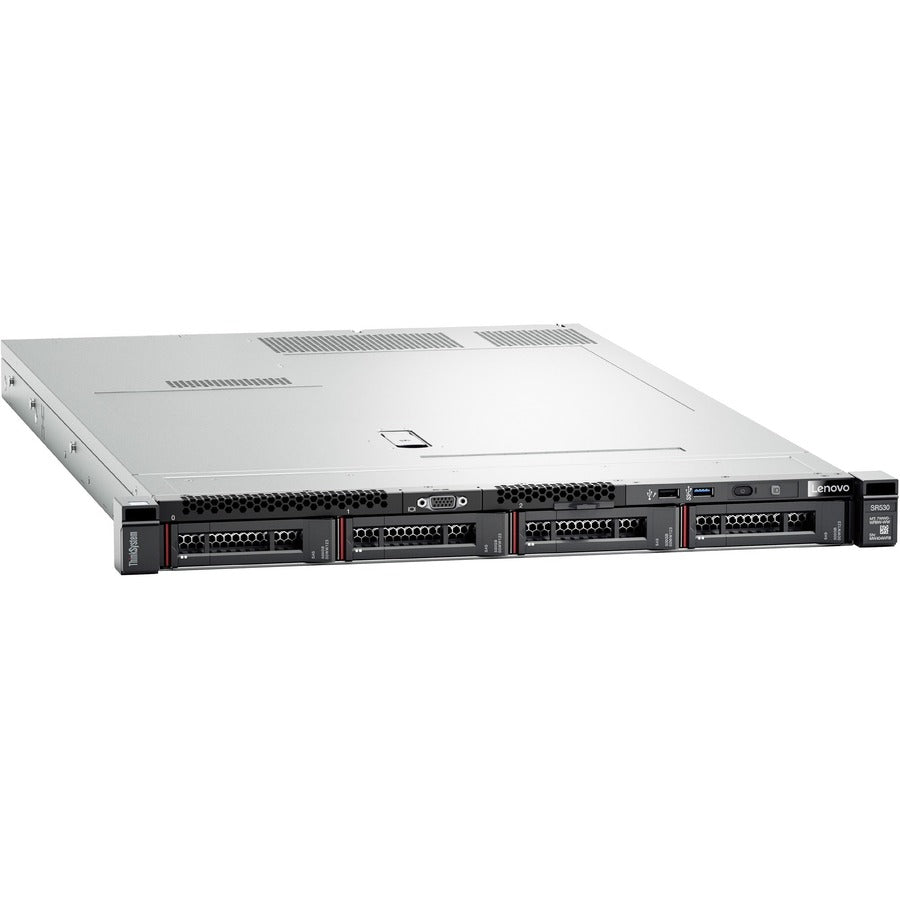

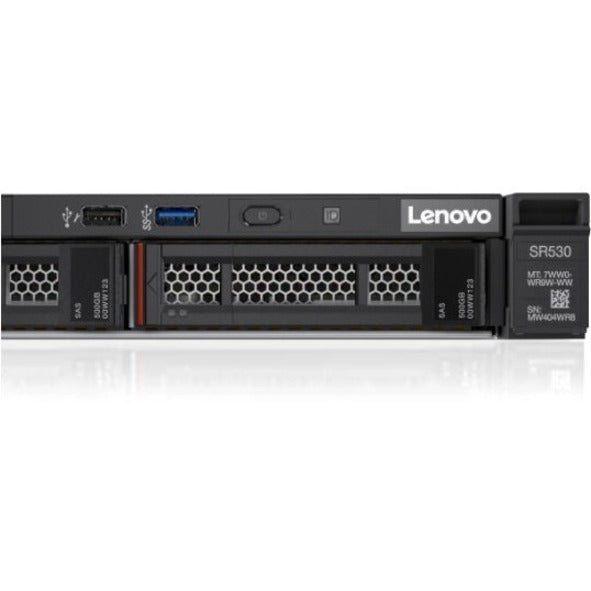

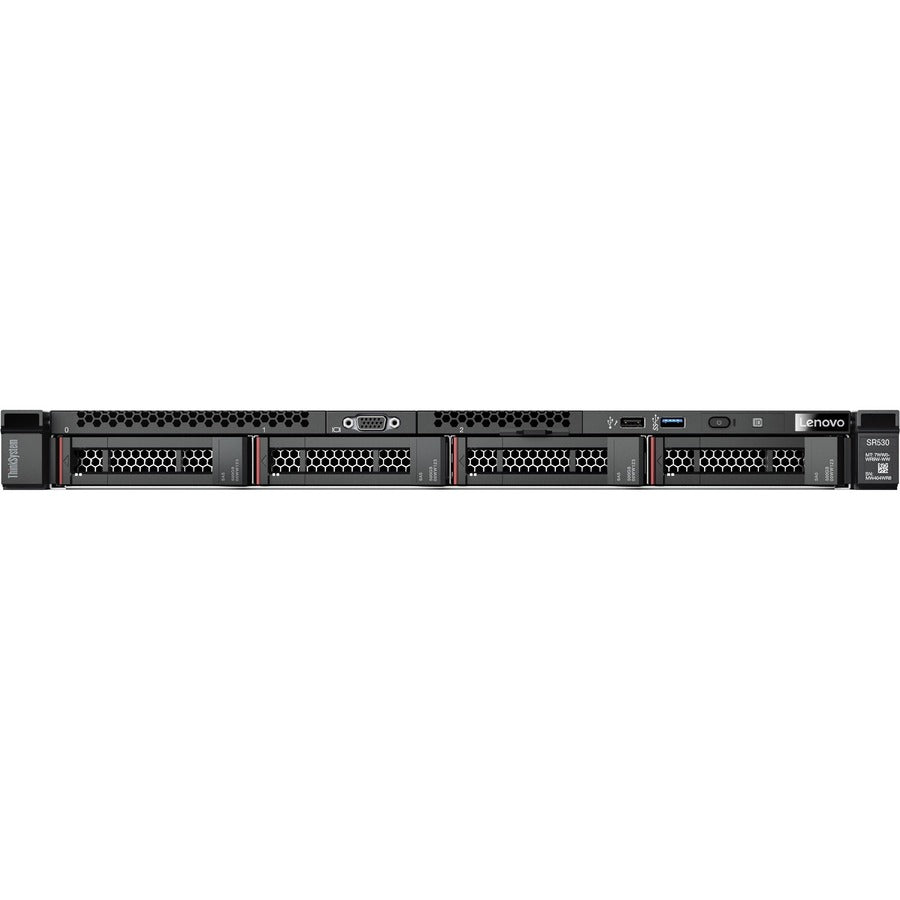

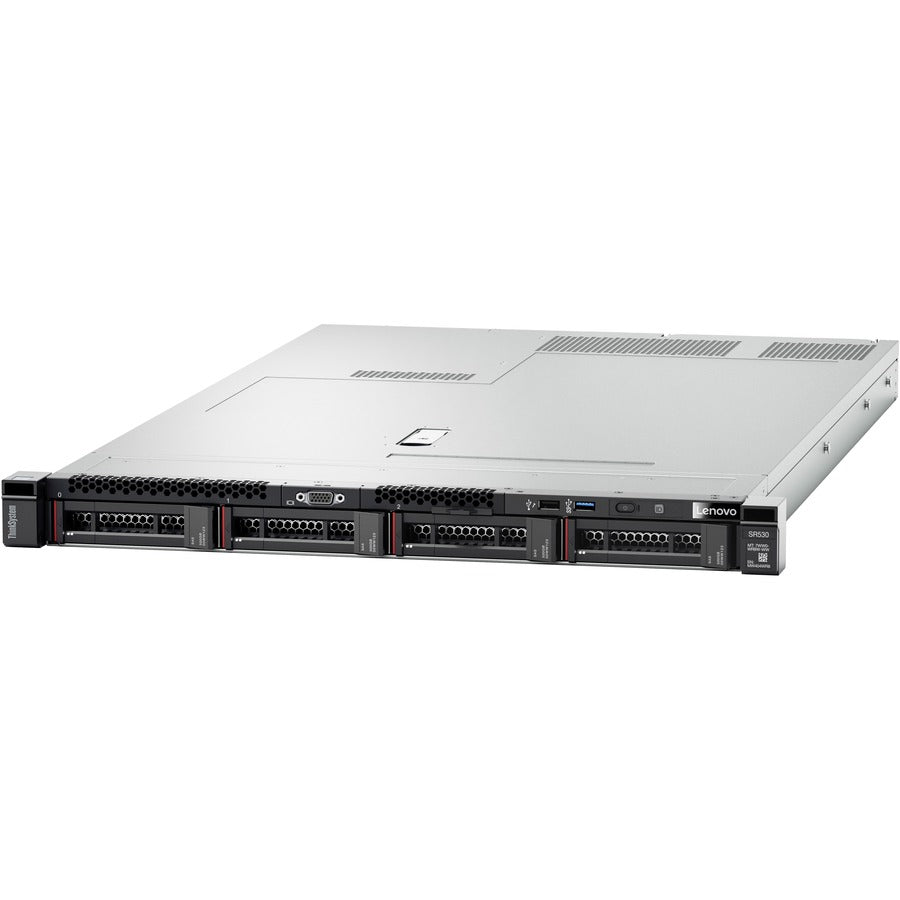

The Lenovo ThinkSystem SR530 7X08A0BGNA is a powerful and cost-effective 1U rack server designed for small to large enterprises seeking enterprise-grade performance, scalability, and reliability. Built with support for up to two 2nd Gen Intel® Xeon® processors and 768 GB of TruDDR4 ECC memory, it offers exceptional flexibility for growing IT environments and mission-critical workloads.
Engineered with an Intel C622 chipset, multiple RAID levels (0, 1, 5, 10), and Gigabit Ethernet, the SR530 ensures optimized performance for applications such as virtualization, cloud computing, collaboration tools, and IT infrastructure. The integrated Matrox G200 graphics and Lenovo XClarity Controller (XCC) provide enhanced system management and remote administration capabilities.
With support for a wide range of operating systems, dual power supplies, and ENERGY STAR® 2.1 certification, the ThinkSystem SR530 delivers enterprise-grade reliability and energy efficiency — making it a versatile and future-ready choice for modern data centers.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7X08A0BGNA |
| Product Line | ThinkSystem |
| Series | SR530 |
| Form Factor | 1U Rack Server |
| Processor Support | Up to 2 x Intel® Xeon® (2nd Gen) |
| Chipset | Intel C622 |
| Memory (Standard / Max) | 16 GB TruDDR4 ECC / Up to 768 GB |
| Memory Slots | 12 DIMM slots (1 occupied) |
| Storage Controller | Serial ATA/600 |
| RAID Support | 0, 1, 5, 10 |
| Optical Drive | None |
| Graphics | Matrox G200 (16 MB) |
| Ethernet | Dual Gigabit Ethernet |
| USB Ports | 4 Total (1 x USB 2.0, 3 x USB 3.0) |
| Network Ports (RJ-45) | 2 |
| Remote Management | XClarity Controller (XCC) |
| Supported Operating Systems | Windows Server 2019/2016/2012 R2, RHEL 7.3–7.6, SLES 12 SP3/15 |
| Power Input Voltage | 120 V AC / 230 V AC |
| Power Supply Support | Up to 2 |
| Dimensions (H x W x D) | 1.7" x 17.1" x 28.1" |
| Weight | 35.27 lb |
| Security Features | Power-on & Administrator Passwords, Secure Firmware Updates, TPM 1.2/2.0 |
| Environmental Compliance | ENERGY STAR® 2.1, RoHS |
| Warranty | 3-Year Limited Warranty |
