UST LENS FOR MZ880 SERIES LCD PROJECTORS, 0.33-0.354:1 TR

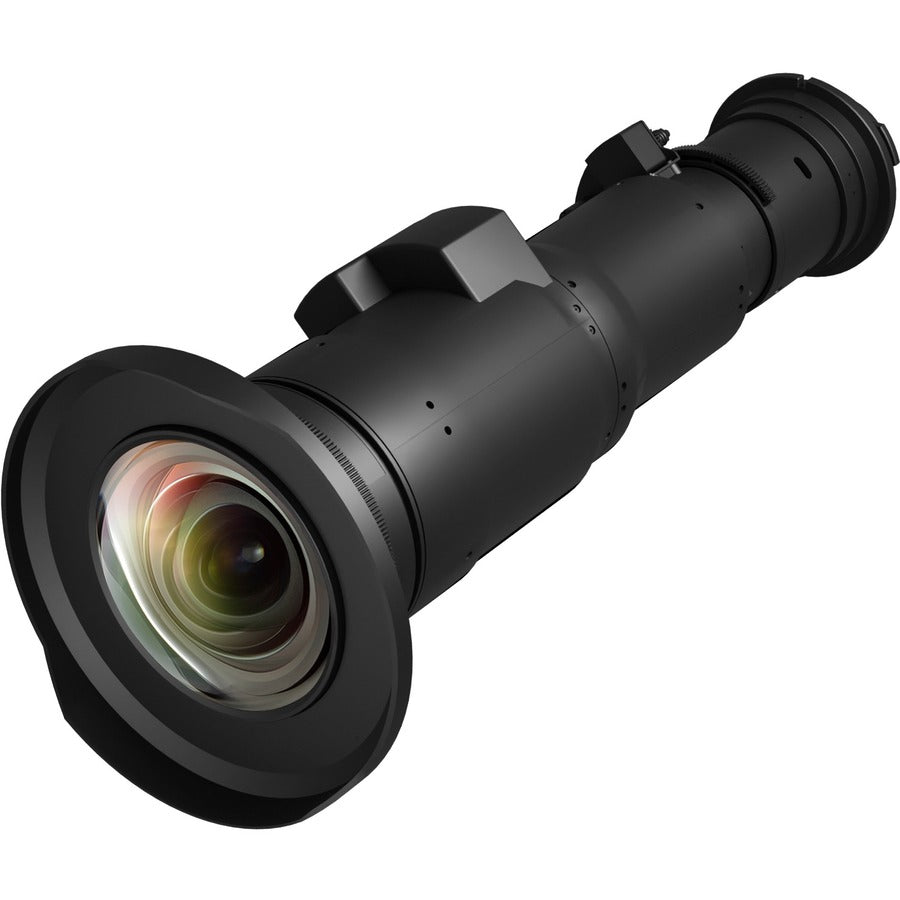

Panasonic ET-ELU20 - 5.43 mm to 5.82 mmf/2 - Ultra Short Throw Varifocal Lens

Ultra-Short-Throw Versatility with Zero Offset | Expanding Choice for Immersive Spatial Performance

Panasonic simplified ultra-short-throw lens and projector installation with innovative zero-offset zoom lenses for DLP™ projectors. The new

ET-EMU100/ELU20 lenses bring the same flexible ultra-short-throw performance to select LCD laser projectors, allowing exhibition designers to choose the projection display technology that best suits their needs. These lenses make immersive and efficient LCD laser projection possible from short throw-distances in museums and other exhibition spaces by combining cost-efficient installation with vivid image quality and minimal shadowing.

Short Throw-Distance Reduces Screen Shadows

With a short 0.330-0.353:1 (WUXGA) throw-ratio, both lenses support a minimum projection distance of about 1.43 m (4.69 ft) for a 200-inch (16:10) image. Viewers can approach the screen without casting a shadow, making the lenses ideal for image projection onto passageway walls or other narrow spaces.

Unobstructed Visibility with Zero Screen Offset

Both lenses enable image reproduction with zero screen offset, eliminating the distracting gap between the top of the image and the ceiling or projector mounting surface. Position the image for seamless floor-to-ceiling image coverage over walls, or completely fill the available screen area without gaps. The mirrorless design also eliminates lens overhang. Mount the projector directly on the ceiling and avoid the hassle and expense of in-ceiling projector recessing to keep the screen clear in rooms with low ceilings.

Uniform Brightness with Lens-Centered Rear-Projection

Thanks to its mirrorless design, projectors can be set with lens positioned at screen center (rather than floor or ceiling) in rear-projection installations. Brightness is distributed more evenly and colors reproduced with greater uniformity from the center of the image out to the corners and edges.

Flexibility Streamlines Installation Workflow | Optical Zoom Helps Installers Work Fast

Optical zoom enhances projector location flexibility. Installing a projector with fixed ultra-short-throw lens usually demands a high degree of precision, with installers sometimes having to remove, relocate, and reattach the projector several times before correctly placing the image. With ET-EMU100/ELU20, adjustment can be performed at the technician's convenience after the projector is installed using powered optical zoom and V/H Lens Shift* functions, saving time and labor and reducing overall cost of installation.

• Ultra-Short-Throw Versatility with Zero Offset Deliver a 200-inch (16:10) image from about 1.43 m (4.69 ft) without screen offset or shadows for immersive performance in areas with limited installation space. Mirrorless design provides unobstructed visibility and supports screen-centered setup for rear-projection.


• Flexibility Streamlines Installation Workflow Powered optical zoom and V/H Lens Shift enhance projector location flexibility, saving time and effort by reducing the amount of installation precision required and enabling image adjustment after installation without having to relocate the projector.


• Durability for Peace of Mind ET-ELU20's heat- and scratch-resistant glass lens reduces focus aberration from fluctuating lens temperature, keeping images sharp. ET-EMU100 supports AFO (Active Focus Optimizer) to maintain crisp focus regardless of content brightness.
