Description

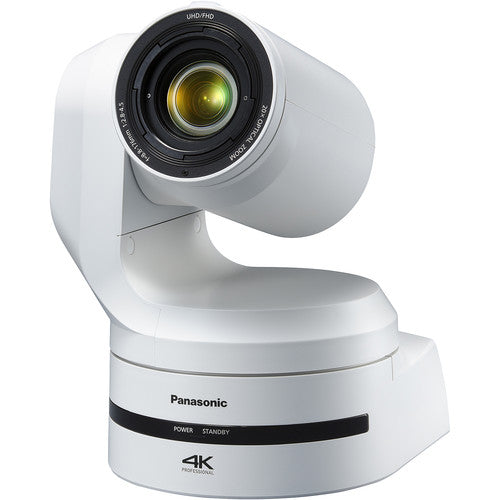

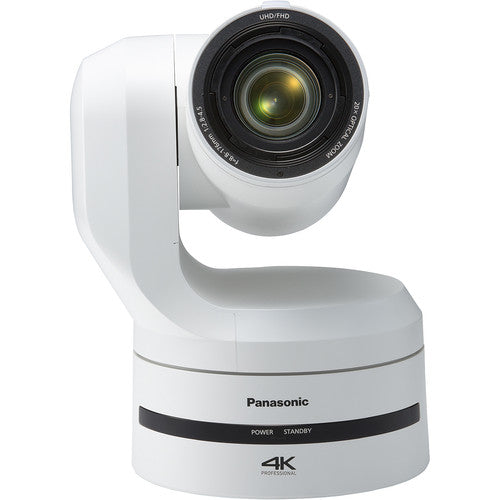

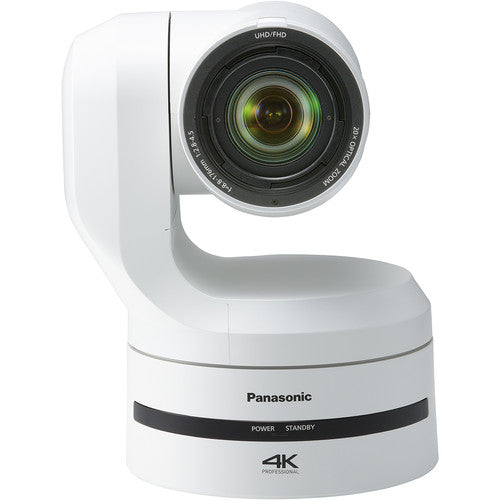

The Panasonic AW-UE150AWPJ UHD 4K 20x PTZ Camera (White) delivers professional-grade imaging with advanced features designed for broadcast, live production, streaming, and virtual applications. Equipped with a large 1" MOS sensor, the camera outputs up to UHD 4K 60p via multiple connections including 12G-SDI, 3G-SDI, HDMI, optical fiber, and IP streaming with built-in NDI|HX2 support.
With 20x optical zoom, 24x UHD iZoom, and 32x HD iZoom, this PTZ camera captures detail with a wide 75.1° field of view and smooth pan/tilt performance. The integrated Optical Low-Pass Filter (OLPF) minimizes moiré artifacts on LED walls, while advanced features like V-Log output, HDR (HLG/BT.2020), and FreeD protocol support enhance professional workflows.
Additional highlights include built-in auto tracking, optical image stabilization, live streaming via RTMP/NDI, tally light, and PoE++ compatibility for simplified installation. Ideal for studios, houses of worship, event venues, and corporate environments, the AW-UE150AWPJ provides high-quality, versatile 4K PTZ imaging in a sleek white finish.
| Category | Details |
|---|---|
| Image Sensor | 1" Type MOS, Effective 8.29 MP (3840 x 2160) |
| Lens | 20x Optical Zoom (24x UHD iZoom, 32x HD iZoom), 8.8–176mm (24.5–490mm equiv.), f/2.8–4.5 |
| Field of View | Horizontal: 75.1° – 4°, Vertical: 46.7° – 2.3°, Diagonal: 82.8° – 4.6° |
| Video Output | 12G-SDI, 3G-SDI, HDMI 2.0, Optical Fiber, IP/NDI |
| Resolutions | UHD 4K (3840×2160) up to 60p; 1080p, 1080i, 720p |
| Streaming Formats | H.264, H.265, MJPEG; NDI/NDI |
| Control Protocols | IP, RS-422, NDI, NDI |
| Special Features | Built-in Auto Tracking, OLPF filter, V-Log Output, HDR (BT.2020), Optical Image Stabilization, Infrared Night Mode |
| Audio I/O | Stereo 3.5mm Mic/Line Input; Embedded audio on HDMI/IP/SDI |
| Power | PoE++ (IEEE802.3bt) or 12VDC XLR Input |
| Mounting | 1x 1/4"-20 Female |
| Dimensions (W×H×D) | 8.4 × 10.5 × 8.6 in / 213 × 267 × 219 mm |
| Weight | 9.3 lb / 4.2 kg |
| Included Items | Camera (White), Mounting Bracket, 4x M4 Screws, 1-Year Manufacturer Warranty |
