Description

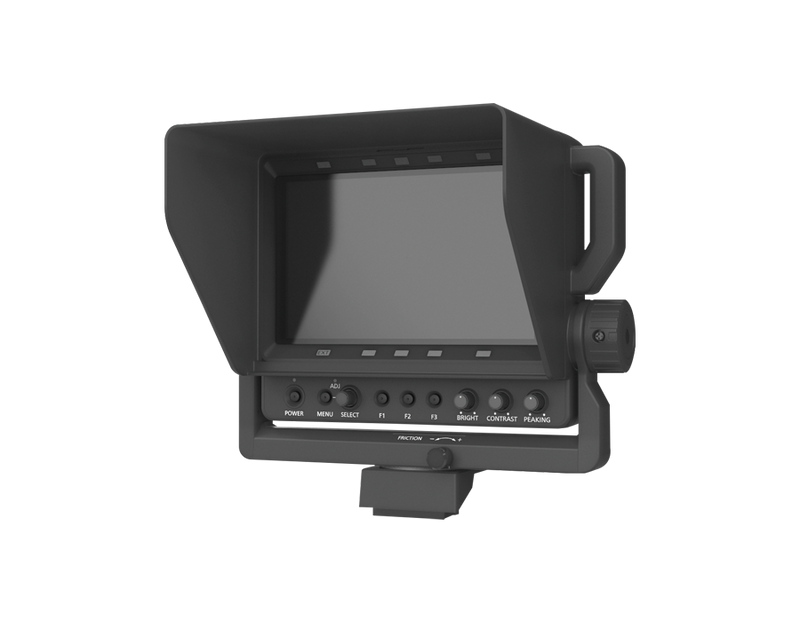

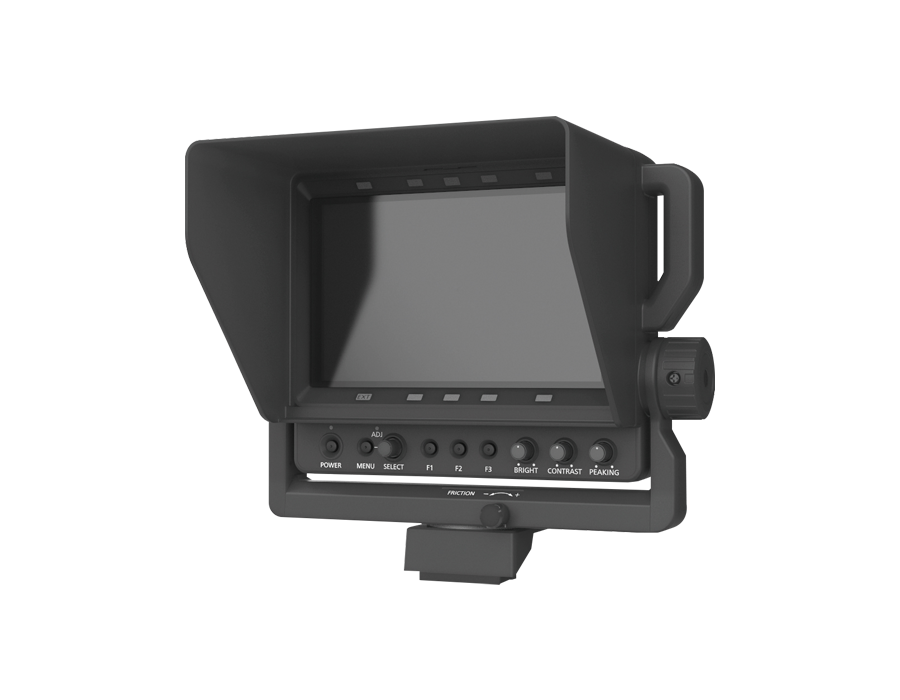

The Panasonic AK-HVF75GJ is a professional-grade 7-inch LCD color viewfinder designed to deliver exceptional clarity and usability in live production environments. Featuring a high-resolution WXGA (1280 x 800) display, wide 176° viewing angle, and a brightness of 400 nits, this lightweight viewfinder ensures precise monitoring with outstanding visibility. Its focus assist functions (Focus in Red, Pixel-to-Pixel) and direct camera menu control make it an indispensable tool for professional camera operators. Built with flexibility in mind, the AK-HVF75GJ offers adjustable tilt and pan, assignable function switches, and customizable image settings for contrast, brightness, and peaking. Compact yet robust, it’s ideal for broadcasters and production teams who demand both performance and efficiency.
| Category | Details |
|---|---|
| Brand | Panasonic |
| Model | AK-HVF75GJ |
| Product Type | 7" LCD Color Viewfinder |
| Display Size | 17.8 cm (7 inches) |
| Resolution | 1280 x 800 (WXGA) |
| Display Color | Approx. 16.77 million colors |
| Viewing Angle | 176° horizontal/vertical |
| Brightness | 400 nits |
| Contrast Ratio | 800:1 |
| Assist Functions | Focus in Red, Pixel-to-Pixel |
| Controls | POWER switch, MENU button, SELECT dial, BRIGHT/CONTRAST/PEAKING knobs, 3 assignable function switches |
| Connectivity | Camera I/F connector (D-sub 29-pin x1) |
| Tilt/Pan | Tilt: 90° up / 60° down, Pan: 90° left & right |
| Power Supply | DC 12 V (supplied from camera) |
| Power Consumption | 11 W |
| Operating Temp. | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temp. | −20 °C to 60 °C (−4 °F to 140 °F) |
| Operating Humidity | 10% to 85% (no condensation) |
| Weight | Approx. 1.6 kg (3.53 lbs.) without hood |
| Dimensions (W x H x D) | 243.5 × 212 × 85 mm (without hood)243.5 × 212 × 172 mm (with hood) |
