Description

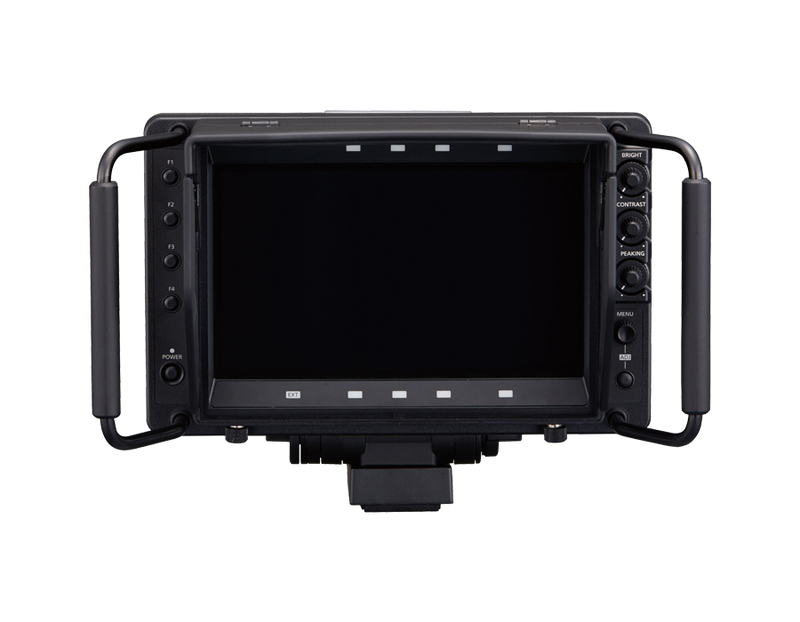

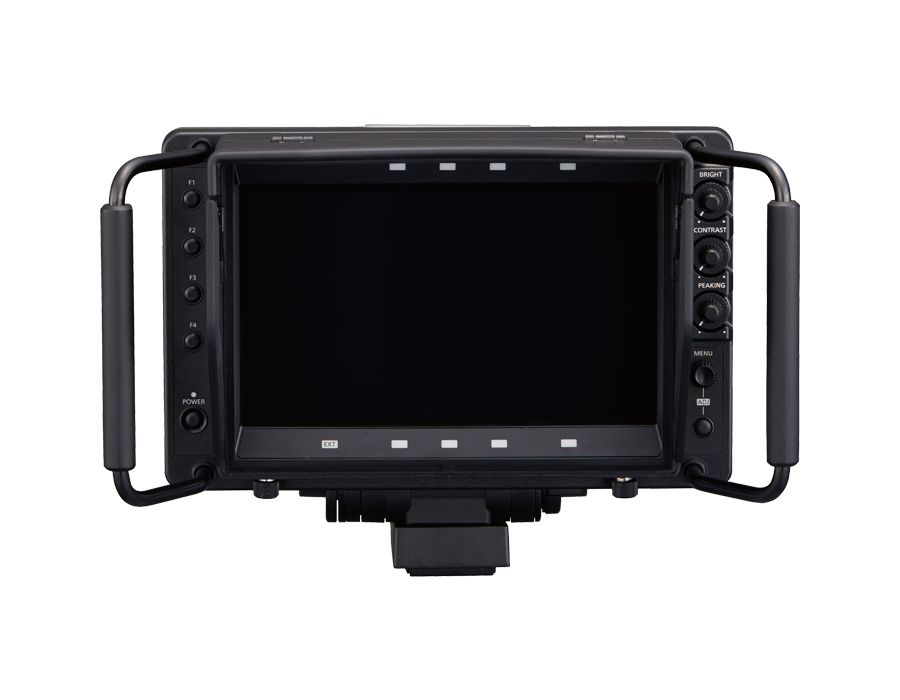

The Panasonic AK-HVF100GJ is a professional 22.9 cm (9-inch) LCD color viewfinder engineered for broadcast and studio camera systems. Featuring a Full HD 1920 x 1080 panel, it delivers crisp, high-resolution monitoring for accurate focusing and framing.

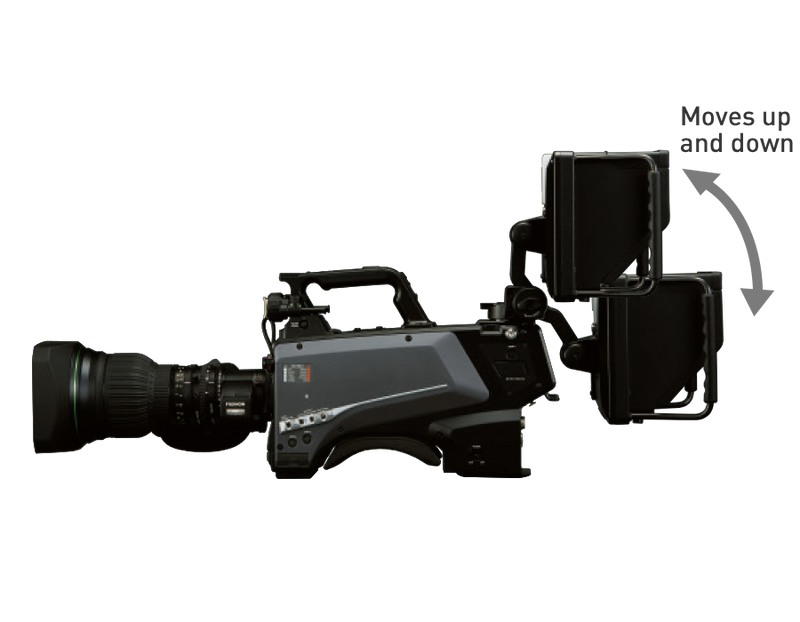

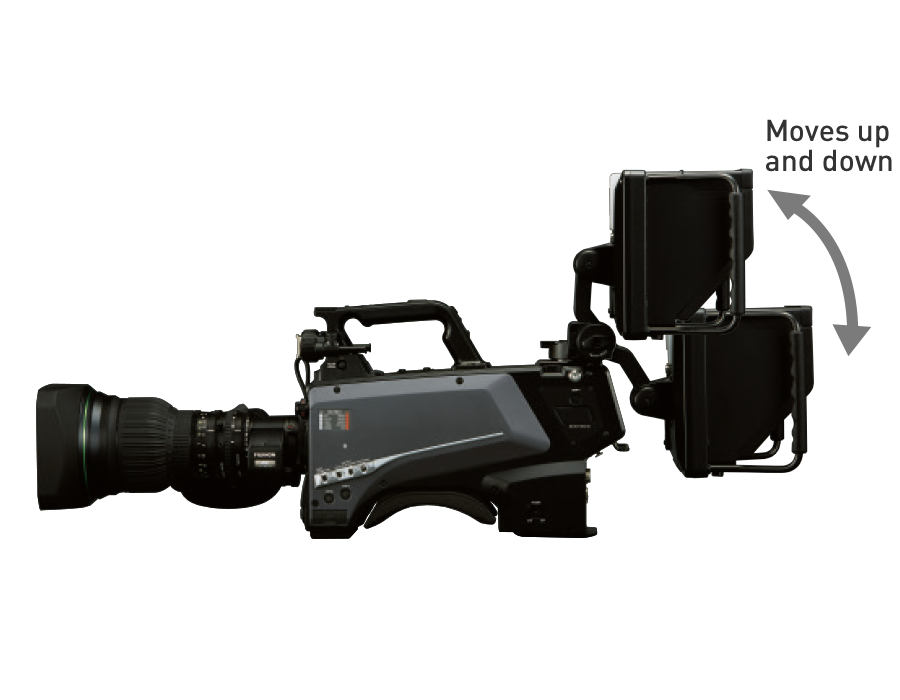

Equipped with a newly designed tilt mechanism and a pan, tilt, and lift structure, this viewfinder offers flexible positioning for comfortable operation. The unit integrates powerful focus assist functions (Focus-in-Red, Focus Bar*) and supports external HD-SDI (3G-SDI) input, providing seamless compatibility in demanding production environments.
With four assignable function switches, adjustable brightness, contrast, and peaking controls, plus external DC input, the AK-HVF100GJ is built to meet the rigorous needs of professional broadcast setups.
*Focus assist details depend on zoom ratio when connected to Panasonic AK-UC3000 or AK-HC5000 cameras.
| Category | Details |
|---|---|
| Manufacturer | Panasonic |
| Product Type | LCD Color Viewfinder |
| Model / SKU | AK-HVF100GJ |
| Display Panel | 22.9 cm (9") LCD |
| Resolution | Full HD 1920 Ć 1080 |
| Display Colors | ~16.77 million |
| Functions | Focus-in-Red, Focus Bar*, 4 assignable switches, adjustable contrast/brightness/peaking |

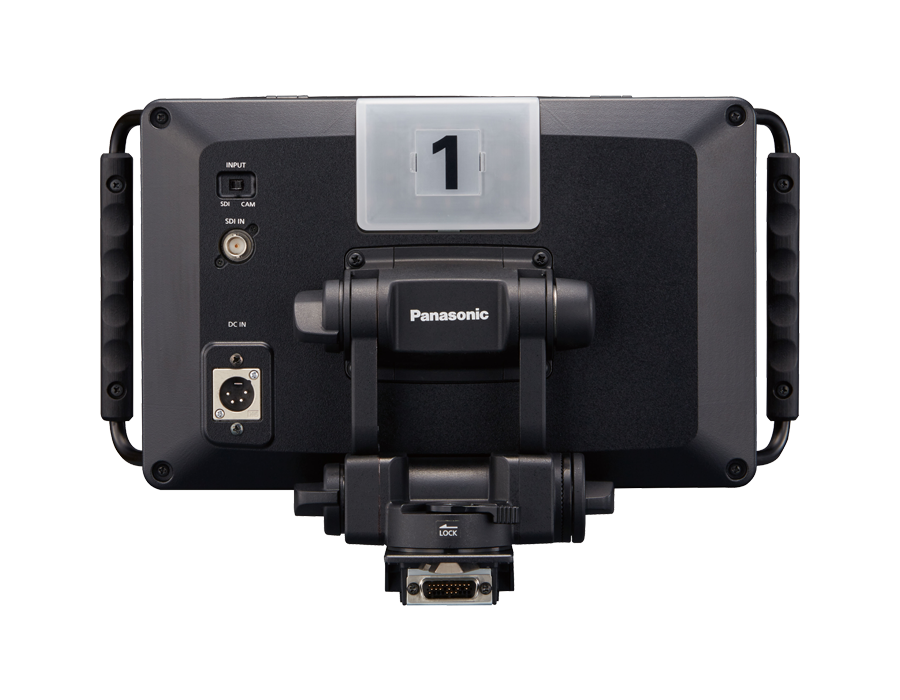

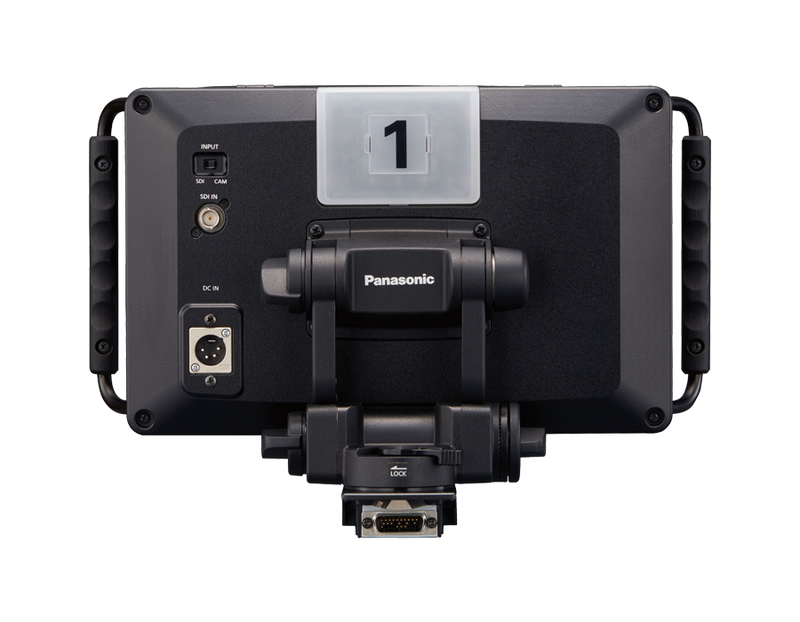

| Inputs | Camera I/F (D-sub 29), HD-SDI IN (BNC), DC IN (XLR 4-pin) |
| Supported Formats | CAM: 1080/59.94i, 1080/50iSDI: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Power Supply | DC 12V (from camera or XLR) |
| Power Consumption | 18 W |
| Operating Temp. | 0 Ā°C ā 45 Ā°C (32 Ā°F ā 113 Ā°F) |
| Storage Temp. | -20 Ā°C ā 60 Ā°C (-4 Ā°F ā 140 Ā°F) |
| Humidity | 10% ā 85% (non-condensing) |
| Dimensions (WĆHĆD) | 340 Ć 234 Ć 193 mm (without hood)340 Ć 234 Ć 231 mm (with hood) |
| Weight | Approx. 2.6 kg (without hood)Approx. 3.0 kg (with hood) |
