Description

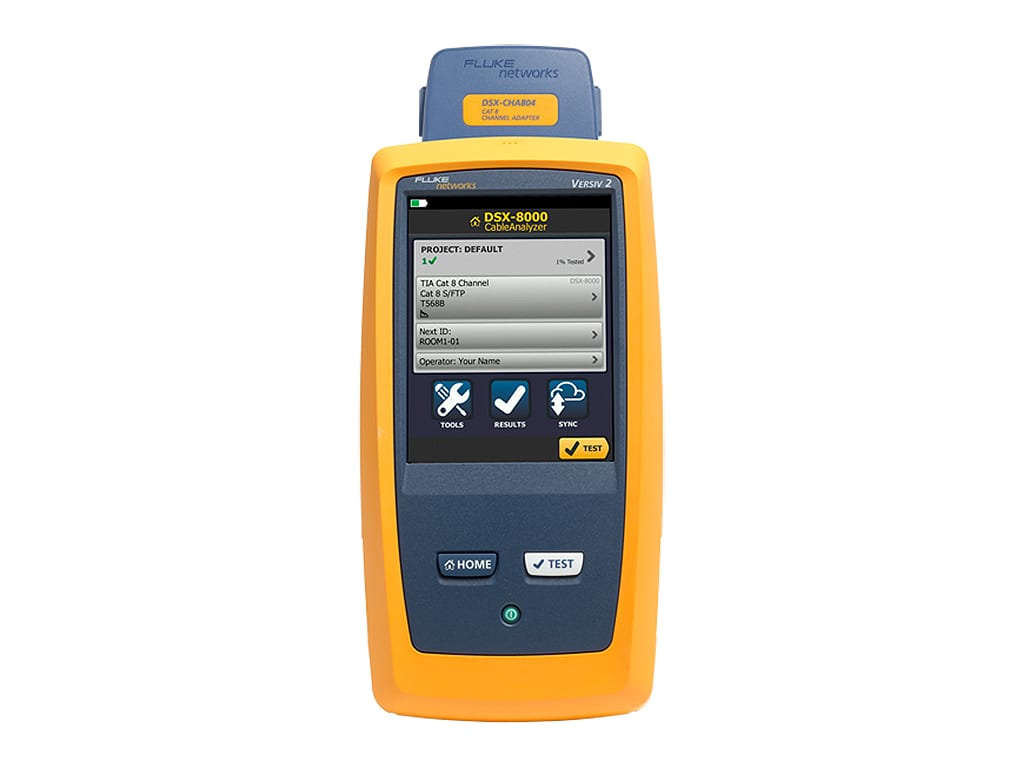

The Fluke Networks DSX2-8000 Versiv™ CableAnalyzer is the ultimate copper certification tester, designed for high-performance networks up to 40 Gigabit Ethernet. Supporting certification for Cat 5e, 6, 6A, and Cat 8 / Class I & II cabling up to 2 GHz, it ensures compliance with Level VI/2G accuracy standards.
Part of the Versiv™ Cabling Certification Product Family, the DSX2-8000 streamlines testing with its ProjX™ project management system, Taptive™ touchscreen interface, and full LinkWare™ Live cloud integration for remote setup, monitoring, and results management. With lightning-fast certification—8 seconds for Cat 6A and 16 seconds for Cat 8—and advanced diagnostics, it reduces troubleshooting time while increasing accuracy.
Whether for enterprise, data center, or industrial environments, the DSX2-8000 is the professional choice for precise, future-ready copper cabling certification.
| Feature | Specification |
|---|---|
| Cable Types | Shielded & unshielded twisted pair (Cat 3–8, Class C–II, 100 Ω & 120 Ω) |
| Max Frequency | 2000 MHz |
| Certifiable Standards | ANSI/TIA Cat 3–8; ISO/IEC Class C–II |
| Test Time | Cat 6A: 8 sec; Cat 8: 16 sec |
| Accuracy Level | TIA Level 2G / IEC Level VI |
| Memory Capacity | Up to 5,000 Cat 8 results with plots; 12,000 Cat 6A with plots |
| Diagnostics | HDTDX, HDTDR, Shield Distance-to-Fault, TCL, ELTCTL |
| Interface | Capacitive touchscreen, Wi-Fi enabled |
| Software Integration | LinkWare™ PC & LinkWare™ Live |
| Battery Life | 8 hours typical (Li-ion) |
| Dimensions | 2.625" × 5.25" × 11.0" (6.67 × 13.33 × 27.94 cm) |
| Weight | 3 lbs 5 oz (1.28 kg) |
| Environmental | Operating Temp: 0°C to 45°C; Storage: -30°C to 60°C |
| Safety & Compliance | CSA 22.2, IEC 61010-1, EN 61326-1 EMC |
