Description

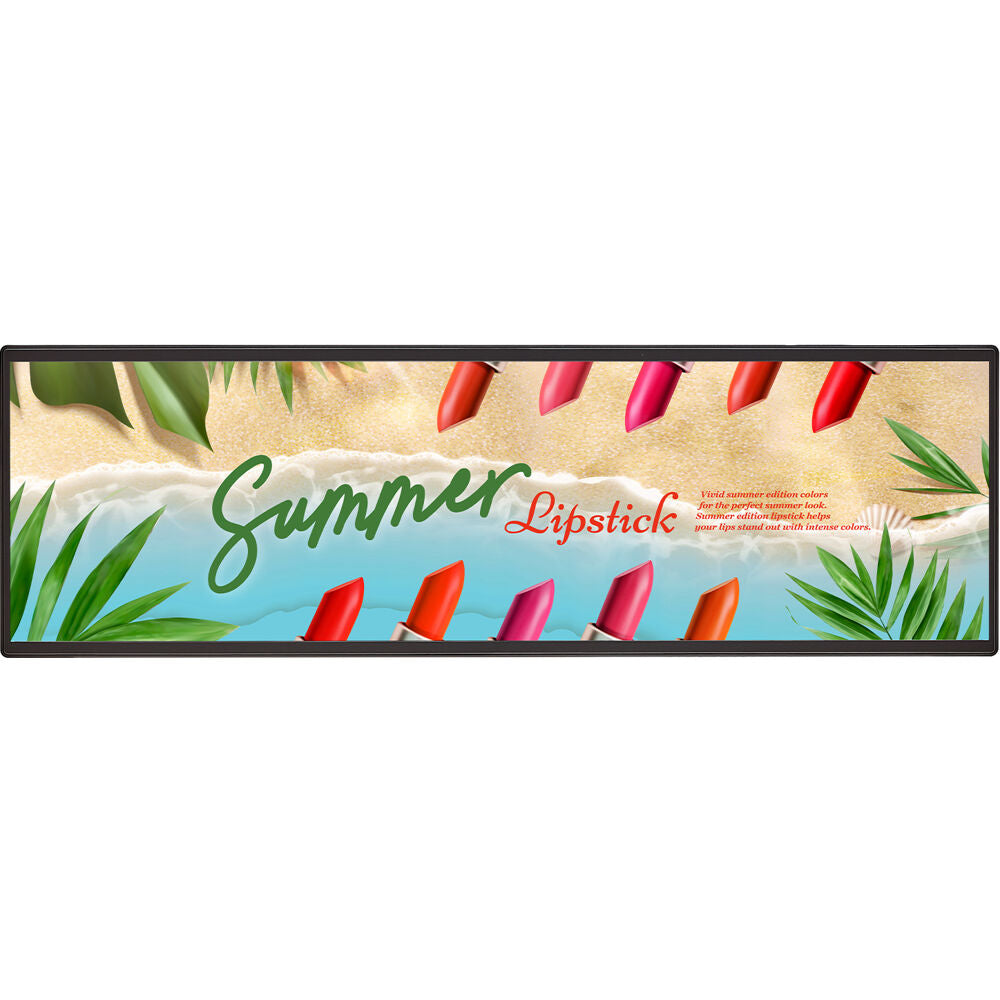

The LG 37BH7N-H is a 37-inch stretch signage display engineered for dynamic, high-impact messaging in retail, transportation, QSR, and corporate environments. With its 32:9 ultra-wide aspect ratio and 1920 × 540 FHD resolution, it’s ideal for delivering unique content in constrained or specialized spaces.
Featuring 700 nits brightness, IPS (ADS) technology, and a 24/7 operation rating, this signage guarantees vibrant, reliable visuals even in bright environments. Powered by LG webOS 6.0, it offers advanced content management with embedded CMS, SuperSign software, and ConnectedCare.
Key highlights include:
-
Ultra-Wide 32:9 Display for versatile layouts and impactful branding.
-
High Brightness (700 nits) ensures visibility in well-lit environments.
-
Built-in webOS 6.0 with embedded CMS for scheduling, playlists, and group management.
-
Advanced Features: Screen rotation, gapless playback, video tagging, tile mode up to 15x15, and failover support.
-
Robust Performance: 24/7 operation, 50,000-hour lifespan, conformal coating for durability.
-
Smart Connectivity: HDMI daisy chain, DP, LAN, USB playback, RS-232C, and built-in Wi-Fi.
-
Slim, Lightweight Design: 922 × 288 × 43.5 mm, only 7 kg, with VESA 400 × 200 mm mount.
This stretch signage is purpose-built for retail shelves, menu boards, transit stations, and immersive brand experiences where conventional displays cannot fit.
Technical Specifications (LG 37BH7N-H)
| Category | Specification |
|---|---|
| Screen Size | 37" |
| Aspect Ratio | 32:9 |
| Resolution | 1920 × 540 (FHD) |
| Brightness | 700 nits |
| Panel Technology | IPS (ADS), Edge LED |
| Contrast Ratio | 1,000:1 (Static), 1,000,000:1 (Dynamic) |
| Viewing Angle | 178° x 178° |
| Response Time | 14 ms |
| Color Depth | 8-bit, 16.7M colors |
| Lifespan | 50,000 hrs (min.) |
| Operation | 24/7 |
| Inputs | 2x HDMI (HDCP 2.2/1.4, Daisy Chain), 1x DP, 1x USB 2.0, RS-232C IN, RJ45 LAN, IR IN |
| Outputs | HDMI Out, Audio Out (Line Out), RS-232C OUT |
| Internal Memory | 16GB |
| Software | webOS 6.0, SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS |
| Connectivity | Wi-Fi (built-in), Beacon, SNMP, Control Manager |
| Dimensions (W×H×D) | 922.3 × 288.3 × 43.5 mm |
| Weight | 7 kg (head), 9 kg (packed) |
| Bezel (T/R/L/B) | 15.6 / 9.3 / 9.3 / 15.6 mm |
| Mounting | VESA 400 × 200 mm |
| Power Consumption | 40W (typ.), 50W (max.), <0.5W standby |
| Certifications | CB / NRTL, FCC Class B, CE, KC |
| Accessories | Remote (with batteries), Power cord, RS-232C gender, Quick Start Guide, Regulation book |
