Description

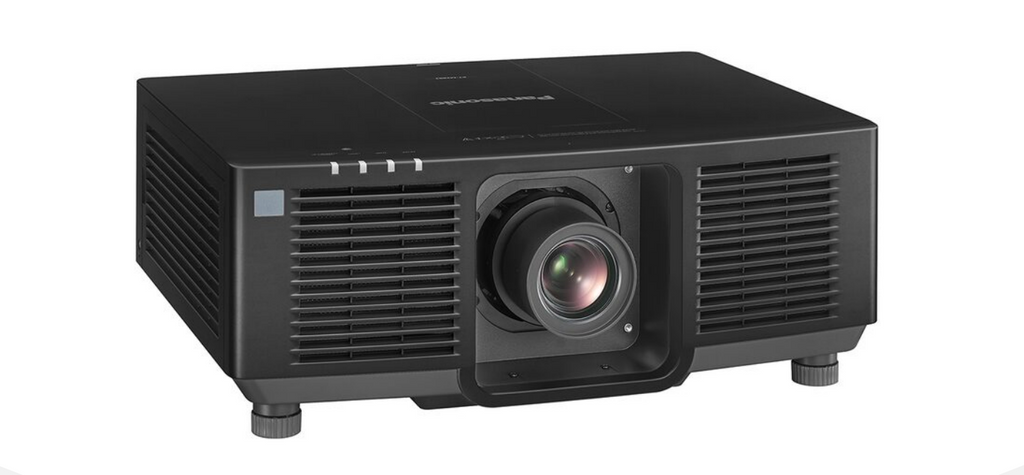

The Panasonic PT-MZ782BU7 is a powerful 7,500-lumen WUXGA 3LCD laser projector designed for classrooms, corporate spaces, houses of worship, and large-venue applications. As the successor to the PT-MZ780BU7, this next-generation model delivers brighter images, improved contrast, and ultra-quiet operation—all while maintaining Panasonic’s renowned SOLID SHINE laser reliability.
With advanced features like Dynamic Contrast up to 3,000,000:1, flexible installation (including 360° mounting and wide lens shift), and multiple professional inputs including triple HDMI and DIGITAL LINK (HDBaseT), the PT-MZ782BU7 is engineered for uncompromising performance and easy integration.
Whether you’re upgrading an existing installation or deploying in new spaces, the PT-MZ782BU7 offers superior brightness, low maintenance, and exceptional image clarity.
Key Features
-
7,500 lumens brightness for clear projection in bright environments
-
WUXGA (1920 × 1200) resolution with SOLID SHINE laser technology
-
Dynamic Contrast up to 3,000,000:1 for lifelike images
-
20,000 hours maintenance-free operation (24,000 hrs in ECO mode)
-
Ultra-quiet operation as low as 26 dB in Quiet mode
-
Flexible lens shift and 360° installation capability
-
Triple HDMI with HDCP 2.3, DIGITAL LINK/HDBaseT, and full professional connectivity
Specifications
| Category | Details |
|---|---|
| Projector Type | 3LCD Laser Projector |
| Panel Size | 0.76" (19.3 mm) diagonal, 16:10 aspect ratio |
| Resolution | WUXGA (1920 × 1200 pixels) |
| Brightness | 7,500 lumens |
| Contrast Ratio | 3,000,000:1 (Dynamic) |
| Light Source | Laser diodes |
| Light Source Life | Up to 20,000 hrs (Normal), 24,000 hrs (ECO) |
| Lens (Standard) | Powered zoom 1.61–2.76:1, powered focus, F=1.7–2.3 |
| Lens Shift | Vertical: ±67% / Horizontal: ±35% (powered) |
| Keystone Correction | Vertical ±25°, Horizontal ±30° |
| Screen Size | 40–400 in (varies with lens) |
| Noise Level | 32 dB (Normal/ECO), 26 dB (Quiet) |
| Inputs | HDMI x3 (HDCP 2.3, 4K/60p), D-sub 15-pin IN/OUT, Audio IN/OUT, DIGITAL LINK (HDBaseT), LAN, USB DC Out, RS-232C, Remote in |
| Control Protocols | PJLink (Class 2), Art-Net, HDBaseT, RS-232C |
| Installation | Ceiling/floor, front/rear, 360° free orientation |
| Dimensions (W×H×D) | 561 × 224 × 439 mm (22.1 × 8.8 × 17.3 in) |
| Weight | Approx. 18.6 kg (41 lbs) |
| Power Consumption | Normal: 385 W (AC 100–120 V), ECO: 280 W, Quiet: 275 W |
| Operating Noise | 32 dB (Normal/ECO), 26 dB (Quiet) |
| Operating Environment | 0–45 °C, 10–80% humidity (non-condensing) |
