Description
DLP™ imaging technology, Quartet Colour Harmonizer, Rich Colour Enhancer, and digitally modulated Dynamic Contrast 2 optimization coalesce in images of surpassing brightness, colour, and clarity regardless of ambient light levels. Flexible 2.0x zoom lens with V/H Lens-Shift joins DIGITAL LINK and CEC-ready HDMI® terminals supporting 4K/60p input signals*2. Separate LAN terminal and USB-DC outlet further streamline installation. Operation is almost inaudible at 27 dB*4.Heat-pipe cooling for the laser modules and heat-sinks for airtight DMD block support filterless design for 20,000 hours of maintenance-free projection. Multi-Laser Drive Engine has failover circuit protection while optional Early Warning software reinforces reliability.
PT-FRZ60 | PT-FRZ50 | PT-FRZ55 | |
---|---|---|---|
Brightness |
6,000 lm* (ANSI)/ 6,200 lm (Center) |
5,200 lm* (ANSI)/ 5,400 lm (Center) |
5,000 lm* (ANSI)/ 5,200 lm (Centre) |
Resolution | WUXGA | ||
Lens |
2x zoom lens (1.46 – 2.94:1) |
Fixed short throw lens (0.8:1) |
* Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Dynamic Colour for Bright Rooms
Brilliant Colour Reproduction |
|
Quartet Colour Harmonizer is an original colour-wheel mechanism featuring optimized optical design. It modulates light-output according to the image’s colour requirements, achieving wide-gamut reproduction with pure white for greater colour accuracy and depth without sacrificing brightness. Combined with stable SOLID SHINE Laser brightness and the superior uniformity of DLP™ imaging, colours appear richer and brighter without the greenish cast sometimes experienced with alternative projection technologies. |
Rich Colour Enhancer |
|
Rich Colour Enhancer includes a Dynamic Mode that prioritizes image brightness, and a Graphic Mode/Standard Mode to suit graphical content. This mode adjusts colour-wheel timing for deeper colour saturation in situations where projection at maximum brightness is not required. |
Dynamic Contrast 2 Heightens Contrast Precision |
|
PT-FRZ60 and PT-FRZ50 feature a new Dynamic Contrast 2 setting that enhances 20,000:1 digitally modulated contrast precision to a level approaching our professional models. Dynamic Contrast regulates light-output frame-by-frame or scene-by-scene according to image requirements, achieving accurate contrast when bright and dark scenes frequently interchange. Whites are brighter, blacks richer, and skin-tones more natural even in well-lit environments. The technology also consumes less energy than iris-based projection systems. |
Quiet, Versatile, and Easy to Install
Wide-Range 2.0x Zoom Lens with Lens-Shift |
|
To smooth the path to stress-free installation, the projectors equip a 2.0x optical zoom lens that supports a wide range of throw-distances while filling your screen with a large, bright image. V/H Lens-Shift (Vertical: +64 %, -44 % and Horizontal: +34 %, -27 %) locates the image on screen when optimal projector placement isn’t possible, such as in rooms with high ceilings or for angled projection applications. The projectors share the same 2.0x zoom lens and lens-shift adjustment as our PT-RZ570 (and will fit the same mounting bracket), making the PT-FRZ60/FRZ50 a streamlined, cost-effective replacement. V/H Keystone Correction (Vertical: ±40 °, Horizontal: ±20 °), curved-screen correction, and Auto Image Rotation function are included to further enhance installation flexibility. |
Supports 4K/60p Signal Input* |
|
Both projectors support uncompressed 4K/60p input signals via HDCP 2.2-compliant HDMI® inputs or DIGITAL LINK terminal. The ability to play Ultra HD video at the projectors’ resolution is invaluable when distributing the same signal to multiple 4K-ready endpoints of differing screen resolutions. An external video converter is not required, saving on installation cost, and you no longer need to reencode video to suit different display resolutions. If preferred, both video and 10Base-T/100Base-TX-compliant control-signals can be assigned to DIGITAL LINK using CAT5e STP cable (or higher), a cost-efficient way to connect over long distances. * 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. |
CEC-ready HDMI Inputs and USB-DC Outlet |
|
HDMI inputs are compatible with control commands from a CEC-compatible component, and allow you to power the projector on/off and commence playback using the source device’s controls. A 5 V/2 A USB-DC outlet will power an HDMI network streaming device so groups can share content to the big screen from their PCs or mobiles. USB power also supports connection of PressIT, Panasonic’s new Wireless Presentation System, for effortless one-touch transmission of content from PC or mobile––no software installation required. |
Separate LAN and DIGITAL LINK Terminals |
|

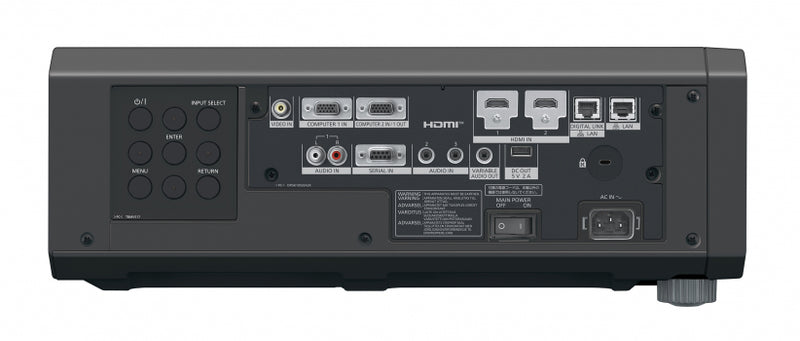

Separate LAN and HDBase-T™-based DIGITAL LINK terminals allow 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron®, AMX, and Extron® applications to be assigned to the dedicated LAN connection, freeing DIGITAL LINK for high-bandwidth video over cable runs of up to 150 m (492 ft). |
Quiet 27 dB* Projection Mode |
|
With more lessons and meetings now taking place online, it’s important to own a quiet projector that won’t drown out the discussion. A silent projector also helps your team to focus by limiting distractions. PT-FRZ60/FRZ50 includes a Quiet Mode that enables practically inaudible 27 dB* (PT-FRZ50) or 30 dB* (PT-FRZ60) operation. Enjoy better results from an alert audience, whether they’re in the room or watching online. * Operating noise is 32 dB in Normal Mode (PT-FRZ50) and 35 dB in Normal Mode (PT-FRZ60). |
