Description

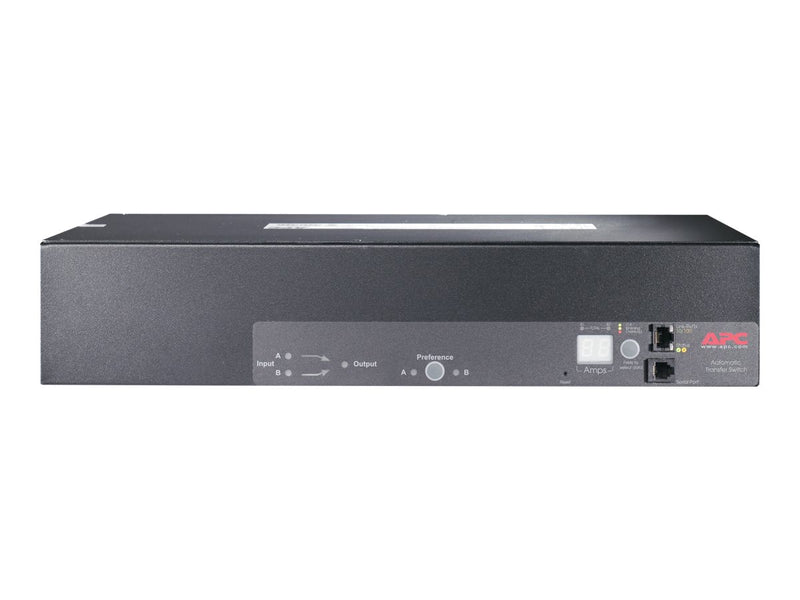

The APC AP7725 Rack Automatic Transfer Switch provides redundant power to single-corded equipment, delivering seamless switching between two independent power sources. Designed for data centers and network closets, this 2U rack-mountable unit supports 200/208/230V AC input and features 18 output connectors. With advanced remote management interfaces including Ethernet, RS-232, and USB, plus built-in overload and short-circuit protection, the AP7725 ensures high availability and operational resilience in mission-critical environments.
| Category | Power Adapters / Inverters |
|---|---|
| Manufacturer | APC by Schneider Electric |
| Model Number | AP7725 |
| Form Factor | Rack-mountable (2U) |
| Device Type | Redundant Automatic Transfer Switch |
| Color | Black |
| Voltage Input | AC 200/208/230 V |
| Voltage Output | AC 230 V |
| Max Electric Current | 32 A |
| Input Connectors | 2 x IEC 60309 32A |

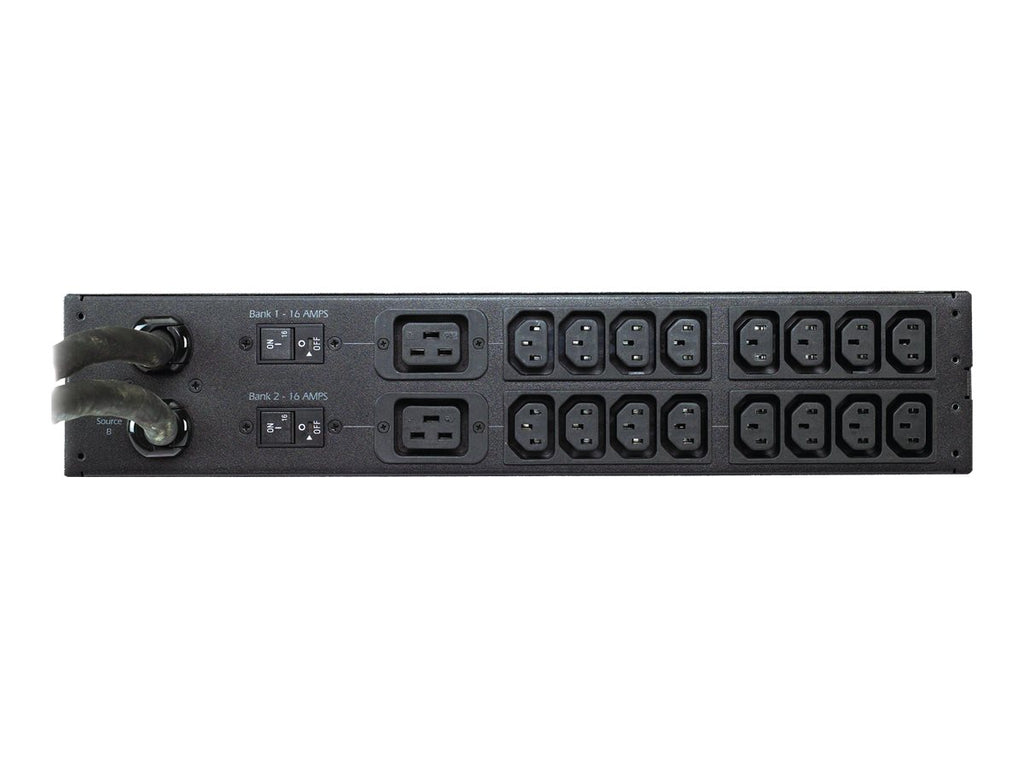

| Output Connectors | 16 x IEC 60320 C13, 2 x IEC 60320 C19 |
| Output Connector Qty | 18 |
| Interfaces | 1 x Ethernet 10/100 (RJ-45), 1 x RS-232, 1 x USB Type-A |
| Remote Management | SNMP, Telnet, HTTP, SSH |
| Indicators & Protection | LED indicators, Overload and Short-circuit Protection |
| Features | Current meter, Circuit breakers |
| Cables Included | Serial cable, 2 x integrated power cables |
| Mounting Kit | Included |
| Standards Compliance | RoHS, FCC Part 15 A, REACH, EN 55022 Class A |
| Operating Temperature | -5Ā°C to 45Ā°C |
| Operating Humidity | 5% - 95% |
| Dimensions (W x D x H) | 43.2 x 23.6 x 8.8 cm |
| Weight | 6.86 kg |
| Shipping Dimensions | 58.9 x 35.6 x 21.6 cm |
| Shipping Weight | 9.36 kg |
| Warranty | 2-Year Limited Warranty |
