Description
The Schneider Electric SBP5000RMT2U is a 2U rackmount Maintenance Bypass Panel designed for seamless power transfer during UPS maintenance or replacement. Supporting 200/208/240V output and 30A input capacity, it enables uninterrupted power to critical loads through a break-before-make (BBM) bypass mechanism. Equipped with NEMA L6-30P input and (2) L6-30R plus (2) L6-20R outputs, it ensures flexibility for diverse data center and IT infrastructure configurations. With 99% efficiency, robust circuit breaker protection, and CSA and GOST certifications, this panel is engineered for reliability and operational safety in demanding environments.
| Category | Specification |
|---|---|
| Product Type | Maintenance Bypass Panel |
| Model | SBP5000RMT2U |
| Brand | Schneider Electric |
| Input Voltage | 200 V / 208 V |
| Output Voltage | 200 V / 208 V / 240 V |
| Input Connection Type | NEMA L6-30P |

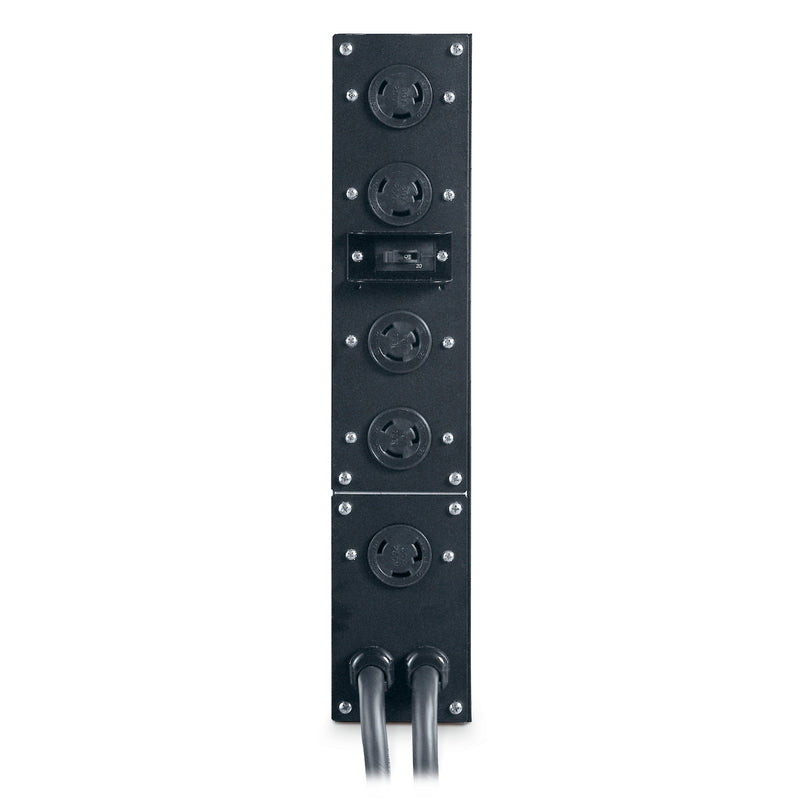

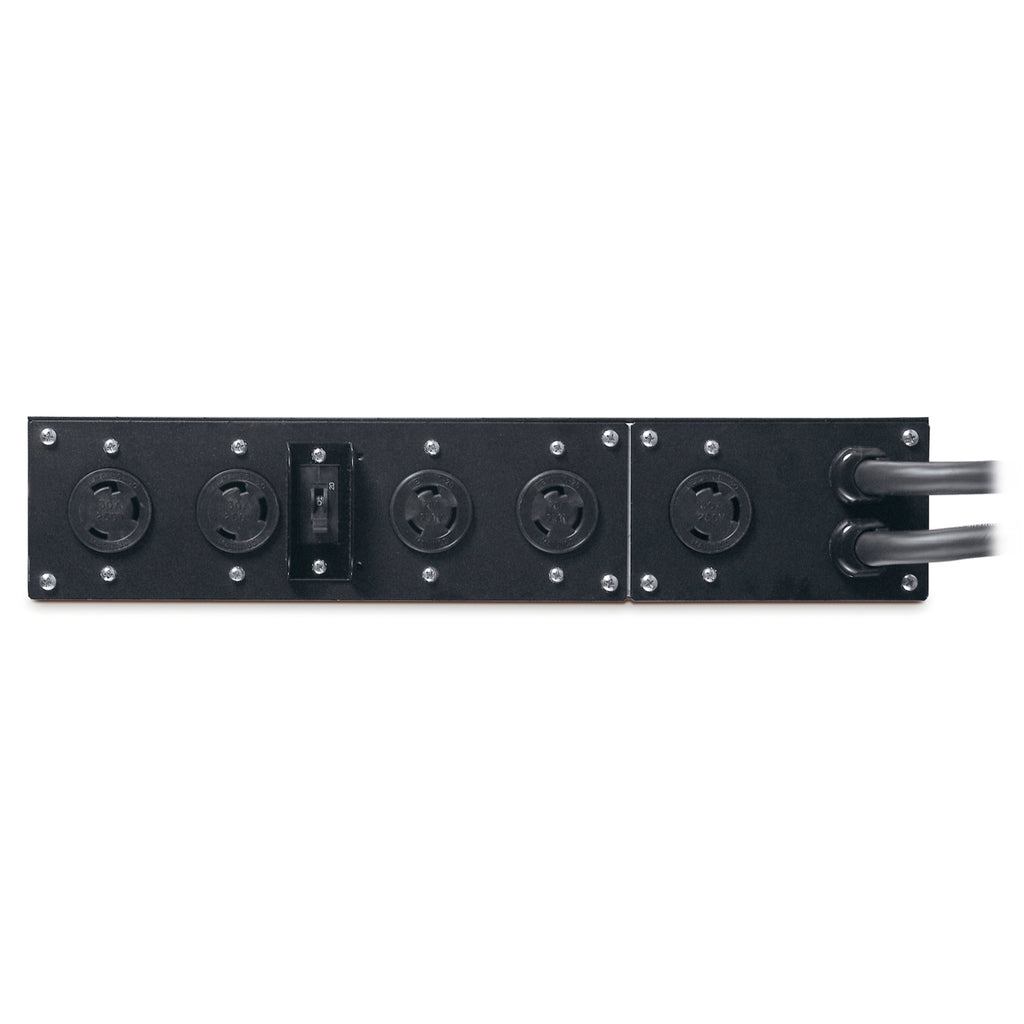

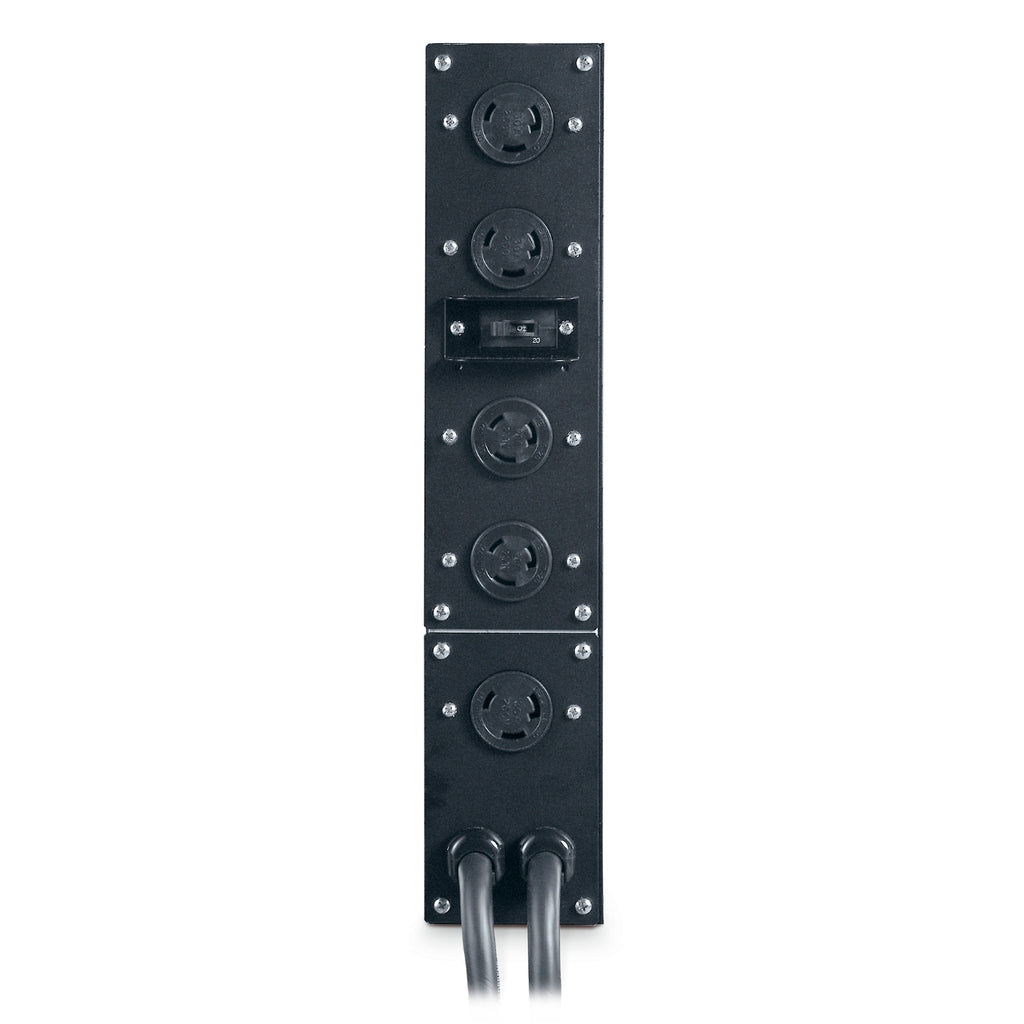

| Output Connections | (2) NEMA L6-30R, (2) NEMA L6-20R |

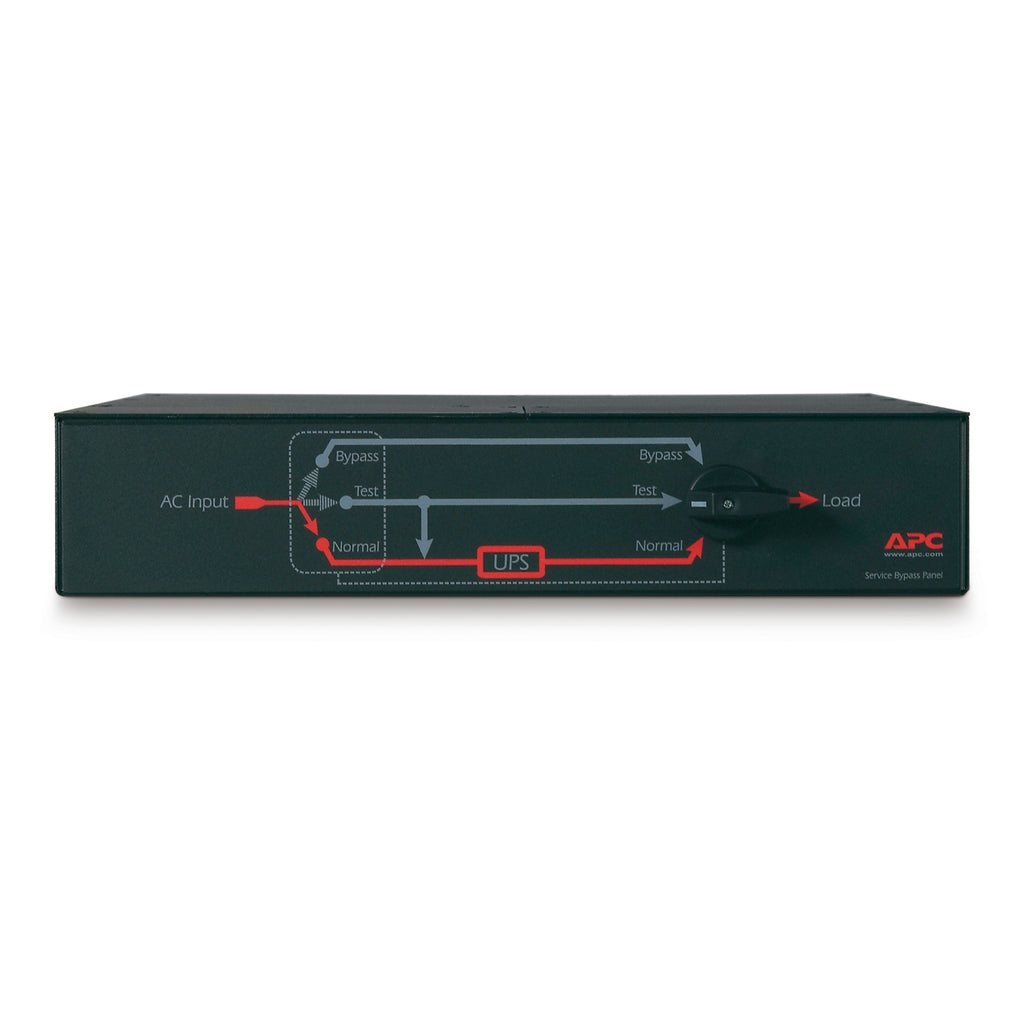

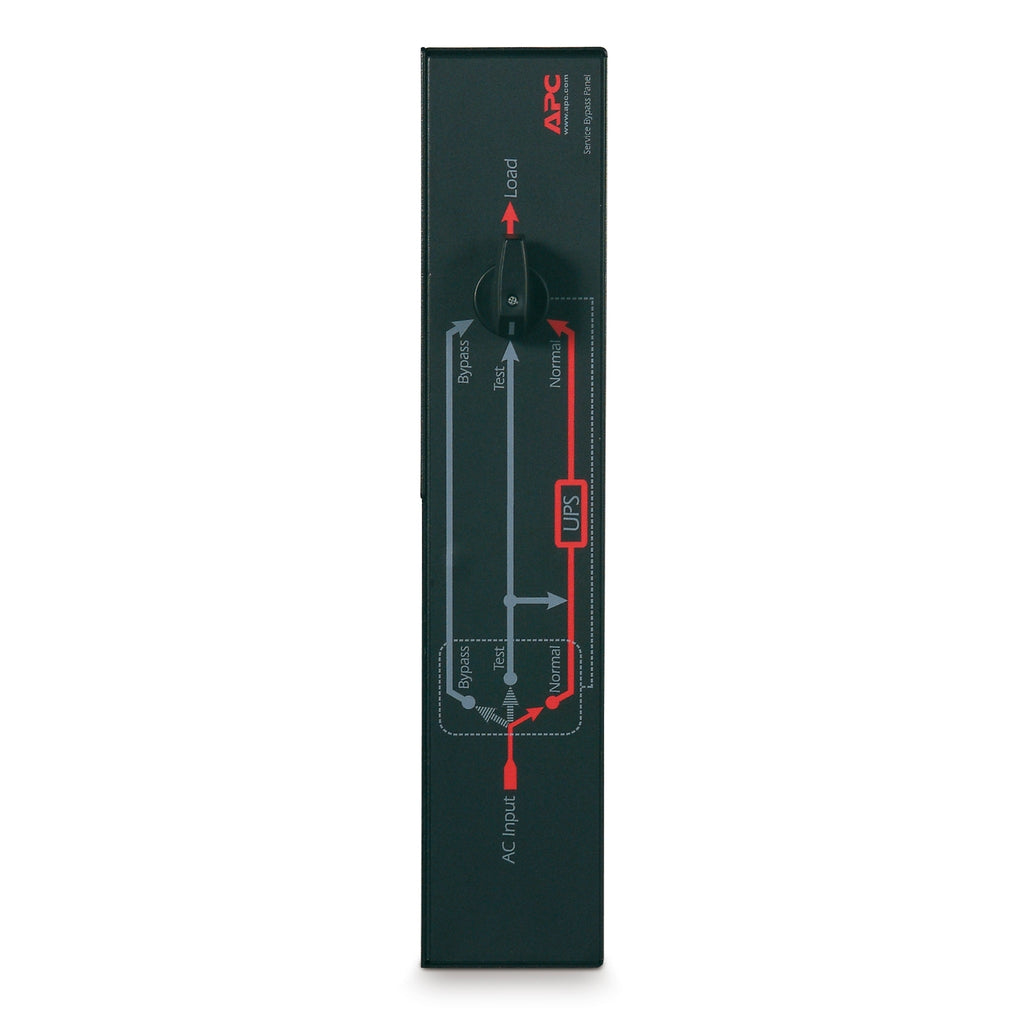

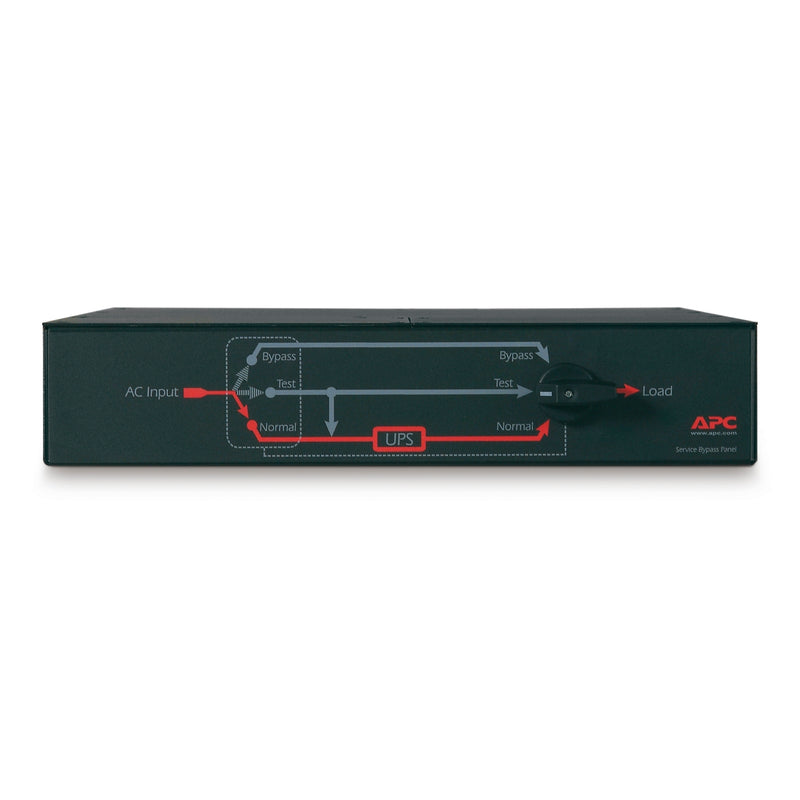

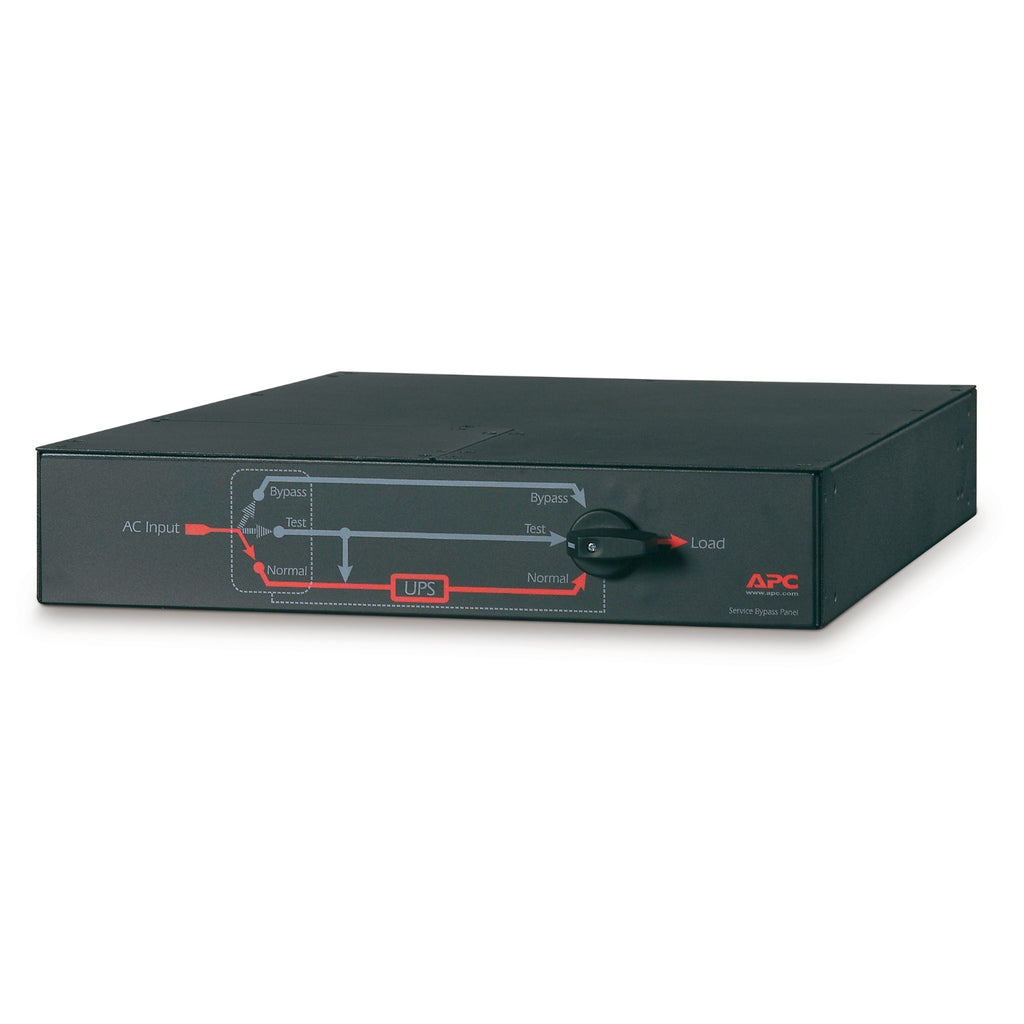

| Bypass Type | Break-Before-Make (BBM) |
| Load Capacity | 5000 VA |
| Input Frequency | 50/60 Hz |
| Max Line Current | 24 A |
| Power Factor | 0 – 1 |
| Efficiency | 99% |
| Rack Units | 2U |
| Mounting Mode | Rack-mounted (Front, Lower) |
| Cable Length | 10 ft (3.05 m) |
| Color | Black |
| Dimensions (H x W x D) | 3.5 in x 17.0 in x 26.0 in (89 mm x 432 mm x 660 mm) |
| Net Weight | 30.07 lb (13.64 kg) |
| Operating Temperature | –4 to 122 °F (–20 to 50 °C) |
| Operating Humidity | 0–95% RH (non-condensing) |
| Altitude (Operation) | 0–15,000 ft |
| Certifications | CSA, GOST |
| Environmental Compliance | EU RoHS (with exemptions), REACh Declaration, Take-Back Program |
| Warranty | 24 months |
| Included Accessories | Installation guide, Rack mounting brackets, User manual |
| Package Dimensions (H x W x L) | 8.0 in x 39.0 in x 24.0 in |
| Package Weight | 54.1 lb (24.54 kg) |
