Description

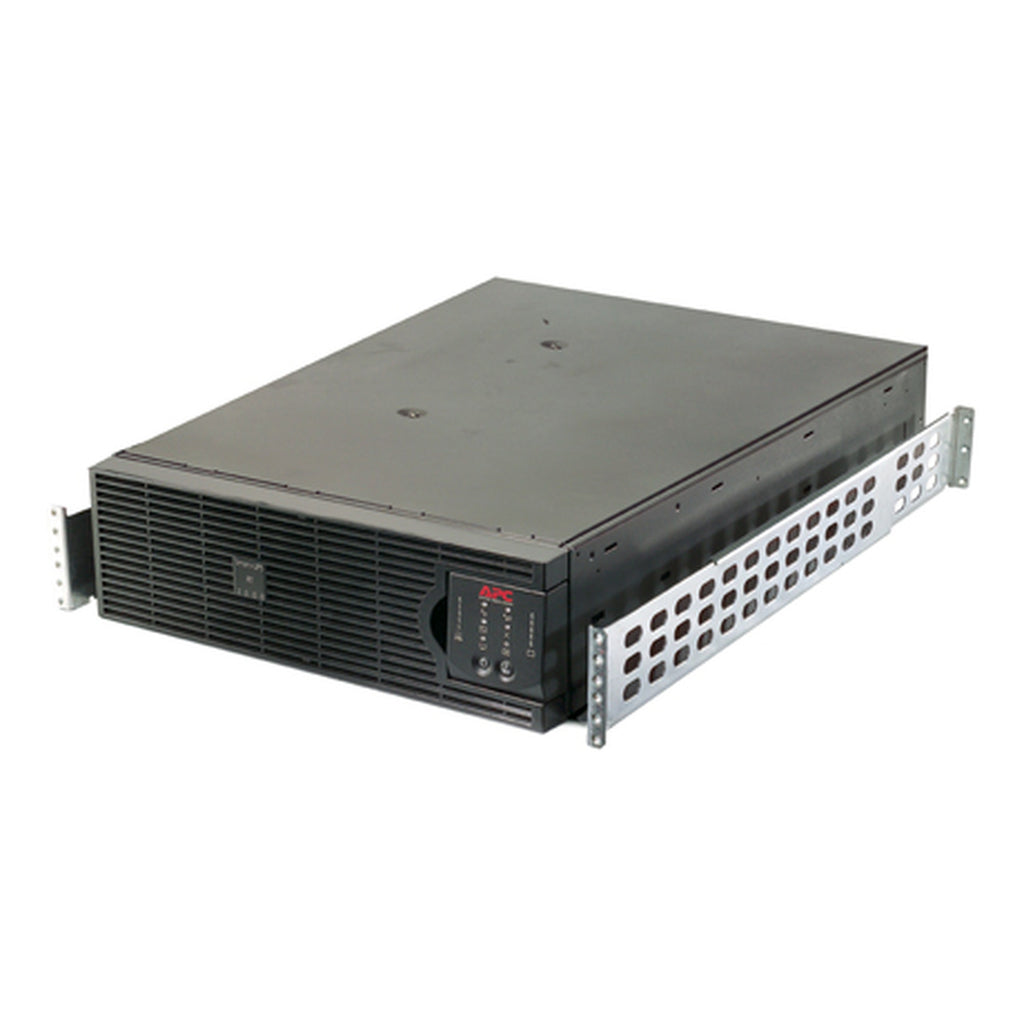

The APC Smart-UPS RT SURTD5000RMXLP3U delivers true online double-conversion power protection for mission-critical IT and industrial environments. Designed in a compact 3U rackmount form factor, this 5000VA UPS supports multiple output voltages—120V AC, 48V DC, and 24V DC—with 6 NEMA outlets including 5-20R, L6-30R, and L14-30R. Ideal for high-density server rooms, medical labs, and enterprise networks, it offers scalable runtime with external battery packs and includes a network management card for remote monitoring. Rack-mountable and robust, this UPS ensures continuous uptime even under harsh power conditions.
| Specification | Details |
|---|---|
| Model | SURTD5000RMXLP3U |
| Topology | Double Conversion Online |
| Power Capacity | 5000 VA / 4000 W |
| Input Voltage | 208V / 240V |
| Output Voltage Options | 120V AC, 48V DC, 24V DC |
| Input Connection | NEMA L14-30P |

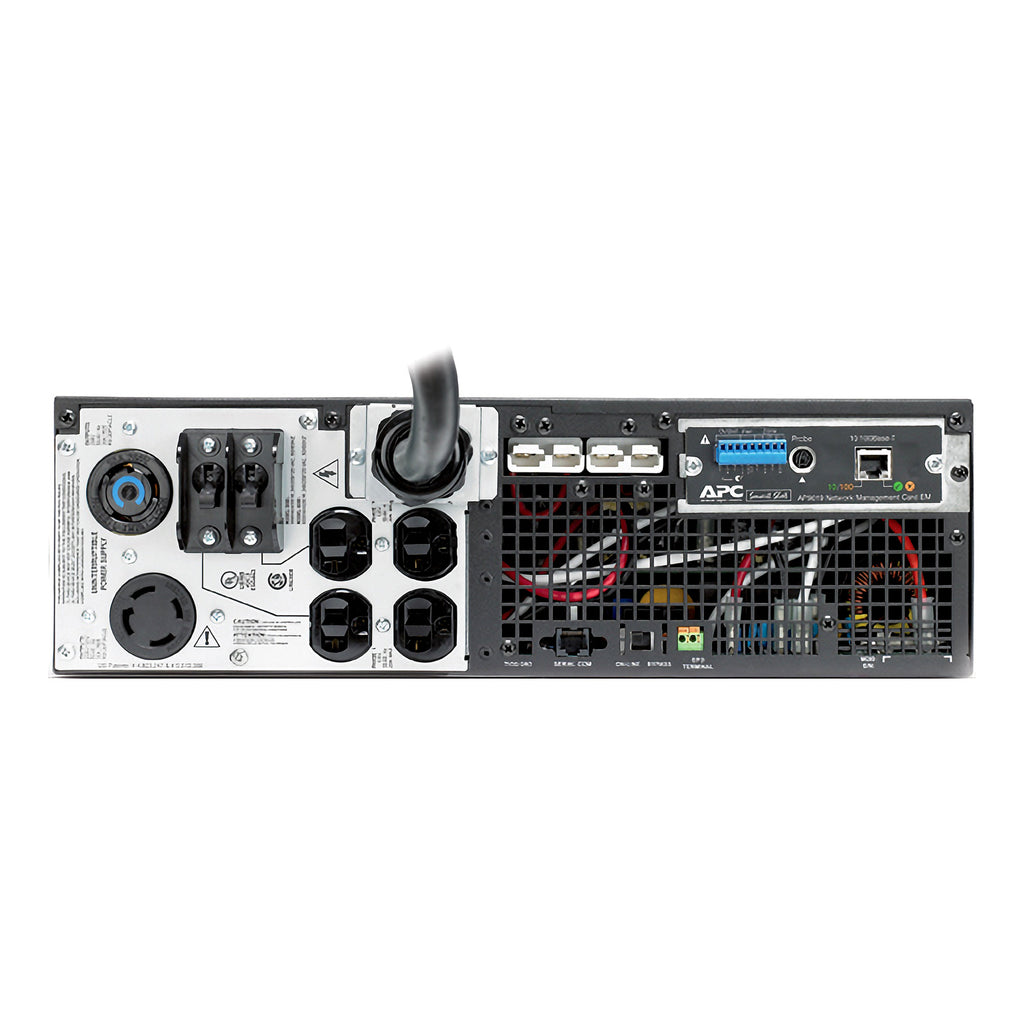

| Output Connections | 4x NEMA 5-20R, 1x NEMA L6-30R, 1x NEMA L14-30R |
| Rack Size | 3U |
| Mount Type | Rack-mounted |
| Battery Type | Lead-Acid (APCRBC140) |
| Included Battery Modules | 2 |
| Typical Recharge Time | 2.5 hours |
| Extendable Runtime | Yes |
| Management Interface | Network Management Card 2 |
| Surge Protection | 365 Joules |
| Runtime (Full Load) | Approx. 4 min 50 sec @ 4000W |
| Efficiency (Full Load) | 90% |
| Alarm Types | Battery, Low Battery, Overload |
| Weight | 128 lbs (58.06 kg) |
| Dimensions (H x W x D) | 5.12 x 17.01 x 25.98 in |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Certifications | CSA, IP20 |
| Warranty | 2 Years (Repair or Replace) |
