Description

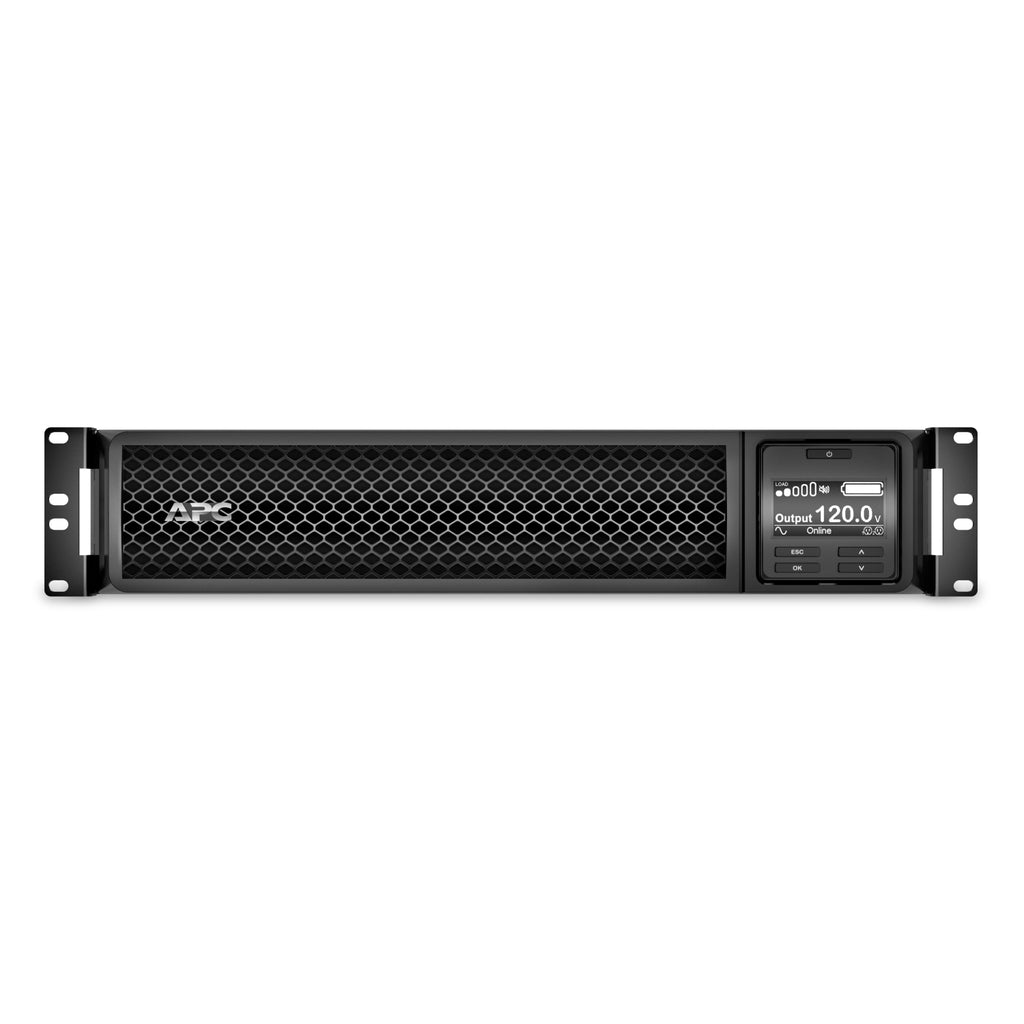

Ensure business continuity with the APC Smart-UPS On-Line SRT2200RMXLA-NCUS. This 2200VA/1800W 2U rackmount UPS delivers pure sine wave output and zero transfer time, ideal for critical IT loads. With built-in double-conversion online technology, it protects sensitive equipment in medical, networking, and industrial environments. It includes 6x 5-20R and 1x L5-20R outlets, a preinstalled Network Management Card, and a rail kit for rack/tower flexibility. Compatible with up to 10 external battery packs (SRT72RMBP) for extended runtime.
Category | Details |
---|---|
Model | SRT2200RMXLA-NCUS |
Form Factor | 2U Rackmount / Tower Convertible (rail kit incl.) |
Power Capacity | 2200VA / 1800W |
Topology | Double Conversion Online |
Input Voltage | 120V |
Input Connection | NEMA 5-20P |

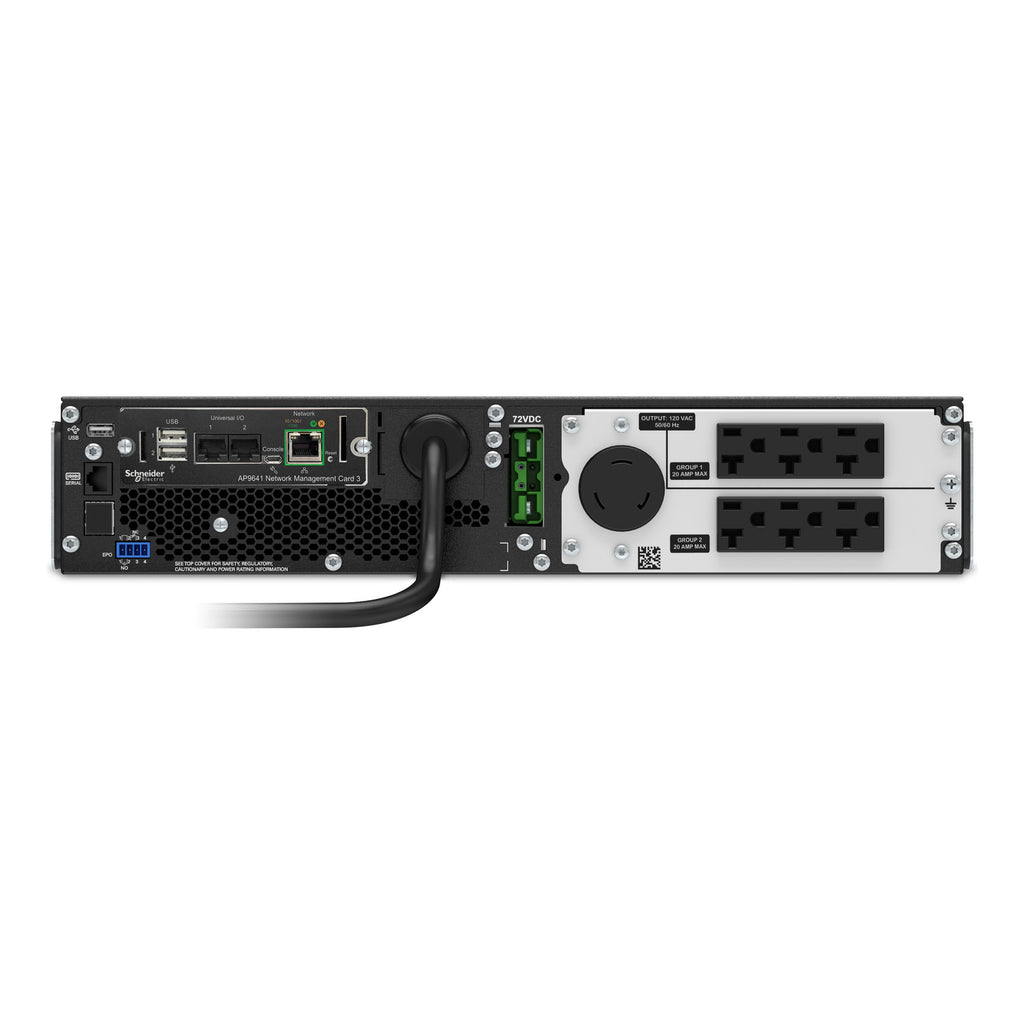

Output Connections | 6x NEMA 5-20R, 1x NEMA L5-20R |
Waveform | Pure Sine Wave |
Runtime Extension | Supports up to 10 external batteries (SRT72RMBP) |
Battery Type | Lead-Acid, 72V |
Recharge Time | 3 hours |
Efficiency | Up to 95% (ECO mode) |
Network Management | Preinstalled NMC3 with environmental monitoring |
Mounting | Rack-mounted, Horizontal |
Dimensions (H x W x D) | 3.35" x 17.01" x 22.99" (85 x 432 x 584 mm) |
Net Weight | 55.1 lb (25 kg) |
Certifications | ENERGY STAR V2.0, TAA compliant |
Warranty | 3 years UPS, 2 years battery |
