Description

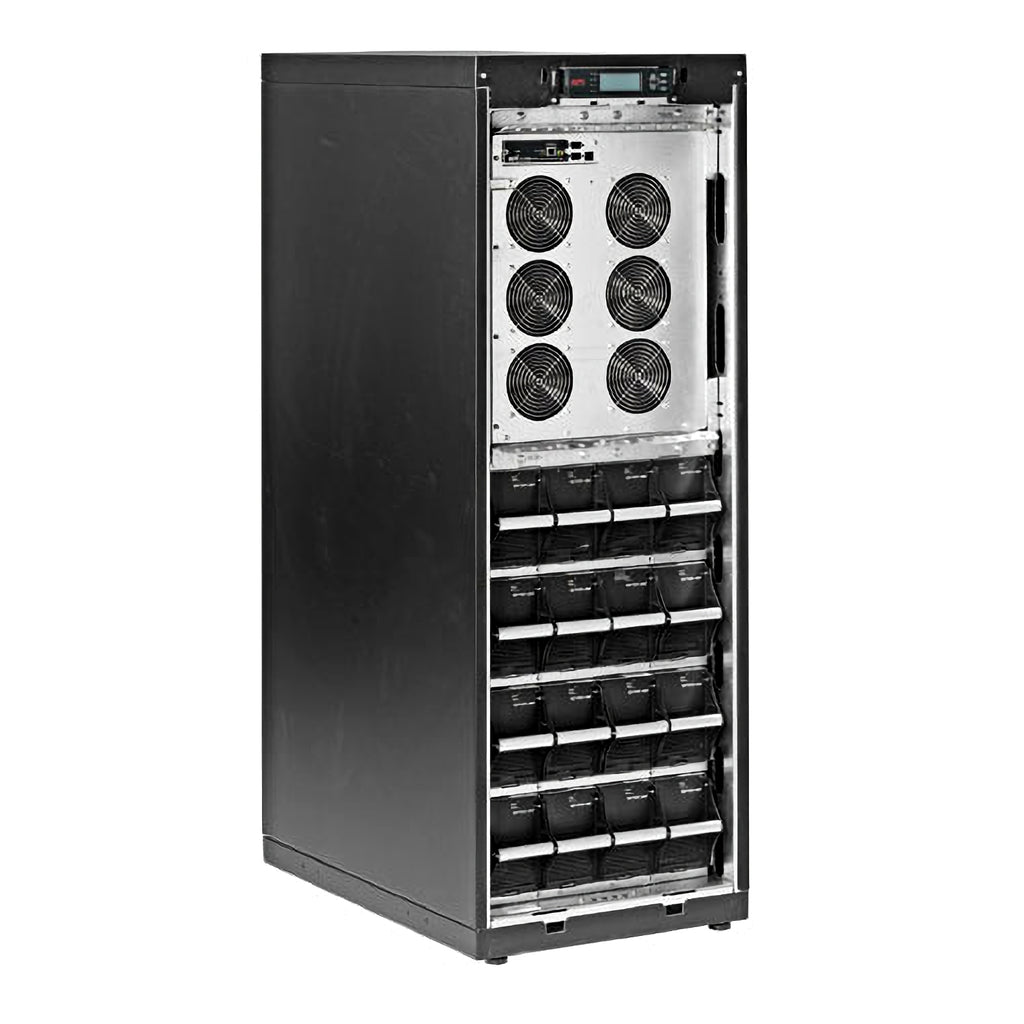

The APC Smart-UPS VT SUVTP15KF3B4S delivers centralized three-phase power protection in a compact, scalable design. Ideal for small data centers, regional offices, and mission-critical environments, this 15kVA UPS features three pre-installed battery modules (expandable to four), internal maintenance and static bypass, and dual-mains input for high availability.
Remote monitoring is enabled via the integrated Network Management Card with environmental sensors, allowing efficient control through SNMP/Web interfaces and InfraStruXure Manager integration. Hot-swappable batteries and intelligent runtime scalability make this system the most manageable in its class.
| Category | Specification |
|---|---|
| Power Capacity | 15kVA / 12000W |
| Battery Modules | 3 Installed (Expandable to 4) |
| Battery Type | VRLA, +/-192 V |
| Runtime @ Full Load | 18 minutes |
| Topology | Double Conversion Online |
| Bypass | Built-in Maintenance & Static Bypass |
| Input Voltage | 208V 3-Phase (Other: 220V) |
| Output Voltage | 120V / 208V / 208V 3-Phase / 220V |
| Max Output Current | 46A |
| Efficiency | 0.98 Input Power Factor, <5% THD |
| Communication | Network Management Card 2 w/ Environmental Monitoring |
| Alarms | Audible & Visual, Prioritized by Severity |
| Dimensions (H x W x D) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Weight | 1117.35 lbs (506.82 kg) |
| Mounting | Floor-standing (Not Rack-mountable) |
| Certifications | UL 1778, cUL Listed |
| Warranty | 1 Year Repair/Replace with Start-Up 5x8 |
