Description

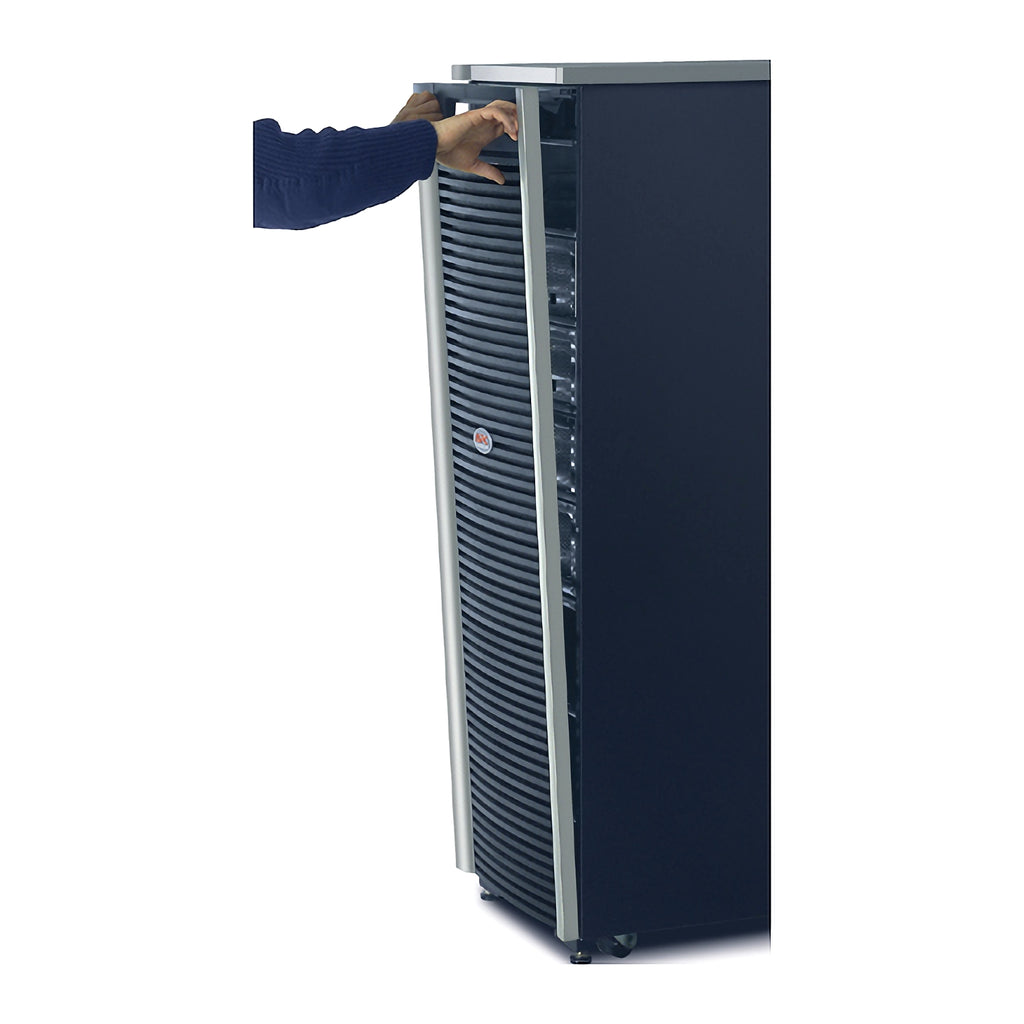

The APC Symmetra LX SYA16K16PXR is a high-performance, modular, and scalable uninterruptible power supply designed for mission-critical IT environments. Delivering up to 16kVA of N+1 redundant power, it includes 4 power modules and 9 battery modules out of the box—expandable up to 13 batteries for extended runtime. It features double conversion online topology, internal bypass, and EcoStruxure Ready capabilities for remote monitoring. Ideal for space-constrained server rooms and network closets, this 34U tower solution comes with a 1-year network management card subscription and a robust 2-year warranty.
| Category | Details |
|---|---|
| Model | SYA16K16PXR |
| Power Capacity | 16kVA / 12800W |
| Scalability | Scalable runtime with up to 13 battery modules |
| Included Modules | 4 Power Modules, 9 Battery Modules |
| Runtime | ~20 min at full load (12800W) |
| Input Voltage | 208/240V (3-phase), 45–65 Hz |
| Output Voltage | Configurable 120/208V or 120/240V |
| Output Connection | Hard Wire 4-wire (2PH+N+G) |
| Waveform | Pure Sine Wave |
| Topology | Double Conversion Online |
| Battery Type | Lead-Acid |
| Recharge Time | Approx. 7.5 hours |
| Redundancy | N+1 Redundant Design |

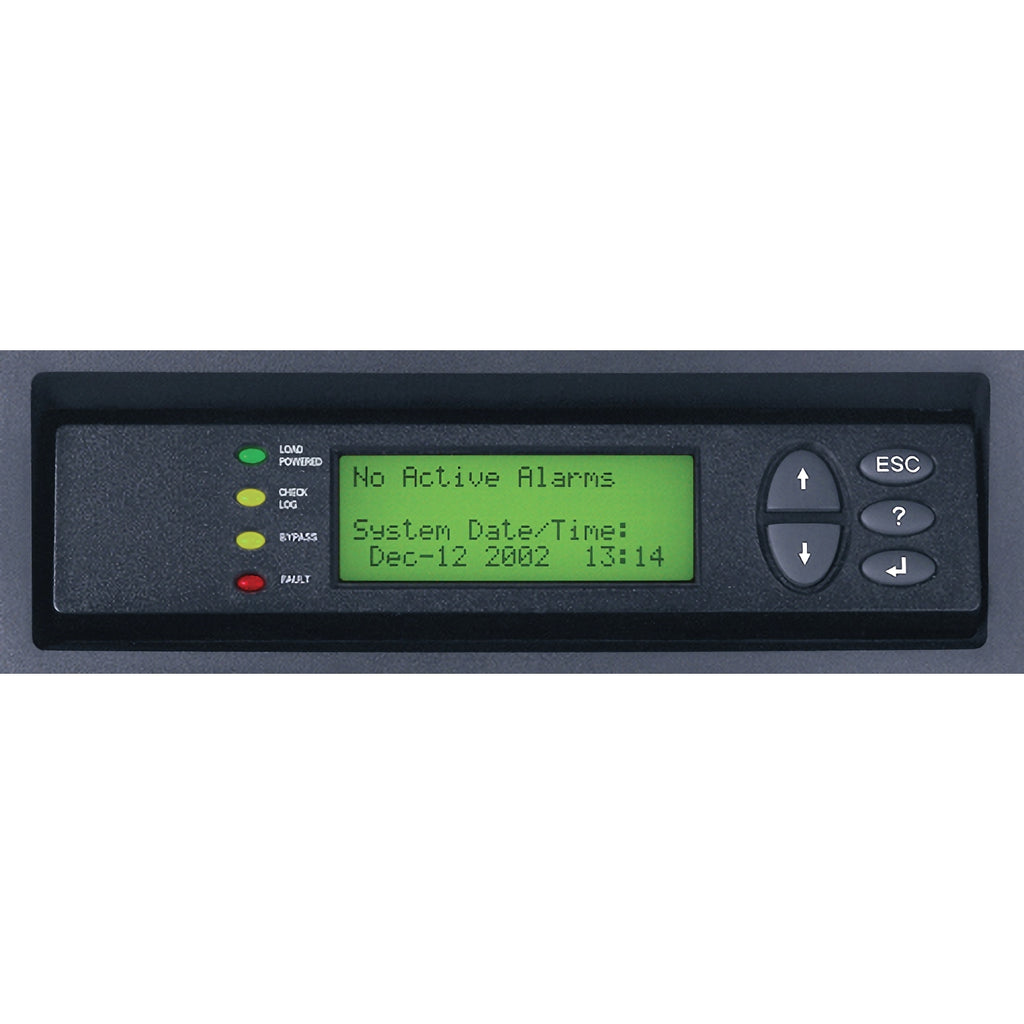

| Management | LCD Display, Network Management Card (included), EPO support |
| Mounting | Tower (Not rack-mountable) |
| Dimensions (HxWxD) | 59.69 x 19.02 x 28.58 in (151.6 x 48.3 x 72.6 cm) |
| Weight | 1110.34 lb (503.64 kg) |
| Certifications | UL 1778, CSA, FCC Part 15 Class A |
| Environmental | Operating: 0–40 °C, 0–95% RH; Storage: -15–45 °C, 0–95% RH |
| Warranty | 2-Year Repair or Replace |
