Description

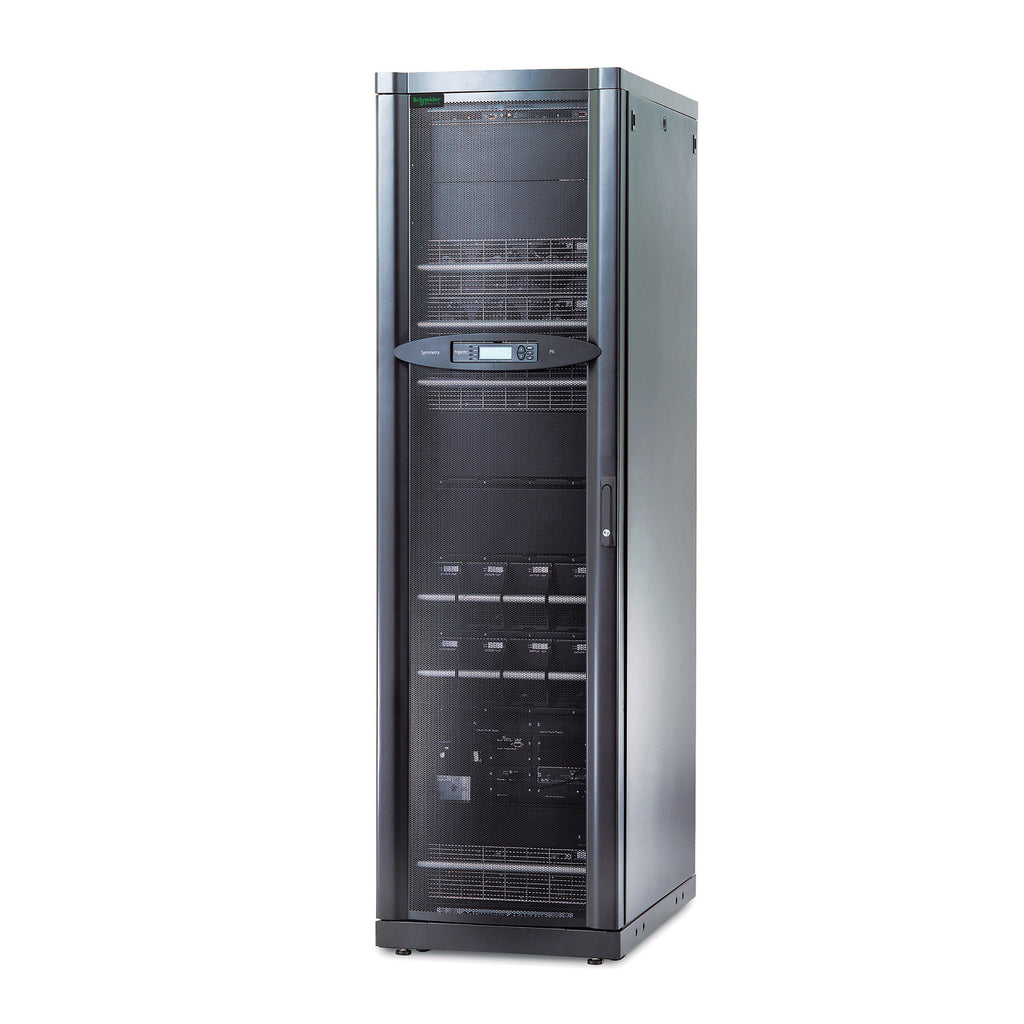

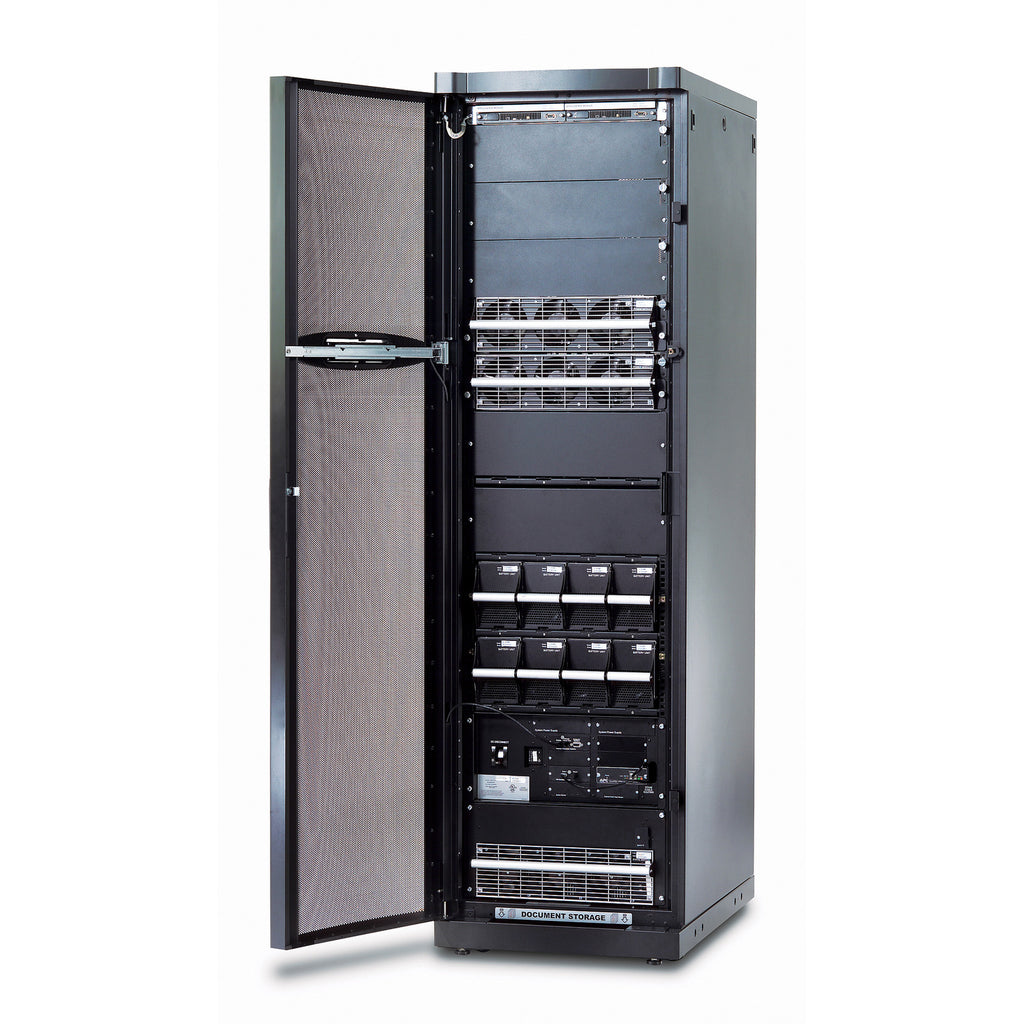

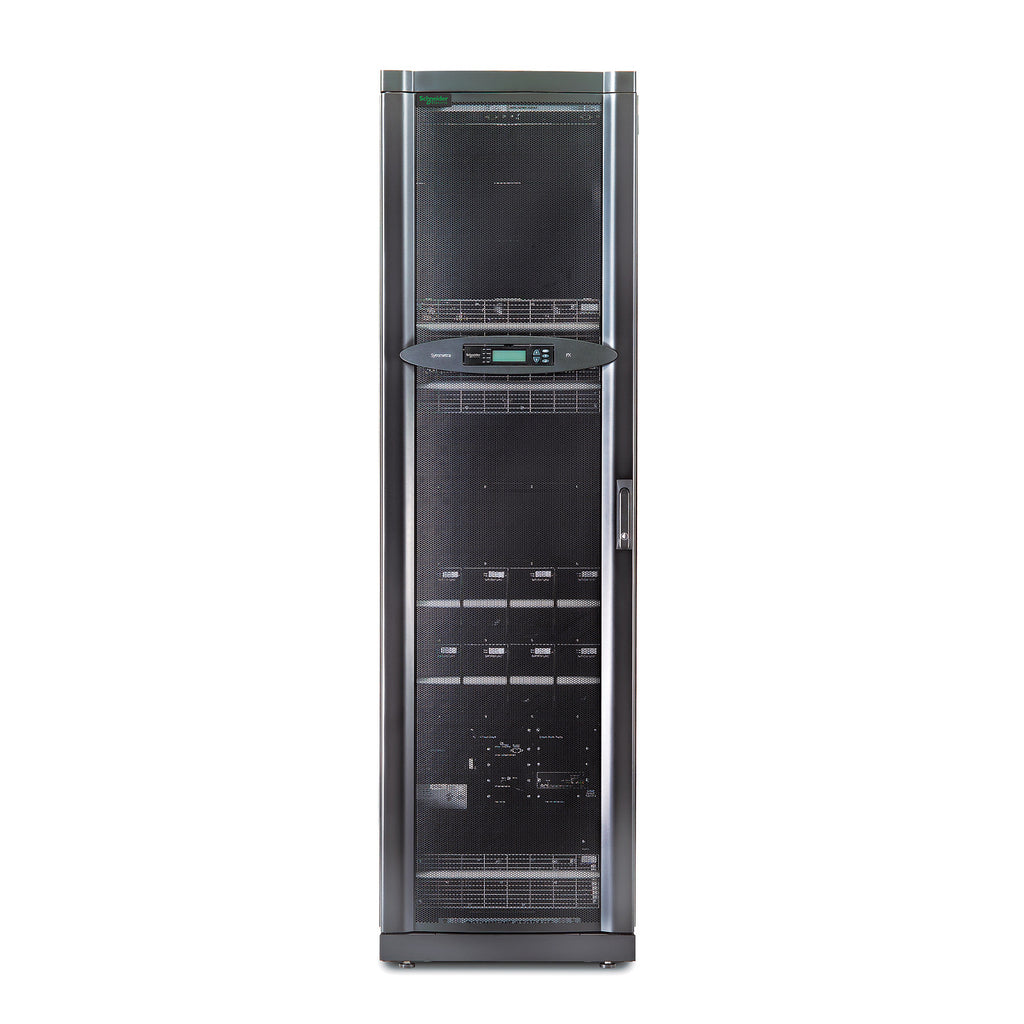

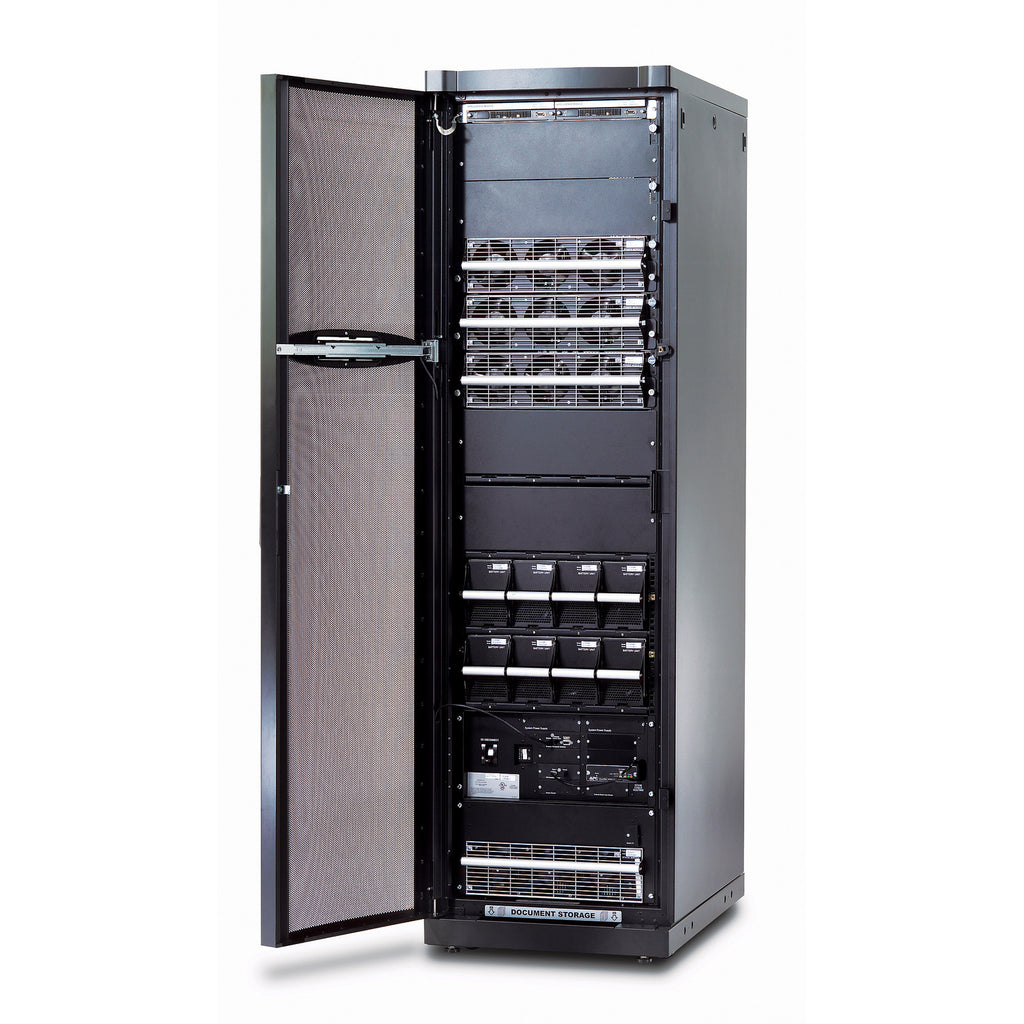

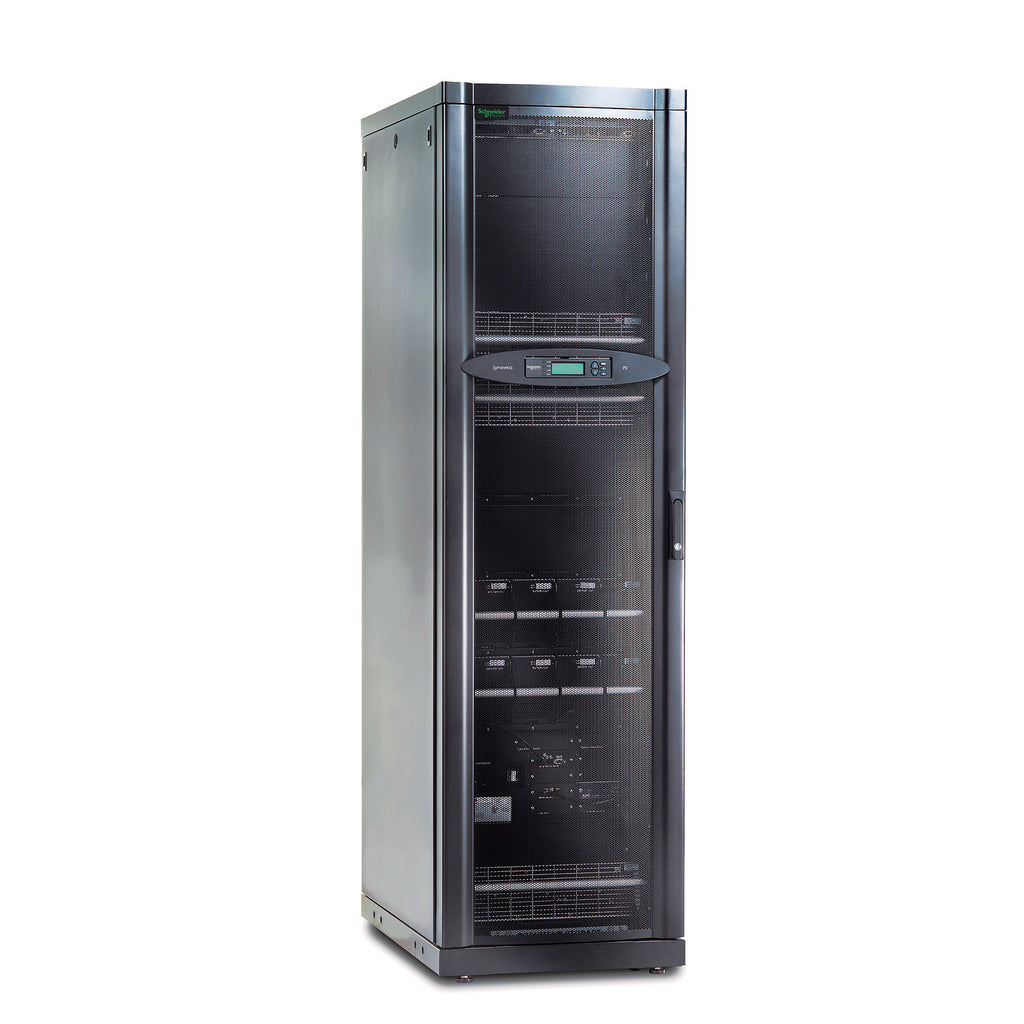

The APC Symmetra PX SY20K40F is a high-efficiency, double-conversion online UPS designed for small to medium data centers and mission-critical environments. Starting at 20kW with scalable capacity up to 40kW, this modular, redundant solution ensures uninterrupted uptime, flexible runtime expansion, and remote manageability. With N+1 redundancy, built-in static bypass, and hot-swappable components, it offers industry-leading availability and simplified maintenanceāall in a space-saving footprint. Equipped with lead-acid battery modules and intelligent power management features, it's built to grow with your IT infrastructure.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | SY20K40F |
| UPS Type | Double Conversion Online UPS |
| Power Capacity | 20kW / 20kVA (Scalable to 40kW / 40kVA) |
| Redundancy | N+1 |
| Input Voltage | 208V 3-phase |
| Output Voltage | 208V / 120V 3-phase |
| Max Output Current | 111 A |
| Battery Type | Lead-Acid |
| Runtime at Full Load | ~4 minutes |
| Battery Recharge Time | 2 hours (typical) |
| Included Battery Modules | 2 (Expandable) |
| Power Modules Installed | 2 (Supports up to 5 total) |
| Output Connections | Hard Wire 5-wire (3PH + N + G) |
| Waveform Output | Sine Wave |
| Efficiency | High efficiency, >95% at full load |
| Management Interface | Network Management Card, LCD Control Panel |
| Emergency Power Off | Yes |
| Mounting | Floor-standing |
| Dimensions (HxWxD) | 81.5 x 23.62 x 35.51 in (207 x 60 x 90.2 cm) |
| Net Weight | 1167.46 lb (529.55 kg) |
| Certifications | UL 1778, FCC Part 15, CSA, ISO 9001/14001 |
| Warranty | 1-Year On-Site with Factory Startup |
| GTIN | 731304746591 |
