Description

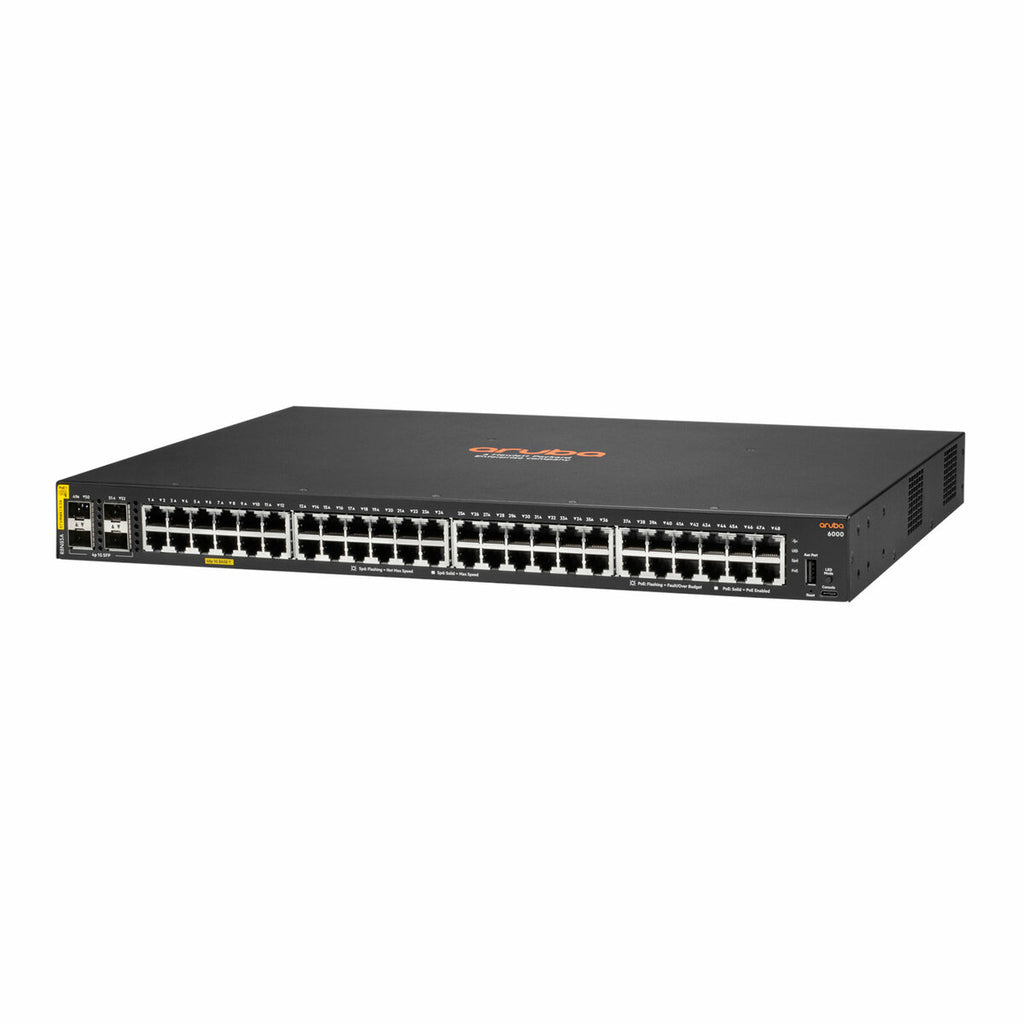

The HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch is a fully managed Layer 2 Gigabit access switch ideal for branch offices, SMBs, and enterprise edge deployments. With 48x 10/100/1000BASE-T PoE+ ports and 4x SFP uplink ports, it delivers a simple, secure, and cost-effective solution for powering IoT, wireless access points, and other network devices. Built on Aruba’s AOS-CX OS and powered by a robust ASIC architecture, the CX 6000 ensures reliable performance, intuitive management, and seamless integration into modern network environments.
Key Features:
-
48 x 1G PoE+ ports + 4 x SFP uplinks
-
370W PoE budget for Class 4 (up to 30W/port)
-
Side-to-side airflow; rack-mountable 1U design
-
Simplified management with Web GUI, Aruba Central, CLI, and REST APIs
-
Static routing, QoS, ACLs, IPv6 support
-
Ideal for secure wired access in modern digital workplaces
| Specification | Details |
|---|---|
| Model Number | R8N85A#ABB |
| Switch Type | Layer 2, Fully Managed |
| Ports | 48 Ă— 10/100/1000BASE-T PoE+4 Ă— 1G SFP |
| PoE Budget | 370W (IEEE 802.3at Class 4) |
| Switching Capacity | 104 Gbps |
| Throughput | 77.3 Mpps |
| Latency | 1.9 ÎĽs (at 1 Gbps) |
| Routing | Static Routing |
| Airflow | Side-to-side |
| Management | Aruba Central, Web GUI, CLI, REST API |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 8 GB DDR3 RAM, 16 GB eMMC storage |
| Power Input | 100–127 VAC / 200–240 VAC |
| Power Consumption | 45W (max, no PoE)480W (max, full PoE load) |
| Form Factor | 1U Rack-mountable |
| Dimensions (WxDxH) | 17.4 x 12.0 x 1.73 in |
