Atlona AT-PA100-G2 | Stereo / Mono Power Amplifier – 40 Watts

AtlonaSKU: AT-PA100-G2
LG Authorized exclamation What makes this a Top Quality Store?

Stores earn Google’s Top Quality Store badge by offering a positive experience for customers. This may include the offer of fast shipping and easy returns, positive user ratings, and other factors. Learn more


Price:
Sale price$249.00

Shipping calculated at checkout

Description

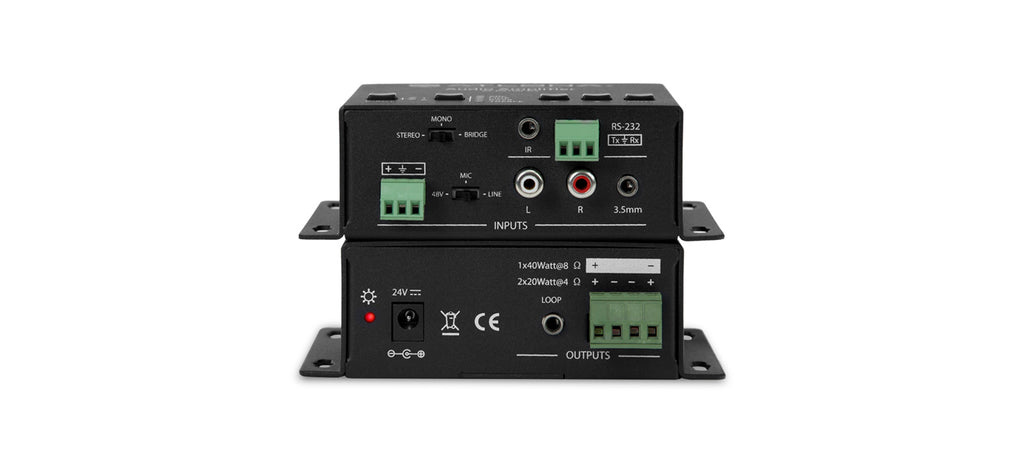

  • Selectable stereo, dual mono, and bridged output modes
  • 2 x 20 watts @ 4 ohms (stereo or dual L+R mono)
  • 1 x 40 watts @ 8 ohms (bridged L+R mono)
  • Balanced mic/line level and unbalanced stereo line level inputs
  • Unbalanced line level output for pass-through to audio system
  • Convection cooled – no need for fans

The Atlona AT-PA100-G2 is a compact power amplifier designed for low impedance applications. A mode selector switch allows the PA100-G2 to deliver two channels of 20 watts each into 4 ohms, or a single, bridged channel of 40 watts at 8 ohms. This Class D amplifier is energy efficient and convection cooled. The PA100-G2 features a balanced mic/line level audio input with selectable 48 volt phantom power, as well as unbalanced stereo audio input through RCA or 3.5 mm connections. It can deliver stereo or mono output, and provides mixing for the balanced and unbalanced audio inputs, each with independent gain and mute control. In addition to the amplified speaker output, a line level audio output allows the incoming audio to be fed into an additional amplifier or audio system. The PA100-G2 is controllable via RS-232, or through IR with the optional AT-PA1-IR-G2 remote control kit



Documentation

pdf-icon Manual
pdf-icon Datasheet
word-doc-icon IR Codes

Declarations Of Conformity

pdf-icon Declarations Of Conformity

CAD Files

cad-icon-(1) AT-PA100-G2
