Description

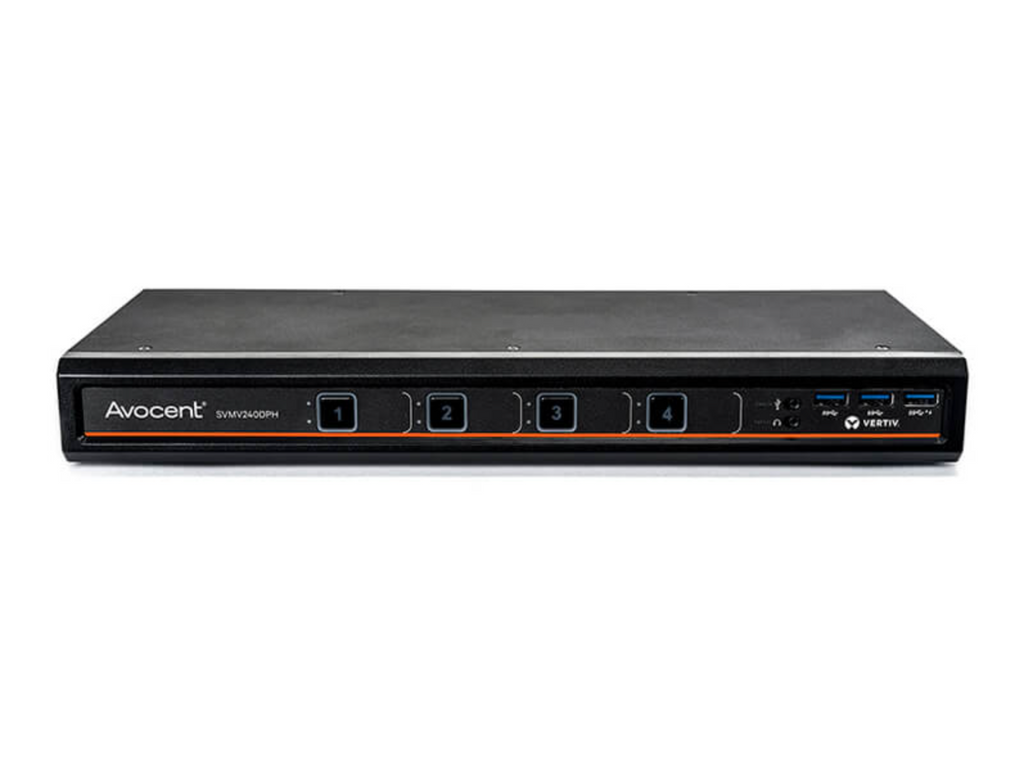

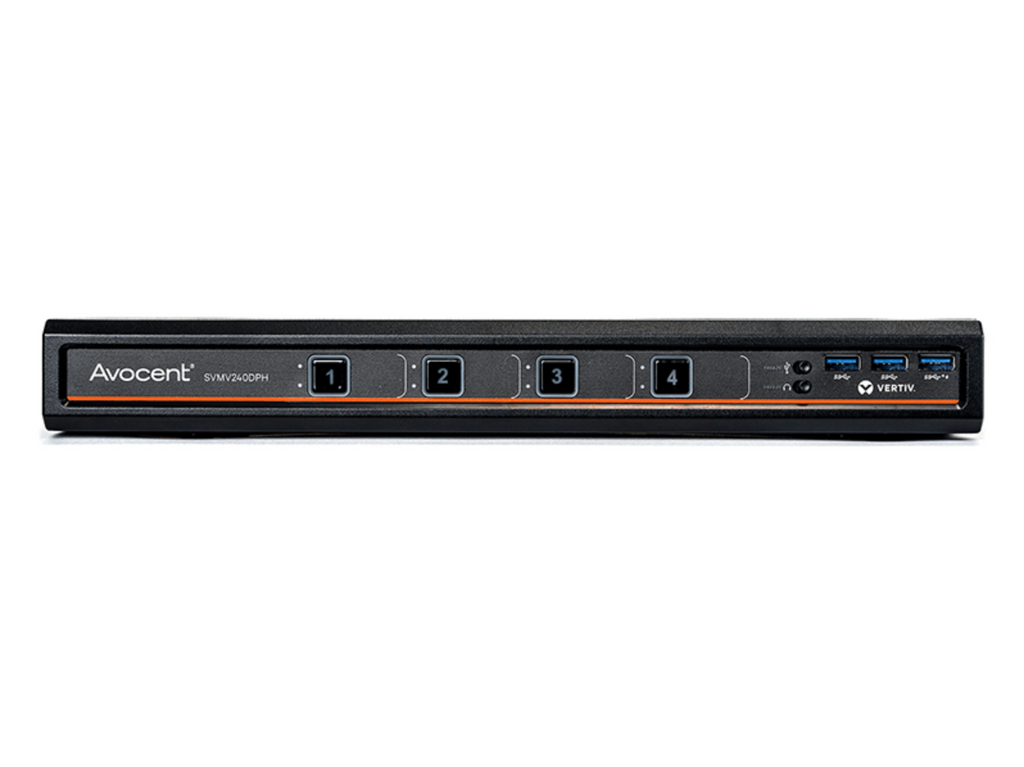

The Vertiv Avocent SVMV240DPH-400 is a commercial-grade 4-port MultiViewer KVM switch designed to streamline secure desktop access and simplify multi-system workflows. Supporting dual display configurations and resolutions up to 3840 x 2160 (4K), this KVM switch features a universal video port for HDMI or DisplayPort inputs without the need for adapters. Ideal for mission-critical environments, it provides a highly secure, efficient, and compact solution with support for touch screens, tiling, and windowing—all from a single console.
Whether managing multiple systems across varying security domains or consolidating workstation real estate, the SVMV240DPH-400 is engineered for performance, security, and ease of use.
Key Features:
-
Commercial MultiViewer KVM Switch supporting secure keyboard and touch screen input
-
Dual Head Display Support with tiling and windowing capabilities
-
Supports HDMI & DisplayPort video via universal connectors
-
Handles up to 4 computers with 1 local user
-
Supports 4K resolution (3840 x 2160)
-
Dual AC power input for redundancy
-
2-Year Limited Factory Warranty
-
TAA Compliant and Made in the USA
-
Optional extended warranty available
| Specification | Details |
|---|---|
| Brand | Vertiv Avocent |
| Model | SVMV240DPH-400 |
| Product Line | MultiView |
| Form Factor | Desktop / 1U |
| Number of Ports | 4 |
| Number of Users | 1 (Local) |
| Video Inputs | HDMI, DisplayPort |
| Video Resolution | Up to 3840 x 2160 |
| USB Ports | 5 |
| HDMI Ports | 6 |
| DisplayPort | Yes |
| VGA / DVI Ports | None |
| Input Voltage | 100–240V AC (Dual AC Supported) |
| Max Distance (from target) | 10 ft |
| Dimensions (HxWxD) | 1.7" x 5" x 13.7" |
| Weight | 3.5 lbs (Shipping Weight: 3 lbs) |
| TAA Compliant | Yes |
| Country of Origin | United States |
| Warranty | 2-Year Limited (Optional Extended Available) |
