Description

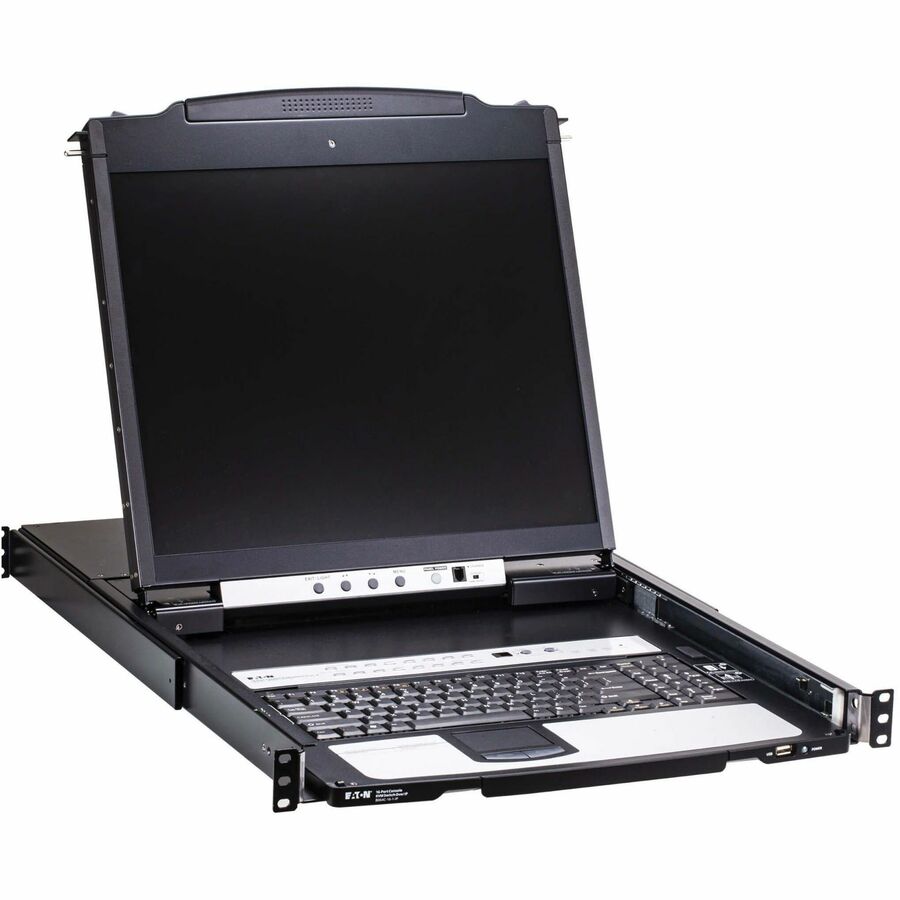

The Eaton B064C-16-1-IP NetDirector® KVM over IP Switch is a powerful all-in-one solution designed for efficient control of up to 16 servers or computers from either a local console or remotely via IP. Featuring a built-in 19" LCD console, keyboard, and touchpad in a slim 1U rack-mountable form factor, this unit allows seamless management of devices through Cat5 cabling up to 100 ft away.
With support for IPv4/IPv6, advanced multi-layer security, and compatibility with both PS/2 and USB consoles, the B064C-16-1-IP is ideal for high-density data centers, server rooms, or remote IT infrastructure. Expandable to control up to 128 systems via daisy-chaining, it’s a scalable and secure TAA-compliant solution for enterprise-level KVM management.
| Category | Details |
|---|---|
| Model Number | B064C-16-1-IP |
| Form Factor | 1U Rack-Mount |
| Number of Ports | 16 RJ45 ports for server connections |
| User Access | 1 Local or 1 Remote User |
| Display | 19" LCD Console, 1920 x 1200 @ 60Hz resolution |
| Video Interface | VGA (1 port), Supports VGA/SVGA |
| Console Input | USB & PS/2 Keyboard/Mouse |
| Power Input | 100–240V AC, 50/60Hz, 1A, IEC-320-C14 |
| Daisy-Chain Support | Yes, up to 128 computers via DB25 |
| Security | Password protection, LDAP/LDAPS, RADIUS, MS Active Directory |
| Encryption Support | 128-bit RC4, 168-bit 3DES, 256-bit AES, 56-bit DES |
| OS Compatibility | Windows, Linux, UNIX, Novell, Sun, DOS, macOS |
| Browser Compatibility | IE, Firefox, Mozilla, Safari, Opera, Netscape |
| Remote Access | Yes, browser-based or client software (no Java required) |
| Certifications | CE, FCC, RoHS, TAA, UKCA, RCM, NOM, ICES |
| Environment | Operating Temp: 0–40°C; Humidity: 5–85% non-condensing |
| Dimensions (W x D x H) | 17.67 x 26.77 x 1.73 in (44.88 x 68.01 x 4.40 cm) |
| Weight | 31.3 lbs (14.2 kg) |
| Warranty | 1-Year Limited Warranty |
