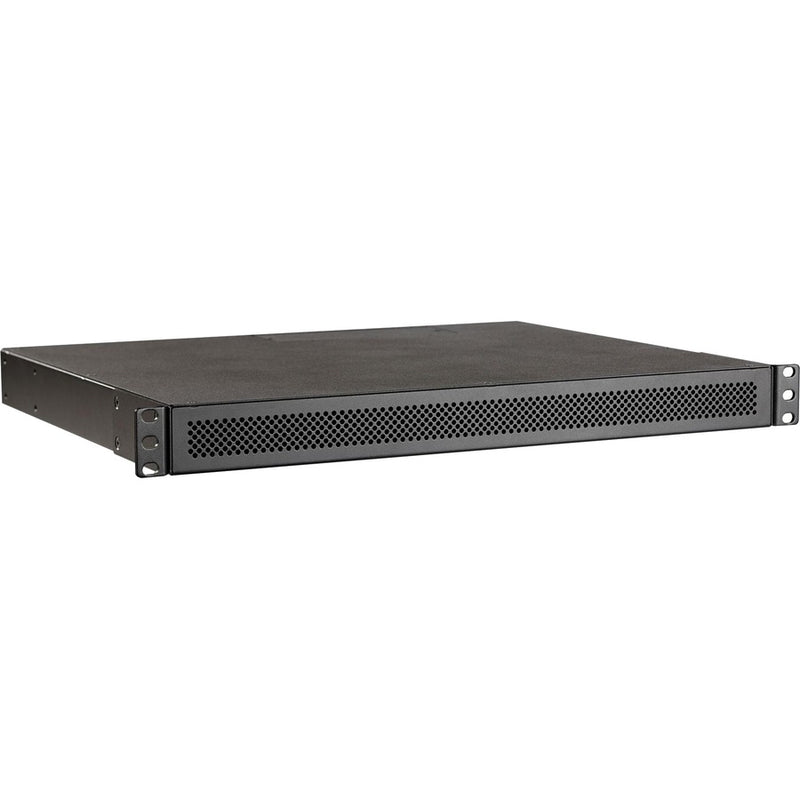

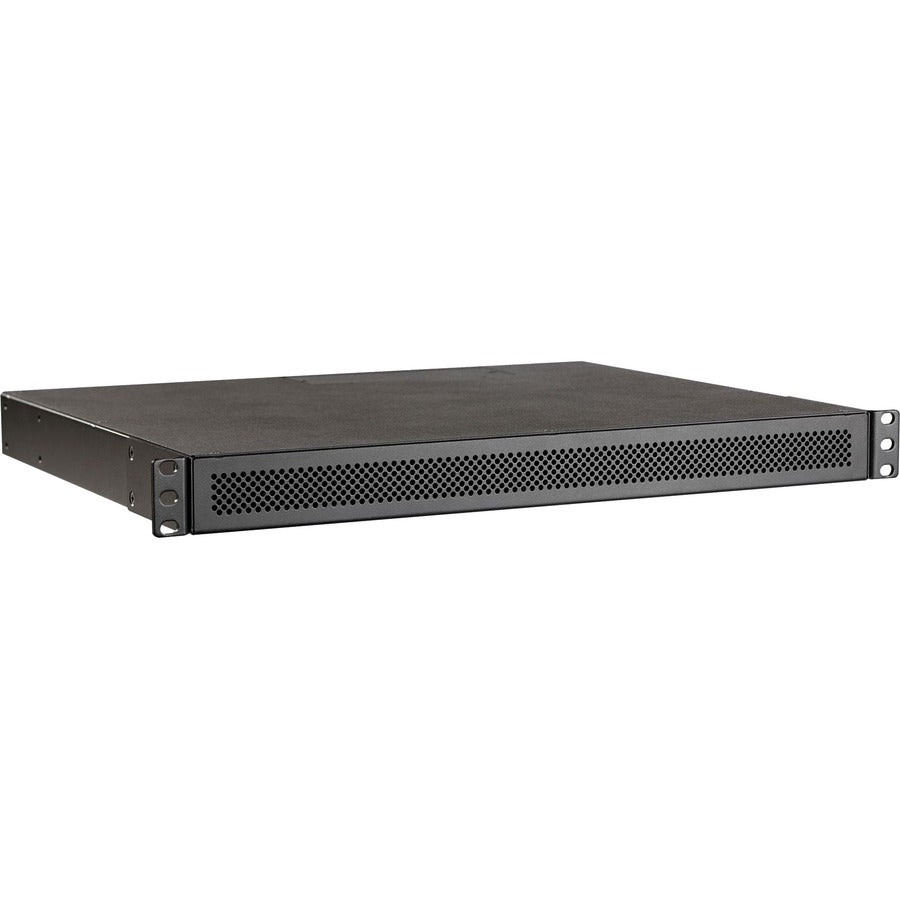

Eaton ATS rack PDU, 1U, (2) L6-30P input, 5.76 kW max, 208-240V, 24A, 10 ft cord, Single-phase, Outlets: (1) L6-30R

Eaton ATS rack PDU, 1U, (2) L6-30P input, 5.76 kW max, 208-240V, 24A, 10 ft cord, Single-phase, Outlets: (1) L6-30R
The Eaton EATS30 Monitored rack automatic transfer switch operates at 200-240 volt single-phase 24 amps. The dual inputs are through two 10-foot cords with L6-30P plugs and output is through a single L6-30R receptacle. The transfer switch features fast 10 ms transfer between sources, supports out-of-phase (non-synchronous) power sources and has remote monitoring through the included network card using SNMP or a web browser.

• Dual input rack automatic transfer switch with intelligent control and monitoring
• Fast transfer time of 10ms to ensure equipment uptime and reliability
• Intelligent control circuitry supports out-of-phase power sources (non-synchronized) for reliablity
• Network connectivity supports voltage, current and transfer monitoring over SNMP or using a standard web browser
• Supports high power devices or allows for connection of a rack power distribution unit to support multiple receptacles
• Low profile, 1U rackmount design

• Offers remote monitoring and email alerts with included network card


• Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD


• Power is transferred back to the primary source when it is automatically restored


• Provides power redundancy to equipment with 1 or 2 power supplies


• Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
