Description

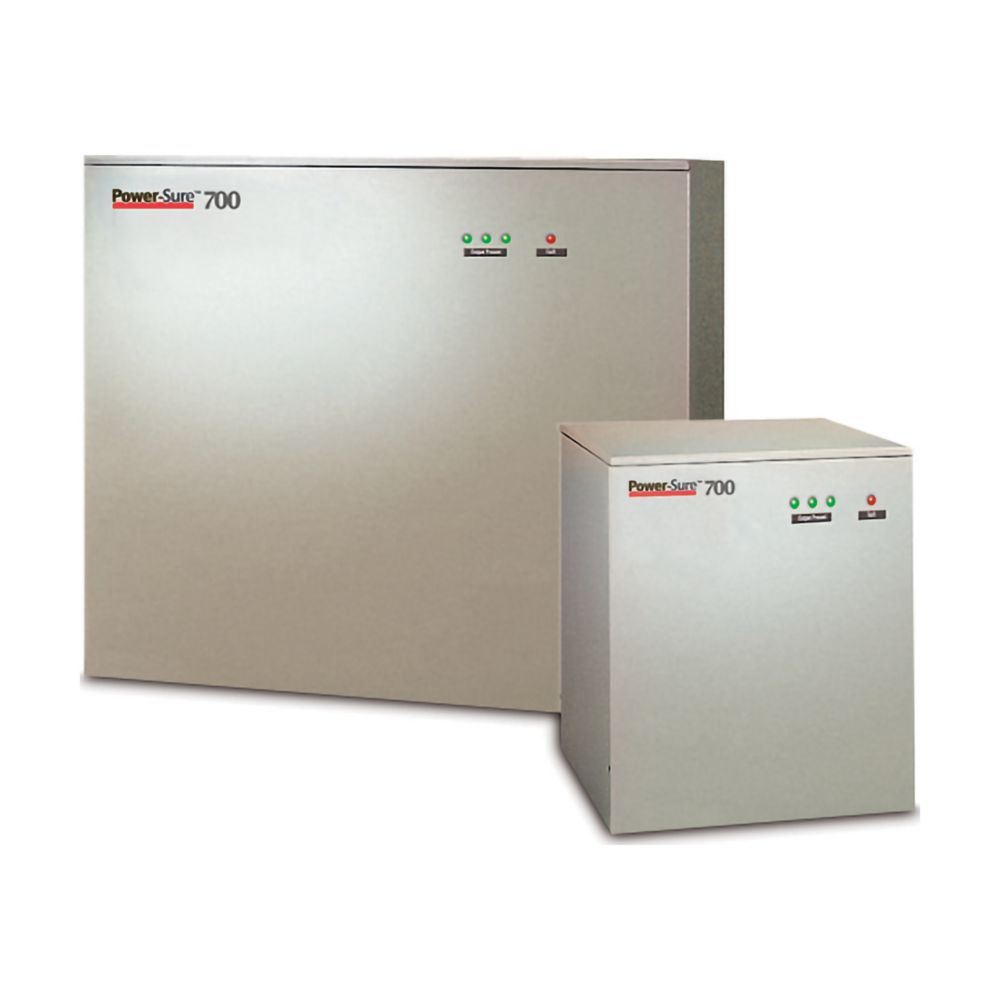

The Eaton Power-Sure 700 TDN-030K-6 is a high-performance 30kVA power conditioner designed to deliver maximum protection and power quality for sensitive three-phase equipment. With a typical efficiency of 97%, this line conditioner ensures consistent voltage regulation, noise suppression, and surge protection. Its rugged transformer-based design and hardwired output make it ideal for demanding industrial and commercial environments. The unit features onboard metering, LED indicators for voltage regulation and over-temperature conditions, and operates efficiently in a wide temperature range. With CSA, UL 1012, and FCC Cat. A certifications, the Power-Sure 700 guarantees reliable performance and regulatory compliance.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | Power-Sure 700 TDN |
| Catalog Number | TDN-030K-6 |
| Power Rating | 30 kVA |
| BTU Rating | 3090 BTU/h |
| Efficiency | 97% typical, 95% minimum |
| Topology | Line conditioner (transformer type) |
| Phase | Three-phase |
| Input/Output Voltage | 480Y/277V |
| Output Connection | Hardwired |
| Indicators | 3 Green LEDs (voltage), 1 Red (temp) |
| Bypass | Optional |
| Operating Temp Range | -10Ā°C to 40Ā°C |
| Mounting Type | Floor-standing |
| Dimensions (H x W x D) | 44.2" x 22.2" x 29" |
| Weight | 720 lb |
| Certifications | CSA, UL 1012, FCC Class A |
| Warranty | 1 Year |
| UPC | 743172022875 |
