Description

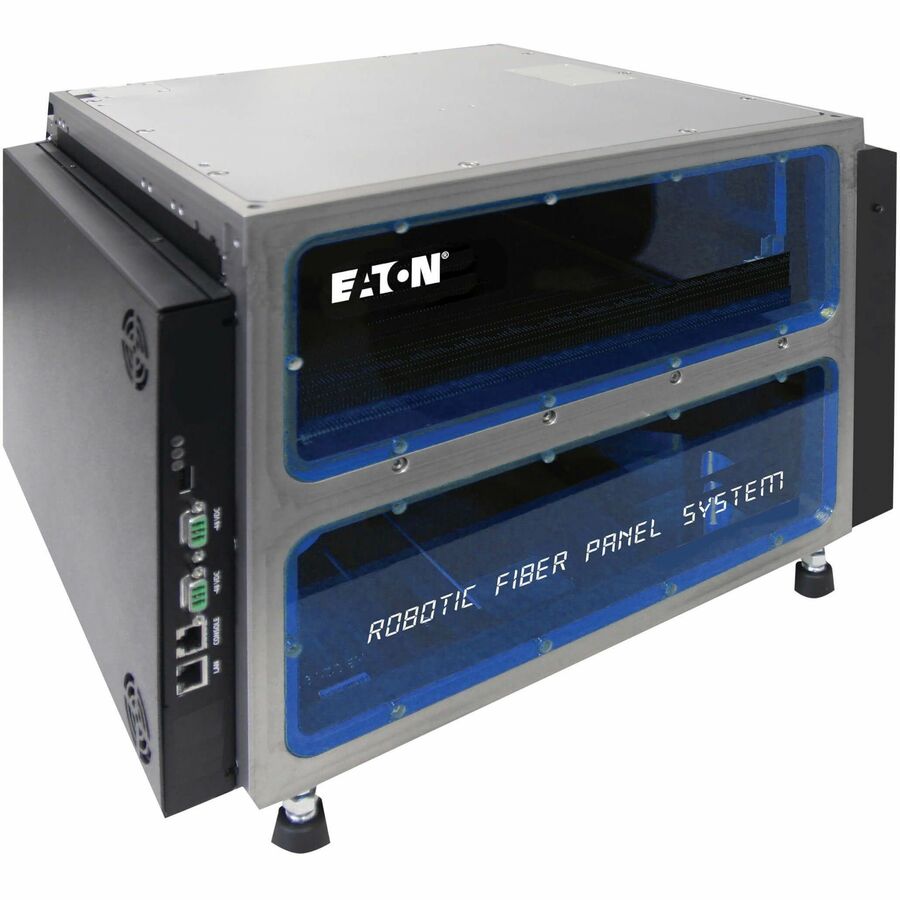

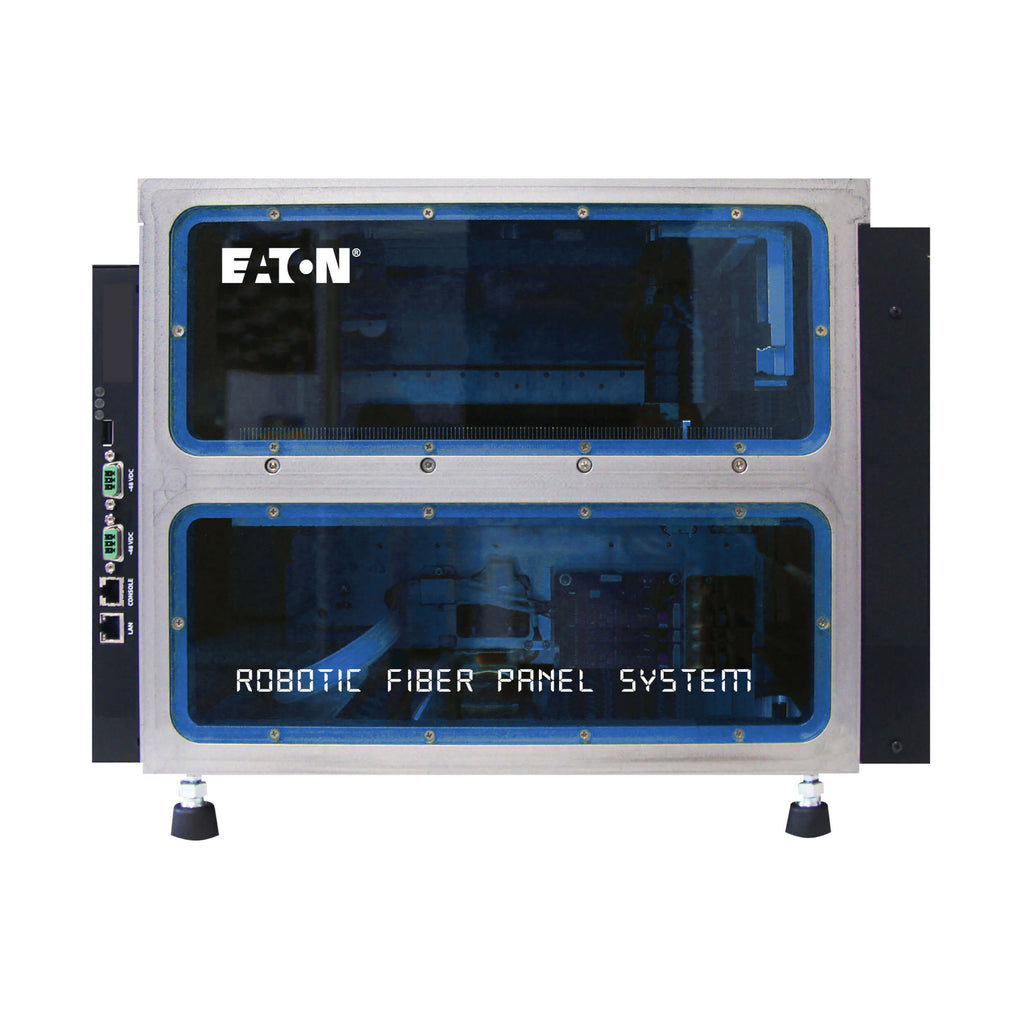

The Eaton Tripp Lite NRFP-204MM-MINI is a compact, rack-mountable robotic fiber panel system designed for automated, remote-controlled management of multimode LC fiber connections. Featuring 204 simplex (102 duplex) LC multimode OM4 fiber ports, this 7U TAA-compliant unit offers unparalleled precision with robotic latching, rapid 15-second switching time, and the ability to reconfigure physical connections without manual intervention.
Perfect for edge computing, containerized data centers, and remote IT sites with limited fiber resources, this mini robotic fiber switch enhances operational efficiency, reduces downtime, and lowers CapEx/OpEx by minimizing human errors and equipment redundancy. Integrated software allows IT managers to remotely schedule tasks, monitor usage, and maintain full control of fiber infrastructure from virtually anywhere.
| Specification | Details |
|---|---|
| Model | NRFP-204MM-MINI |
| Fiber Type | Multimode OM4 |

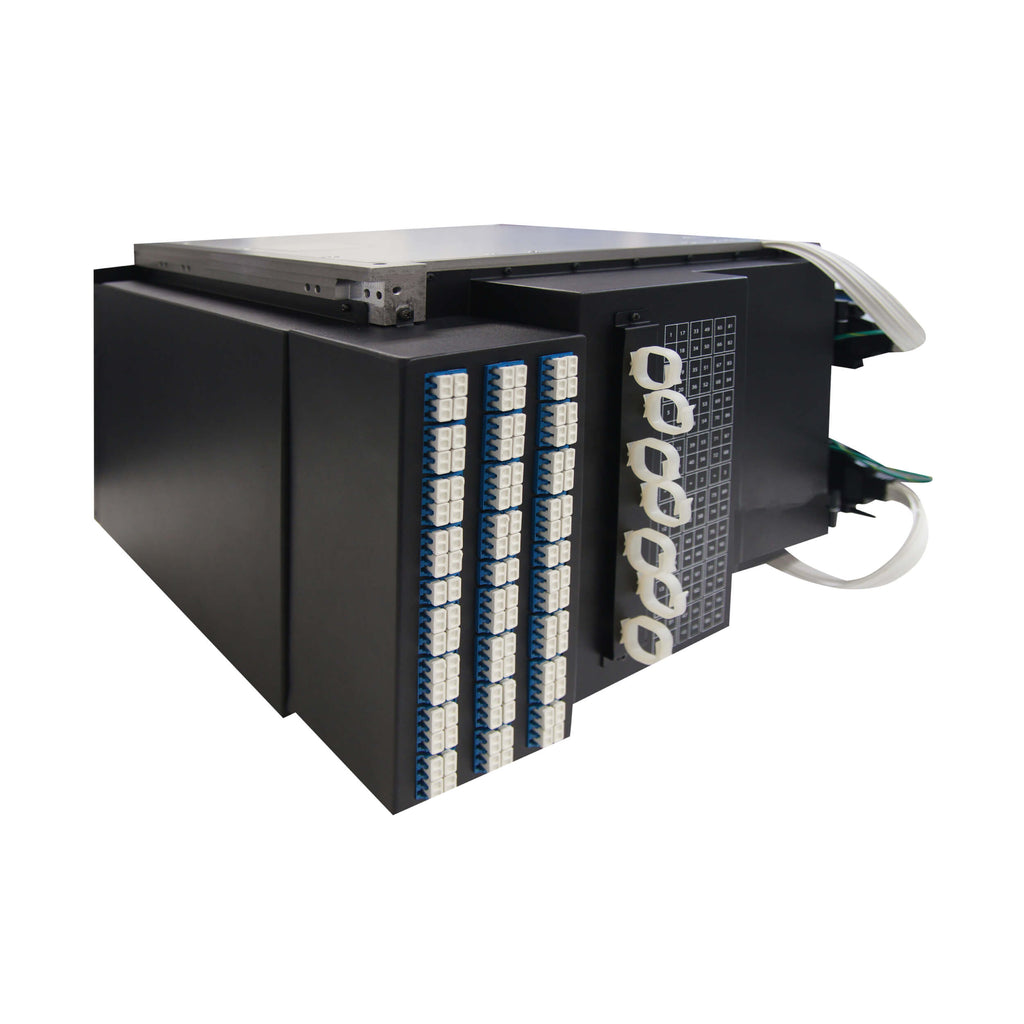

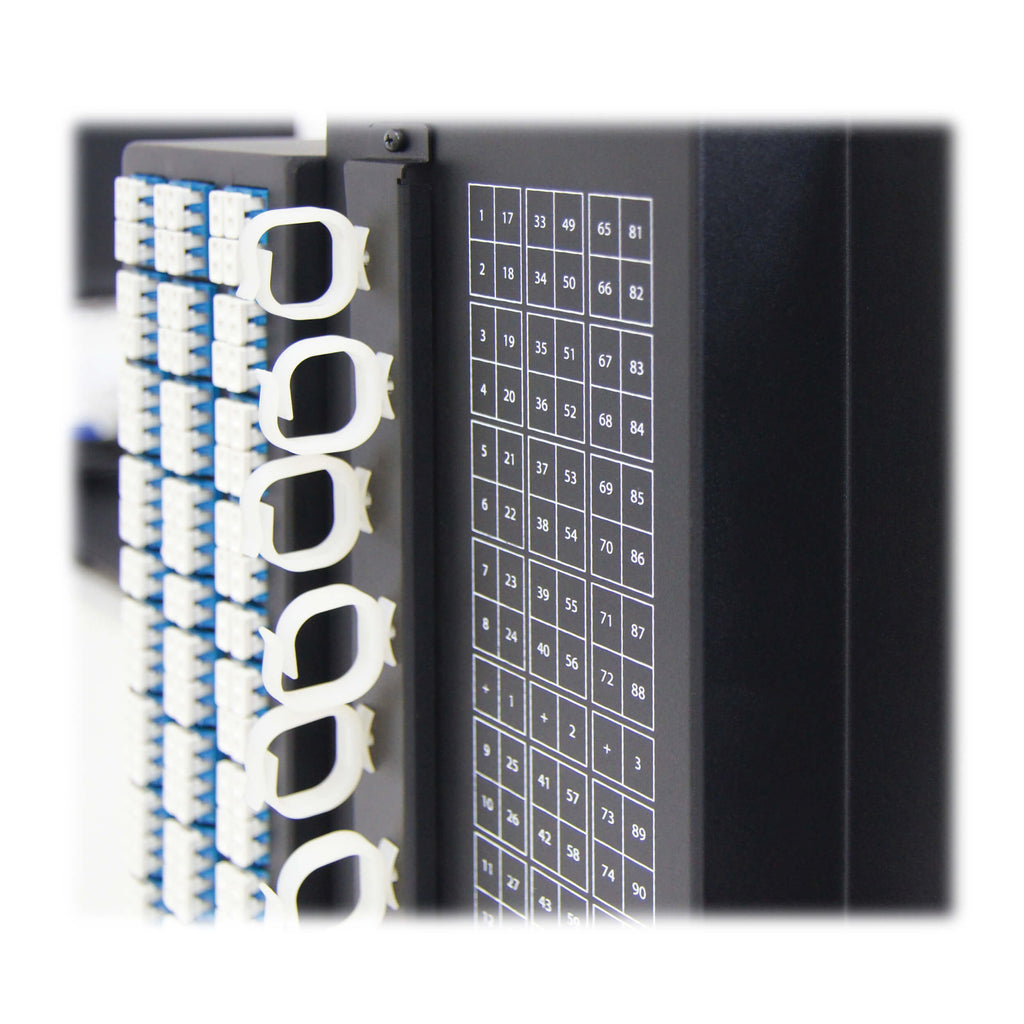

| Fiber Ports | 204 Simplex (102 Duplex) LC UPC |
| Insertion Loss | 1.0 dB Max (0.5 dB Typical) |
| Return Loss | -25 dB (Multimode) |
| Switching Time | 15 seconds (typical) |
| Power Supply | DC + DC |
| LCU Power Input | -48 VDC, BA |
| Power Consumption | 50W standby / 150W peak |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Humidity (non-condensing) | 5% to 95% |
| Dimensions (H x W x D) | 12.25 x 19 x 20 in. (7U height) |
| Mounting Depth | 20 in. |
| Weight | 80 lb (36.3 kg) |
| Ethernet Interface | RJ45 |
| Console Ports | RJ45 & DB9 |
| Certifications | UL, CSA, CE, FCC Class A, RoHS, REACH, TAA Compliant |
| Included Software | Custom management software with remote control & scheduling capabilities |
| Recommended Applications | Edge computing, remote sites, containerized data centers |
