Description
The Tripp Lite PDUMNH20AT1 is a single-phase, network-managed automatic transfer switch (ATS) rack PDU designed to deliver highly available power to mission-critical IT and network equipment. Built for data centers, network closets, and government or enterprise environments, this PDU ensures continuous uptime by automatically switching between two independent power sources in milliseconds.
Featuring 16 NEMA 5-15/20R outlets, dual 12-foot input power cords, and a built-in LX Platform network management interface, the PDUMNH20AT1 provides real-time monitoring of voltage, frequency, and load levels through a secure HTML5 web interface. A front-panel digital ammeter allows on-site current monitoring to help prevent overloads and maintain proper load balance.
The compact 1U horizontal rackmount design installs easily in standard 19-inch racks and supports wall or under-counter mounting when needed. With TAA compliance, this ATS PDU is well-suited for federal, commercial, and industrial deployments requiring redundant power, remote visibility, and dependable performance.
| Specification | Details |
|---|---|
| Product Type | Automatic Transfer Switch (ATS), Monitored Rack PDU |
| Model Number | PDUMNH20AT1 |
| Input Phase | Single-Phase |
| Input Voltage | 100 / 120 / 127 V |
| Recommended Service | 20A, 120V |
| Maximum Load | 1.92 kW @ 120V (16A de-rated) |
| Input Connections | Dual power sources with automatic transfer |

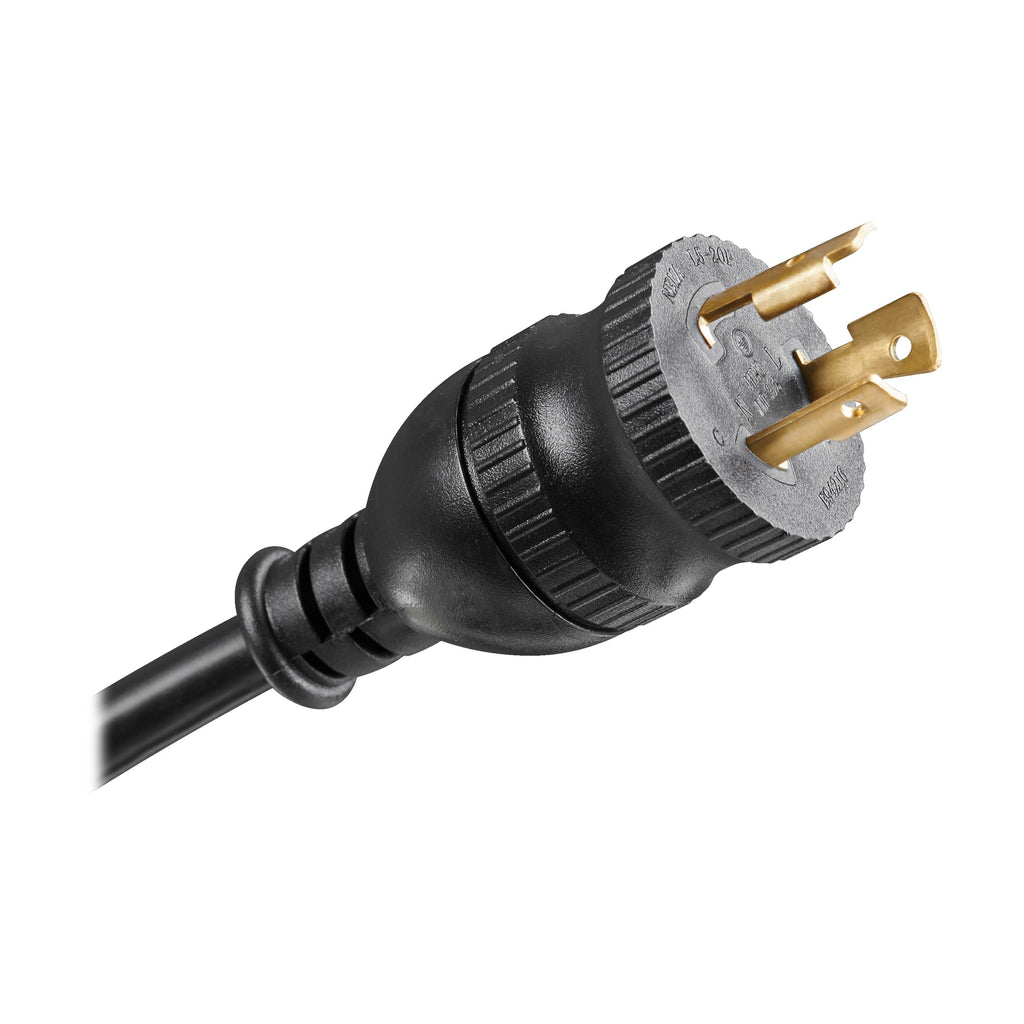

| Input Cord Length | 12 ft (3.66 m) per cord |
| Output Receptacles | 16 × NEMA 5-15/20R |
| Output Frequency | 50 / 60 Hz |
| Monitoring | Remote voltage, frequency, and load monitoring |
| Network Interface | LX Platform (HTML5, SNMP, SSH, Telnet) |
| Local Display | Digital front-panel ammeter |
| Transfer Time | 2–7 milliseconds |
| Rack Size | 1U, horizontal mount |

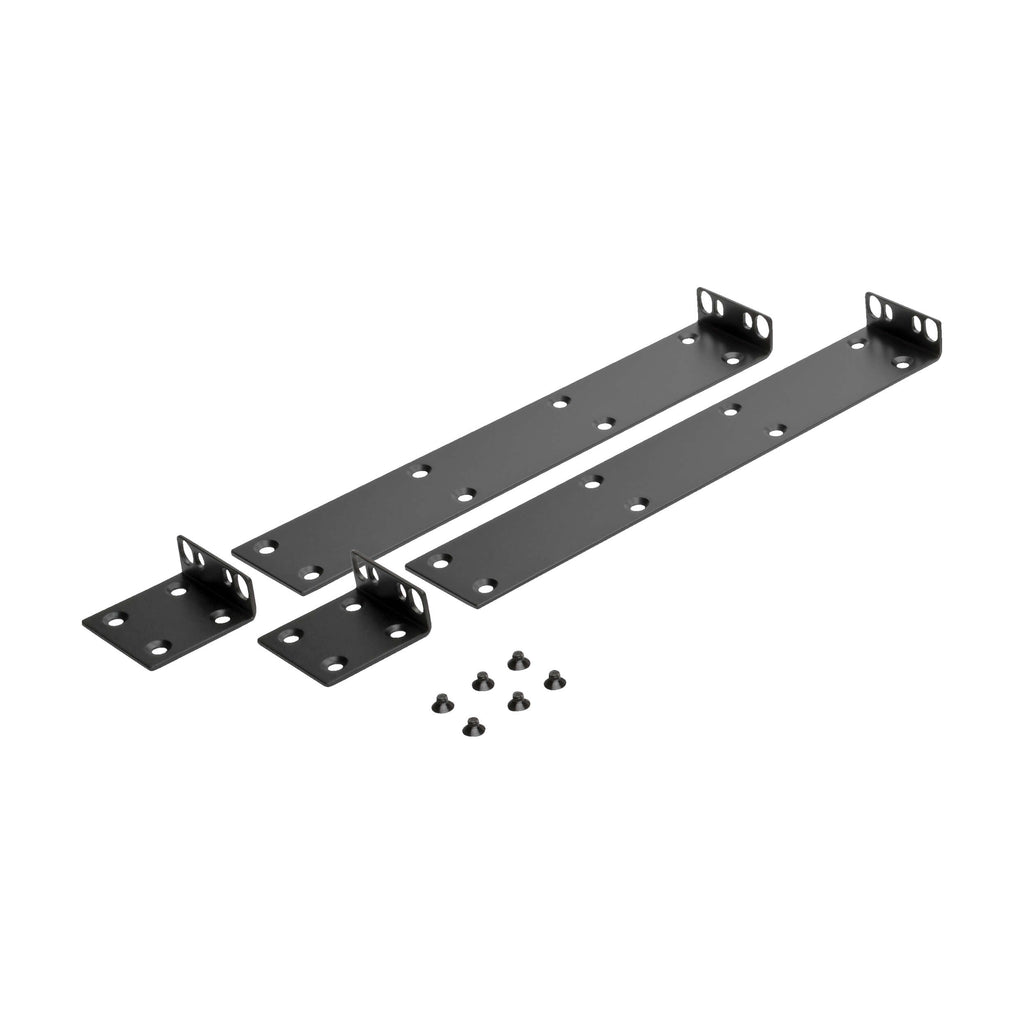

| Mounting Options | Rackmount, wall, or under-counter |
| Construction | All-metal housing |
| Compliance | TAA compliant |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Warranty | 2-year limited |
