Description

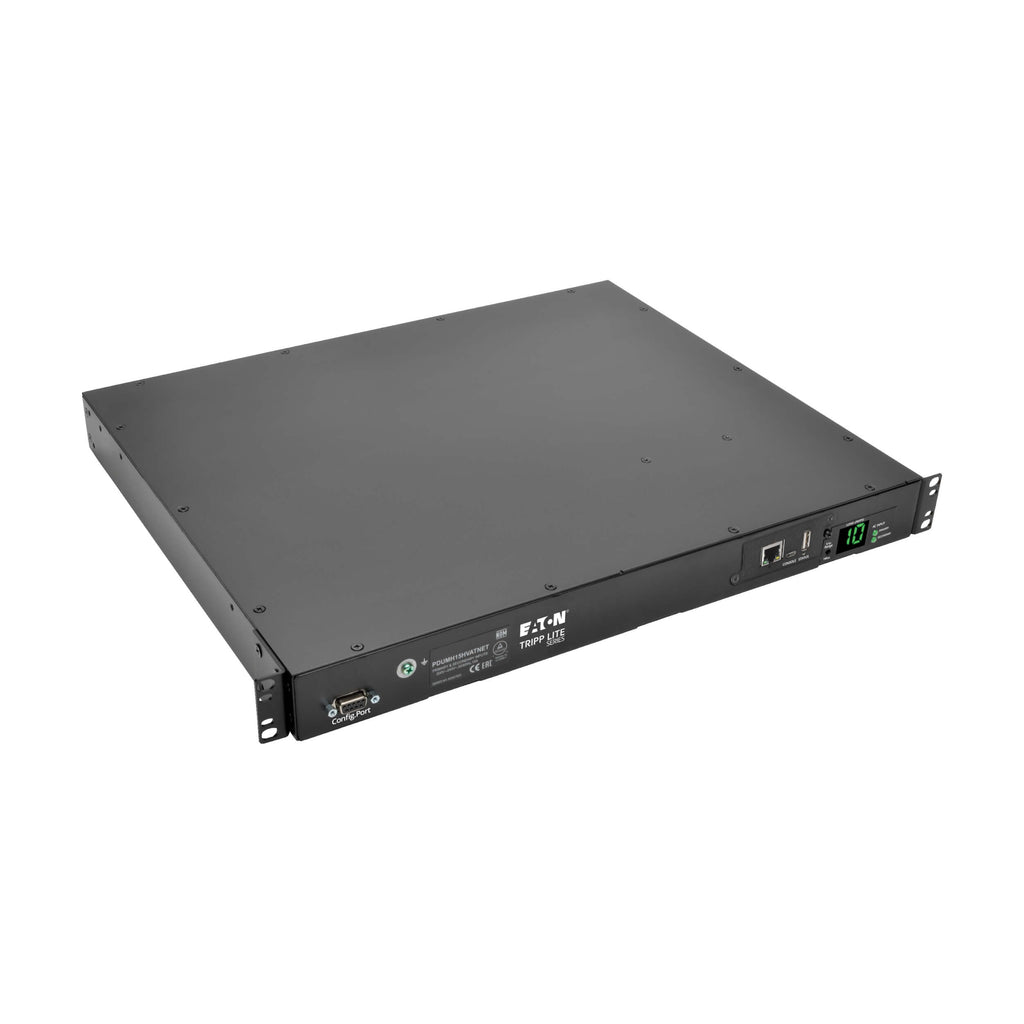

The Eaton Tripp Lite PDUMH15HVATNET is a high-availability 2–2.4kW automatic transfer switch (ATS) PDU designed to provide redundant power for single-corded network and IT equipment. Ideal for data centers, server rooms, and network closets, this 1U rack-mount PDU ensures uninterrupted operation by instantly switching between primary and secondary power sources if one becomes unstable or fails.
This network-managed PDU features 10 IEC C13 outlets, including eight individually switched outlets for remote rebooting, load shedding, and power cycling of connected devices. Built-in network connectivity enables real-time monitoring, control, and automation through a secure web interface, SNMP, SSH, and other standard management protocols.
With dual 200–240V C14 inputs, millisecond-level transfer switching, front-panel load monitoring, and TAA compliance, the PDUMH15HVATNET is a reliable power distribution solution for mission-critical infrastructure requiring redundancy, visibility, and remote control.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | PDUMH15HVATNET |
| PDU Type | Automatic Transfer Switch (ATS), Switched |
| Mounting | Horizontal rack mount |
| Rack Height | 1U |
| Input Voltage | 200–240V AC |
| Input Phase | Single-phase |
| Input Connections | (2) IEC C14 inlets (Primary & Secondary) |
| Input Cord Length | 12 ft (3.66 m) each |
| Output Capacity | Up to 2.4 kW |

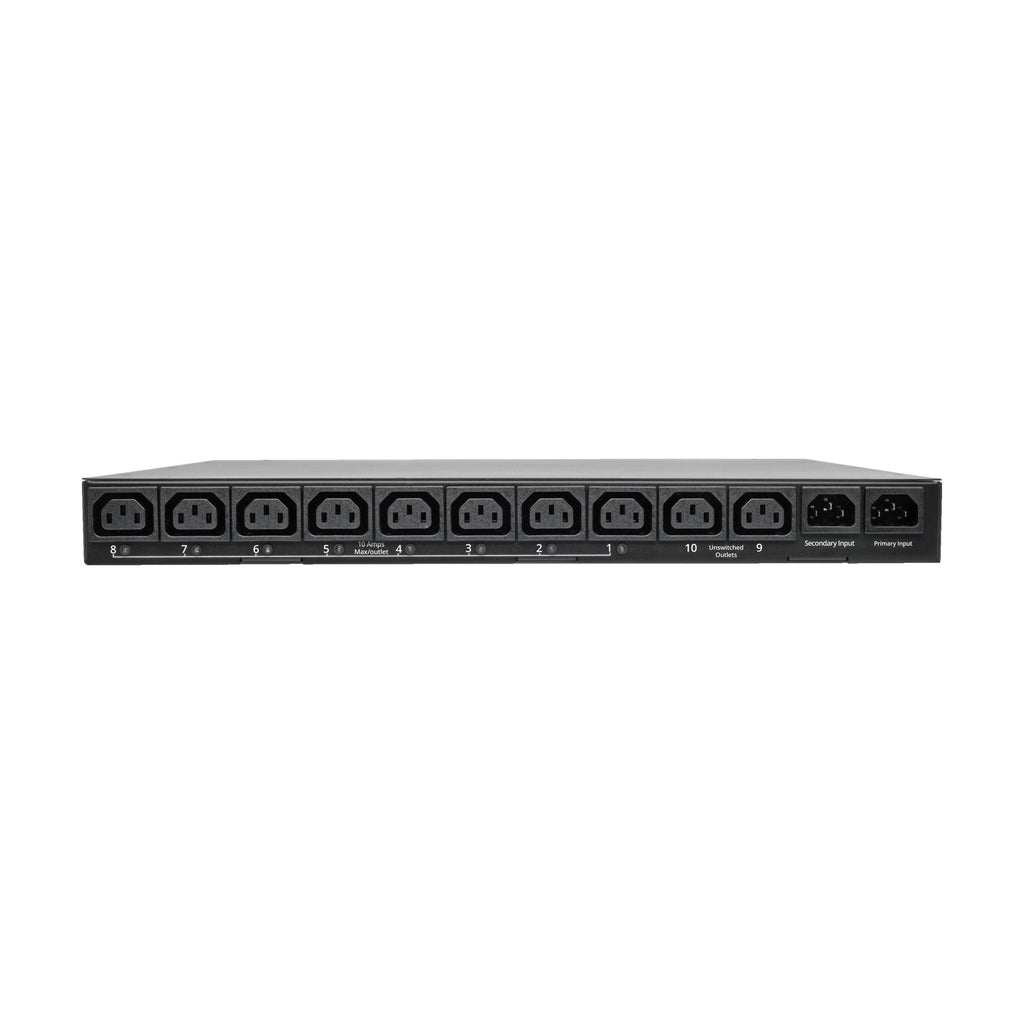

| Output Receptacles | (10) IEC C13 |
| Switched Outlets | 8 switched, 2 unswitched |
| Maximum Current | 10A total |
| Frequency | 50 / 60 Hz |
| Transfer Time | 2–5 milliseconds |
| Network Interface | RJ45 Ethernet |
| Management | Web, SNMP, SSH, Telnet |

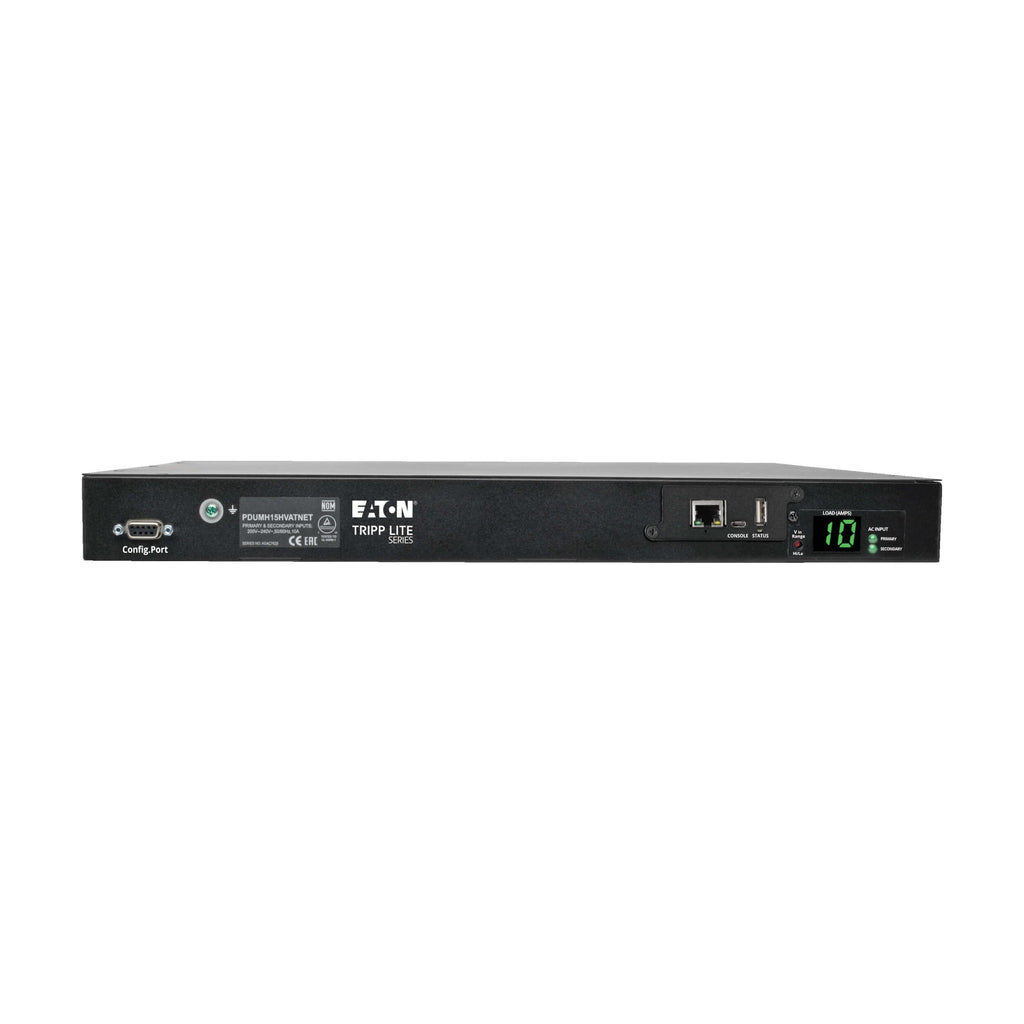

| Front Panel Display | Digital load meter (amps) |
| Outlet Indicators | Individual outlet LEDs |
| Voltage Selection | 200/208V or 220/230/240V |
| Construction | Steel chassis |
| Compliance | TAA compliant |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Warranty | 2-year limited |
