Description

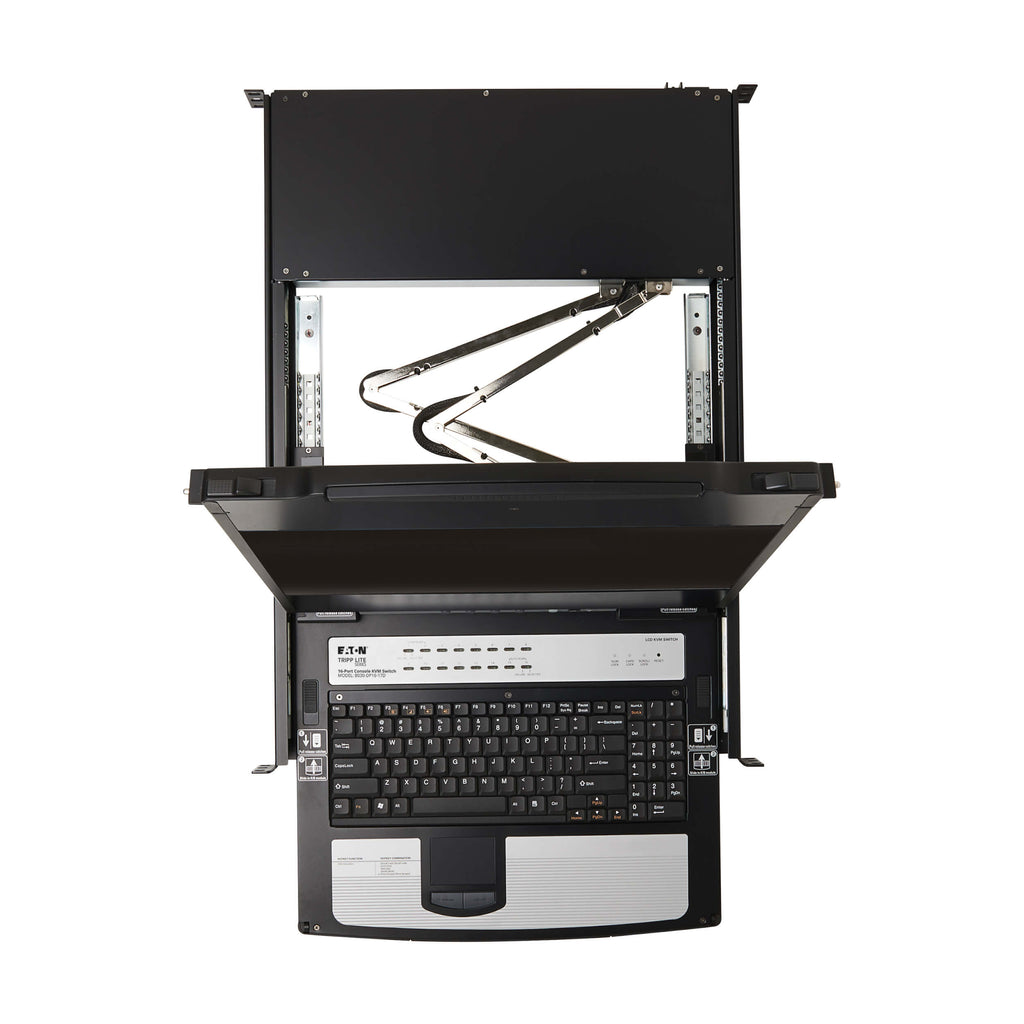

The Eaton Tripp Lite B030-DP16-17D NetDirector DisplayPort KVM Switch Console combines a 17-inch Full HD LCD, 16-port DisplayPort switching, and a dual-rail sliding design in a compact 1U rack-mount form factor. Designed to simplify management of up to 16 DisplayPort-enabled computers or servers, this KVM switch allows shared access via a single keyboard, mouse, and monitor.
It supports full 1080p HD video at 60Hz, features built-in DDC emulation for optimized display resolution, and integrates a USB 1.1 hub for peripherals. Multiple switching options—pushbuttons, hotkeys, or OSD—allow fast toggling between systems, while advanced multi-level password protection ensures secured access. TAA-compliant and built for enterprise data centers, server rooms, and government installations.
| Specification | Details |
|---|---|
| Model Number | B030-DP16-17D |
| Number of Ports | 16 DisplayPort + USB (for keyboard/mouse) |
| Display | 17-inch LCD, Dual Rail, 1920 x 1080 @ 60 Hz |
| Video Interface | DisplayPort 1.1, HDCP 1.4 |
| Max Video Resolution | 1920 x 1080 (1080p) @ 60Hz |
| Console Interface | USB keyboard/touchpad, DisplayPort monitor |
| Computer Interface | DisplayPort + USB |
| Port Switching Methods | On-console pushbuttons, Hotkeys, OSD |
| USB Hub | 1 x USB 1.1 Type-A (front panel) |
| Power Input | 100–240V AC, 50/60Hz, 1A, IEC-320-C14 inlet |
| Power Consumption | 33.3 Watts |
| Mounting | 1U Rack-Mount (EIA-standard 19 in. rack), Dual Rail |
| Construction | Metal and Plastic |
| Dimensions (H x W x D) | 1.73 x 18.90 x 26.77 in (4.4 x 48 x 68 cm) |
| Weight | 31 lbs (14.06 kg) |
| Shipping Dimensions | 5.70 x 27.00 x 32.75 in (43.3 lbs total shipping weight) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | 0–80% non-condensing |
| Compliance | TAA, RoHS, REACH |
| Warranty | 1-Year Limited Warranty |

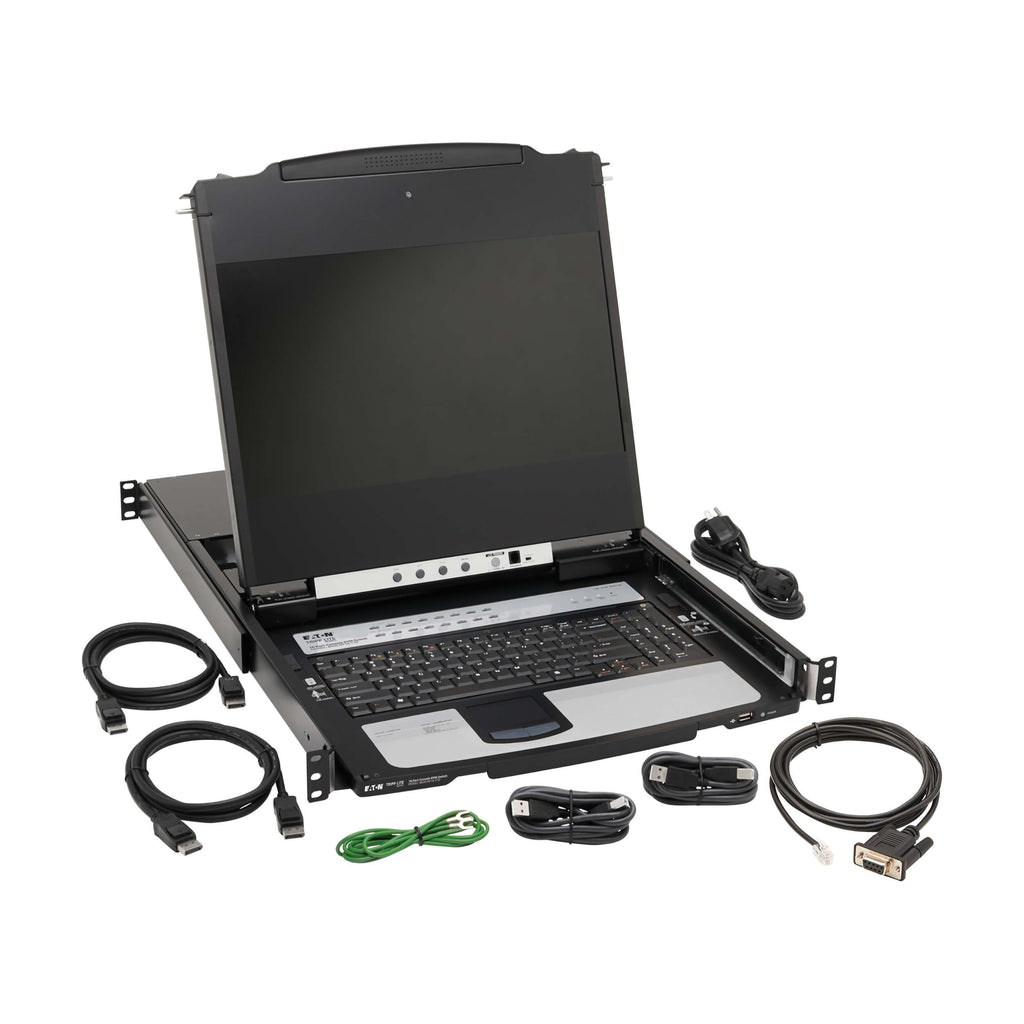

| Included Accessories | DisplayPort and USB cables, power cord, RJ11 cable, grounding wire, manual |
