Description

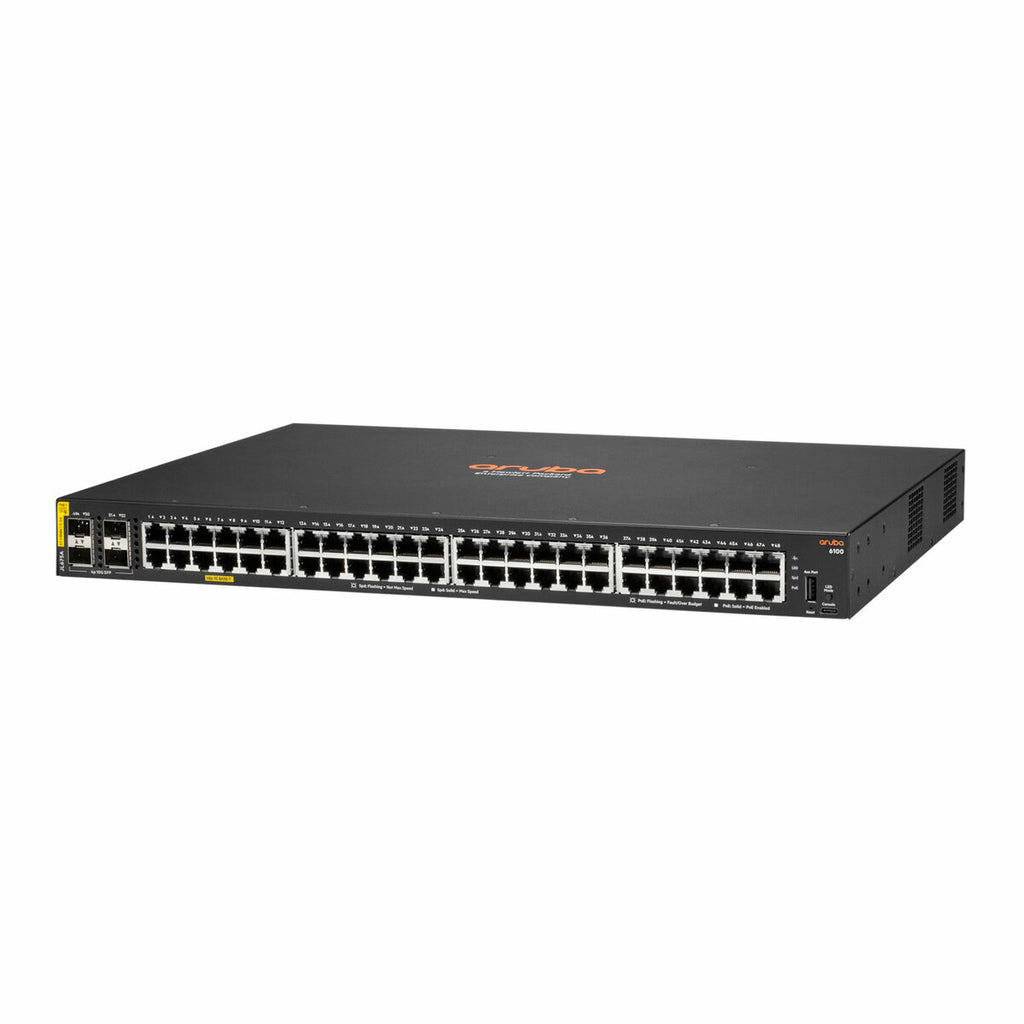

The HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A#AKM) is a fully managed Layer 2 access switch ideal for branch offices, SMBs, and mid-market enterprises. Part of the CX 6100 series, it delivers robust, reliable wired connectivity for IoT, mobile, and cloud applications. Featuring 48 Gigabit PoE+ ports and 4 SFP+ uplinks, this model supports up to 370W of Class 4 PoE power, making it perfect for powering access points, IP cameras, and other devices.
With side-to-side airflow, rack-mountable design, and support for AOS-CX, this switch ensures seamless integration into your existing infrastructure. Benefit from simplified management with Aruba Central, CLI, Web GUI, and REST APIs — all without subscription-based licensing.
| Specification | Details |
|---|---|
| Model Number | JL675A#AKM |
| Switch Type | Fully Managed Layer 2 |
| Ports | 48 x 10/100/1000BASE-T (PoE+) |
| 4 x SFP+ (1G/10G) | |
| PoE Power Budget | 370W (Class 4 PoE / IEEE 802.3at) |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Latency | 1 Gbps: 1.9 µs, 10 Gbps: 1.8 µs |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 4 GB DDR3 RAM, 16 GB eMMC |
| Airflow | Side-to-side airflow |
| Power Input | 100–127 VAC / 200–240 VAC |
| Max Power Consumption | 480W (with PoE), 45W (without PoE) |
| Form Factor | 1U Rack-mountable |
| Dimensions (W x D x H) | 17.4 x 12.0 x 1.73 in (44.2 x 30.5 x 4.4 cm) |
| Weight | 11.07 lbs (5.02 kg) |
| Management Options | Web GUI, CLI, Aruba Central, REST APIs |
| Operating System | Aruba AOS-CX |
